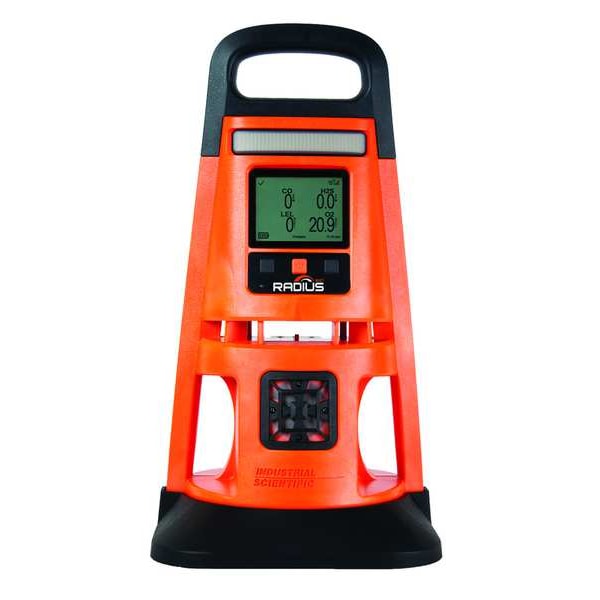

Radius BZ1 Multi-Gas Detector, IP66, Audible, Vibrating, Visual, LCD with Backlight
| Item | Multi-Gas Detector |
|---|---|
| Gas Detected | Carbon Monoxide, Hydrogen Sulfide, LEL, Methane, Oxygen |
| Alarm Type | Audible, Visual, Vibrating |
| Alarm Setting | Adjustable |
| Battery Life | 79 hr |
| Operating Temp. Range | -20 Degrees C to 55 Degrees C |
| Standards | CSA Certified, UL Listed |
| Sensor Range | 0 to 100% LEL, H2S 0 to 500 ppm, O2 0 to 30.0% |
| IP Rating | IP66 |
| Series | Radius BZ1 |
| Display Screen Type | LCD with Backlight |
| Chemical Formula | CH4, CL2, CLO2, CO, CO/H2, CO2, H2, H2S, HC, HCL, HCN, NH3, NO, NO2, O2, PH3, SO2 |
| Housing Color | Orange |
| Features | Detect Up to Seven Gases Using 22 Sensor Options Including PID, Extended Run Time Power Supply can Extend Battery to Over 1 Month, Run Time of 7 Days (168 Hours), Ultra-Bright Blue and Red Lights |
| Includes | Calibration Cup, Charging Power Supply, Hand Tool, Pump Inlet Water Barrier, Region Specific Cord, Sample Tubing |
| PID Ionization Energy Level | 10.6 eV |
| Resolution | 1% LEL, Hydrogen Sulfide 0.1 ppm, Oxygen 0.1% vol |
| Power Source | Battery |
| Status Indicator | LED |
| Alarm Volume Level | 108 dB @ 3.3 ft |
| Receiver Range | 1,000 ft |
| Temperature Code | T4 |
| Data Logger | Yes |
| Display Size | 4.4 in |
| Overall Height | 21-1/2 in |
| Operating Humidity - Minimum | 15 % |
| Display Type | Digital |
| Replaceable Battery | Yes |
| Sensor Type | Electrochemical, Catalytic, Photo Ionization, Infrared |
| Operating Humidity - Maximum | 95 % |
| Manufacturer Warranty Length | 2 yr |
| Visual Alert Type | LED, Red LED |
| Operating Temperature - Minimum | -4 deg F |
| Includes Probe | Yes |
| Communication Protocol | Wireless |
| Number of Gases Detected | 3 |
| Battery Chemistry | Nickel Metal Hydride |
| Overall Depth | 11-1/2 in |
| Operating Temperature - Maximum | 131 deg F |
| Alert Type | Sound, Light |
| Rechargeable Battery | Yes |
| Number of Peers - Maximum | 25 |
| Measurement Range | Carbon Monoxide (0 to 1500 ppm), Hydrogen Sulfide (0 to 500 ppm), Oxygen (0 to 30% vol in 0.1%) |
| Includes Mounting Hardware | Yes |
| Overall Width | 11-1/2 in |
| Operating Frequency | 2.405 to 2.480 GHz |
| Resistance Properties | Impact Resistant, Weather Resistant |
| Number of Sensors | 6 |
| Alarm Setting Adjustment | Adjustable Alarm Setting |
| Product Type | Area Gas Monitor |
| Country of Origin (subject to change) | United States |
| Package Quantity | 1 |
