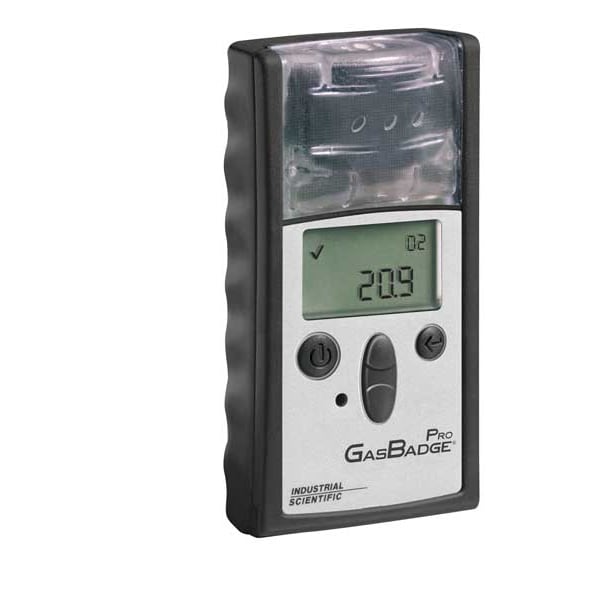

Single Gas Detector, Chlorine Dioxide
| Item | Single-Gas Detector |
|---|---|
| Includes | Attached Suspender Clip, Calibration Adapter and Tubing, Operating Instruction |
| Features | Standard TWA and STEL |
| Gas Type | ClO2 |
| Standards | ANZEx: Ex ia I/IIC T4, ATEX Ex ia I/Ex ia IIC T4, China Ex: Ex ia I/IIC T4, Cl II, Gr E-G, CMA: Ex ia I, CSA: Cl I, Gr A-D T4, Equipment Group and Category I M1/II 1G, Ex ia IIC T4, IECEX: Ex ia I/IIC T4, INMETRO: Ex ia IIC T4,UL: Cl I, Div 1, Gr A-D, T4, KC: Ex ia I/IIC T4 |
| Depth | 0.8 in |
| Detects | Chlorine Dioxide |
| Display | Backlit LCD |
| Sensor Range | 0 to 1 ppm |
| Battery Type | CR2 Lithium |
| Interchangeable Sensors | Yes |
| Resolution | 0.01 ppm |
| Battery Life | 2,600 hr |
| Height | 3.68 in |
| Width | 2 in |
| Alarm Setting | Adjustable |
| Alarm Type | Audible, Vibrating |
| Status Indicator | LED |
| Product Type | Single-Gas Detector |
| Number of Gases Detected | 1 |
| Manufacturer Warranty Length | 1 yr |
| Includes Mounting Hardware | Yes |
| Rechargeable Battery | No |
| Display Screen Type | LCD |
| Series | GasBadge Pro |
| Sensor Type | Infrared |
| Operating Temperature - Minimum | -40 deg F |
| Housing Color | Black |
| Operating Temperature - Maximum | 140 deg F |
| Maintainability | Maintainable |
| IP Rating | IP64 |
| Power Source | Battery |
| Overall Height | 3.7 in |
| Alarm Setting Adjustment | Adjustable Alarm Setting |
| Communication Protocol | PC-Compatible Interface |
| Battery Voltage | 3 V |
| Overall Depth | 1.1 in |
| Temperature Code | T4 |
| Overall Width | 2 in |
| Operating Humidity - Maximum | 99 % |
| Chemical Formula | CL2, CLO2, CO, CO/H2, H2, H2S, HCN, NH3, NO2, O2, PH3, SO2 |
| Measurement Range | Chlorine Dioxide (0 to 1 ppm in 0.01 ppm) |
| Battery Chemistry | Lithium |
| Number of Batteries Required | 1 |
| Gas Detected | Chlorine Dioxide |
| Sensor Life | 1 yr |
| Accuracy | +/-10% (At Temperature of Calibration), +/-15% (Over Full Measurement Temperature) |
| Battery Size | 2 CR |
| Includes Probe | No |
| Housing Material | Polycarbonate |
| Operating Humidity - Minimum | 0 % |
| Resistance Properties | Water Resistant |
| Replaceable Battery | Yes |
| Data Logger | Yes |
| Alert Type | Vibration |
| Alarm Volume Level | 95 dB |
| Country of Origin (subject to change) | United States |
| Package Quantity | 1 |
