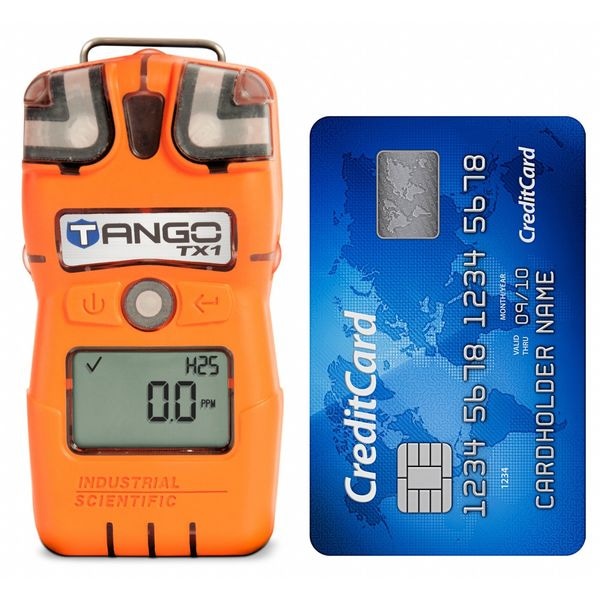

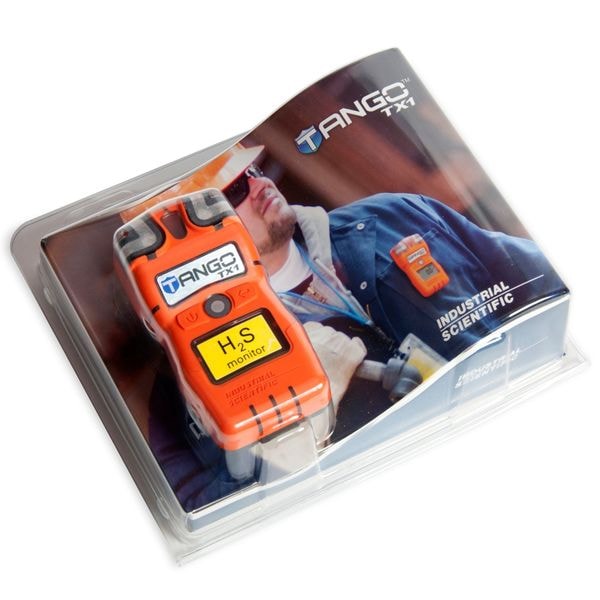

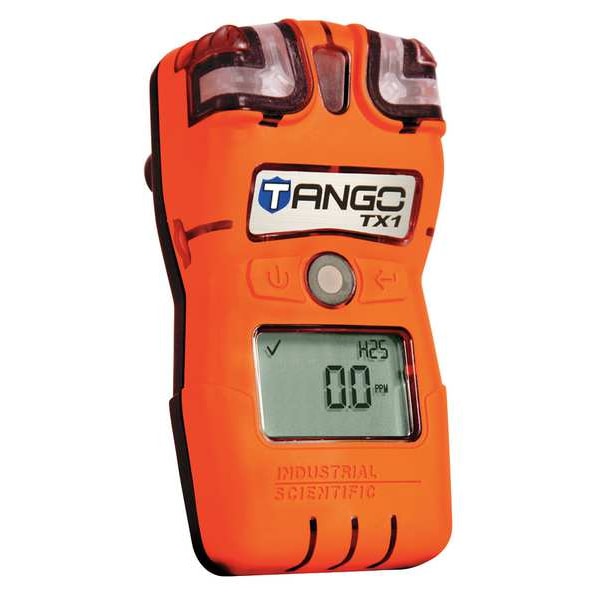

Single Gas Detector, H2S, 0-200ppm, Orange
| Item | Single-Gas Detector |
|---|---|
| Includes | Calibration Cup, Calibration/Bump Test Tubing, Suspender Clip |
| Features | IP67 Rated, Replaceable Battery, Replaceable Sensors, Two Button, Water and Dust Resistant |
| Gas Type | H2S |
| Standards | ANZEx: Ex ia s Zone 0 I, Ex ia s Zone 0 IIC T4, ATEX: Ex ia I, ATEX: Ex ia IIC T4 Ga, Cl II, Groups F G, Cl l Zone LEL 0, AEx ia d IIC T4 (or AEx ia d IIC T4 IR Sensor), CMA: Approval for Mining Products, CH4,O2,CO,CO2, CSA: Cl I, Gr A-D T4, EAC: PBExiadI X, 1ExiadIICT4 X, Equipment Group and Category: I M1/II 1G, Ex d ia IIC T4, Ex d ia IIC T4 Gb, Ex ia IIC T4 Ga, IECEX: Ex ia I (Ex ia d I IR Sensor), II 1G (or Ex d ia IIC T4 Gb IR Sensor), INMETRO: Ex ia IIC T4 Ga, KC: Ex d ia IIC T4, KIMM: Ex d ia IIC T4, MDR: Registration of Plant Design, CH4,O2,CO,H2S,NO2, MSHA: 30 CRF, Part 22, Intrinsically Safe for Methane/Air Mixtures, PA-DEP: BFE 114-08 Permissible for PA Bituminous Underground Mines, UL Class I Division 1, Groups A, B, C, D, T4 |
| Housing Color | Orange |
| Sensor Range | 0 to 200 ppm |
| Resolution | 0.1 ppm |
| Interchangeable Sensors | Yes |
| Alarm Type | Audible, Vibrating, Visual |
| Depth | 1-3/8 in |
| Detects | hydrogen Sulfide |
| Width | 2 in |
| Alarm Setting | Adjustable |
| Battery Type | 3.6V Lithium |
| Height | 3.9 in |
| Display | Backlit LCD |
| Battery Life | 2 yr |
| Status Indicator | LED |
| Temp. Range | -20 Degrees to +50 Degrees C, -4 Degrees to +122 Degrees F |
| Product Type | Single-Gas Detector |
| Overall Width | 2 in |
| Sensor Type | Electrochemical |
| Maintainability | Maintenance-Free |
| Series | Tango TX1 |
| Replaceable Battery | Yes |
| Data Logger | Yes |
| Measurement Range | 0 to 200 ppm |
| Operating Temperature - Minimum | -40 deg F |
| Rechargeable Battery | No |
| Alarm Volume Level | 100 dB @ 3.9 in |
| Display Screen Type | LCD |
| Communication Protocol | Not Applicable |
| Battery Size | 3.6V |
| Overall Height | 3.9 in |
| Gas Detected | Hydrogen Sulfide |
| Chemical Formula | CO, CO/H2, H2S, NO2, SO2 |
| Operating Humidity - Maximum | 95 % |
| Number of Gases Detected | 1 |
| Visual Alert Type | Blue LED, Red LED |
| Battery Chemistry | Lithium |
| Overall Depth | 1.38 in |
| Battery Voltage | 3.6 V |
| Operating Humidity - Minimum | 95 % |
| Temperature Code | T4 |
| Includes Probe | No |
| Operating Temperature - Maximum | 122 deg F |
| Alert Type | Vibration |
| IP Rating | IP66, IP67 |
| Country of Origin (subject to change) | United States |
| Package Quantity | 1 |
