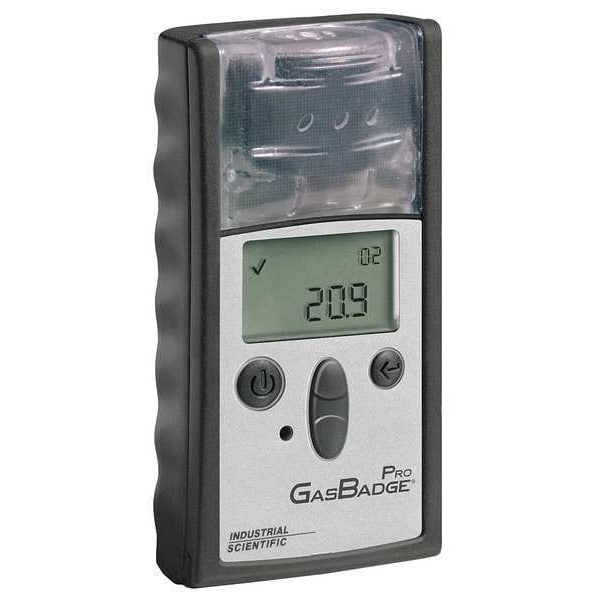

Single Gas Detector, Nitrogen Dioxide
| Item | Single-Gas Detector |
|---|---|
| Includes | Battery |
| Features | Display Backlight, DS2 Docking Station Compatible, Event Logging, Four-Button Operation, Top Mounted Sensor, User-Adjustable TWA and STEL Alarms, Water Resistant |
| Gas Type | NO2 |
| Standards | AEx ia IIC T4, T4- Class I, Zone 0, UL and cUL-Class I, Division 1, Groups A, B, C, D |
| Battery Type | CR2 Lithium |
| Alarm Type | Audible, Vibrating, Visual |
| Interchangeable Sensors | Yes |
| Width | 2 in |
| Resolution | 0.1 ppm |
| Depth | 1-1/8 in |
| Sensor Range | 0 to 150 ppm |
| Alarm Setting | Adjustable |
| Height | 3-45/64 in |
| Battery Life | 2,600 hr |
| Display | Graphical LCD |
| Detects | Nitrogen Dioxide |
| Housing Color | Black |
| Temp. Range | -40 Degrees to 60 Degrees C |
| Product Type | Single-Gas Detector |
| Overall Depth | 1.13 in |
| Maintainability | Maintainable |
| Manufacturer Warranty Length | 1 yr |
| Display Screen Type | LCD |
| Number of Gases Detected | 1 |
| Accuracy | +/-10% (At Temperature of Calibration), +/-15% (Over Full Measurement Temperature) |
| Includes Probe | No |
| Communication Protocol | Not Applicable |
| Battery Voltage | 3 V |
| Measurement Range | Nitrogen Dioxide (0 to 150 ppm) |
| Operating Humidity - Maximum | 99 % |
| Alarm Setting Adjustment | Adjustable Alarm Setting |
| Operating Temperature - Minimum | -40 deg F |
| Alert Type | Vibration, Light |
| Battery Size | 2 CR |
| Sensor Life | 1 yr |
| Replaceable Battery | Yes |
| Gas Detected | Nitrogen Dioxide |
| Battery Chemistry | Lithium |
| Operating Temperature - Maximum | 140 deg F |
| Data Logger | Yes |
| Power Source | Battery |
| Series | GasBadge Pro |
| Resistance Properties | Water Resistant |
| Operating Humidity - Minimum | 0 % |
| Overall Height | 3.7 in |
| Temperature Code | T4 |
| Alarm Volume Level | 95 dB |
| Overall Width | 2 in |
| Hazardous Location Specification | AEX IA IIC T4, T4 Class I Zone 0, Class I Divisions 1 Groups A, B, C, D |
| Includes Batteries | Yes |
| Chemical Formula | CL2, CLO2, CO, CO/H2, H2, H2S, HCN, NH3, NO2, O2, PH3, SO2 |
| Country of Origin (subject to change) | United States |
| Package Quantity | 1 |
