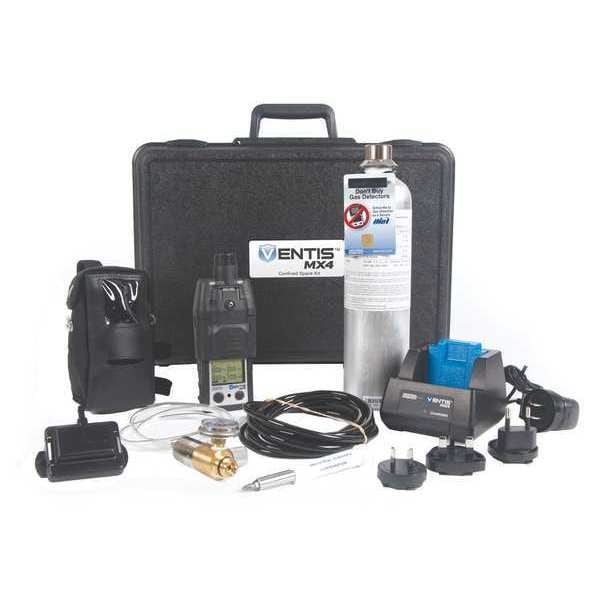

Ventis MX4 Multi-Gas Detector, IP66/IP67, Audible, Vibrating, Visual, LCD, 12 hr Battery Life
| Item | Multi-Gas Detector |
|---|---|
| Gas Detected | Carbon Monoxide, LEL, Oxygen |
| Alarm Type | Audible, Visual, Vibrating |
| Alarm Setting | 20% Danger, 70 ppm Danger, Carbon Monoxide 35 ppm Warning, LEL 10%, Oxygen (High 23.5%, Low 19.5%) |
| Battery Life | 12 hr |
| Operating Temp. Range | -4 Degrees to 122 Degrees F (-20 Degrees to 50 Degrees C) |
| Standards | UL Class I, Groups A, B, C, D T4. Zone 0. Class II, Groups F,G. AEx ia d IIC T4. CSA: Class l Division l Groups A, B, C, D T4. Ex d ia IIC T4. MSHA: CFR30, Part 22, Permissible for Underground Mines Diffusion Versions Only. IECEX Ex ia IIC. IP66 IP67 |
| Sensor Range | CO 0 to 1000 ppm, LEL 0 to 100%, O2 0 to 30.0% |
| IP Rating | IP66, IP67 |
| Series | Ventis MX4 |
| Display Screen Type | LCD |
| Chemical Formula | CO, O2 |
| Includes | Calibration Fitting, Calibration Gas (Appropriate Mix) with Regulator, Calibration Tubing, Pump, Dust Filter/Water Stop, LEL, Rugged Hard Plastic Case, Sample Tubing, Service Tool, Soft Carrying Case, Ventis(TM) MX4 O2 |
| Resolution | 1% LEL, Carbon Monoxide 1 ppm, Oxygen 0.1% vol |
| Housing Color | Black |
| Power Source | Battery |
| Features | Detects 1 to 4 Gases, One Button Operation |
| Battery Chemistry | Lithium Ion |
| Communication Protocol | Not Applicable |
| Alert Type | Sound, Light, Vibration |
| Manufacturer Warranty Length | 2 yr |
| Replaceable Battery | Yes |
| Number of Gases Detected | 3 |
| Temperature Code | T4 |
| Overall Width | 2.63 in |
| Display Type | Digital |
| Includes Probe | No |
| Includes Test Gas | Yes |
| Overall Depth | 2.63 in |
| Includes Charger | Yes |
| Alarm Setting Adjustment | Adjustable Alarm Setting |
| Operating Temperature - Maximum | 122 deg F |
| Operating Temperature - Minimum | -4 deg F |
| Measurement Range | Oxygen (0 to 30% vol) |
| Overall Height | 6.81 in |
| Country of Origin (subject to change) | United States |
| Package Quantity | 1 |
