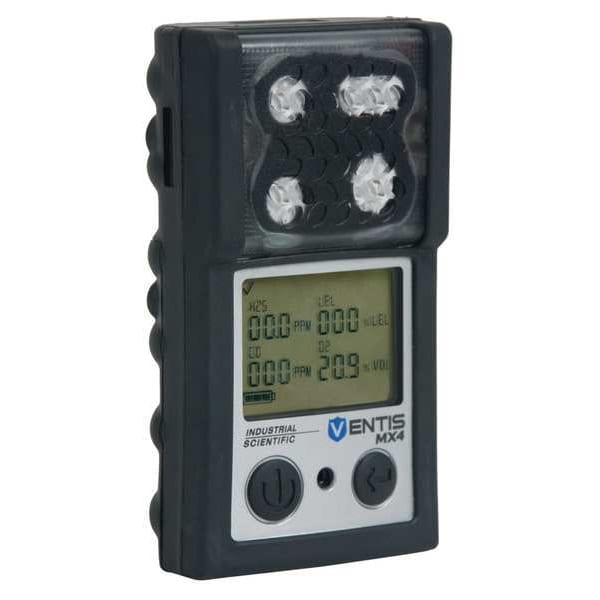

Ventis MX4 Multi-Gas Detector, IP66/IP67, Audible, Vibrating, Visual, LCD, 12 hr Battery Life
| Item | Multi-Gas Detector |
|---|---|
| Gas Detected | Carbon Monoxide, Combustible Gas, Hydrogen Sulfide, LEL, Oxygen |
| Alarm Type | Audible, Visual, Vibrating |
| Alarm Setting | Adjustable |
| Battery Life | 12 hr |
| Operating Temp. Range | 4 Degrees to 122 Degrees F |
| Standards | UL Class I, Division 1, Groups A, B, C, D, T4, Zone 0, AEx ia IIC T4, Class II, Groups F, G |
| Sensor Range | (CH4): 0-5% of v/v, (CO): 0-1000 ppm, (H2S): 0-500 ppm, (O2): 0-30% of v/v, 0-100% LEL |
| IP Rating | IP66, IP67 |
| Series | Ventis MX4 |
| Display Screen Type | LCD |
| Chemical Formula | CO, H2, H2S, O2 |
| Housing Color | Black |
| Includes | Charger |
| Features | Detects 1 to 4 Gases with A Wide Range of Sensor Options |
| Power Source | Battery |
| Display Type | Digital |
| Operating Temperature - Minimum | 4 deg F |
| Overall Depth | 1.2 in |
| Alarm Setting Adjustment | Adjustable Alarm Setting |
| Hazardous Location Specification | Class I Divisions 1 Groups A, B, C, D, T4 Zone 0, AEx ia IIC T4, Class II Groups F, G, Carbonaceous, Grain Dust, IP66 IP67 |
| Replaceable Battery | Yes |
| Operating Temperature - Maximum | 122 deg F |
| Measurement Range | 0 to 100% LEL, Carbon Monoxide (0 to 1000 ppm), Hydrogen Sulfide (0 to 500 ppm), Methane (0 to 5% vol), Oxygen (0 to 30% vol) |
| Overall Width | 2.3 in |
| Overall Height | 4.11 in |
| Number of Gases Detected | 4 |
| Battery Chemistry | Lithium Ion |
| Includes Charger | Yes |
| Temperature Code | T4 |
| Includes Probe | No |
| Alert Type | Sound, Light, Vibration |
| Communication Protocol | Not Applicable |
| Country of Origin (subject to change) | United States |
| Package Quantity | 1 |
