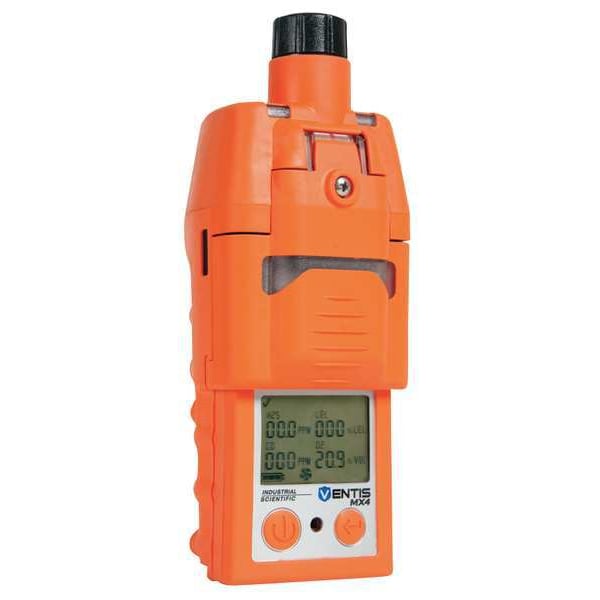

Ventis MX4 Multi-Gas Detector, IP66/IP67, Audible, Vibrating, Visual, LCD with Backlight
| Item | Multi-Gas Detector |
|---|---|
| Gas Detected | Hydrogen Sulfide, LEL, Oxygen, Sulfur Dioxide |
| Alarm Type | Audible, Visual, Vibrating |
| Alarm Setting | Adjustable |
| Battery Life | 12 hr |
| Operating Temp. Range | -20 Degrees to 50 Degrees C (-4 Degrees to 122 Degrees F) |
| Standards | CSA Certified, UL Listed |
| Sensor Range | H2S 0 to 500 ppm, LEL 0 to 100%, O2 0 to 30%, SO2 0 to 150 ppm |
| IP Rating | IP66, IP67 |
| Series | Ventis MX4 |
| Display Screen Type | LCD with Backlight |
| Chemical Formula | CO/H2, H2S, NO2, O2, SO2 |
| Includes | Calibration Cup, Sample Tubing |
| Features | Sample Draw Distance of Up to 50 ft Provides Sampling in a Wide Range of Applications, No Tools are Required to Attach or Remove the Ventis Slide-On Pump to or from the Monitor, Three Available Battery Options |
| Resolution | 1% LEL, Hydrogen Sulfide 0.1 ppm, Oxygen 0.1% vol, Sulfur Dioxide 0.1 ppm |
| Housing Color | Orange |
| Power Source | Battery |
| Temp. Range | -20 degree C -50 degree C (-4 degree F-122 degree F) |
| Alert Type | Sound, Light, Vibration |
| Housing Material | Polycarbonate |
| Overall Height | 6.8 in |
| Rechargeable Battery | Yes |
| Number of Records Stored | 60 Alarm Events |
| Display Type | Digital |
| Alarm Setting Adjustment | Adjustable Alarm Setting |
| Battery Chemistry | Lithium Ion |
| Replaceable Battery | Yes |
| Operating Humidity - Maximum | 95 % |
| Operating Temperature - Minimum | -4 deg F |
| Operating Humidity - Minimum | 15 % |
| Number of Gases Detected | 4 |
| Overall Depth | 2.6 in |
| Temperature Code | T4 |
| Includes Charger | Yes |
| Communication Protocol | Not Applicable |
| Includes Probe | No |
| Overall Width | 2.6 in |
| Hazardous Location Specification | Class I Zone 1, AEX D IA II C, T4, Class II Divisions 1, GR E-G, T4 Class I Zone 0, AEX IA IIC, T4, Class I Divisions 1 Groups A, B, C, D |
| Sensor Type | Electrochemical, Catalytic |
| Number of Sensors | 2 |
| Operating Temperature - Maximum | 122 deg F |
| Measurement Range | Hydrogen Sulfide (0 to 500 ppm), Oxygen (0 to 30% of vol in 0.1%), Sulphur Dioxide (0 to 150 ppm) |
| Manufacturer Warranty Length | 4 yr |
| Country of Origin (subject to change) | United States |
| Package Quantity | 1 |
