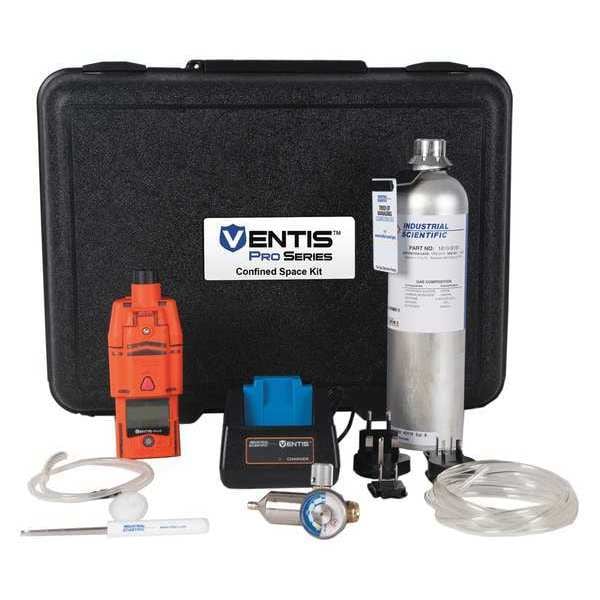

Ventis Pro5 Multi-Gas Detector, IP68, Audible, Vibrating, Visual, LCD, 18 hr Battery Life
| Item | Multi-Gas Detector |
|---|---|
| Gas Detected | Carbon Monoxide, Hydrogen Sulfide, LEL, Sulfur Dioxide |
| Alarm Type | Audible, Visual, Vibrating |
| Alarm Setting | Adjustable |
| Battery Life | 18 hr |
| Operating Temp. Range | -40 Degrees to 50 Degrees C (-40 Degrees to 122 Degrees F) |
| Standards | UL Class I, Division 1, Gr. A, B, C and D, Temperature Class T4, Class II, Div. 1, Gr. E, F and G, Class I, Zone 0, AEx ia IIC, Zone 1, AEx d ia II C, CSA Class I, Div. 1, Gr. A, B, C and D |
| Sensor Range | CO 0 to 1500ppm, H2S 0 to 500pmm, LEL 0 to 100%, O2 0 to 30% v/v, SO2 0 to 500 ppm |
| IP Rating | IP68 |
| Series | Ventis Pro5 |
| Display Screen Type | LCD |
| Chemical Formula | CO, H2S, O2, SO2 |
| Includes | Calibration Gas, Calibration Tubing with T-Fitting, Dust Filter/Water Stop, Manual Regulator, Rugged Hard Plastic Case, Sample Tubing |
| Power Source | Battery |
| Features | iAssign Technology |
| Resolution | 1% LEL, Carbon Monoxide 1 ppm, Hydrogen Sulfide 0.1 ppm, Oxygen 0.1% vol, Sulfur Dioxide 0.1 ppm |
| Housing Color | Black |
| Alert Type | Sound, Light, Vibration |
| Display Type | Digital |
| Replaceable Battery | Yes |
| Measurement Range | Carbon Monoxide (0 to 1,500 ppm), Hydrogen Sulfide (0 to 500 ppm), LEL 0 to 100%, Oxygen (0 to 30% vol), Sulphur Dioxide (0 to 500 ppm) |
| Overall Height | 6.81 in |
| Communication Protocol | Peer to Peer |
| Manufacturer Warranty Length | 3 yr |
| Data Logger | Yes |
| Alarm Volume Level | 95 dB @ 3.9 in |
| Overall Depth | 2.59 in |
| Includes Probe | No |
| Number of Sensors | 3 |
| Operating Temperature - Maximum | 122 deg F |
| Includes Test Gas | Yes |
| Overall Width | 2.59 in |
| Temperature Code | T4 |
| Operating Temperature - Minimum | -40 deg F |
| Hazardous Location Specification | Class I Divisions 1 Groups A, B, C, D |
| Rechargeable Battery | Yes |
| Operating Humidity - Maximum | 95 % |
| Number of Gases Detected | 5 |
| Alarm Setting Adjustment | Adjustable Alarm Setting |
| Battery Chemistry | Lithium Ion |
| Operating Humidity - Minimum | 15 % |
| Sensor Type | Electrochemical, Catalytic, Infrared |
| Country of Origin (subject to change) | United States |
| Package Quantity | 1 |
