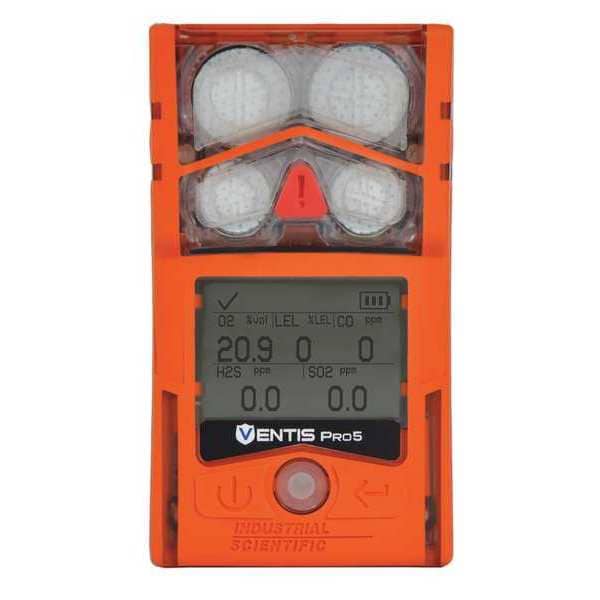

Ventis Pro5 Multi-Gas Detector, IP68, Audible, Vibrating, Visual, LCD with Backlight
| Item | Multi-Gas Detector |
|---|---|
| Gas Detected | Carbon Monoxide, Hydrogen Sulfide, LEL, Oxygen |
| Alarm Type | Audible, Visual, Vibrating |
| Alarm Setting | Adjustable |
| Battery Life | 18 hr |
| Operating Temp. Range | -40 Degrees to 122 Degrees F |
| Standards | CSA Certified, UL Listed |
| Sensor Range | CO 0 to 2000 ppm, H2S 0 to 500 ppm, LEL 0 to 100%, O2 0 to 30% |
| IP Rating | IP68 |
| Series | Ventis Pro5 |
| Display Screen Type | LCD with Backlight |
| Chemical Formula | CL2, CO, CO2, H2S, HCN, NH3, NO2, O2, PH3, SO2 |
| Power Source | Battery |
| Housing Color | Orange |
| Status Indicator | LED |
| Features | Locally Share Alarms and Gas Readings Between Wirelessly Connected Ventis Pro5 Monitors., Train Workers on One |
| Overall Height | 4.1 in |
| Housing Material | Polycarbonate |
| Receiver Range | 300 ft |
| Operating Temperature - Maximum | 122 deg F |
| Temperature Code | T4 |
| Operating Frequency | 2.405 to 2.480 GHz |
| Number of Sensors | 3 |
| Includes Probe | No |
| Alarm Setting Adjustment | Adjustable Alarm Setting |
| Data Logger | Yes |
| Visual Alert Type | LED, Red LED |
| Operating Humidity - Maximum | 95 % |
| Rechargeable Battery | Yes |
| Number of Records Stored | 60 Alarm Events |
| Number of Peers - Maximum | 25 |
| Overall Depth | 1.4 in |
| Number of Gases Detected | 4 |
| Replaceable Battery | Yes |
| Sensor Life | 1 yr |
| Alarm Volume Level | 95 dB @ 3.9 in |
| Overall Width | 2.3 in |
| Communication Protocol | Cellular, Wi-Fi, Wireless Mesh (WMN) |
| Display Type | Digital |
| Operating Temperature - Minimum | -40 deg F |
| Operating Humidity - Minimum | 15 % |
| Manufacturer Warranty Length | 4 yr |
| Measurement Range | Carbon Monoxide (0 to 2000 ppm in 1 ppm), Hydrogen Sulfide (0 to 500 ppm), Oxygen (0 to 30% of Vol. in 0.1%) |
| Alert Type | Vibration |
| Sensor Type | Electrochemical, Catalytic, Infrared |
| Battery Chemistry | Lithium Ion |
| Hazardous Location Specification | Class I Divisions 1 Groups A, B, C, D, T4, Class I Zone 1, EX D IA IIC, T4 |
| Country of Origin (subject to change) | United States |
| Package Quantity | 1 |
