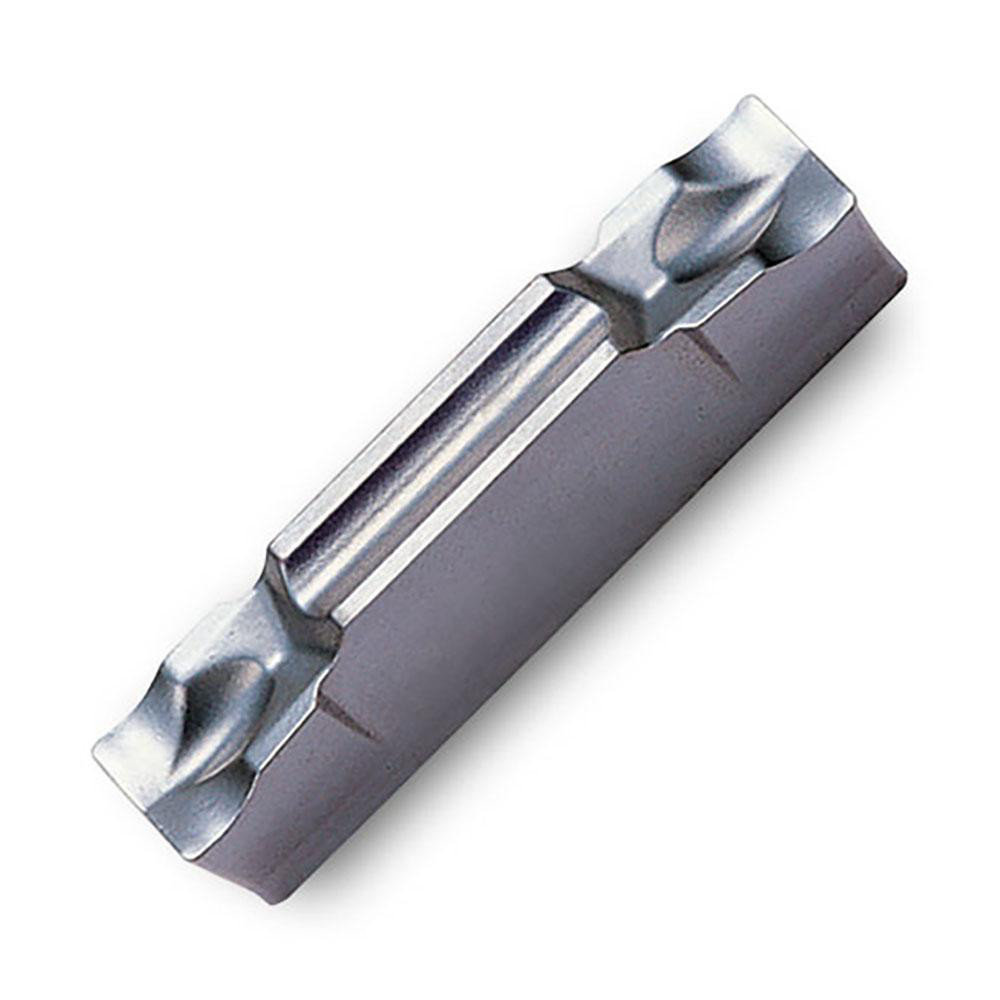

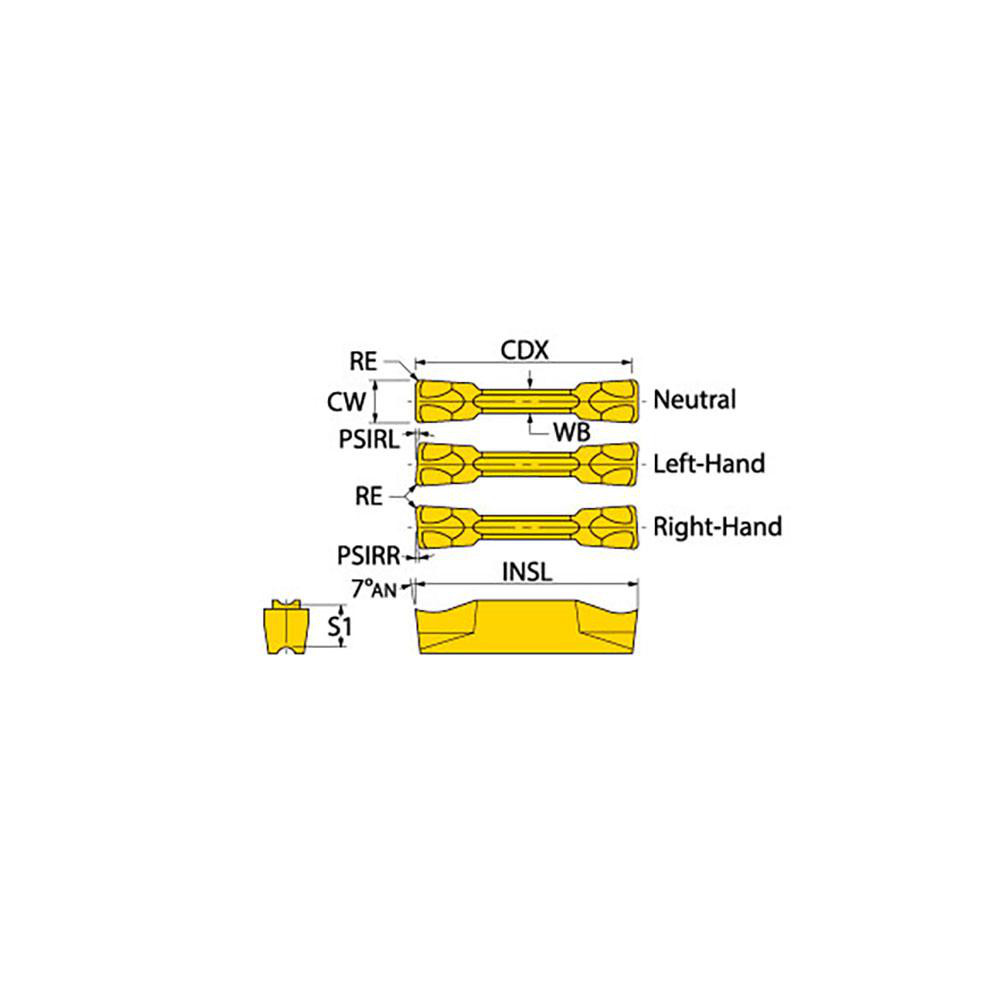

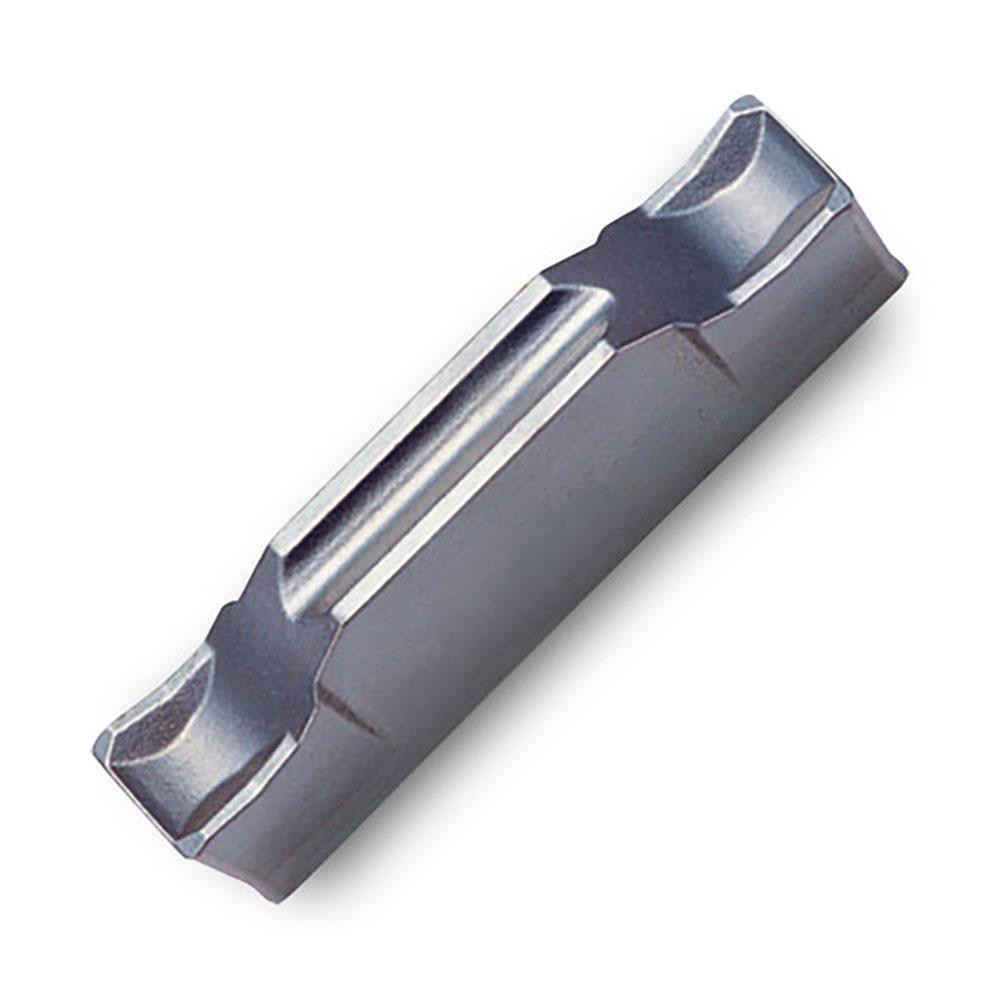

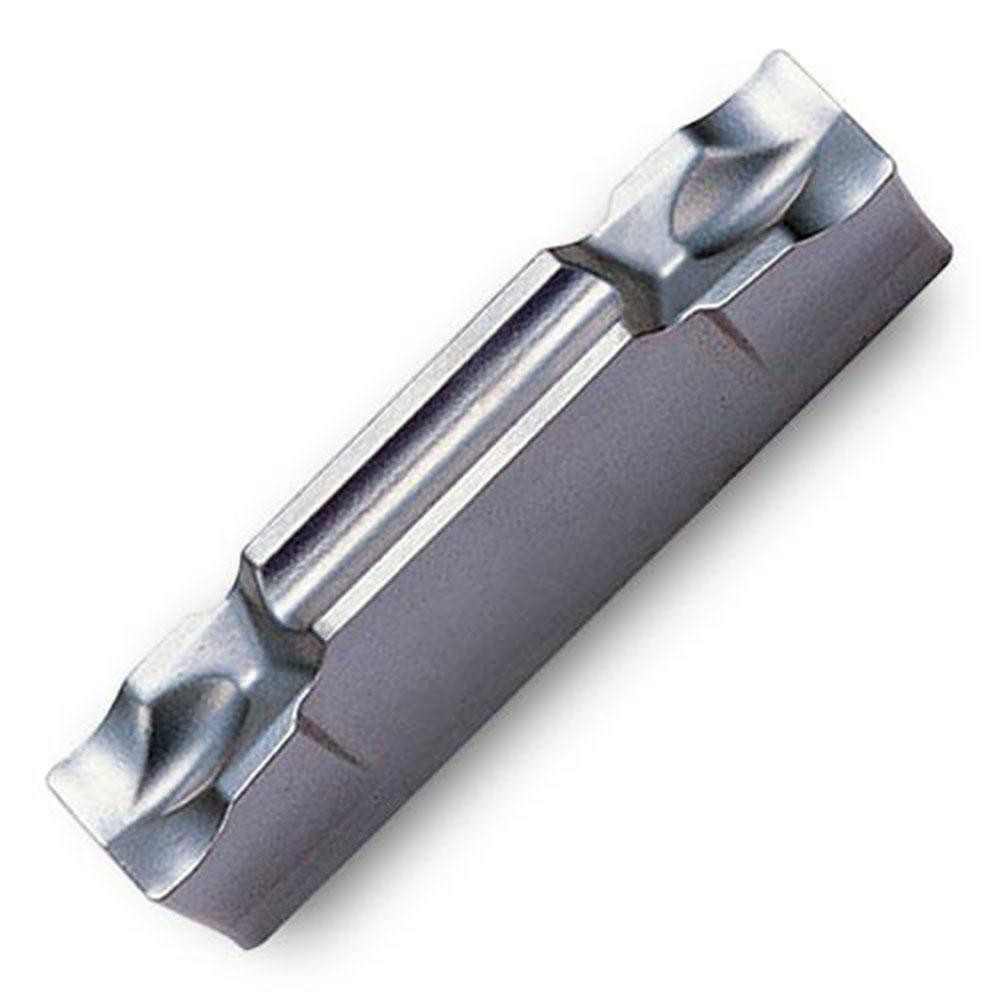

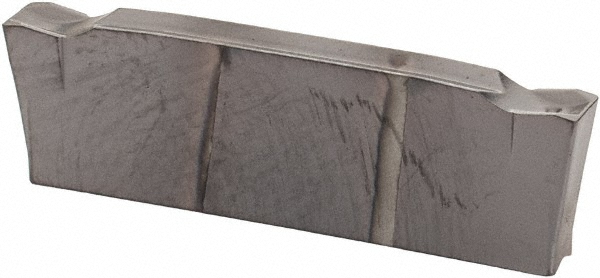

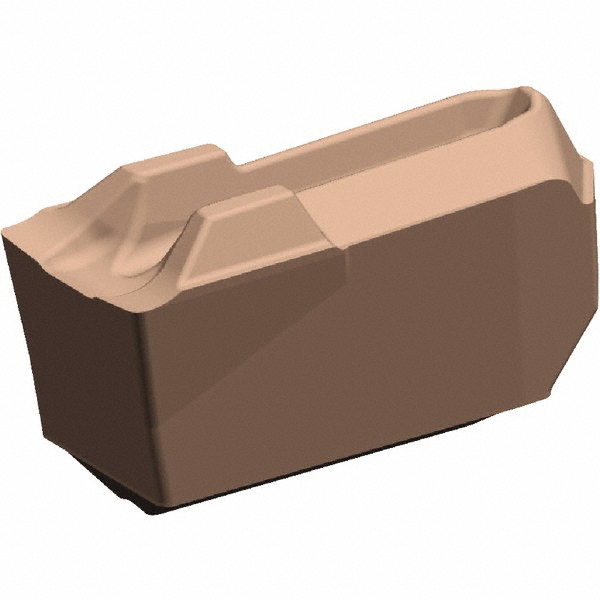

0 deg Neutral Lead Angle, Series TDJ
| Insert Style | TDJ |
|---|---|
| Insert Size Code | 3 |
| Insert Material | Carbide |
| Manufacturer Grade | TT8020 |
| Cutting Width (Decimal Inch) | 0.1181 |
| Cutting Width (mm) | 3.00 |
| Insert Holding Method | Clamp |
| Lead Angle Direction | Neutral |
| Insert Hand | Neutral |
| Lead Angle | 0 |
| Relief Angle | 7.000 |
| Corner Radius (Decimal Inch) | 0.0080 |
| Chipbreaker | J |
| Multi-use Tool | Yes |
| Cutting Tool Application | Grooving; Parting |
| Series | TDJ |
| Coating Process | PVD |
| Overall Length (Decimal Inch) | 0.7900 |
| Primary Workpiece Material | Stainless Steel; Steel |
| Primary Workpiece Material Code | P; M |
| Ansi Code | TDJ3 |
| Iso Code | TDJ3 |
| Cutting Height (mm) | 4.70 |
| Cutting Height (Decimal Inch) | 0.1850 |
| Maximum Depth of Cut (mm) | 19.00 |
| Material Grade | C3; C4; C5; C6; C1; C2 |
| Hole Diameter (Decimal Inch) | 0.0000 |
| Insert Seat Size | 3 |
| Full Radius | No |
| Cutting Direction | Neutral |
| Maximum Depth of Cut (Decimal Inch) | 0.7480 |
| Insert Height (Decimal Inch) | 0.1850 |
| Coating Classification | PVD |
| Coating/Finish | TiCN |
| Single Or Double End | Double |
| UNSPSC Code | 23242105 |
| MSC Number | MSC# 60343720 |
