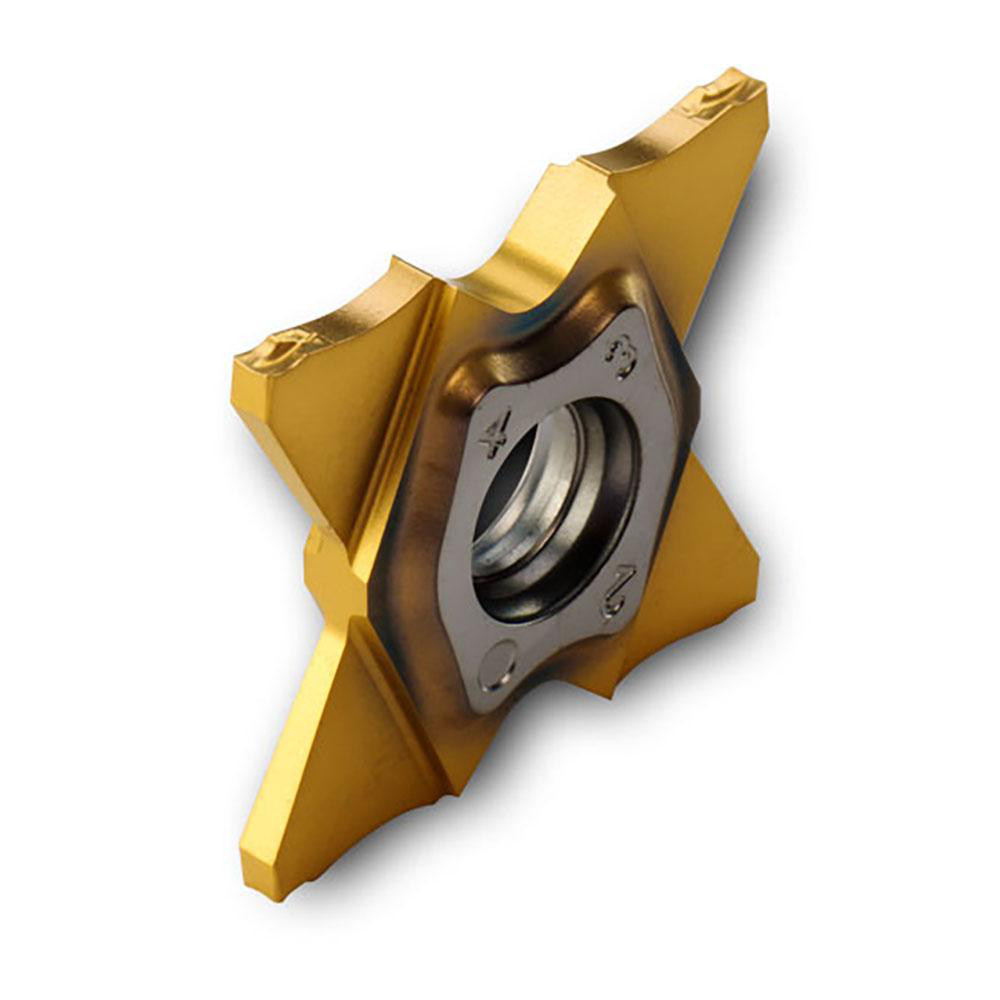

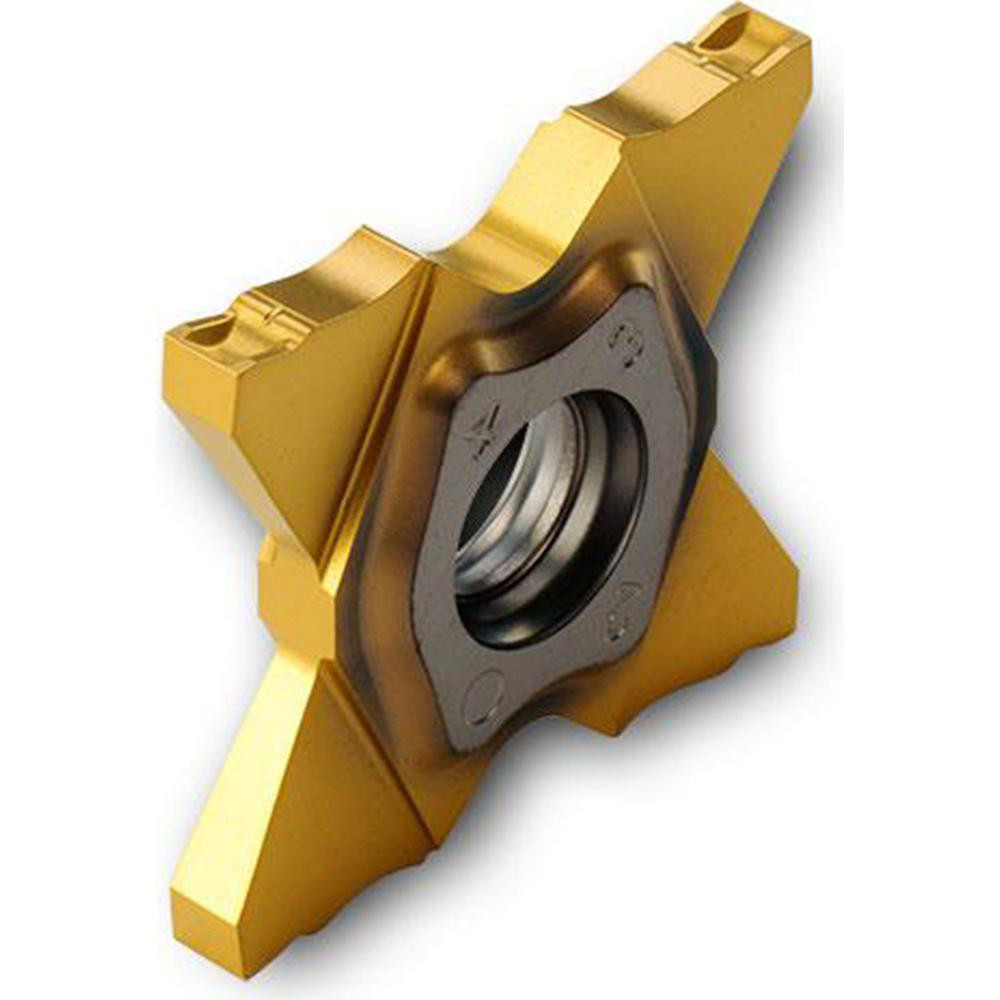

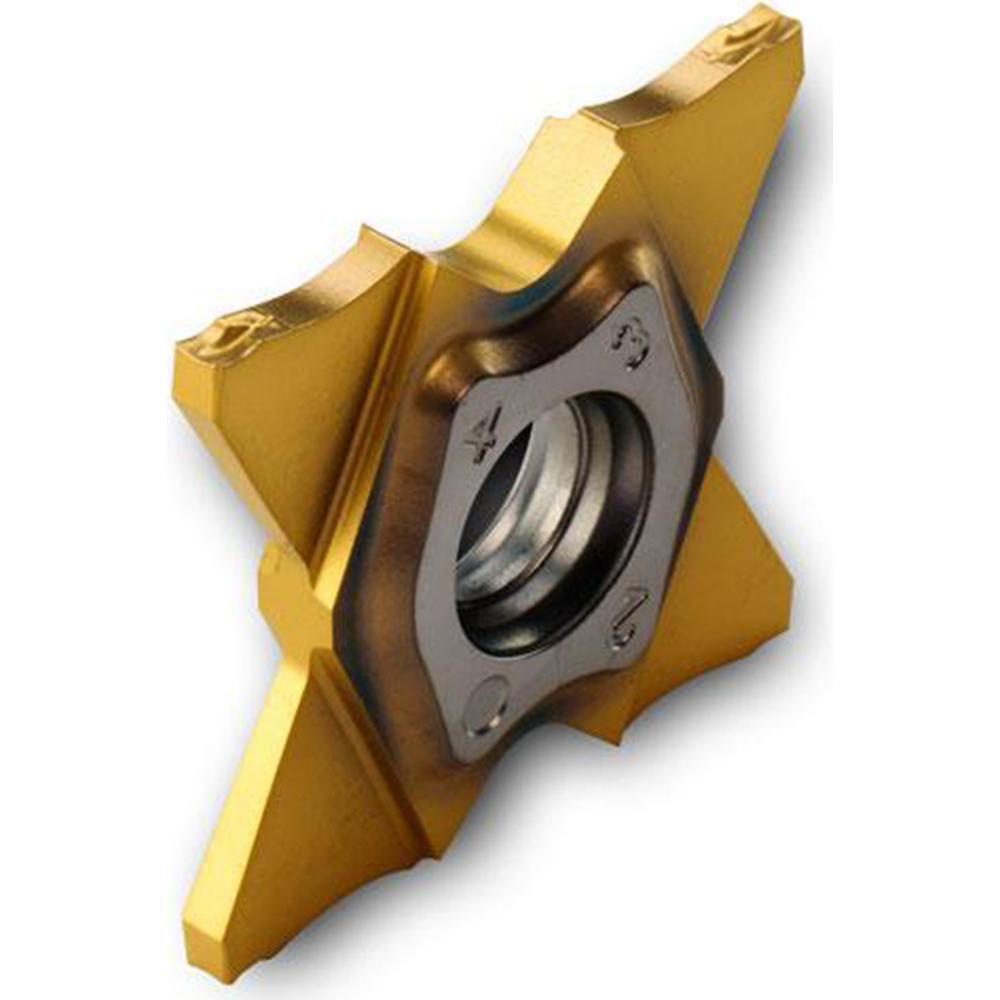

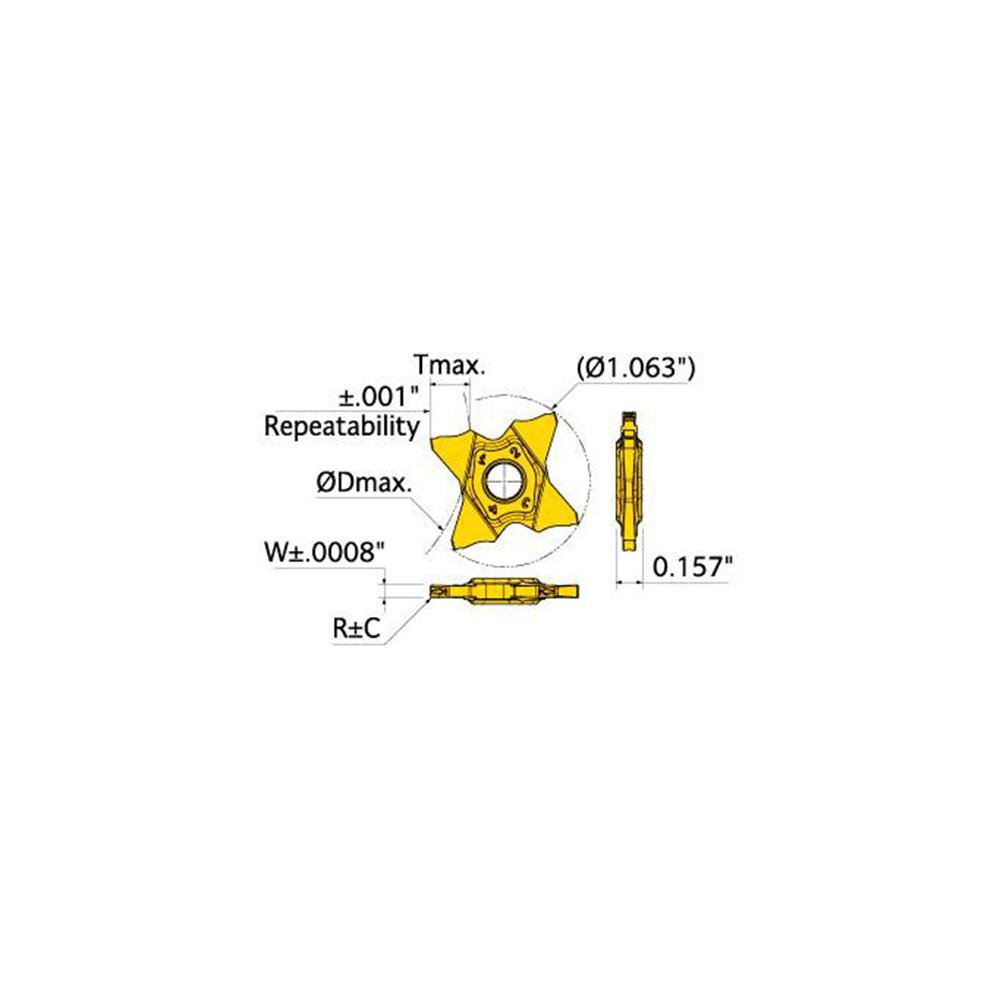

TiAlN & TiN Finish, Right Hand, 0.0790" Cutting Width, 0.2520" Max Depth, Series TQJ27
| Insert Style | TQJ |
|---|---|
| Insert Size Code | 27 |
| Cutting Width (Decimal Inch) | 0.0790 |
| Insert Hand | Right Hand |
| Maximum Depth of Cut (Decimal Inch) | 0.2520 |
| Insert Material | Carbide |
| Manufacturer Grade | TT9080 |
| Corner Radius (Decimal Inch) | 0.0040 |
| Rake | Positive |
| Measurement Type | Decimal Inch |
| Insert Holding Method | Screw |
| Maximum Depth Of Cut Range (Decimal Inch) | 0.2000 to 0.3000 |
| Maximum Depth Of Cut Range (mm) | 5.00 to 10.00 |
| Lead Angle | 6 |
| Multi-use Tool | Yes |
| Series | TQJ27 |
| Coating Process | PVD |
| Primary Workpiece Material | Hard Material; Steel |
| UNSPSC Code | 23242105 |
| Chip Breaker | J |
| Coating/Finish | TiN; TiAlN |
| undefined | undefined |
| MSC Number | MSC# 13391149 |
