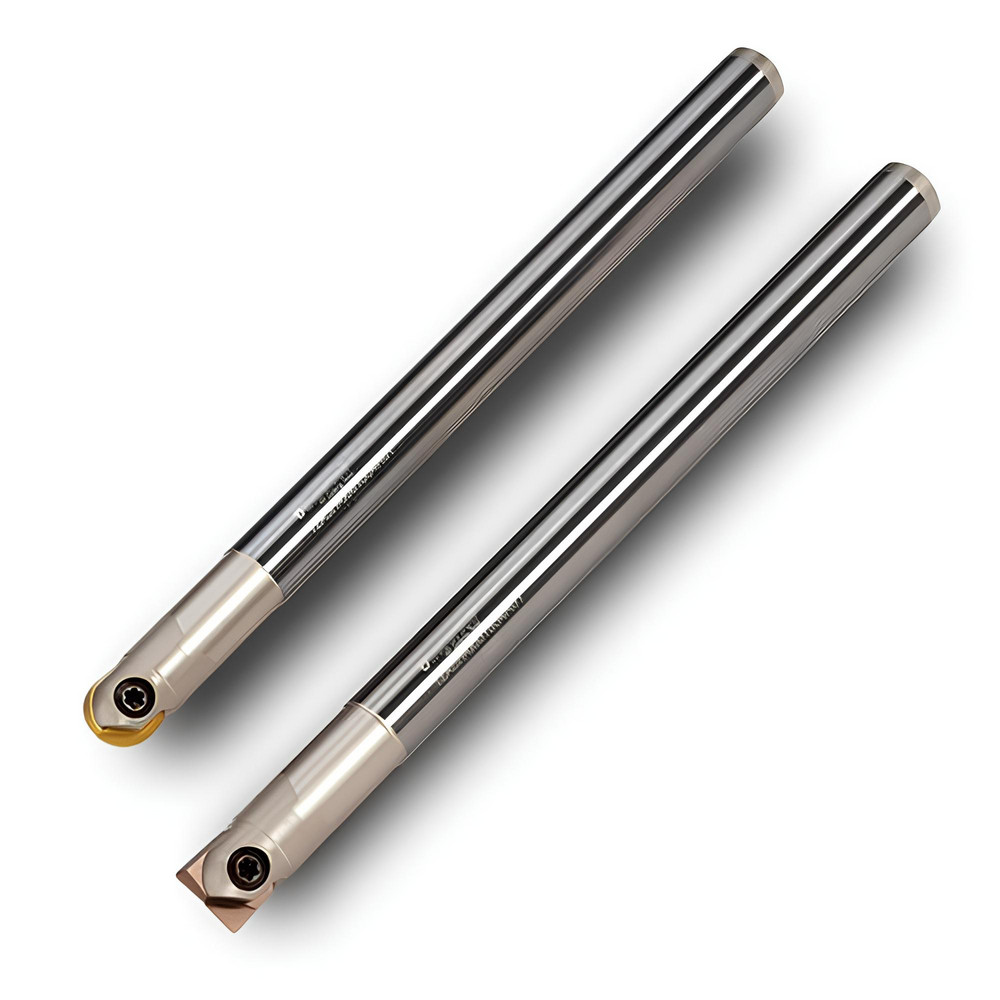

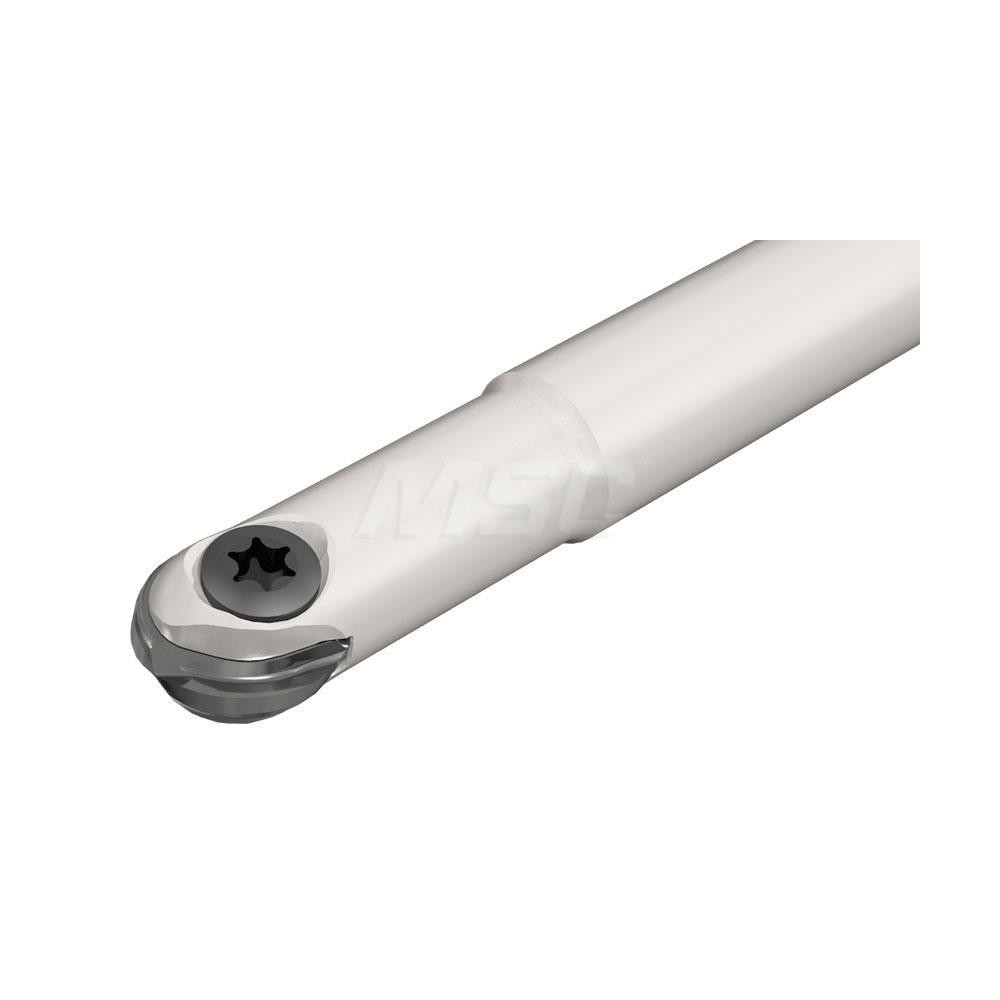

Uses (1) GQHG Insert, 3/8" Cylindrical Shank
| Cutting Diameter (Decimal Inch) | 0.3750 |
|---|---|
| Tool Material | Solid Carbide |
| Maximum Depth of Cut (Decimal Inch) | 0.1800 |
| Shank Type | Cylindrical |
| Shank Diameter (Inch) | 3/8 |
| Shank Diameter (Decimal Inch) | 0.3750 |
| Insert Holding Method | Screw |
| Compatible Insert Style | GQHG |
| Compatible Insert Size Code | 0902 |
| Toolholder Style | 12A5F |
| Tapered Neck | No |
| Overall Length (Inch) | 1 |
| Overall Length (Decimal Inch) | 1.0000 |
| Series | 12A5 |
| Head Length (Decimal Inch) | 1.5000 |
| Tool Application | Chamfering; Profile Milling; Milling |
| Tool Performance | General Purpose |
| Primary Workpiece Material | Universal |
| Number Of Flutes | 2 |
| Coolant Through | No |
| Number Of Inserts | 1 |
| UNSPSC Code | 27112803 |
| MSC Number | MSC# 98215122 |
