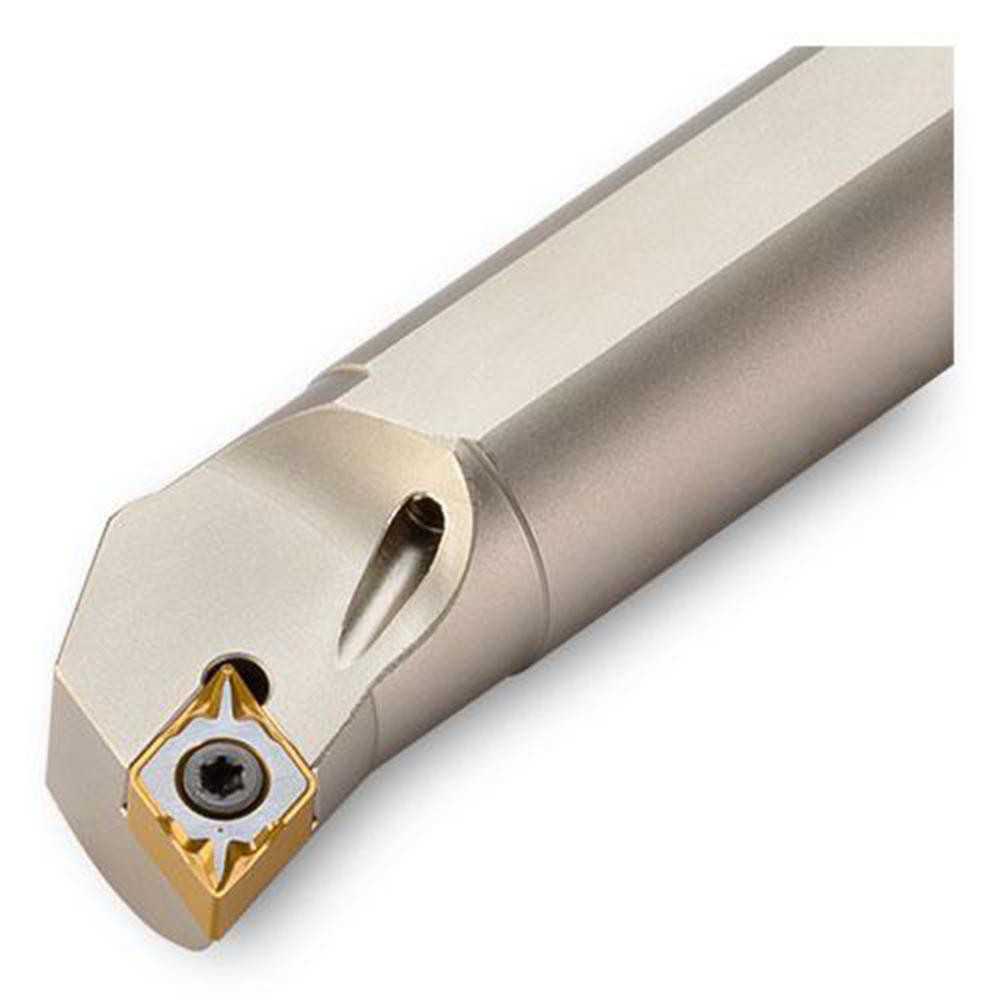

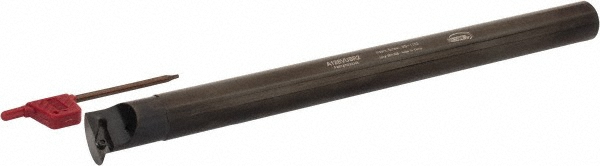

10.0000" OAL, Screw

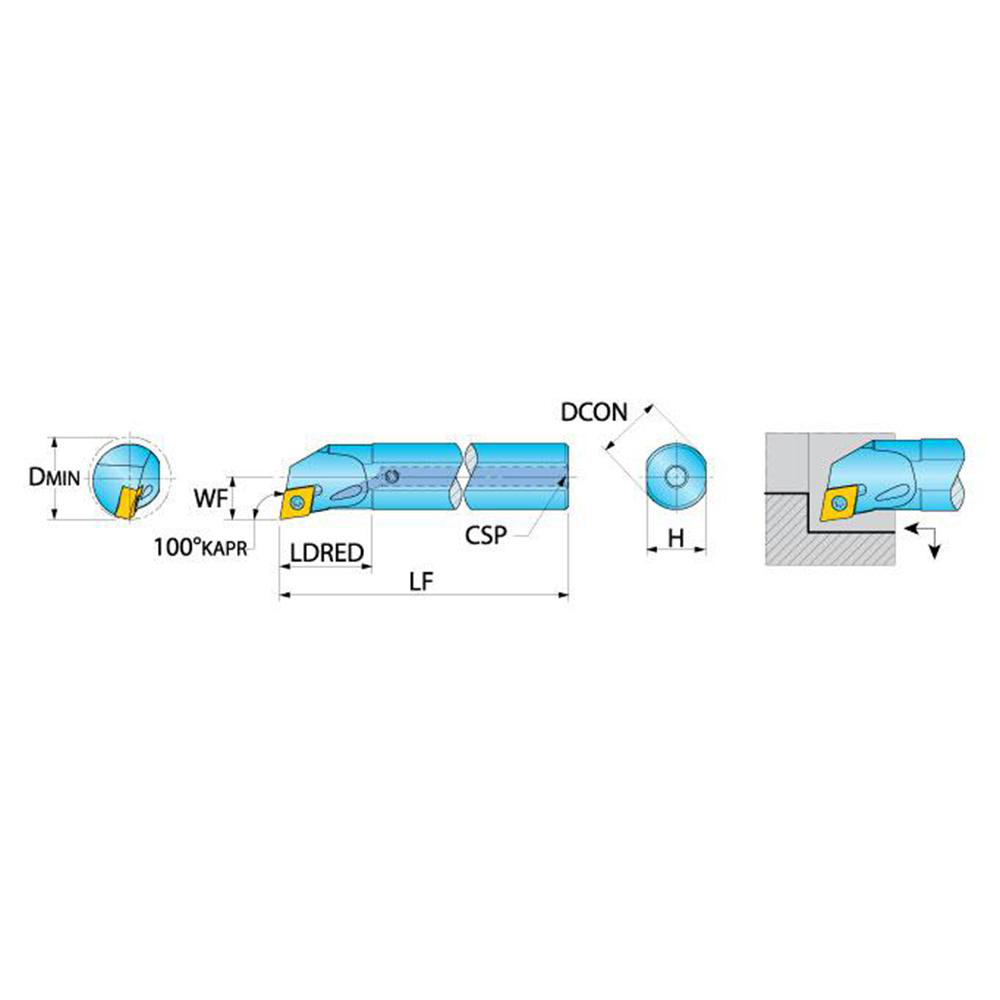

| Minimum Bore Diameter (Decimal Inch) | 0.9800 |
|---|---|
| Maximum Bore Depth (Decimal Inch) | 3.0000 |
| Maximum Bore Depth (Inch) | 3 |
| Toolholder Style | SXQNR |
| Tool Material | Steel |
| Shank Diameter (Inch) | 3/4 |
| Overall Length (Decimal Inch) | 10.0000 |
| Overall Length (mm) | 10.00 |
| Overall Length (Inch) | 10 |
| Compatible Insert Size Code | XN..2.730.5FLP |
| Insert Holding Method | Screw |
| Compatible Insert Shape | Diamond |
| Insert Included | Yes |
| Rake | Negative |
| Rake Angle | 0.00 |
| Lead Angle | 100 |
| Series | A-SXQNR/L (Rhino Turn X) |
| Insert Inscribed Circle (Decimal Inch) | 0.4370 |
| Compatible Insert Thickness (Decimal Inch) | 0.2190 |
| Cutting Tool Application | Turning; Boring |
| Back of Bar to Cutting Edge (Decimal Inch) | 0.4930 |
| UNSPSC Code | 23241601 |
| Coolant Through | Yes |
| undefined | undefined |
| MSC Number | MSC# 15320914 |
