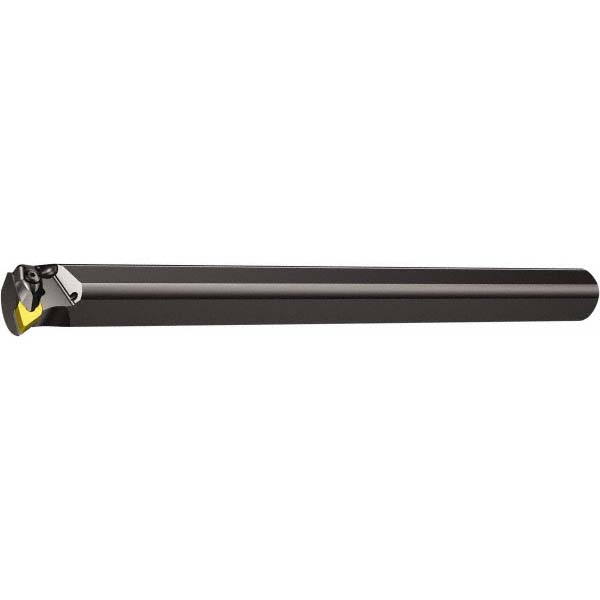

14" OAL, Lever
| Minimum Bore Diameter (Decimal Inch) | 1.5000 |
|---|---|
| Minimum Bore Diameter (Inch) | 1-1/2 |
| Maximum Bore Depth (Decimal Inch) | 5.0000 |
| Maximum Bore Depth (Inch) | 5 |
| Toolholder Style | HCLNR |
| Tool Material | Steel |
| Shank Diameter (Inch) | 1-1/4 |
| Overall Length (Decimal Inch) | 14.0000 |
| Overall Length (mm) | 14.00 |
| Overall Length (Inch) | 14 |
| Compatible Insert Size Code | CN..431 |

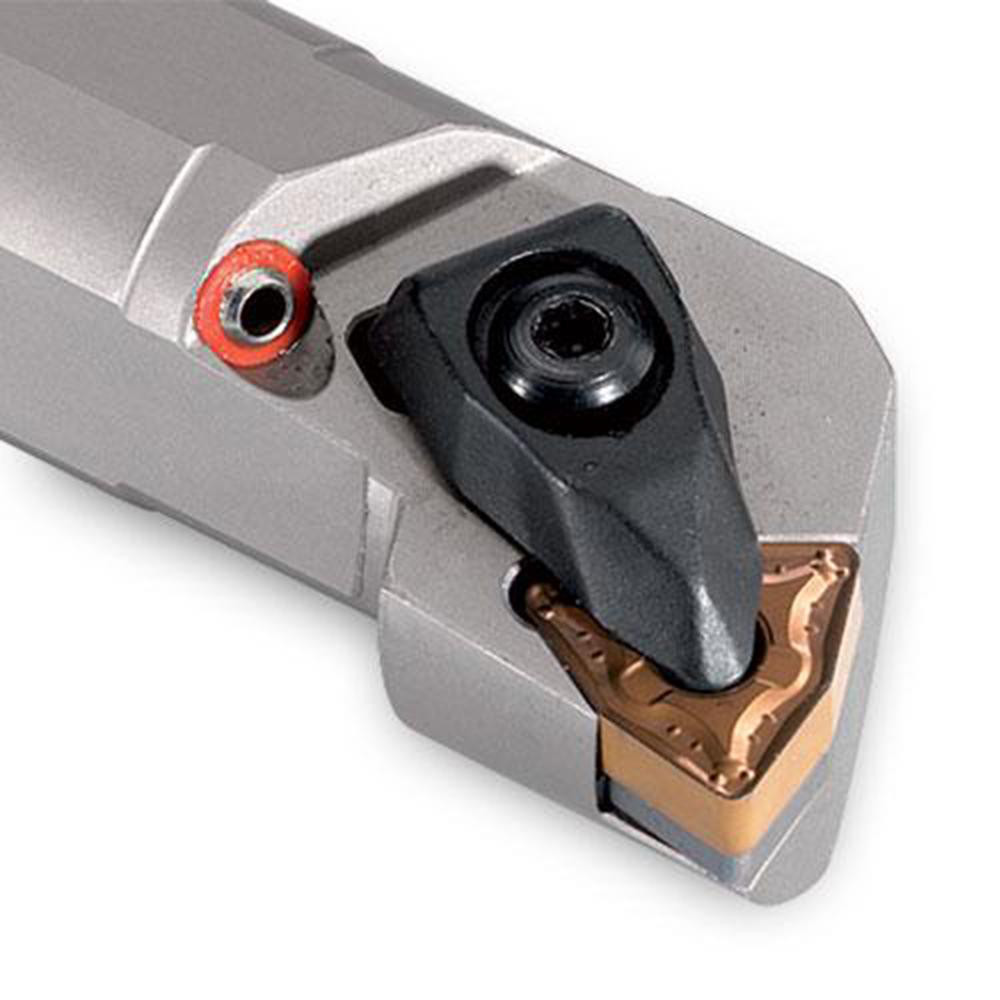

| Insert Holding Method | Lever |
| Compatible Insert Shape | Diamond |
| Insert Included | Yes |
| Rake | Negative |
| Rake Angle | 0.00 |
| Lead Angle | 95 |
| Series | A-HCLNR/L (Gold Rhino) |
| Insert Inscribed Circle (Inch) | 3/8 |
| Insert Inscribed Circle (Decimal Inch) | 0.3750 |
| Compatible Insert Thickness (Decimal Inch) | 0.1870 |
| Cutting Tool Application | Turning; Boring |
| Back of Bar to Cutting Edge (Decimal Inch) | 0.7650 |
| UNSPSC Code | 23241601 |
| Coolant Through | Yes |
| undefined | undefined |
| MSC Number | MSC# 49055353 |
