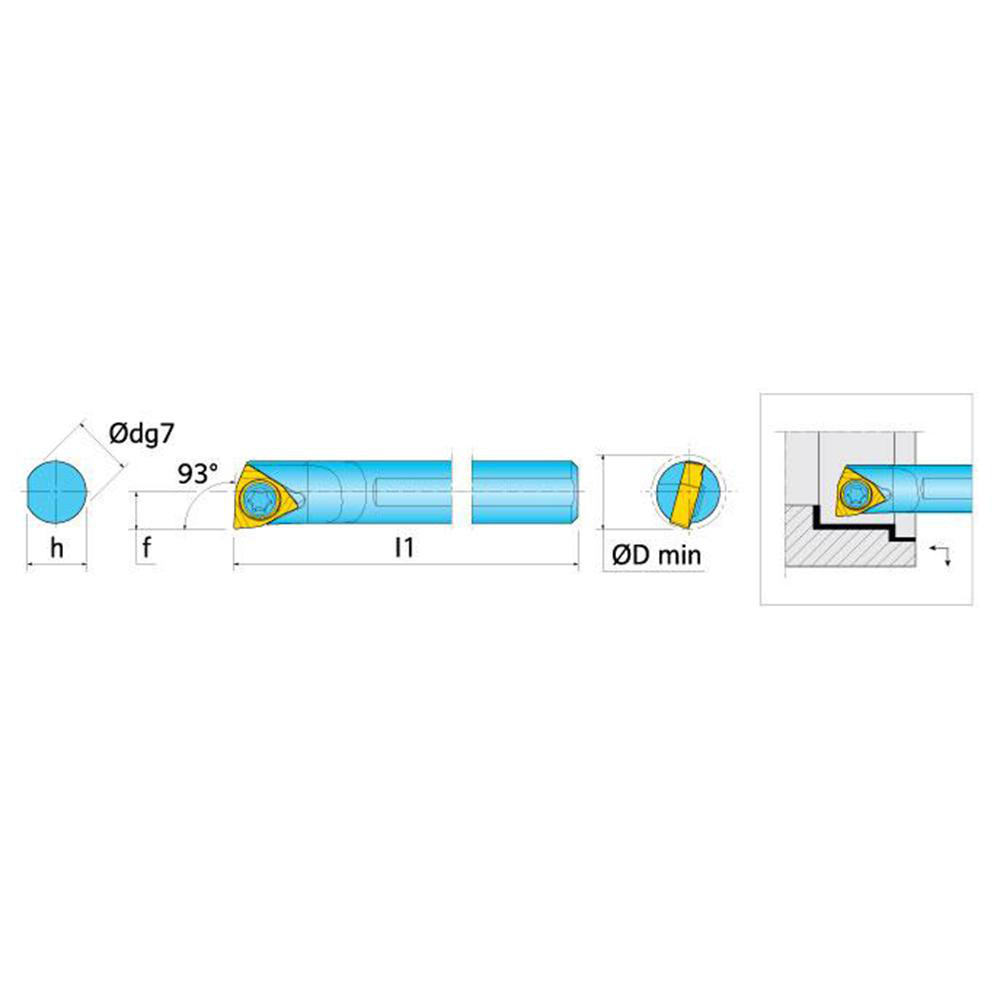

4.9000" OAL, Screw
| Minimum Bore Diameter (Decimal Inch) | 0.3150 |
|---|---|
| Maximum Bore Depth (Decimal Inch) | 1.9290 |
| Toolholder Style | SWUBR |
| Tool Material | Solid Carbide |
| Shank Diameter (Inch) | 7 |
| Overall Length (Decimal Inch) | 4.9000 |
| Overall Length (mm) | 4.90 |
| Compatible Insert Size Code | WB..1.210.5R-FF |
| Insert Holding Method | Screw |
| Compatible Insert Shape | Trigon |
| Insert Included | Yes |
| Rake | Negative |
| Rake Angle | 5.00 |
| Lead Angle | 93 |
| Series | C-SWUBR/L (Metric, Carbide) |
| Insert Inscribed Circle (Decimal Inch) | 0.1560 |
| Compatible Insert Thickness (Decimal Inch) | 0.0630 |
| Cutting Tool Application | Turning; Boring |
| Back of Bar to Cutting Edge (Decimal Inch) | 0.1570 |
| UNSPSC Code | 23241601 |
| Coolant Through | No |
| undefined | undefined |
| MSC Number | MSC# 35255512 |
