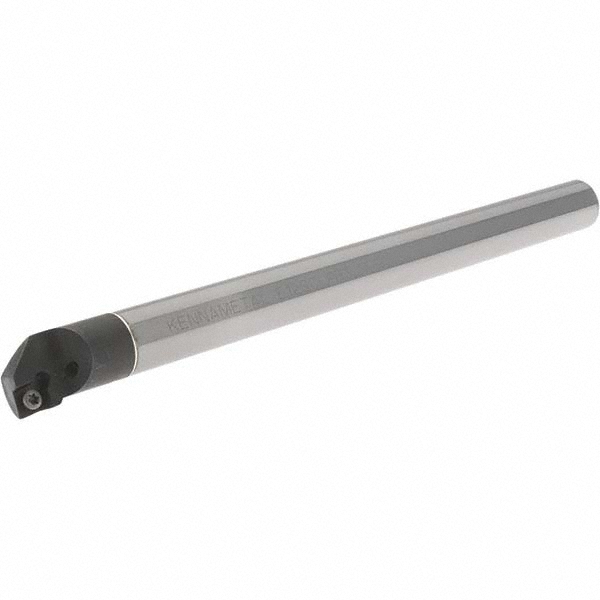

10.0000" OAL, Screw
| Minimum Bore Diameter (Decimal Inch) | 0.9850 |
|---|---|
| Maximum Bore Depth (Decimal Inch) | 5.2500 |
| Maximum Bore Depth (Inch) | 5-1/4 |
| Toolholder Style | SCLCL |
| Tool Material | Solid Carbide |
| Shank Diameter (Inch) | 3/4 |
| Overall Length (Decimal Inch) | 10.0000 |
| Overall Length (mm) | 10.00 |
| Overall Length (Inch) | 10 |
| Compatible Insert Size Code | CC..32.5. |
| Insert Holding Method | Screw |
| Compatible Insert Shape | Diamond |
| Insert Included | Yes |
| Rake | Negative |
| Rake Angle | 7.00 |
| Lead Angle | 95 |
| Series | E-SCLCR/L (Carbide) |
| Insert Inscribed Circle (Inch) | 3/8 |
| Insert Inscribed Circle (Decimal Inch) | 0.3750 |
| Compatible Insert Thickness (Decimal Inch) | 0.1560 |
| Cutting Tool Application | Turning; Boring |
| Back of Bar to Cutting Edge (Decimal Inch) | 0.5000 |
| UNSPSC Code | 23241601 |
| Coolant Through | Yes |
| MSC Number | MSC# 65761363 |
