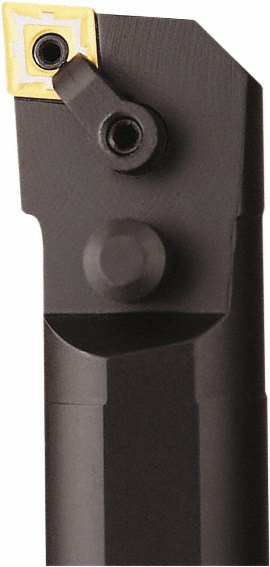

16" OAL, Clamp
| Minimum Bore Diameter (Decimal Inch) | 2.7500 |
|---|---|
| Minimum Bore Diameter (Inch) | 2-3/4 |
| Maximum Bore Depth (Decimal Inch) | 8.0000 |
| Maximum Bore Depth (Inch) | 8 |
| Toolholder Style | TCLNR |
| Tool Material | Steel |
| Shank Diameter (Inch) | 2 |
| Overall Length (Decimal Inch) | 16.0000 |
| Overall Length (mm) | 16.00 |
| Overall Length (Inch) | 16 |
| Compatible Insert Size Code | CN..431 |

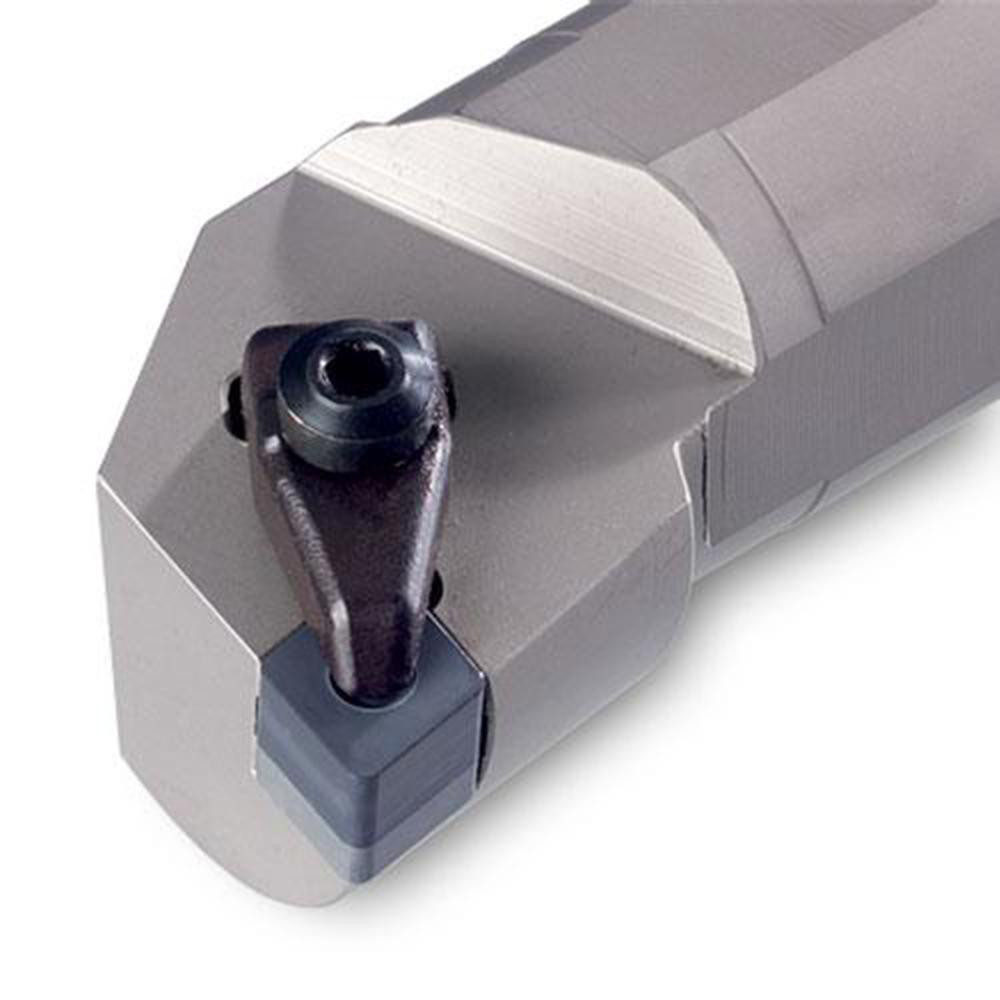

| Insert Holding Method | Clamp |
| Compatible Insert Shape | Diamond |
| Insert Included | Yes |
| Rake | Negative |
| Rake Angle | 0.00 |

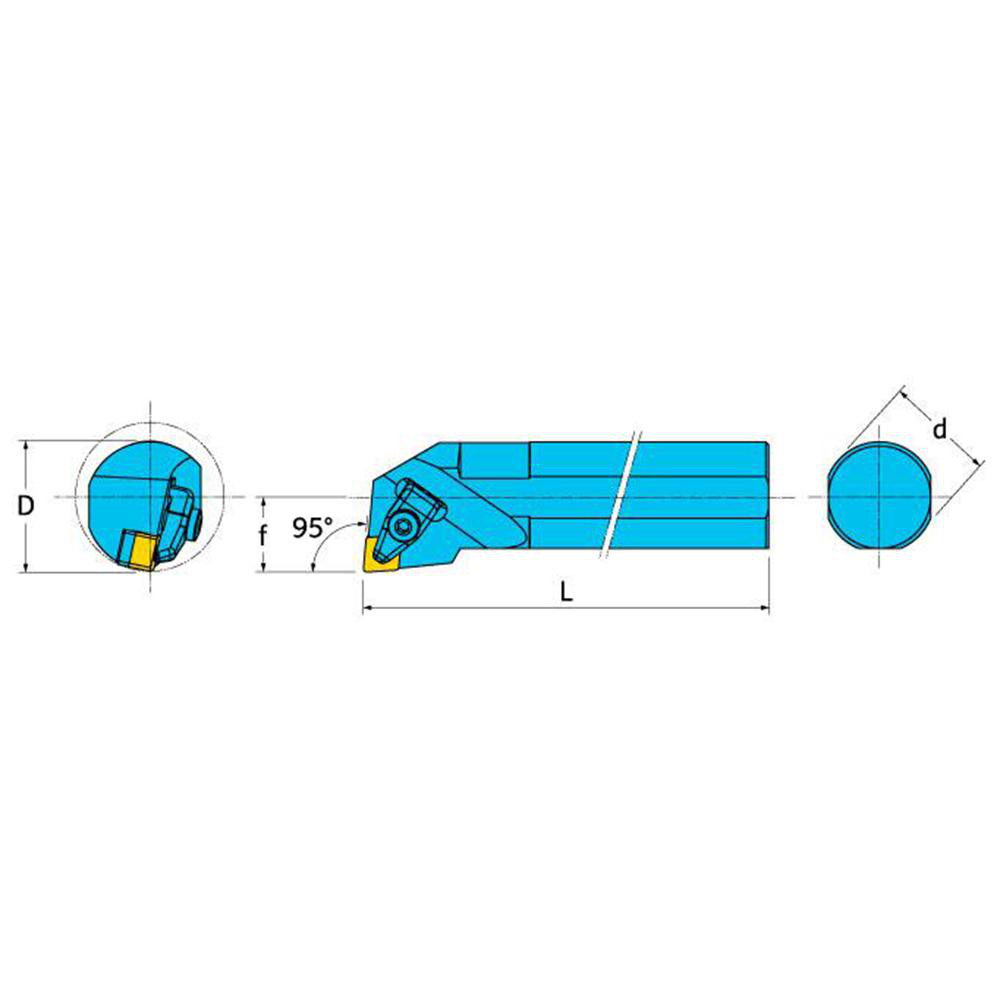

| Lead Angle | 95 |
| Series | S-TCLNR/L-CH |
| Insert Inscribed Circle (Inch) | 1/2 |
| Insert Inscribed Circle (Decimal Inch) | 0.5000 |
| Compatible Insert Thickness (Decimal Inch) | 0.3130 |
| Cutting Tool Application | Turning; Boring |
| Back of Bar to Cutting Edge (Decimal Inch) | 1.2800 |
| UNSPSC Code | 23241601 |
| Coolant Through | No |
| undefined | undefined |
| MSC Number | MSC# 43192319 |
