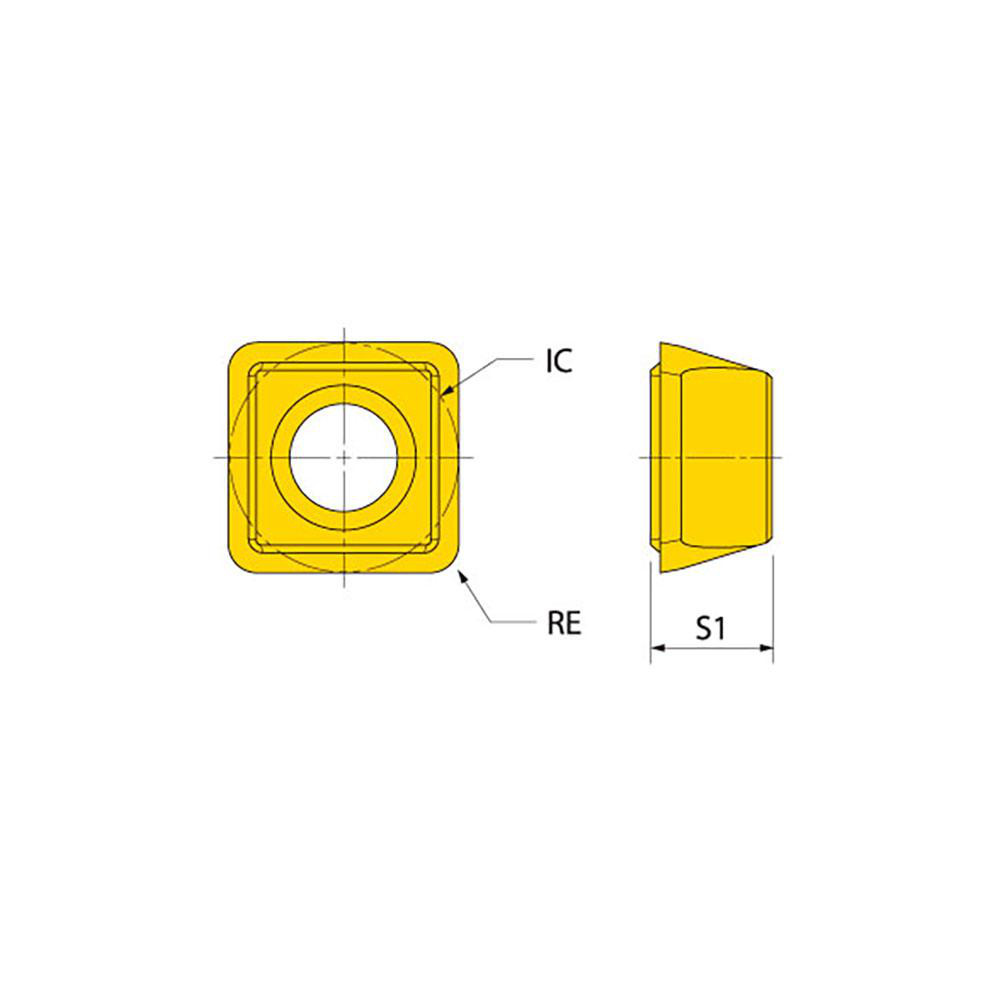

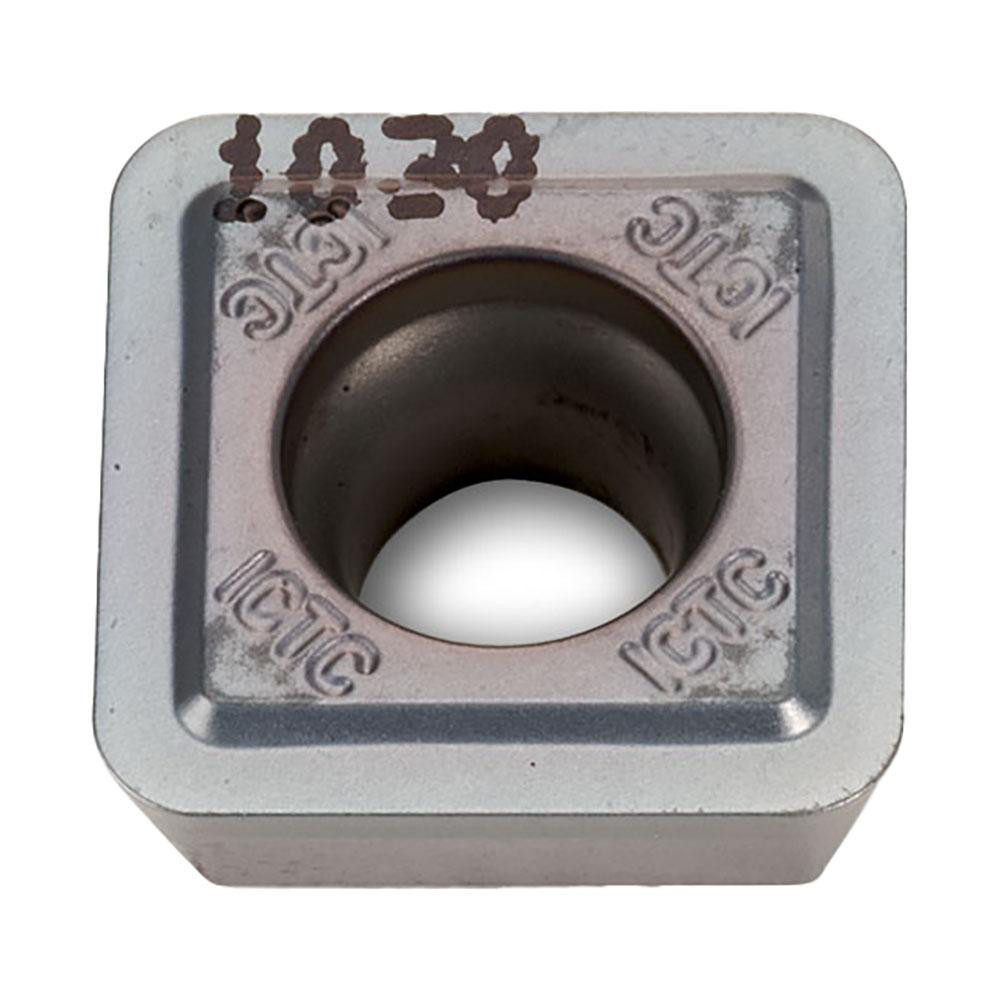

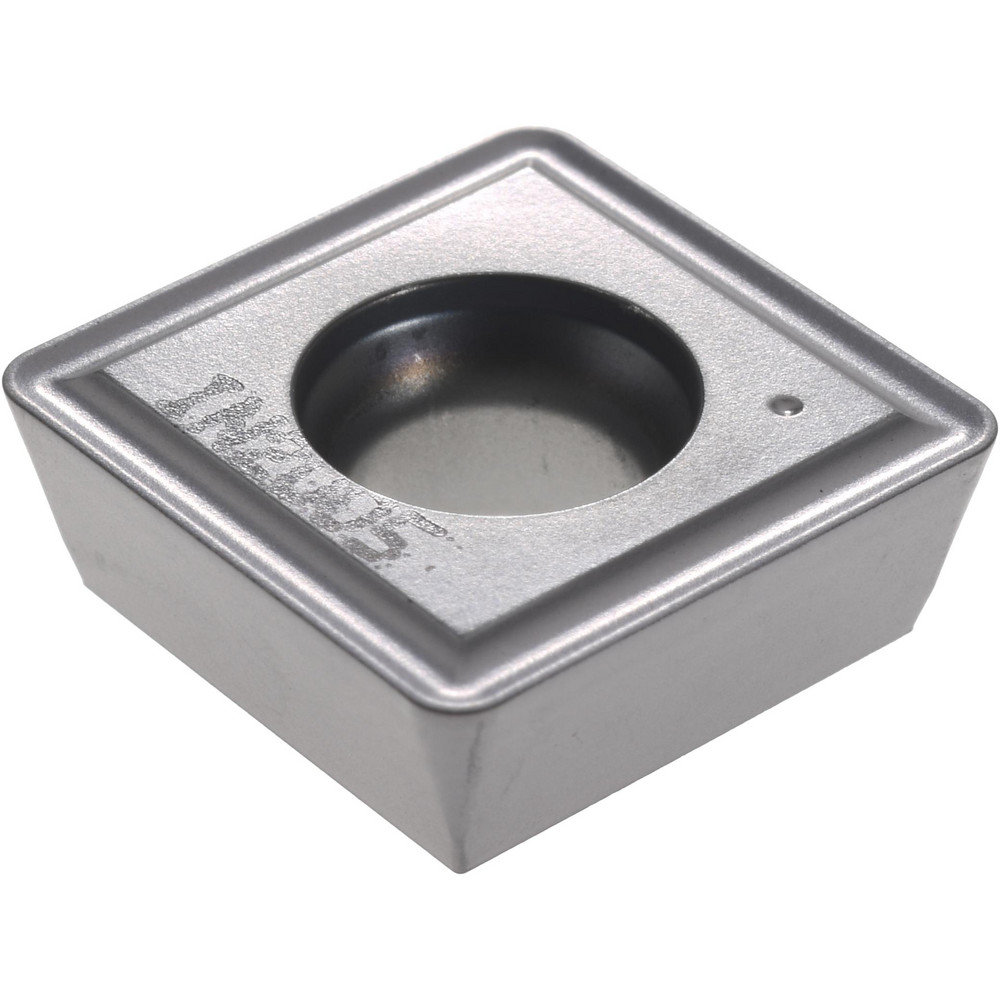

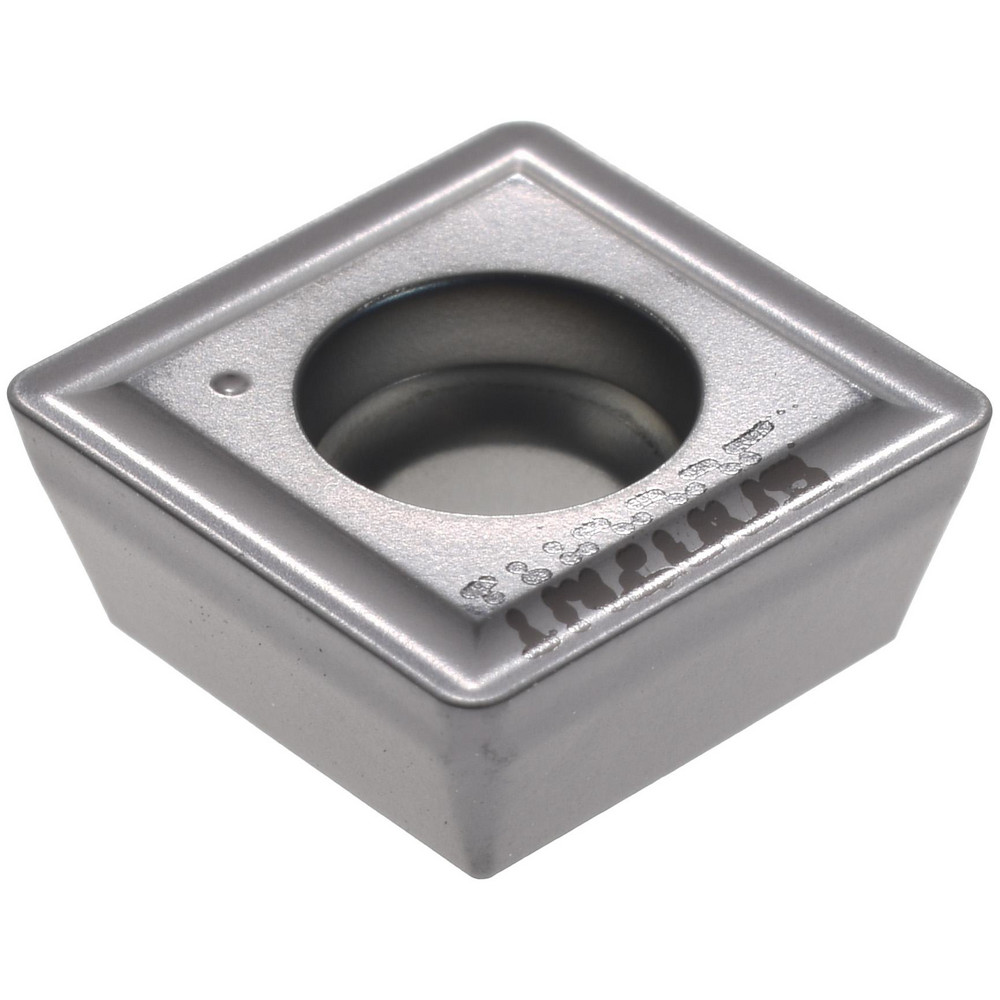

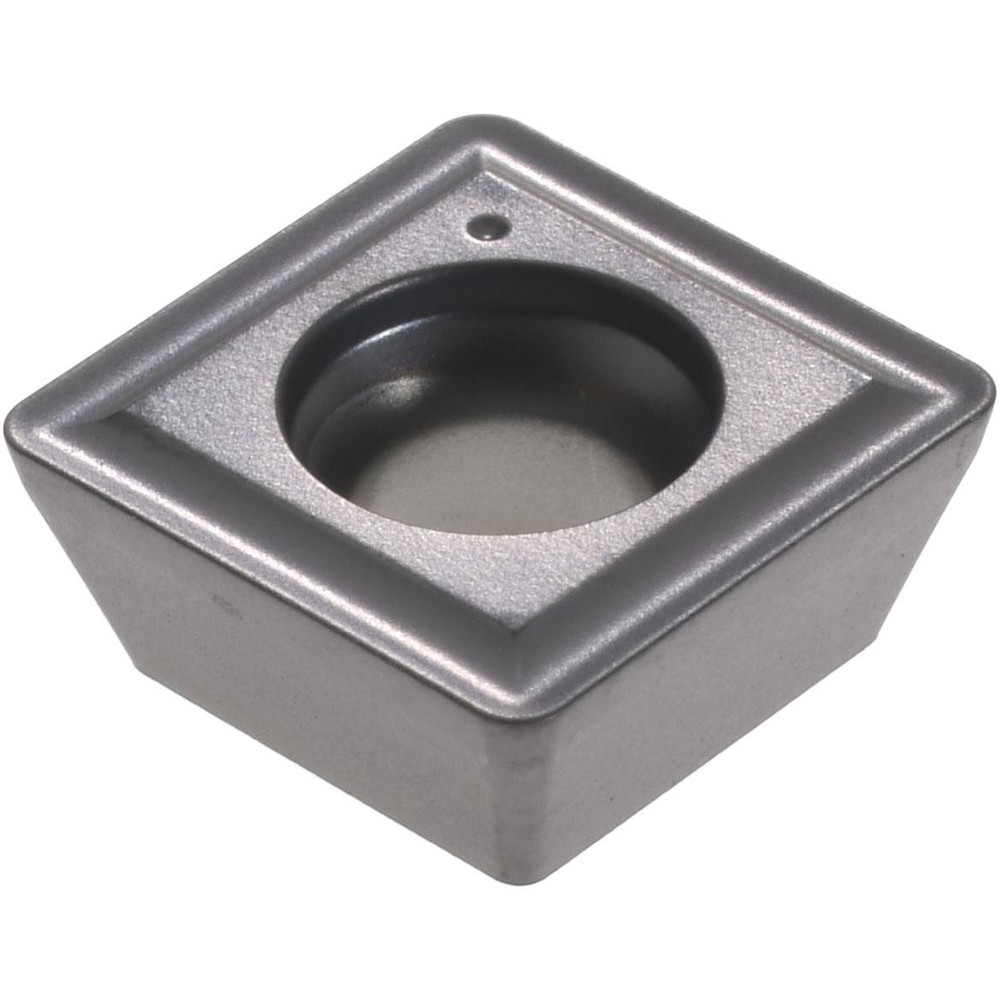

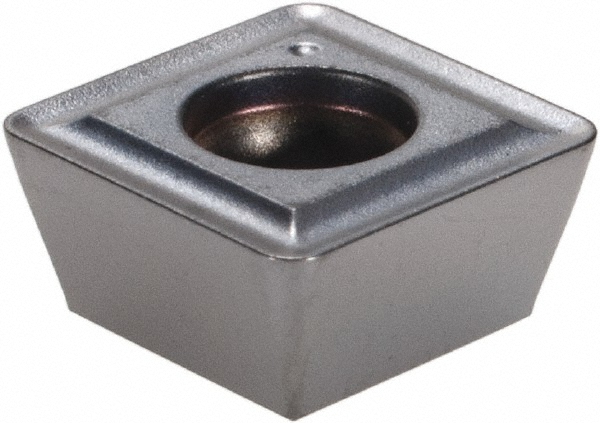

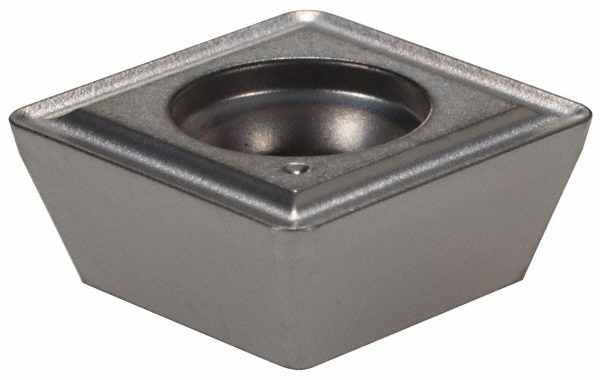

TiCN Finish, 0.4350" Inscribed Circle, 0.1810" Thick, 0.0300" Corner Radius, 90 deg Square
| Insert Style | SHLT |
|---|---|
| Insert Material | Carbide |
| Manufacturer Grade | IN1030 |
| Inscribed Circle (Decimal Inch) | 0.4350 |
| Corner Radius (Decimal Inch) | 0.0300 |
| Chipbreaker | FS |
| Series | SHLT-N-FS |
| Material Grade | C6; C1; C2 |
| Coating Process | PVD |
| Shape | Square |
| Number Of Cutting Edges | 4 |
| Rake | Positive |
| Primary Workpiece Material | Stainless Steel; Superalloys & Titanium; Steel |
| Primary Workpiece Material Code | P; K; M |
| Ansi Code | SHLT110408N-FS |
| Iso Code | SHLT110408N-FS |
| Compatible Drill Style | DHU; 15C; 15S |
| Insert Size | 110408 |
| Width (Decimal Inch - 4 Decimals) | 0.435 |
| Length (Decimal Inch - 4 Decimals) | 0.453 |
| Included Angle Degree | 90 |
| Thickness (Decimal Inch - 4 Decimals) | 0.1810 |
| Coating/Finish | TiCN |
| Insert Size Code | 11 |
| Insert Hand | Neutral |
| UNSPSC Code | 23242105 |
| MSC Number | MSC# 62035100 |
