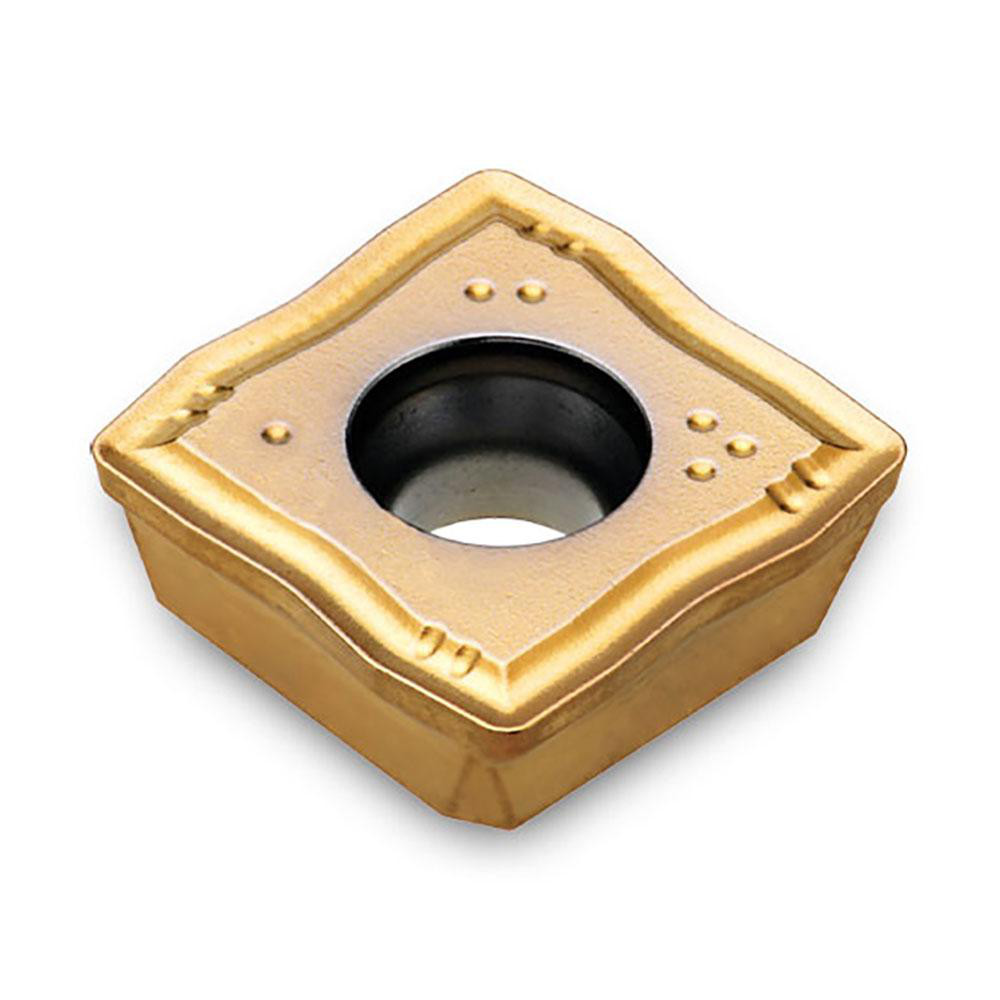

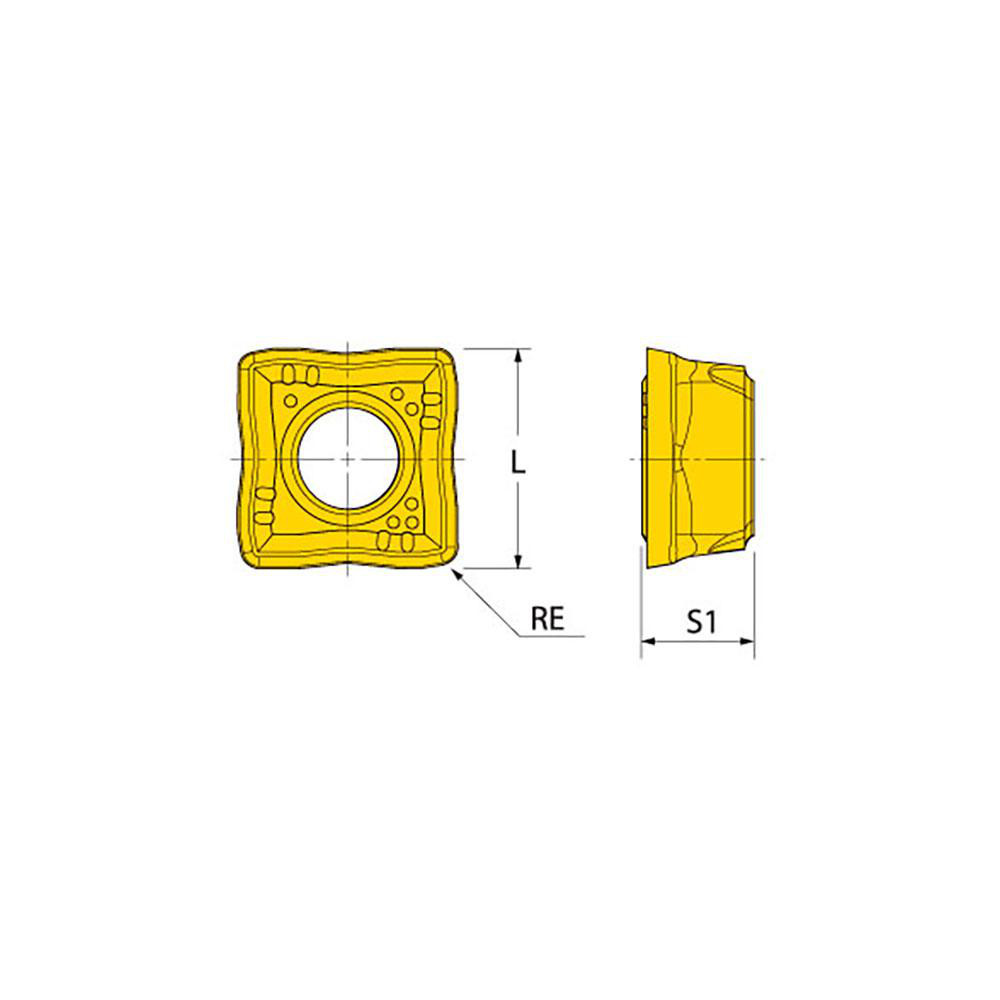

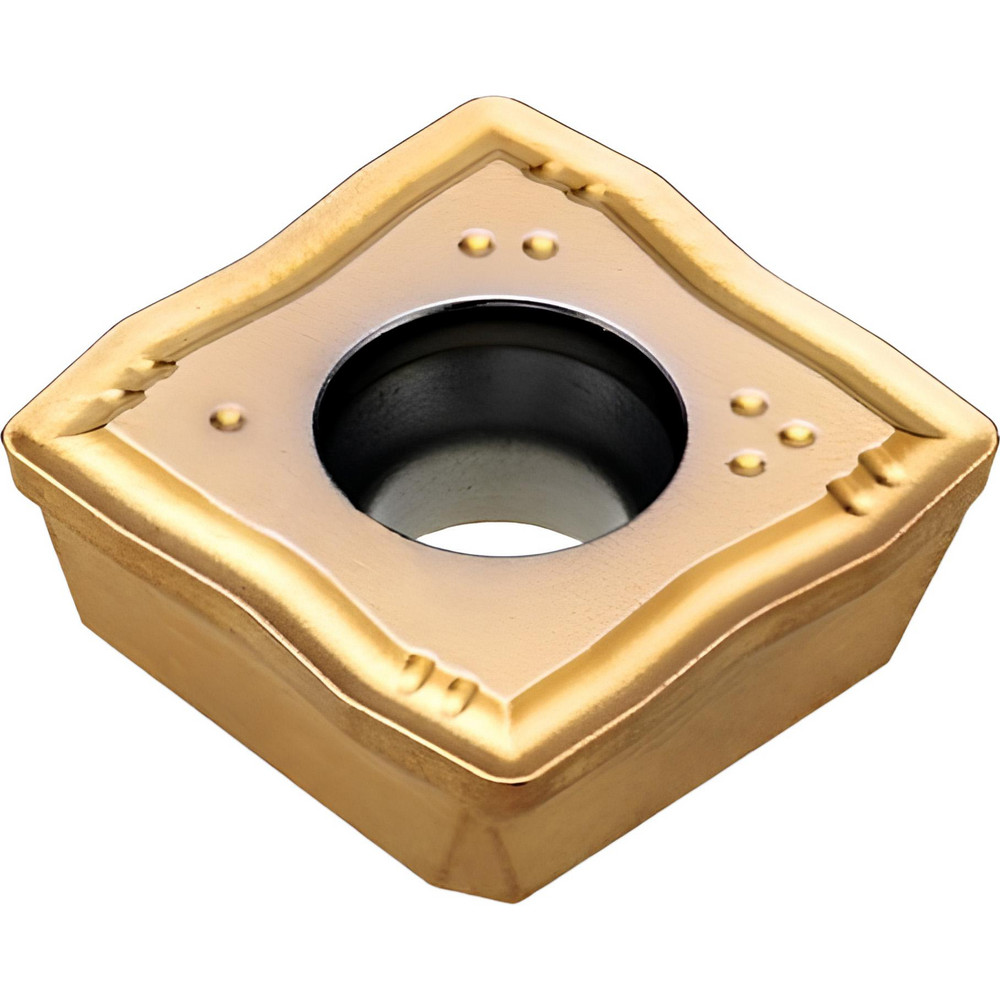

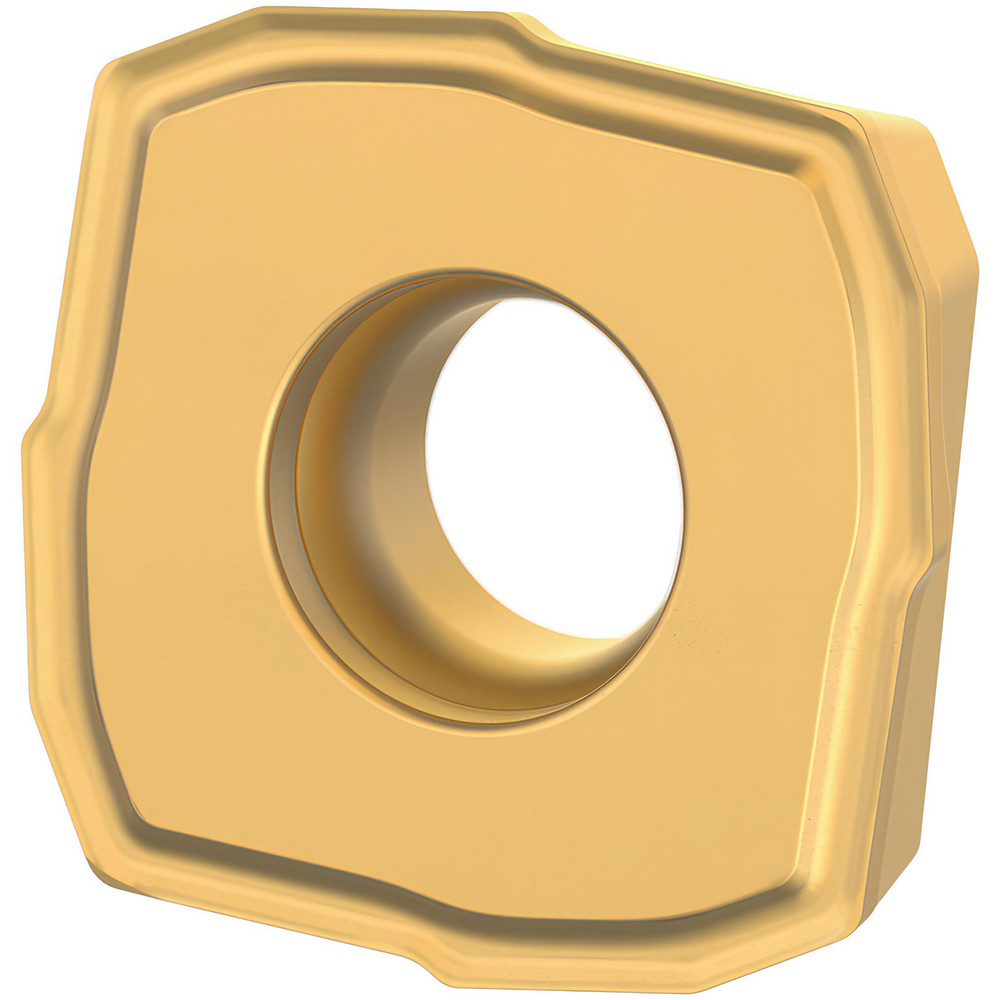

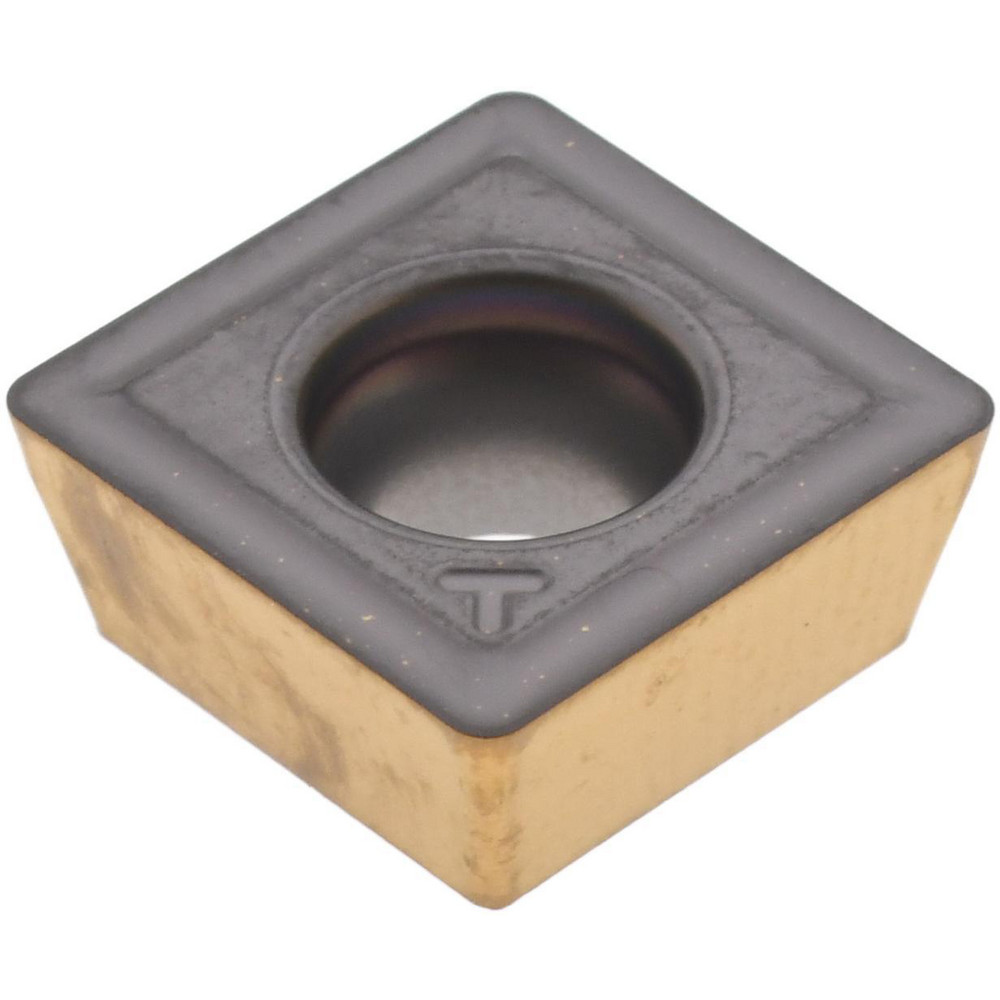

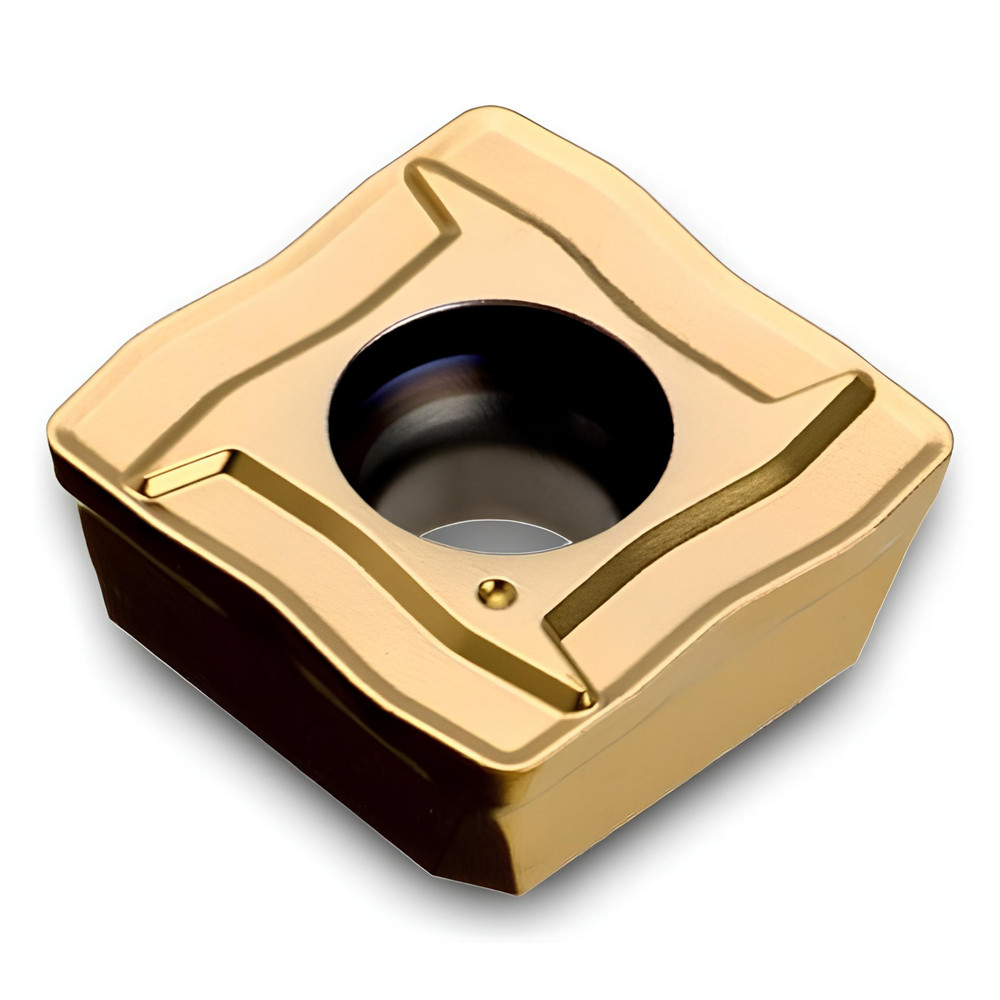

TiAlN & TiN Finish, 0.2680" Inscribed Circle, 0.1140" Thick, 0.0240" Corner Radius, 90 deg Square
| Insert Style | SOMT |
|---|---|
| Insert Material | Carbide |
| Manufacturer Grade | IN2505 |
| Inscribed Circle (Decimal Inch) | 0.2680 |
| Corner Radius (Decimal Inch) | 0.0240 |
| Chipbreaker | SK |
| Series | SOMT-SK |
| Material Grade | Micrograin |
| Coating Process | PVD |
| Shape | Square |
| Number Of Cutting Edges | 4 |
| Rake | Positive |
| Primary Workpiece Material | Hard Material; Stainless Steel; Cast Iron; Superalloys & Titanium; Steel |
| Primary Workpiece Material Code | P; S; H; K; M |
| Ansi Code | SOMT070306SK |
| Iso Code | SOMT070306SK |
| Compatible Drill Style | QR |
| Insert Size | 070306 |
| Width (Decimal Inch - 4 Decimals) | 0.268 |
| Length (Decimal Inch - 4 Decimals) | 0.268 |
| Included Angle Degree | 90 |
| Thickness (Decimal Inch - 4 Decimals) | 0.1140 |
| Coating/Finish | TiN; TiAlN |
| Insert Size Code | 07 |
| Insert Hand | Neutral |
| UNSPSC Code | 23242105 |
| MSC Number | MSC# 77376630 |
