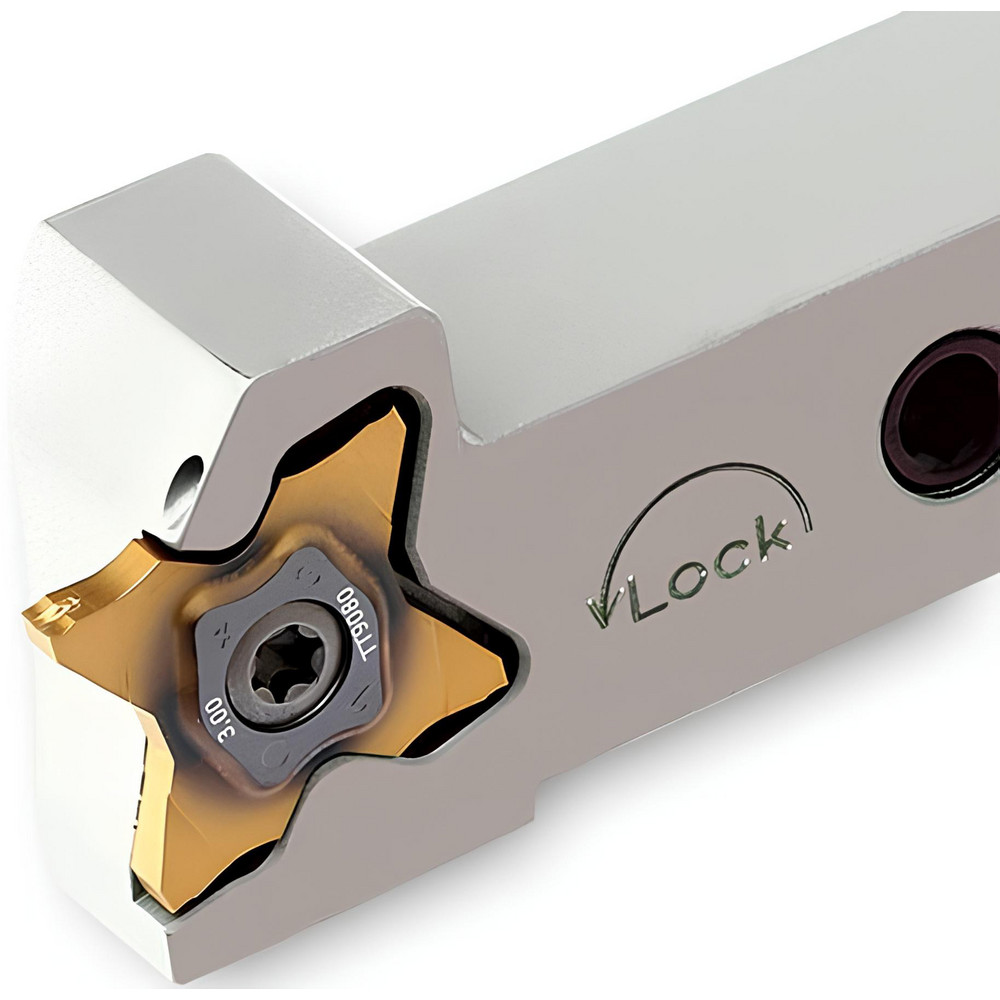

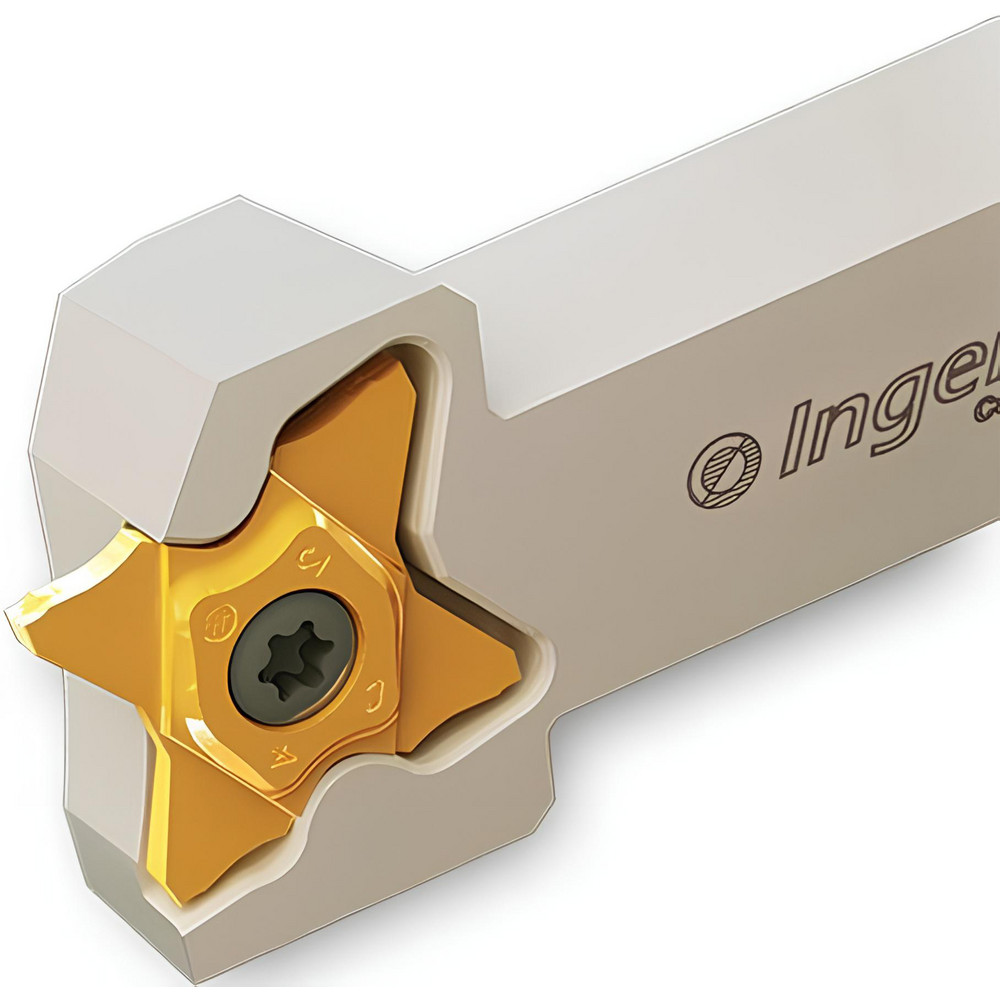

Uses TQx27.. Inserts, 3/8 x 3/8" Shank, Series TQHR
| Internal or External | External |
|---|---|
| Hand of Holder | Left Hand |
| Maximum Depth of Cut (Decimal Inch) | 0.2520 |
| Maximum Groove Width (Decimal Inch) | 0.1250 |
| Minimum Groove Width (Decimal Inch) | 0.0200 |
| Toolholder Style | TQHR |
| Tool Material | Steel |
| Insert Holding Method | Screw |
| Compatible Insert Size Code | 27 |
| Insert Compatibility | TQx27.. |
| Shank Height (Inch) | 3/8 |
| Shank Length (Decimal Inch) | 4.0900 |
| Shank Width/Diameter (Inch) | 3/8 |
| Series | TQHR |
| Overall Length (mm) | 127.0000 |
| Cutting Tool Application | Grooving; Parting |
| Back of Bar to Cutting Edge (Decimal Inch) | 0.3150 |
| Head Length (Decimal Inch) | 0.9100 |
| Primary Workpiece Material | Universal |
| Manufacturers Catalog Number | TQHL9.5-27 |
| Complete Insert Compatibility | TQx27.. |
| Center to Cutting Edge (Decimal Inch) | 0.3150 |
| Number of Inserts Included in Order | 1 |
| Coolant Through | No |
| UNSPSC Code | 23153308 |
| undefined | undefined |
| MSC Number | MSC# 57482457 |
