0.984" Max Depth of Cut, Uses TCEL 1 to 8, TCFR 1 to 8, TQCL 1 to 8 Inserts
| Insert Seat Size | 1 to 8 |
|---|---|
| Hand of Holder | Left Hand |
| Maximum Depth of Cut (Decimal Inch) | 0.9840 |
| Minimum Groove Width (Decimal Inch) | 0.0200 |
| Toolholder Style | TCHL |
| Maximum Groove Width (Decimal Inch) | 0.1970 |
| Insert Holding Method | Screw |
| Compatible Insert Size Code | TCEL 1 to 8; TQCL 1 to 8; TCFR 1 to 8 |

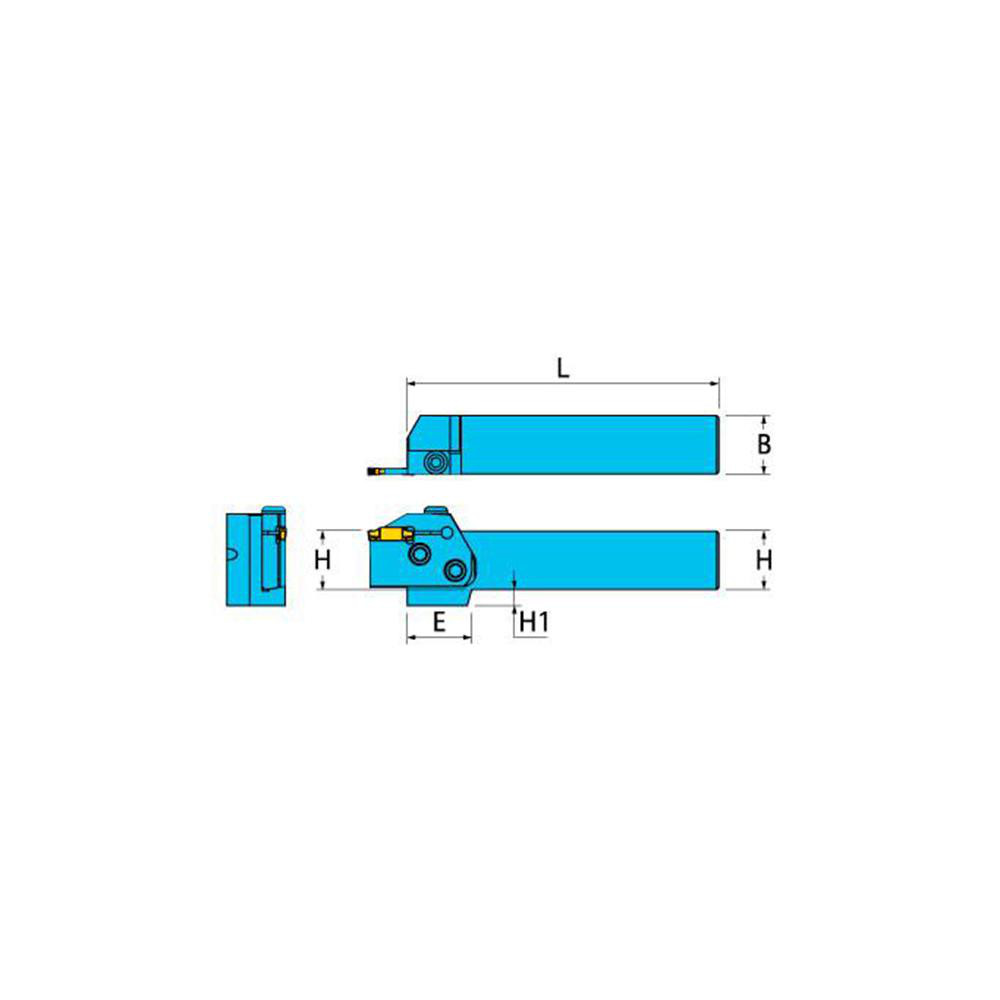

| Shank Height (Decimal Inch) | 1.2500 |
| Series | TCHR/L |
| Overall Length (Decimal Inch) | 6.33 |
| Multi-use Tool | Yes |
| Maximum Workpiece Diameter (Decimal Inch) | 1.9680 |
| Back of Bar to Cutting Edge (Decimal Inch) | 1.2500 |
| Head Length (Decimal Inch) | 1.1 |
| Primary Workpiece Material | Universal |
| UNSPSC Code | 23153308 |
| Toolholder Material | Steel |
| Coolant Through | No |
| undefined | undefined |
| MSC Number | MSC# 13578695 |
