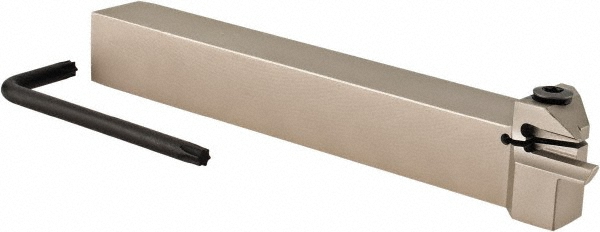

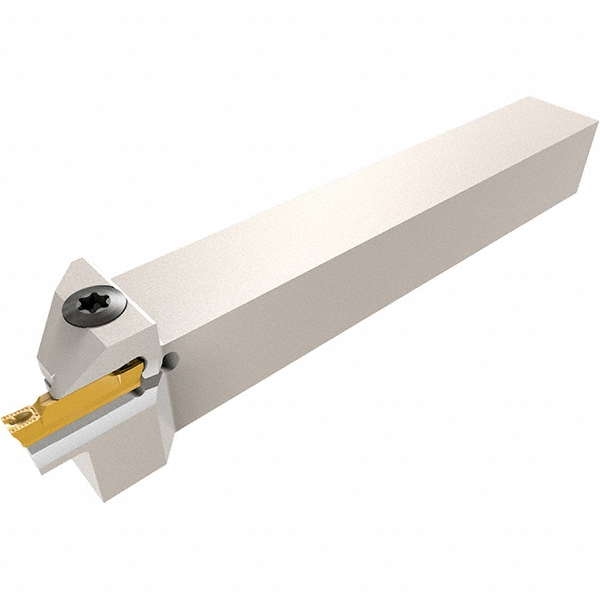

0.236" Max Depth of Cut, Uses TD 2, TD 3, TD 4, TS 2, TS 3, TS 4 Inserts
| Toolholder Type | External Grooving |
|---|---|
| Insert Seat Size | 2; 3; 4 |
| Hand of Holder | Left Hand |
| Maximum Depth of Cut (Decimal Inch) | 0.2360 |
| Minimum Groove Width (Decimal Inch) | 0.1040 |
| Toolholder Style | TGFL |
| Maximum Groove Width (Decimal Inch) | 0.1180 |
| Insert Holding Method | Clamp |
| Compatible Insert Size Code | TD 4; TD 3; TS 4; TD 2; TS 3; TS 2 |
| Shank Height (Decimal Inch) | 0.7500 |
| Series | TGFR/L |
| Shank Length (Decimal Inch) | 3.7000 |
| Overall Length (Inch) | 5 |
| Overall Length (Decimal Inch) | 5 |
| Multi-use Tool | Yes |
| Maximum Workpiece Diameter (Decimal Inch) | 0.4720 |
| Back of Bar to Cutting Edge (Decimal Inch) | 0.7500 |
| Head Length (Decimal Inch) | 1.3 |
| Primary Workpiece Material | Universal |
| UNSPSC Code | 23153308 |
| Toolholder Material | Steel |
| Coolant Through | No |
| MSC Number | MSC# 13578497 |
