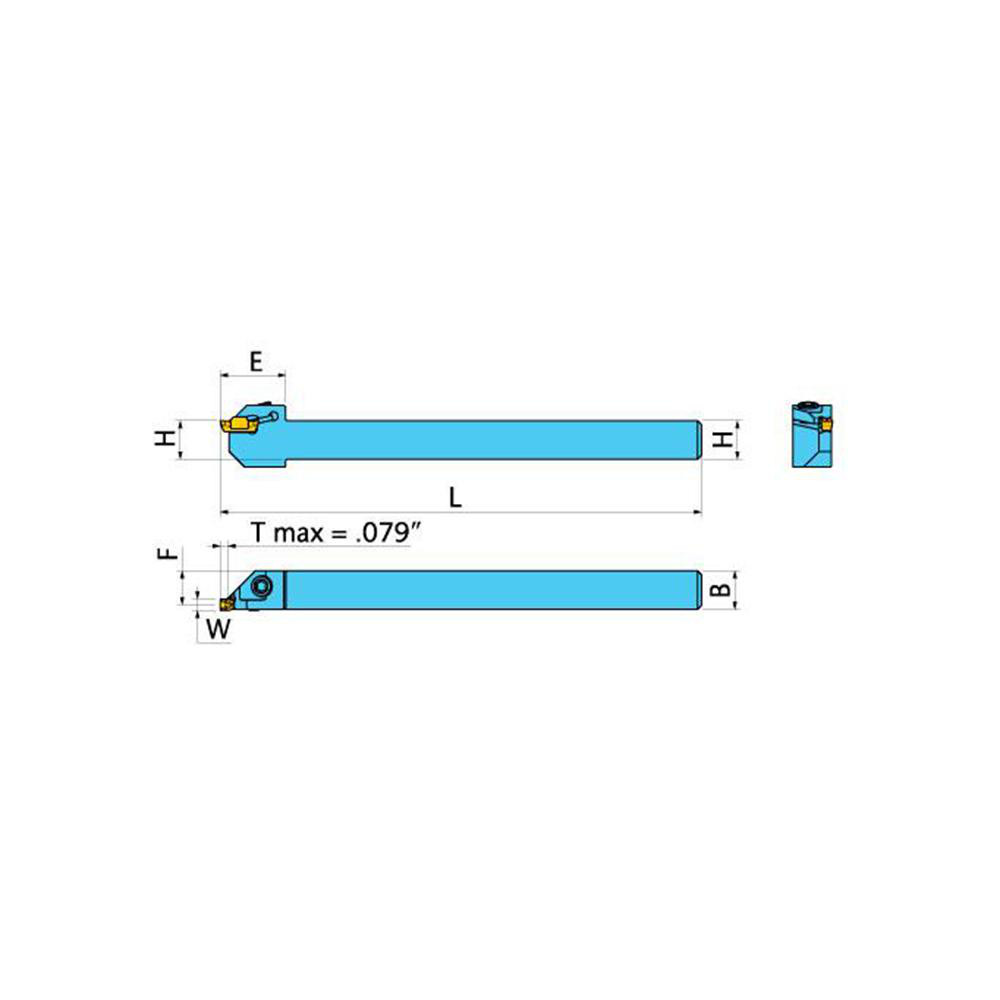

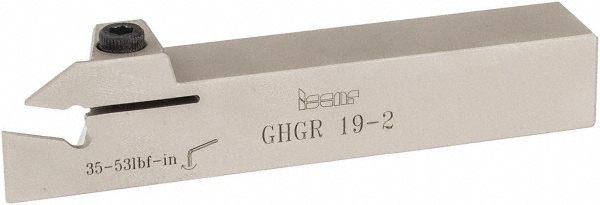

0.079" Max Depth of Cut, Uses TDI 2, TDI 3, SC*T 2, SC*T 3, TSL 2, TSL 3 Inserts
| Toolholder Type | External Grooving |
|---|---|
| Insert Seat Size | 2; 3 |
| Hand of Holder | Right Hand |
| Maximum Depth of Cut (Decimal Inch) | 0.0790 |
| Minimum Groove Width (Decimal Inch) | 0.0390 |
| Toolholder Style | TGSFR |
| Maximum Groove Width (Decimal Inch) | 0.0940 |
| Insert Holding Method | Clamp |
| Compatible Insert Size Code | TDI 3; TDI 2; TSL 3; TSL 2; SC*T 2; SC*T 3 |
| Shank Height (Decimal Inch) | 0.3750 |
| Series | TGSF |
| Shank Length (Decimal Inch) | 4.3300 |
| Overall Length (Inch) | 5 |
| Overall Length (Decimal Inch) | 5 |
| Multi-use Tool | Yes |
| Maximum Workpiece Diameter (Decimal Inch) | 0.1580 |
| Back of Bar to Cutting Edge (mm) | 12.00 |
| Head Length (Decimal Inch) | 0.67 |
| Primary Workpiece Material | Universal |
| UNSPSC Code | 23153308 |
| Toolholder Material | Steel |
| Coolant Through | No |
| MSC Number | MSC# 13575444 |
