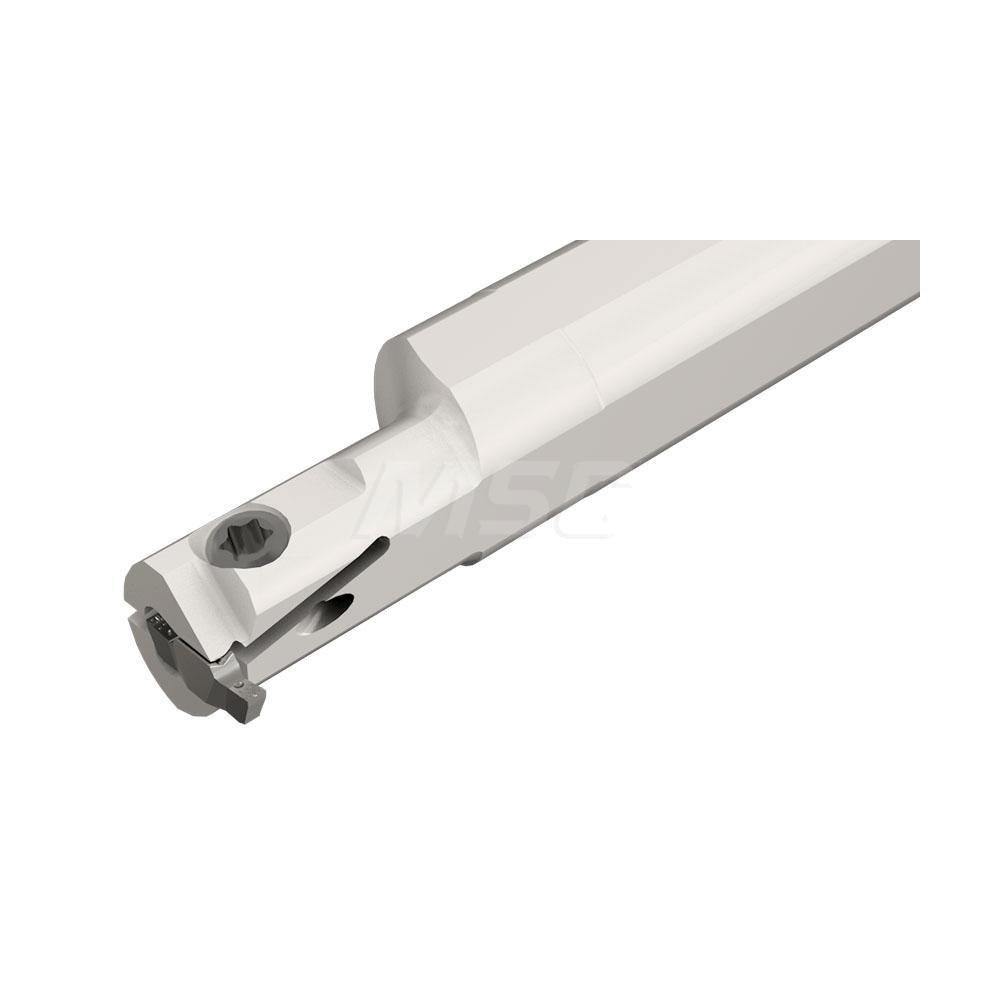

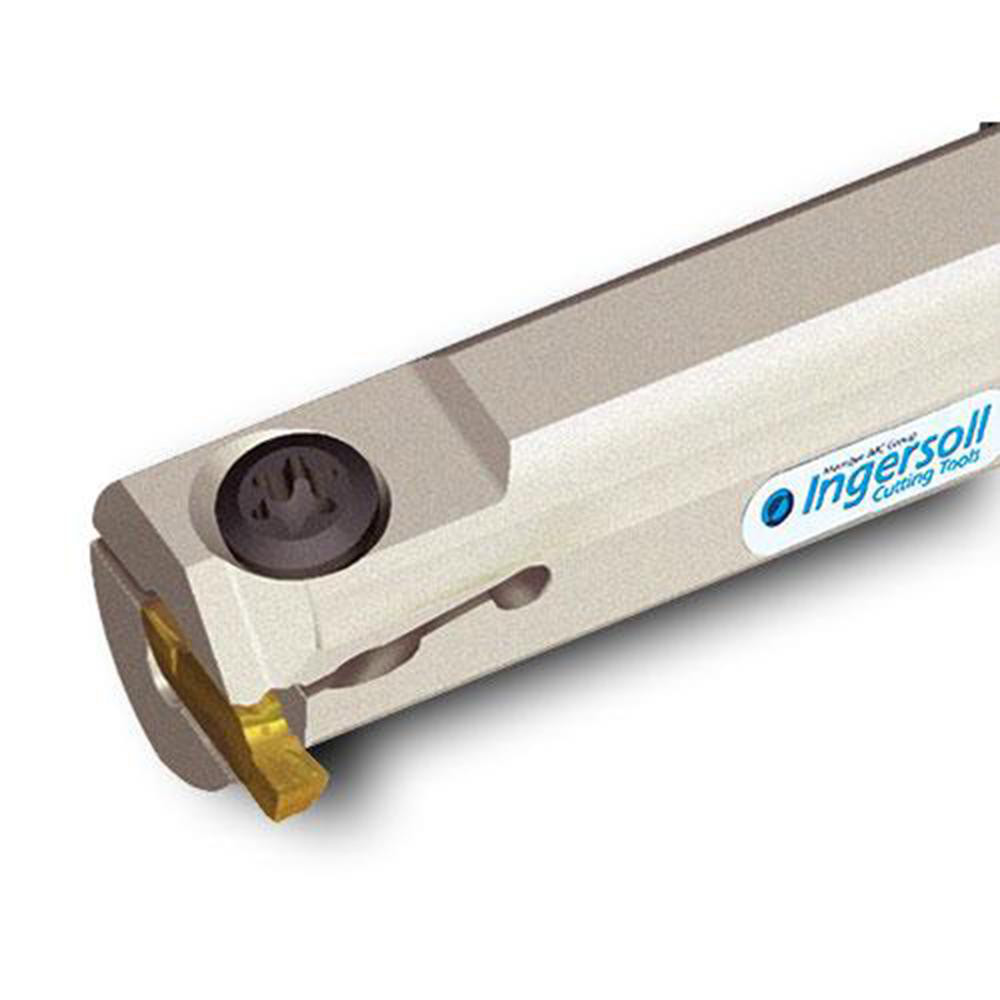

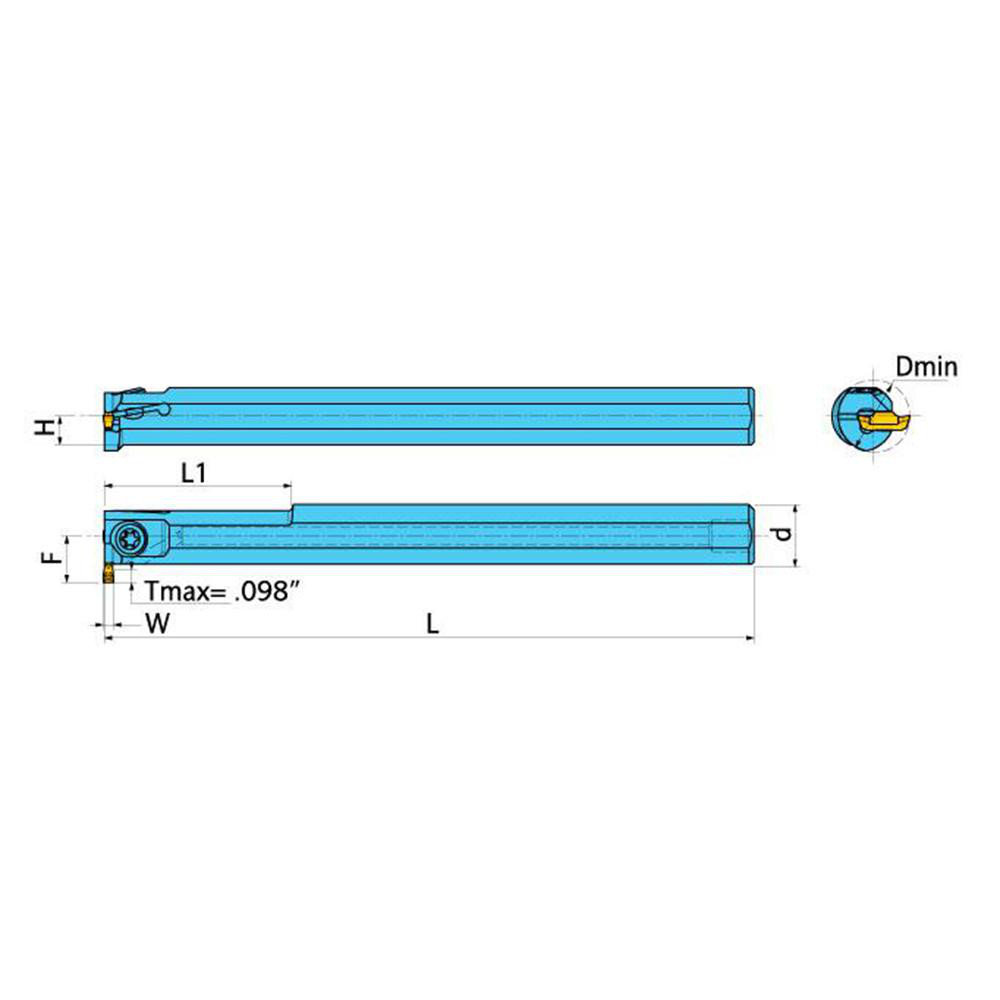

0.098" Max Depth of Cut, Uses TDI 2, TDI 3, SC*T 2, SC*T 3, TSL 2, TSL 3 Inserts
| Toolholder Type | Internal Grooving |
|---|---|
| Insert Seat Size | 2; 3 |
| Hand of Holder | Right Hand |
| Maximum Depth of Cut (Decimal Inch) | 0.0980 |
| Minimum Groove Width (Decimal Inch) | 0.0390 |
| Toolholder Style | TGSIR |
| Maximum Groove Width (Decimal Inch) | 0.0940 |
| Insert Holding Method | Clamp |
| Compatible Insert Size Code | TDI 3; TDI 2; TSL 3; TSL 2; SC*T 2; SC*T 3 |
| Series | TGSI |
| Overall Length (Inch) | 5 |
| Overall Length (Decimal Inch) | 5 |
| Multi-use Tool | Yes |
| Center to Cutting Edge (Decimal Inch) | 0.2950 |
| Minimum Hole Diameter (Decimal Inch) | 0.4920 |
| Head Length (Decimal Inch) | 0.984 |
| Primary Workpiece Material | Universal |
| UNSPSC Code | 23153308 |
| Toolholder Material | Steel |
| Coolant Through | No |
| MSC Number | MSC# 13575451 |
