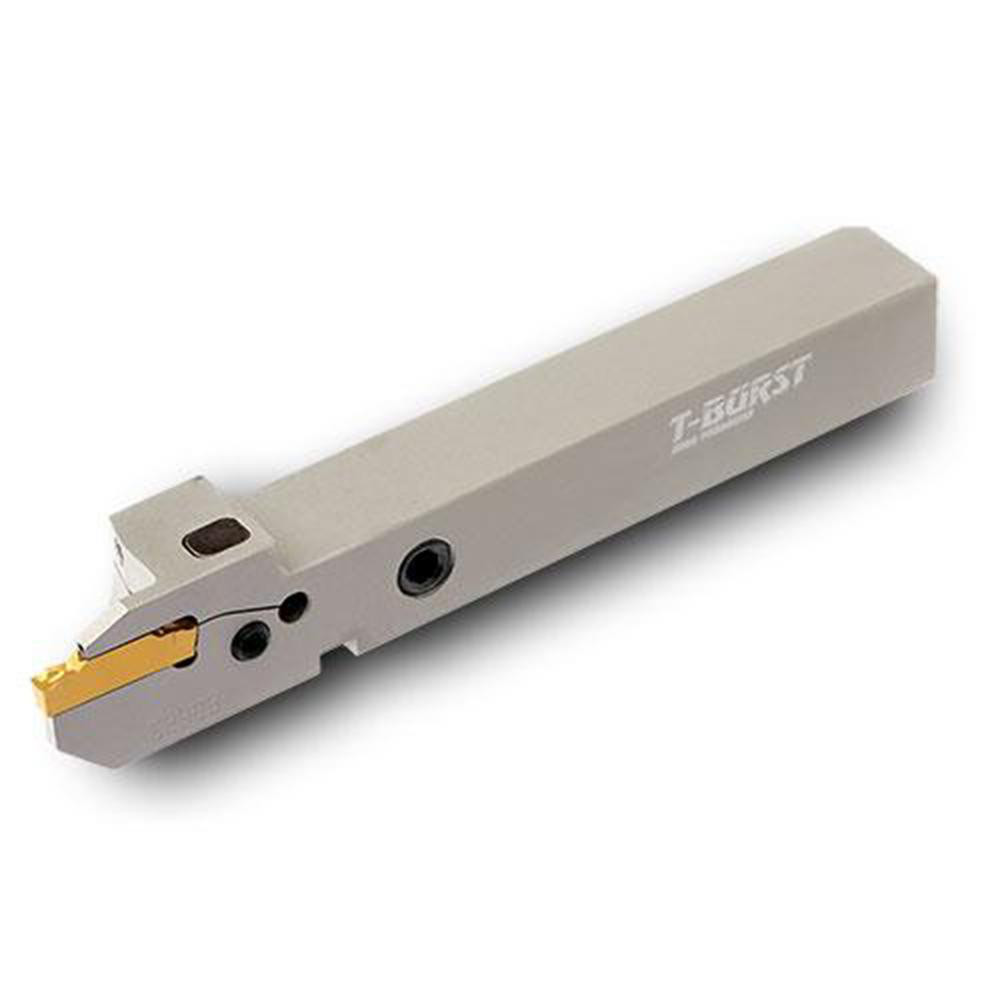

0.47" Max Depth of Cut, Uses TDJ 1 Inserts
| Toolholder Type | External Grooving |
|---|---|
| Insert Seat Size | 1 |
| Hand of Holder | Left Hand |
| Maximum Depth of Cut (Decimal Inch) | 0.4700 |
| Minimum Groove Width (Decimal Inch) | 0.0550 |
| Toolholder Style | TTEL |
| Maximum Groove Width (Decimal Inch) | 0.0400 |
| Insert Holding Method | Clamp |
| Compatible Insert Size Code | TDJ 1 |
| Shank Height (Decimal Inch) | 0.5000 |
| Series | TTER/L-SH |
| Shank Length (Decimal Inch) | 4.2300 |
| Overall Length (Inch) | 5 |
| Overall Length (Decimal Inch) | 5 |
| Multi-use Tool | Yes |
| Maximum Workpiece Diameter (Decimal Inch) | 0.9400 |
| Back of Bar to Cutting Edge (Decimal Inch) | 0.5000 |
| Head Length (Decimal Inch) | 0.77 |
| Primary Workpiece Material | Universal |
| UNSPSC Code | 23153308 |
| Toolholder Material | Steel |
| Coolant Through | No |
| MSC Number | MSC# 13577697 |
