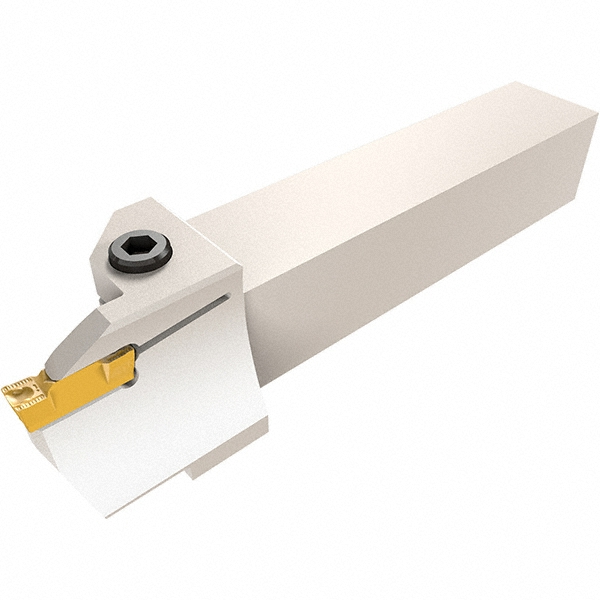

1.26" Max Depth of Cut, Through Coolant, Uses TD 6, TS 6 Inserts
| Toolholder Type | External Grooving |
|---|---|
| Insert Seat Size | 6 |
| Hand of Holder | Left Hand |
| Maximum Depth of Cut (Decimal Inch) | 1.2600 |
| Minimum Groove Width (Decimal Inch) | 0.2360 |
| Toolholder Style | TTEL |
| Maximum Groove Width (Decimal Inch) | 0.1970 |
| Insert Holding Method | Clamp |
| Compatible Insert Size Code | TD 6; TS 6 |
| Shank Height (Decimal Inch) | 1.0000 |
| Series | TTER/L-TB |
| Shank Length (Decimal Inch) | 3.9500 |
| Overall Length (Inch) | 6 |
| Overall Length (Decimal Inch) | 6 |
| Multi-use Tool | Yes |
| Maximum Workpiece Diameter (Decimal Inch) | 2.5200 |
| Back of Bar to Cutting Edge (Decimal Inch) | 1.0000 |
| Head Length (Decimal Inch) | 2.05 |
| Primary Workpiece Material | Universal |
| UNSPSC Code | 23153308 |
| Toolholder Material | Steel |
| Coolant Through | Yes |
| MSC Number | MSC# 29151313 |
