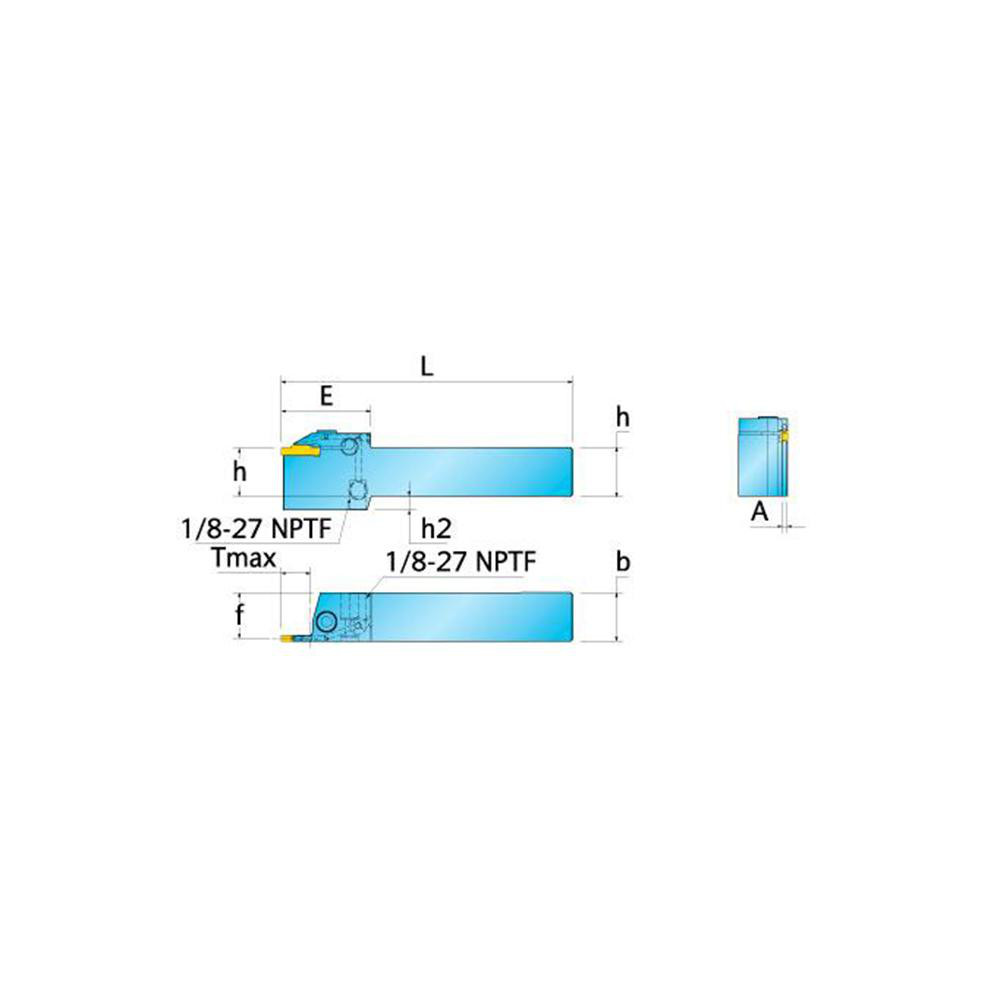

0.59" Max Depth of Cut, Through Coolant, Uses TD 4, TS 4 Inserts
| Toolholder Type | External Grooving |
|---|---|
| Insert Seat Size | 4 |
| Hand of Holder | Right Hand |
| Maximum Depth of Cut (Decimal Inch) | 0.5900 |
| Minimum Groove Width (Decimal Inch) | 0.1570 |
| Toolholder Style | TTER |
| Maximum Groove Width (Decimal Inch) | 0.1180 |
| Insert Holding Method | Clamp |
| Compatible Insert Size Code | TD 4; TS 4 |
| Shank Height (Decimal Inch) | 0.7500 |
| Series | TTER/L-TB |
| Shank Length (Decimal Inch) | 3.1900 |
| Overall Length (Inch) | 5 |
| Overall Length (Decimal Inch) | 5 |
| Multi-use Tool | Yes |
| Maximum Workpiece Diameter (Decimal Inch) | 1.1800 |
| Back of Bar to Cutting Edge (mm) | 12.00 |
| Head Length (Decimal Inch) | 1.81 |
| Primary Workpiece Material | Universal |
| UNSPSC Code | 23153308 |
| Toolholder Material | Steel |
| Coolant Through | Yes |
| MSC Number | MSC# 13576087 |
