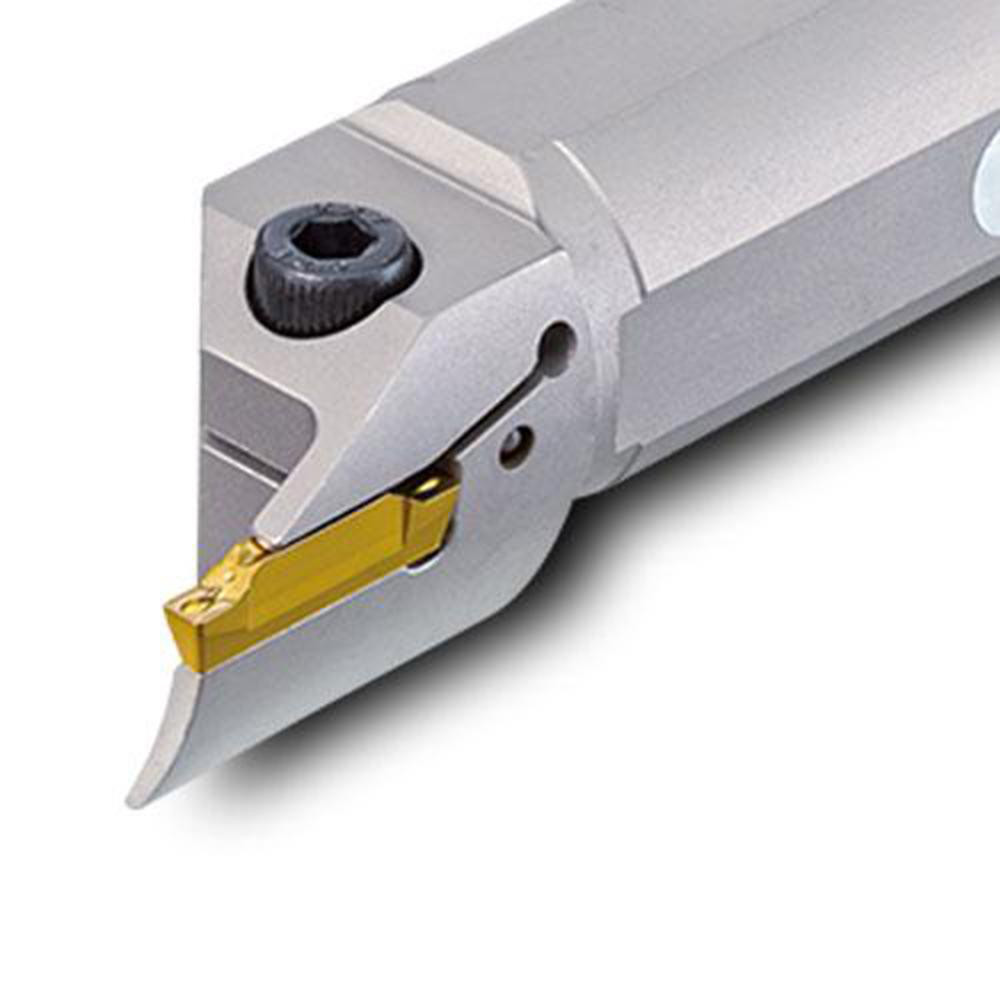

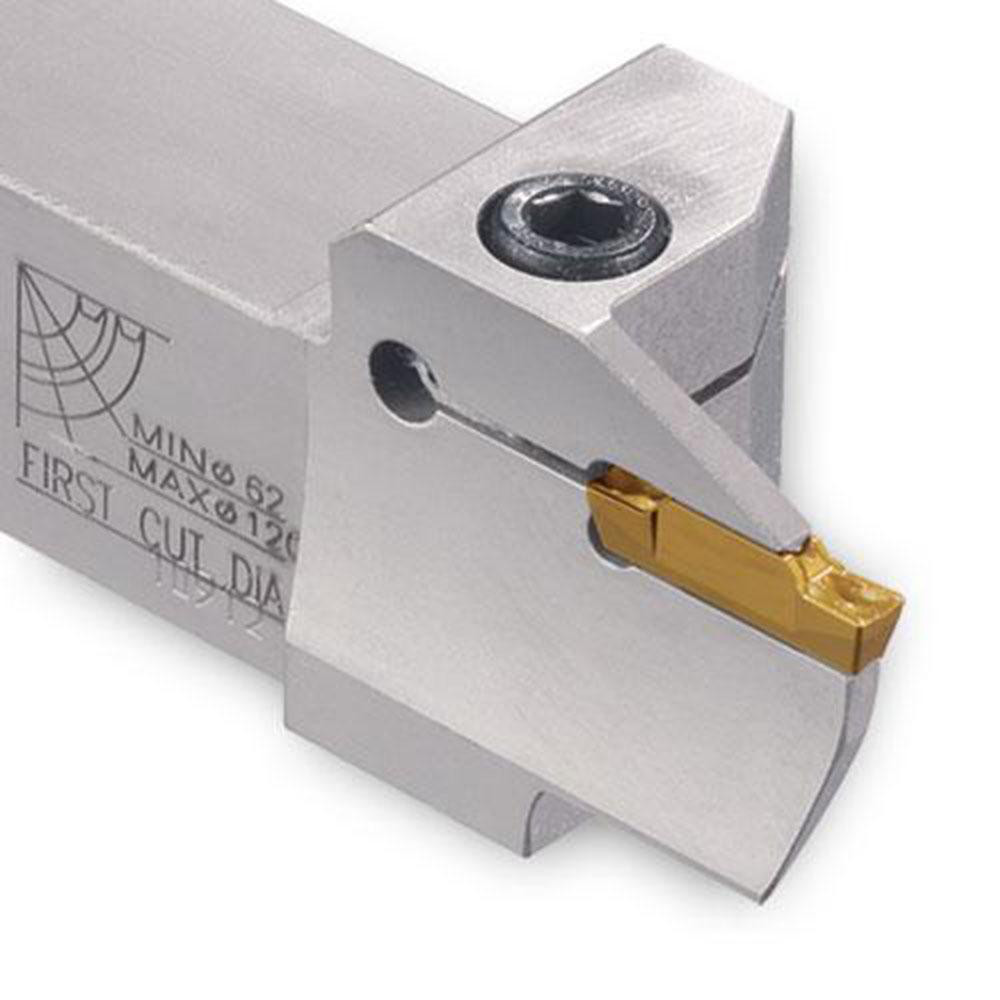

0.472" Max Depth of Cut, Through Coolant, Uses TD 3, TS 3 Inserts

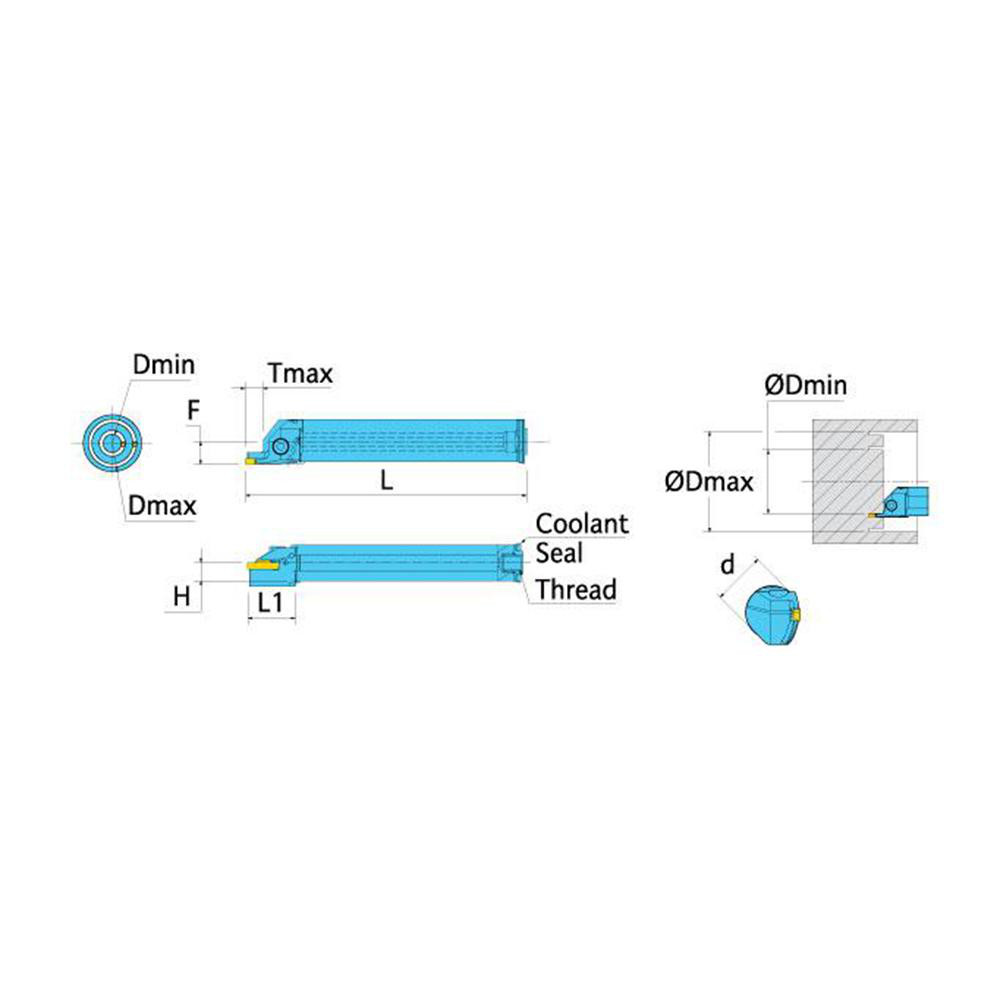

| Toolholder Type | Face Grooving |
|---|---|
| Insert Seat Size | 3 |
| Hand of Holder | Left Hand |
| Maximum Depth of Cut (Decimal Inch) | 0.4720 |
| Minimum Groove Width (Decimal Inch) | 0.1180 |
| Toolholder Style | TTFIL |
| Maximum Groove Width (Decimal Inch) | 0.0950 |
| Insert Holding Method | Clamp |
| Compatible Insert Size Code | TD 3; TS 3 |
| Series | TTFIR/L |
| Shank Length (Decimal Inch) | 6.7800 |
| Overall Length (Inch) | 8 |
| Overall Length (Decimal Inch) | 8 |
| Multi-use Tool | Yes |
| Maximum Workpiece Diameter (Decimal Inch) | 5.9050 |
| Minimum Overhang (Decimal Inch) | 3.11 |
| Maximum Overhang (Inch) | 5.9050 |
| Center to Cutting Edge (Decimal Inch) | 0.5160 |
| Minimum Hole Diameter (Decimal Inch) | 3.1100 |
| Head Length (Decimal Inch) | 1.22 |
| Primary Workpiece Material | Universal |
| UNSPSC Code | 23153308 |
| Toolholder Material | Steel |
| Coolant Through | Yes |
| MSC Number | MSC# 13577747 |
