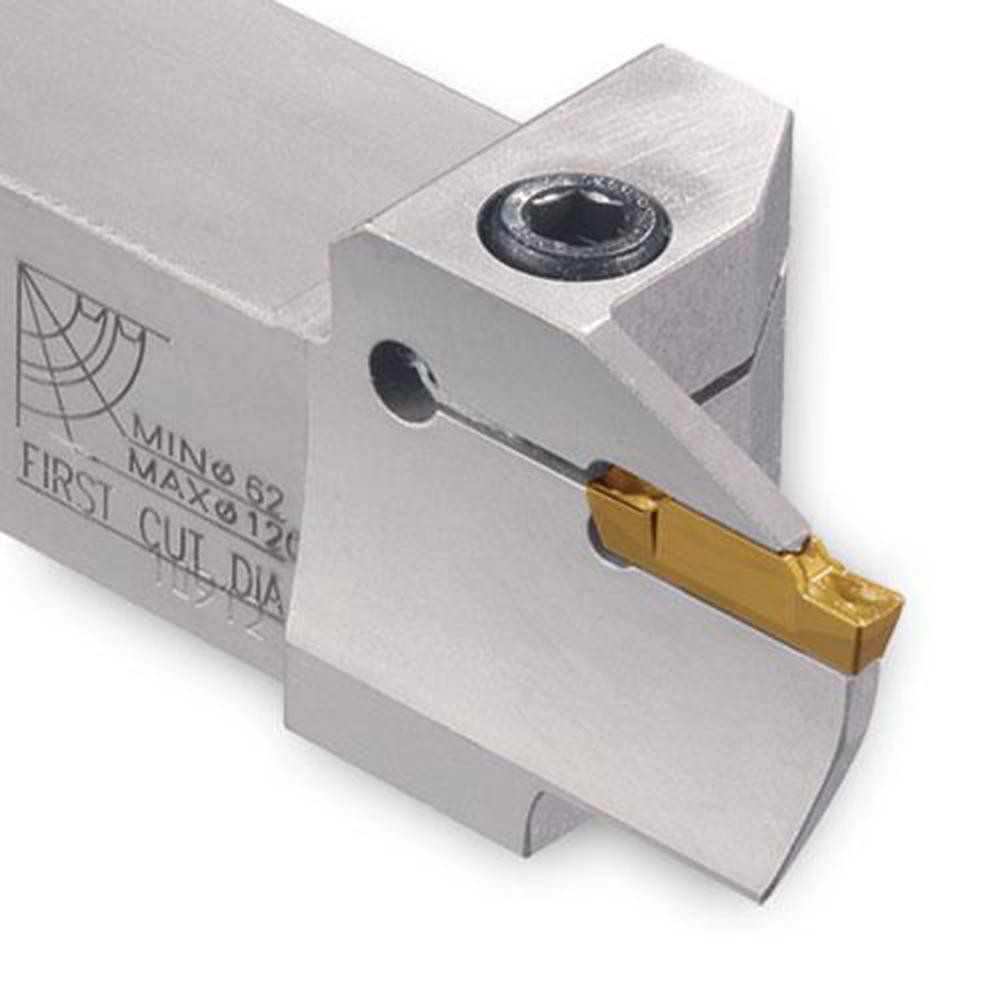

0.79" Max Depth of Cut, Uses TD 6, TS 6 Inserts
| Toolholder Type | Face Grooving |
|---|---|
| Insert Seat Size | 6 |
| Hand of Holder | Right Hand |
| Maximum Depth of Cut (Decimal Inch) | 0.7900 |
| Minimum Groove Width (Decimal Inch) | 0.2360 |
| Toolholder Style | TTFPR |
| Maximum Groove Width (Decimal Inch) | 0.1970 |
| Insert Holding Method | Clamp |
| Compatible Insert Size Code | TD 6; TS 6 |
| Shank Height (Decimal Inch) | 1.0000 |
| Series | TTFPR/L |
| Shank Length (Decimal Inch) | 5.1300 |
| Overall Length (Inch) | 6 |
| Overall Length (Decimal Inch) | 6 |
| Multi-use Tool | Yes |
| Maximum Workpiece Diameter (Decimal Inch) | 5.9100 |
| Minimum Overhang (Decimal Inch) | 2.87 |
| Maximum Overhang (Inch) | 5.9100 |
| Minimum Hole Diameter (Decimal Inch) | 2.8700 |
| Head Length (Decimal Inch) | 0.87 |
| Primary Workpiece Material | Universal |
| UNSPSC Code | 23153308 |
| Toolholder Material | Steel |
| Coolant Through | No |
| MSC Number | MSC# 86661766 |
