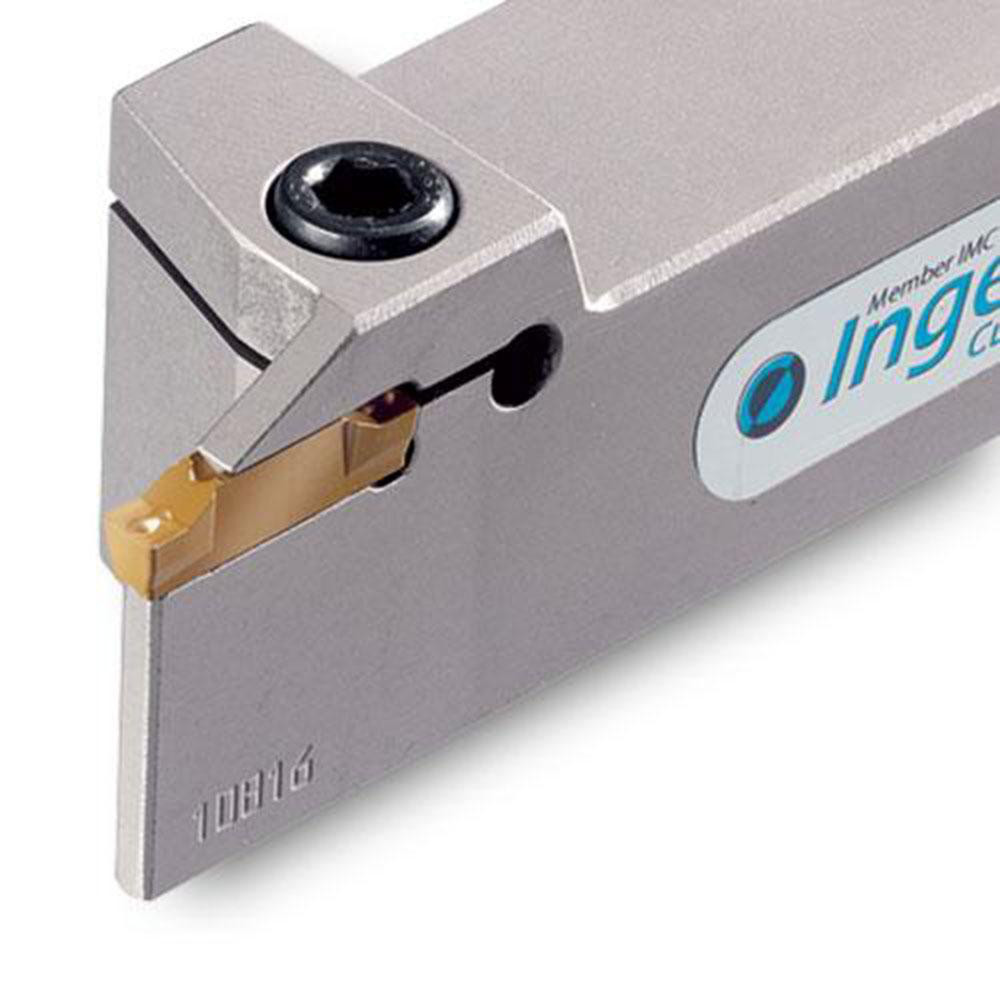

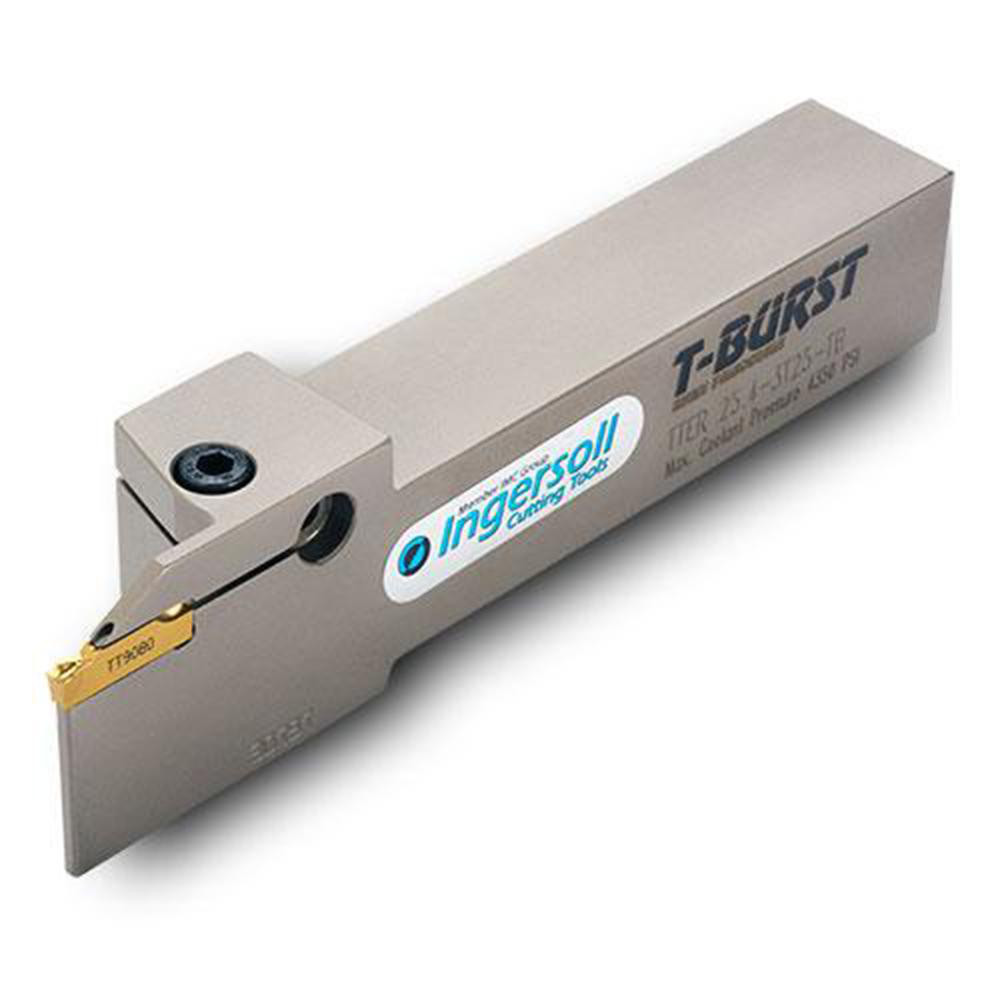

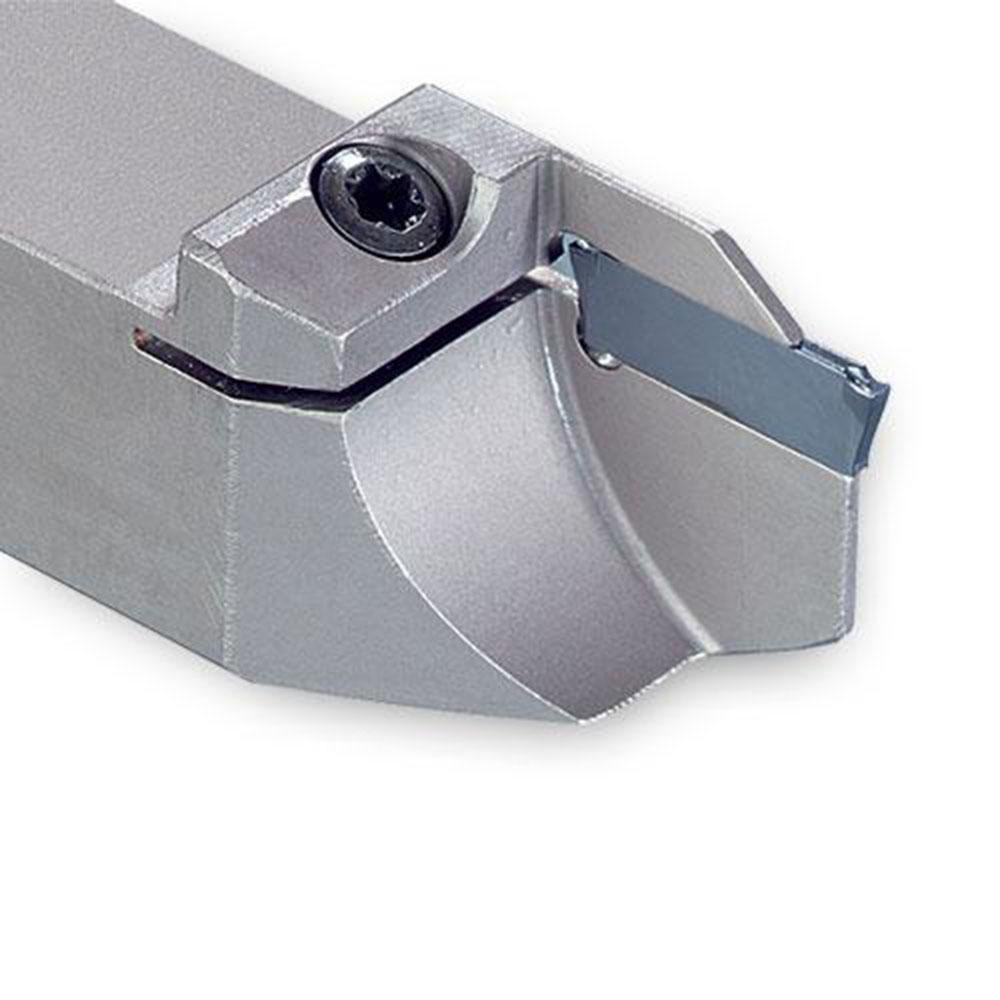

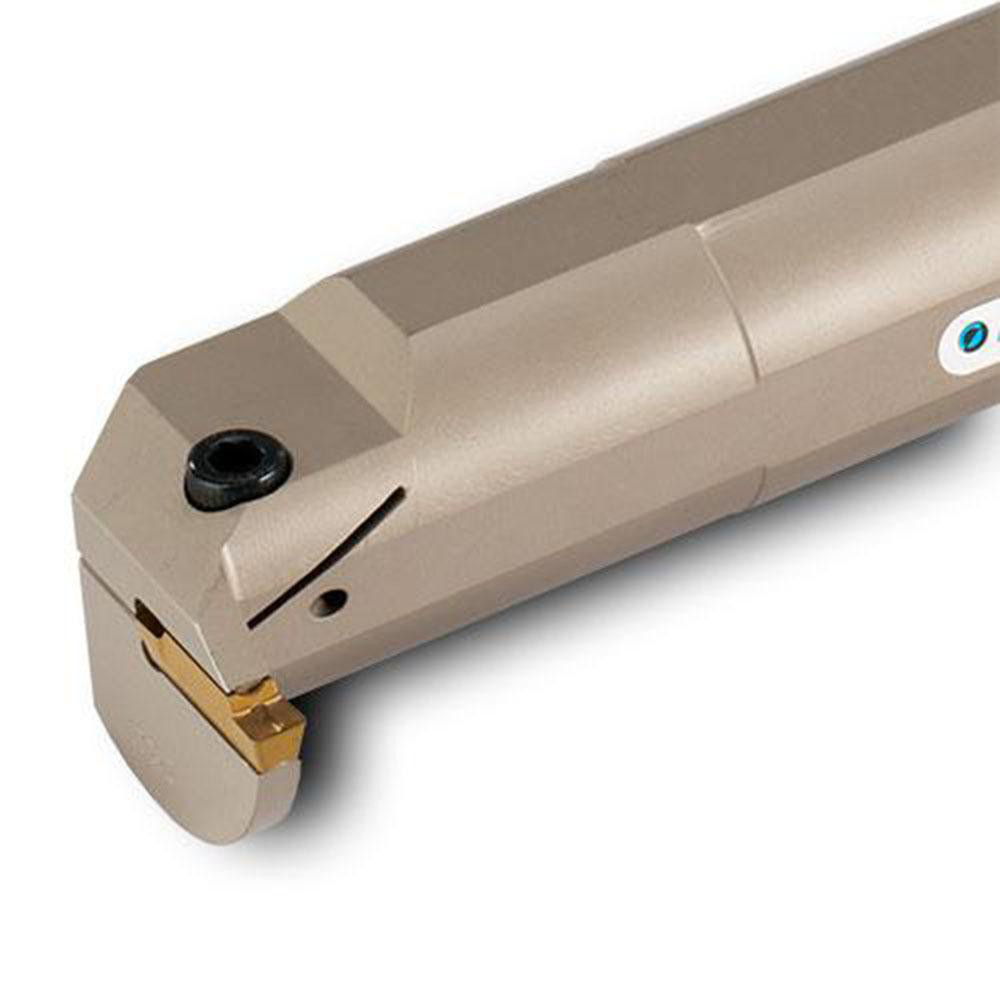

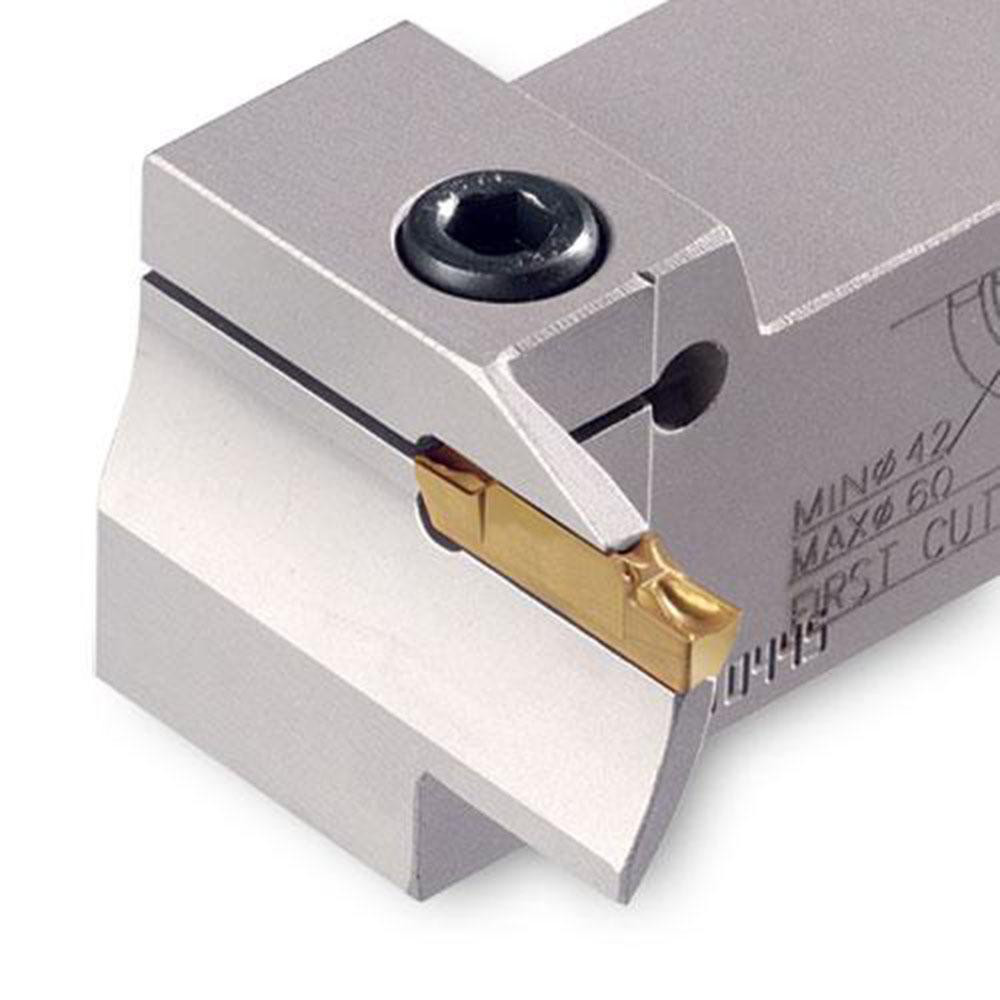

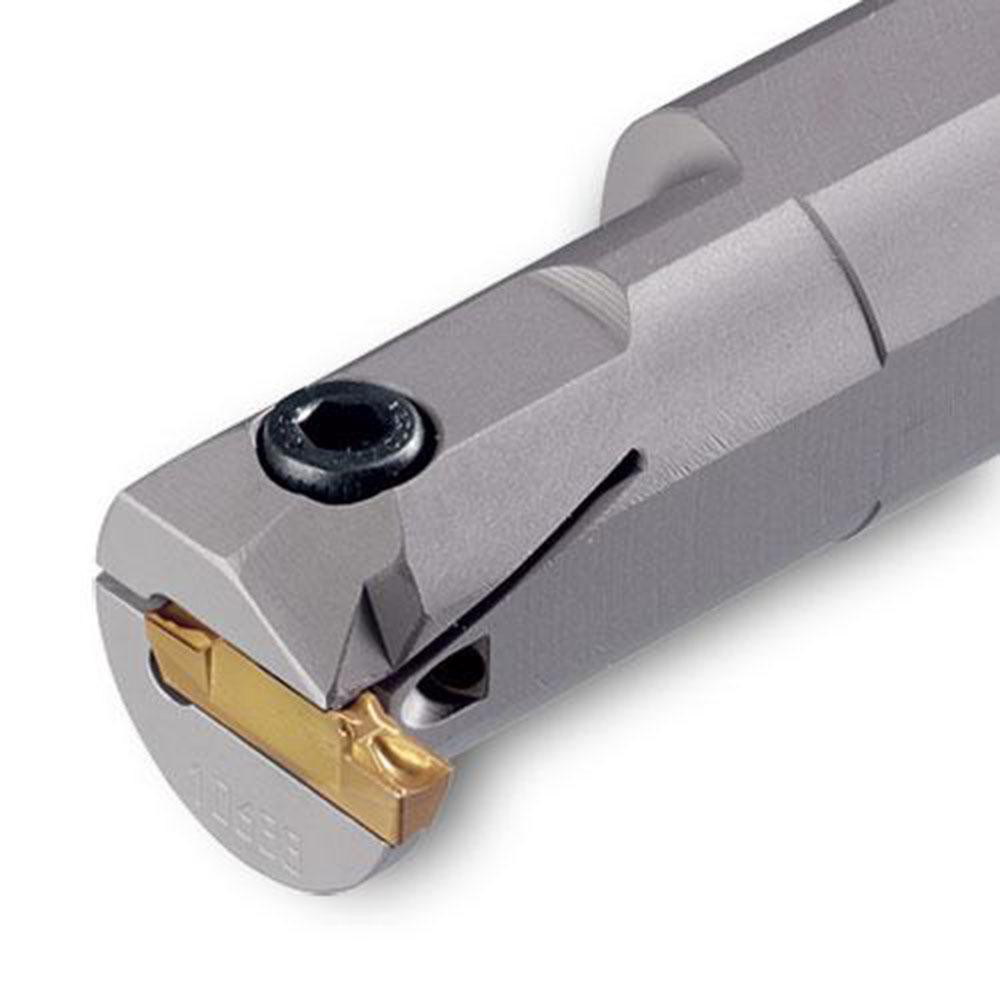

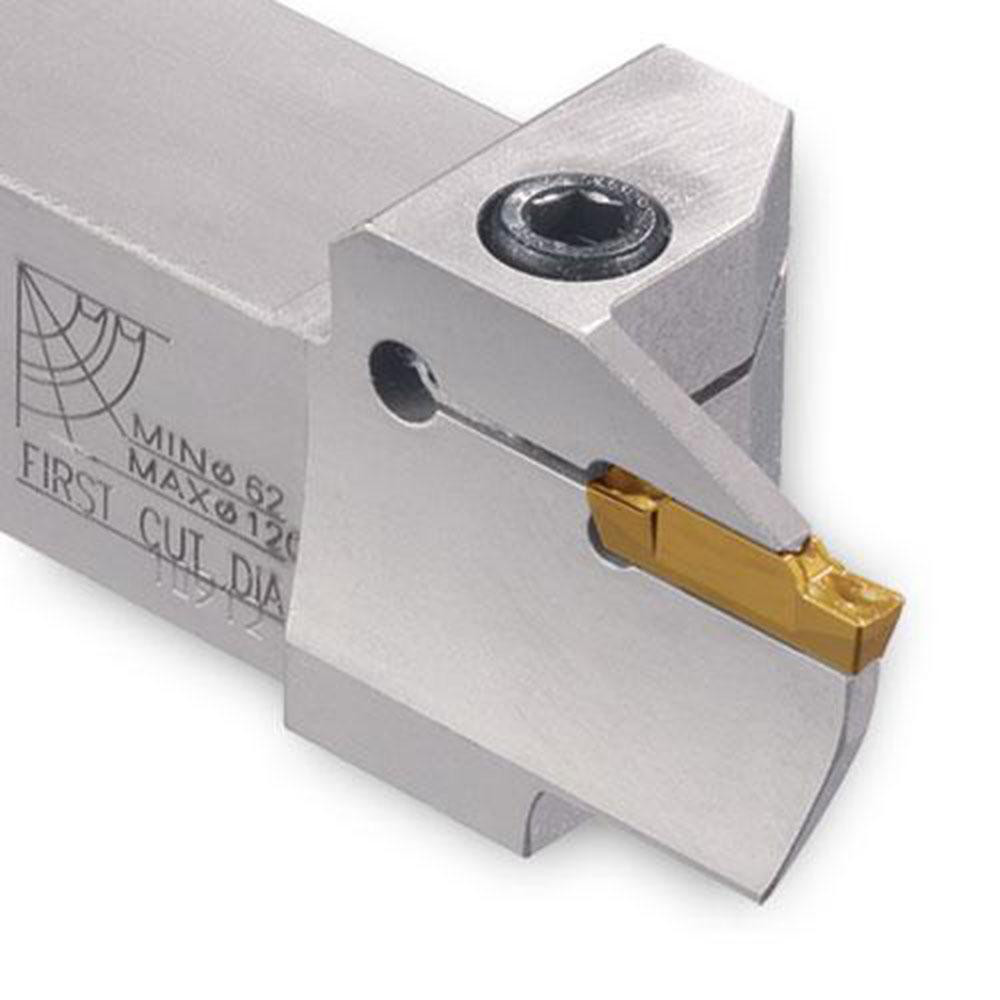

0.315" Max Depth of Cut, Through Coolant, Uses TD 3, TS 3 Inserts
| Toolholder Type | Internal Grooving |
|---|---|
| Insert Seat Size | 3 |
| Hand of Holder | Right Hand |
| Maximum Depth of Cut (Decimal Inch) | 0.3150 |
| Minimum Groove Width (Decimal Inch) | 0.1040 |
| Toolholder Style | TTIR |
| Maximum Groove Width (Decimal Inch) | 0.0950 |
| Insert Holding Method | Clamp |
| Compatible Insert Size Code | TD 3; TS 3 |
| Series | TTIR/L |
| Shank Length (Decimal Inch) | 6.4300 |
| Overall Length (Inch) | 8 |
| Overall Length (Decimal Inch) | 8 |
| Multi-use Tool | Yes |
| Center to Cutting Edge (Decimal Inch) | 0.8500 |
| Minimum Hole Diameter (Decimal Inch) | 1.2600 |
| Head Length (Decimal Inch) | 1.57 |
| Primary Workpiece Material | Universal |
| UNSPSC Code | 23153308 |
| Toolholder Material | Steel |
| Coolant Through | Yes |
| undefined | undefined |
| MSC Number | MSC# 33377953 |
