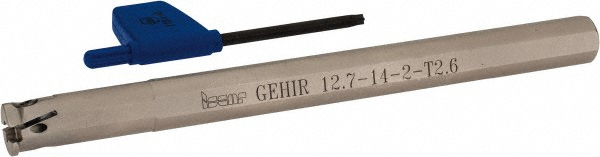

0.102" Max Depth of Cut, Through Coolant, Uses TDI 2, SC*T 2, TSL 2 Inserts
| Toolholder Type | Internal Grooving |
|---|---|
| Insert Seat Size | 2 |
| Hand of Holder | Right Hand |
| Maximum Depth of Cut (Decimal Inch) | 0.1020 |
| Minimum Groove Width (Decimal Inch) | 0.0790 |
| Toolholder Style | TTSIR |
| Maximum Groove Width (Decimal Inch) | 0.0630 |
| Insert Holding Method | Clamp |
| Compatible Insert Size Code | TDI 2; TSL 2; SC*T 2 |
| Series | TTSI |
| Shank Length (Decimal Inch) | 3.6220 |
| Overall Length (Inch) | 5 |
| Overall Length (Decimal Inch) | 5 |
| Multi-use Tool | Yes |
| Center to Cutting Edge (Decimal Inch) | 0.3600 |
| Minimum Hole Diameter (Decimal Inch) | 0.5510 |
| Head Length (Decimal Inch) | 1.378 |
| Primary Workpiece Material | Universal |
| UNSPSC Code | 23153308 |
| Toolholder Material | Steel |
| Coolant Through | Yes |
| undefined | undefined |
| MSC Number | MSC# 14992838 |
