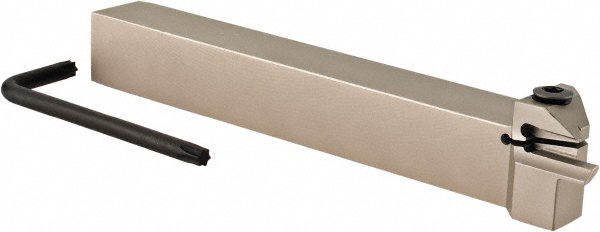

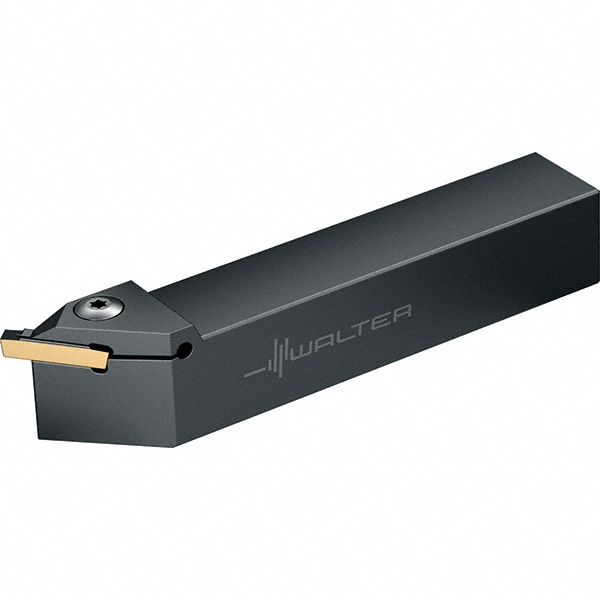

0.236" Max Depth of Cut, Uses TDFX 1 to 8 Inserts
| Toolholder Type | External Grooving |
|---|---|
| Insert Seat Size | 3; 4 |
| Hand of Holder | Left Hand |
| Maximum Depth of Cut (Decimal Inch) | 0.2360 |
| Minimum Groove Width (Decimal Inch) | 0.1180 |
| Toolholder Style | TXFL |
| Insert Holding Method | Screw |
| Compatible Insert Size Code | TDFX 1 to 8 |
| Shank Height (Decimal Inch) | 1.0000 |
| Series | TXFR/L |
| Overall Length (Decimal Inch) | 6.28 |
| Multi-use Tool | Yes |
| Maximum Workpiece Diameter (Decimal Inch) | 0.4720 |
| Back of Bar to Cutting Edge (Decimal Inch) | 1.0000 |
| Primary Workpiece Material | Universal |
| UNSPSC Code | 23153308 |
| Toolholder Material | Steel |
| Coolant Through | No |
| MSC Number | MSC# 13577523 |
