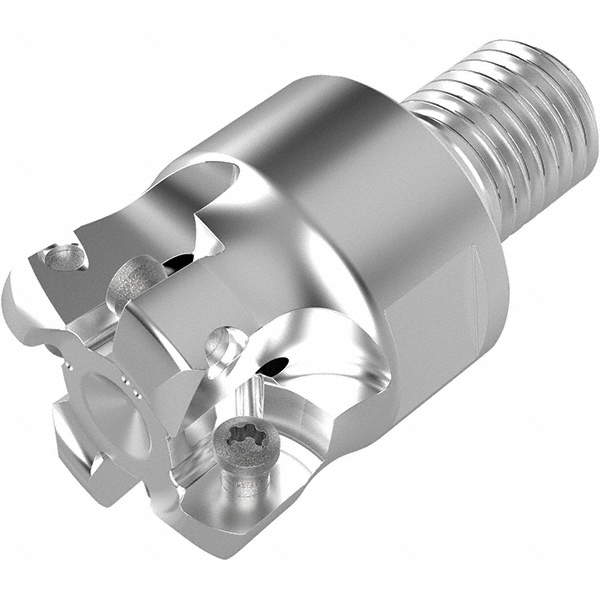

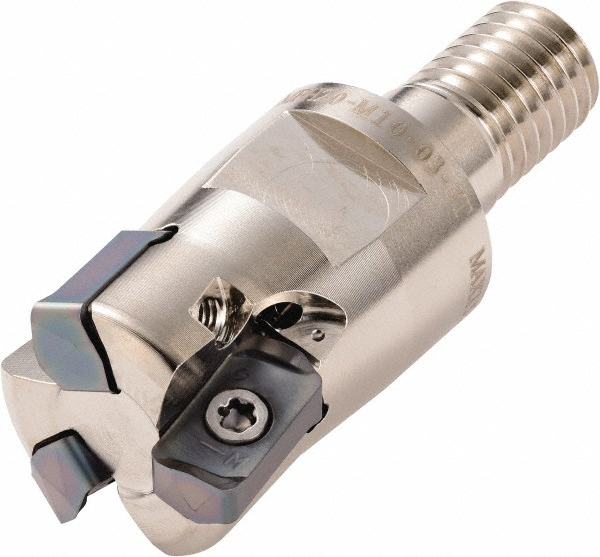

Uses 2 SDES Inserts, 0.0880" Max Depth, 1-3/4" OAL, Coolant Through
| Minimum Cutting Diameter (Decimal Inch) | 0.4230 |
|---|---|
| Maximum Cutting Diameter (Decimal Inch) | 1.2500 |
| Maximum Cutting Diameter (Inch) | 1-1/4 |
| Maximum Depth of Cut (Decimal Inch) | 0.0880 |
| Toolholder Style | 15M1P |
| Shank Type | Modular Connection |
| Shank Diameter (Decimal Inch) | 1.1300 |
| Maximum Ramping Angle | 9.10 |
| Compatible Insert Style | SDES |
| Compatible Insert Size Code | 1305 |
| Insert Holding Method | Screw |
| Number Of Cutter Inserts | 2 |
| Overall Length (Decimal Inch) | 1.7500 |
| Overall Length (Inch) | 1-3/4 |
| Series | 15M1P |
| Flute Type | Straight |
| Modular Connection Size | M16 |
| Head Length (Decimal Inch) | 1.7500 |
| Functional Length (Decimal Inch) | 1.7500 |
| Tool Application | Milling |
| Tool Performance | General Purpose |
| Primary Workpiece Material | Universal |
| Number Of Flutes | 2 |
| Coolant Through | Yes |
| UNSPSC Code | 27112803 |
| undefined | undefined |
| MSC Number | MSC# 45344082 |
