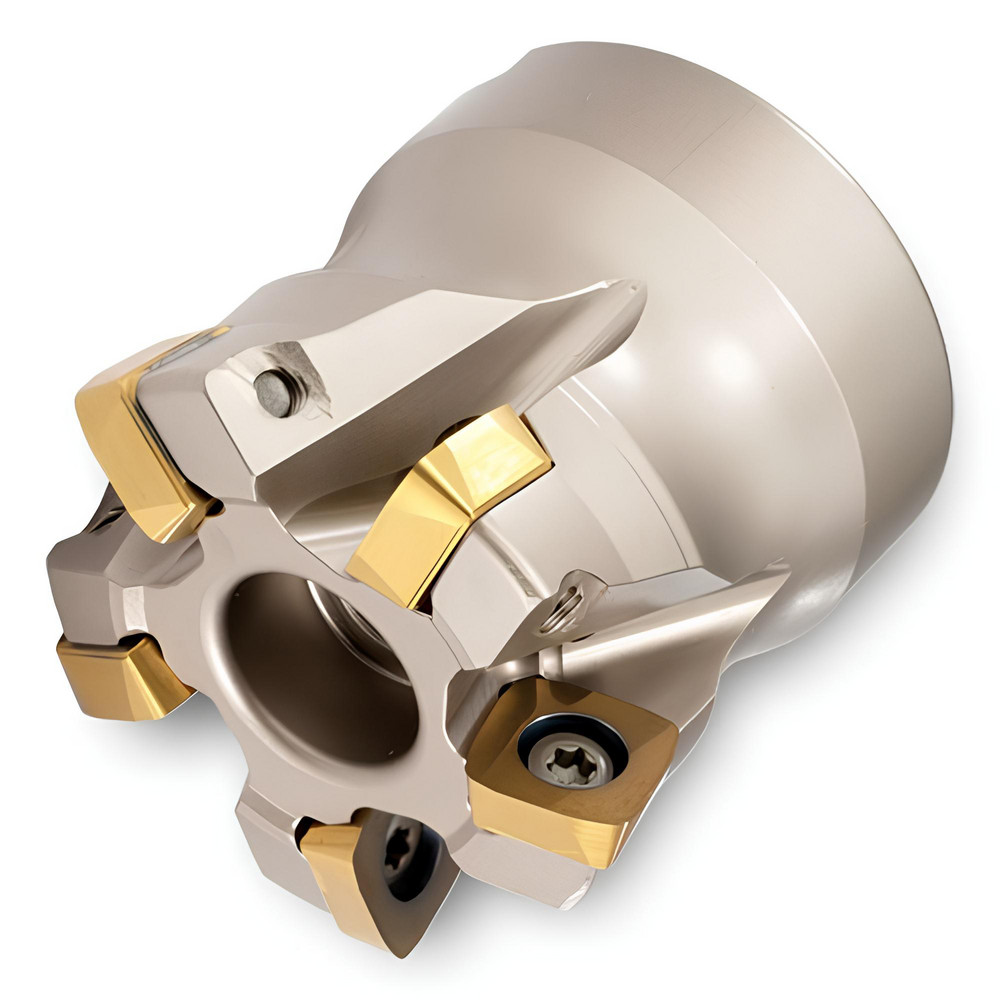

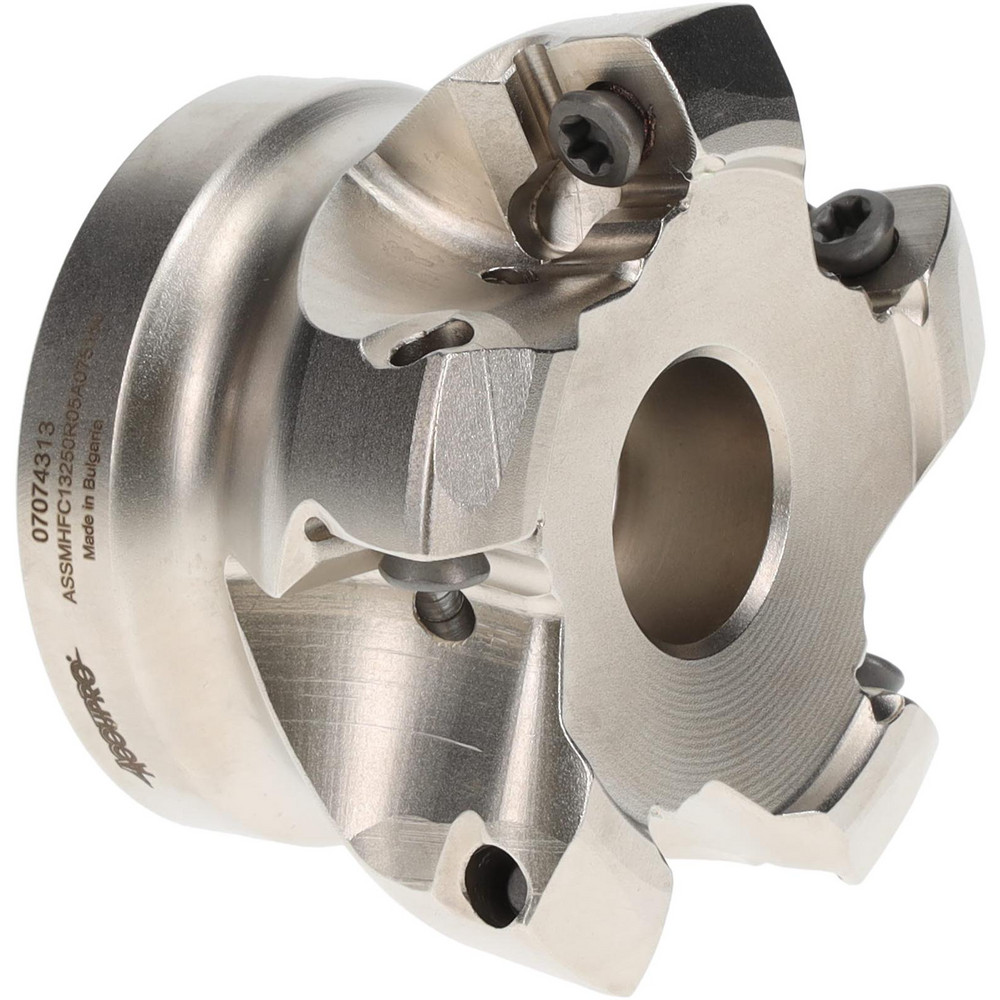

Takes (5) 1305 Inserts, Through Coolant

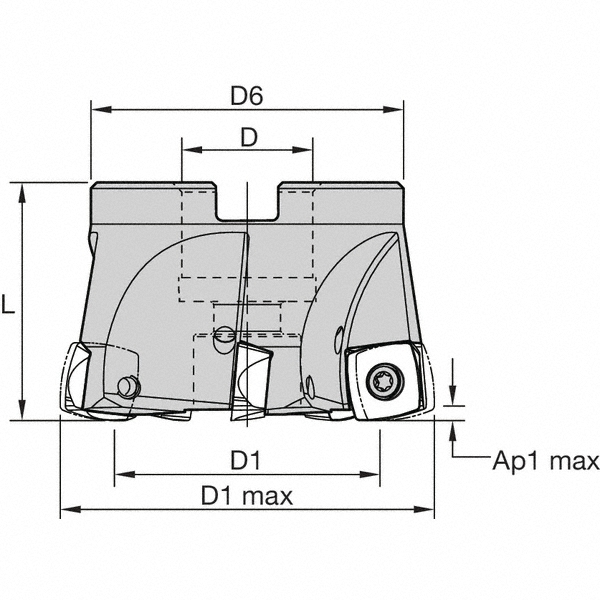

| Minimum Cutting Diameter (Decimal Inch) | 1.1700 |
|---|---|
| Maximum Cutting Diameter (Decimal Inch) | 2.0000 |
| Maximum Depth of Cut (Decimal Inch) | 0.0780 |
| Arbor Hole Diameter (Decimal Inch) | 0.7500 |
| Compatible Insert Size Code | 1305 |
| Maximum Ramping Angle | 2.90 |
| Cutter Style | 5M5P |
| Cutting Direction | Right Hand |
| Insert Holding Method | Screw |
| Series | 5M5P |
| Keyway Width (mm) | 7.87 |
| Overall Height (Inch) | 2 |
| Overall Height (Decimal Inch) | 2.0000 |
| Tool Application | Facing; Helical Interpolation; Plunging; Shouldering; Ramping |
| Tool Performance | High Performance |
| Primary Workpiece Material | Universal |
| Number Of Cutter Inserts | 5 |
| Number Of Flutes | 5 |
| Coolant Through | Yes |
| UNSPSC Code | 27112803 |
| MSC Number | MSC# 66892662 |
