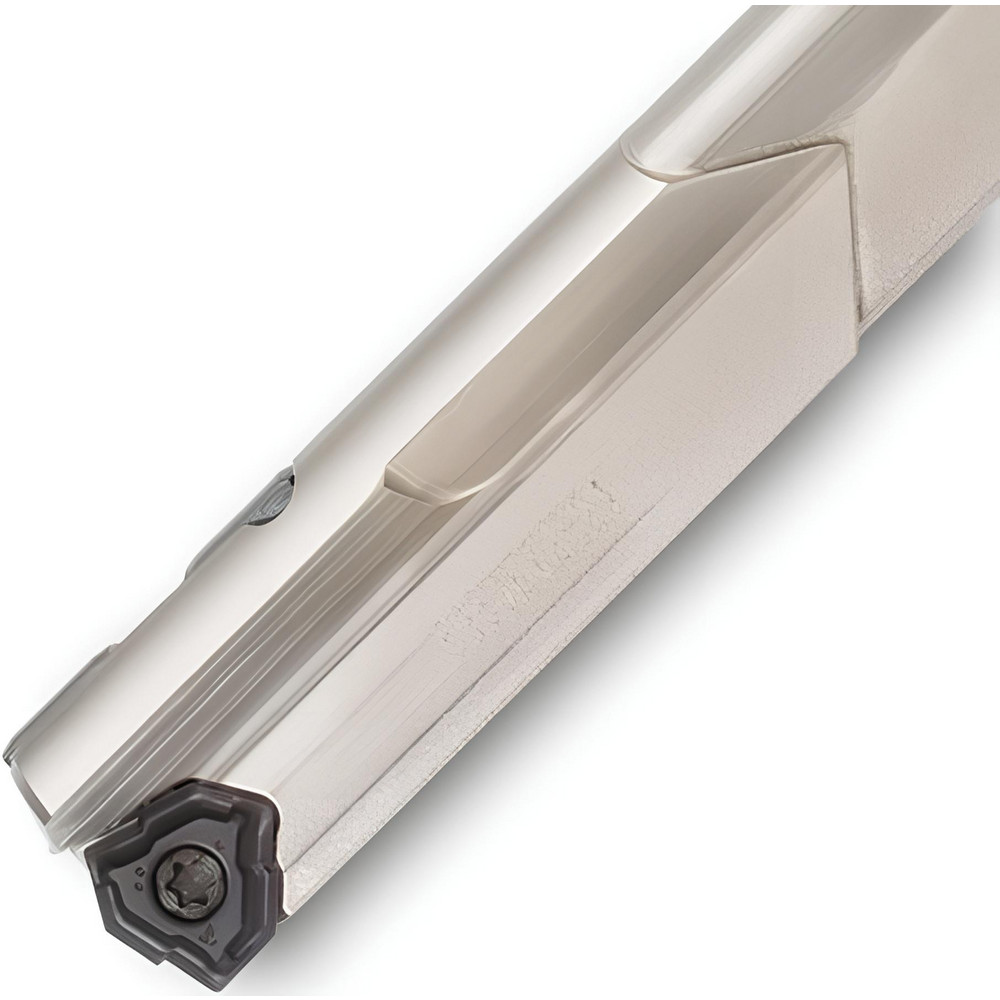

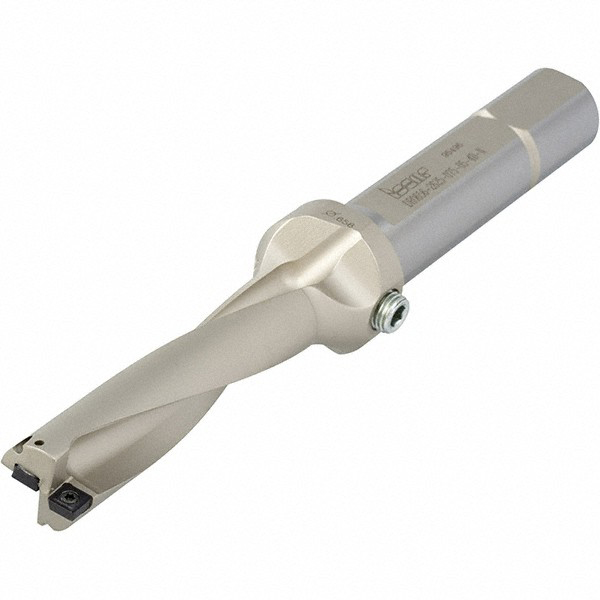

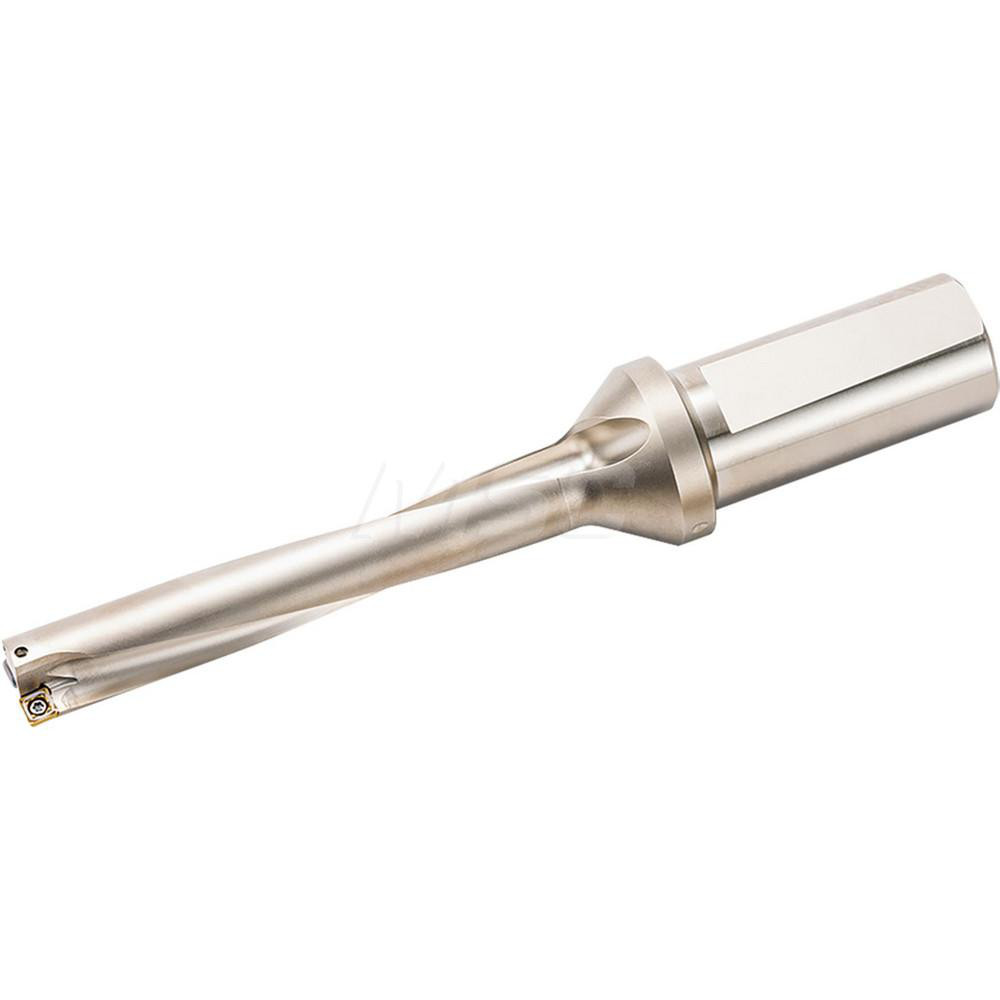

Weldon Flat & Flange Shank, Uses LPHT 060204 Inserts, Series GT
| Compatible Drill Style | GT |
|---|---|
| Maximum Drill Diameter (Inch) | 1/2 |
| Maximum Drill Diameter (Decimal Inch) | 0.5000 |
| Maximum Drill Depth (Inch) | 7-3/4 |
| Maximum Drill Depth (Decimal Inch) | 7.7500 |
| Shank Type | Flange; Weldon Flat |
| Shank Diameter (Inch) | 1 |
| Shank Diameter (Decimal Inch) | 1.0000 |
| Number of Drill Inserts | 1 |
| Cutting Direction | Right Hand |
| Maximum Drill Depth Range (Decimal Inch) | 7.0000 to 10.0000 |
| Tool Material | Steel |
| Compatible Insert Style | LPHT |
| Compatible Insert Size Code | 060204 |
| Drill Depth by Diameter Ratio | 15xD |
| Coolant Entry Style Code | 1-Axial Concentric Entry |
| Overall Length (Decimal Inch) | 11.2900 |
| Series | GT |
| Flute Length (Decimal Inch) | 7.7500 |
| Flute Length (mm) | 196.85 |
| Body Length (mm) | 229.11 |
| Body Length (Decimal Inch) | 9.0200 |
| Shank Length (Decimal Inch) | 2.2100 |
| Shank Length (mm) | 56.13 |
| Tool Application | Drilling |
| Tool Performance | General Purpose |
| Insert Size (Decimal Inch) | 0.2780 |
| UNSPSC Code | 23291503 |
| Insert Compatibility | LPHT060204R-DT |
| Collar Diameter (Decimal Inch) | 1.2600 |
| Collar Diameter (mm) | 32.00 |
| Insert Lock Screw | SR10503833L040 |
| Coolant Through | Yes |
| undefined | undefined |
| MSC Number | MSC# 96832274 |
