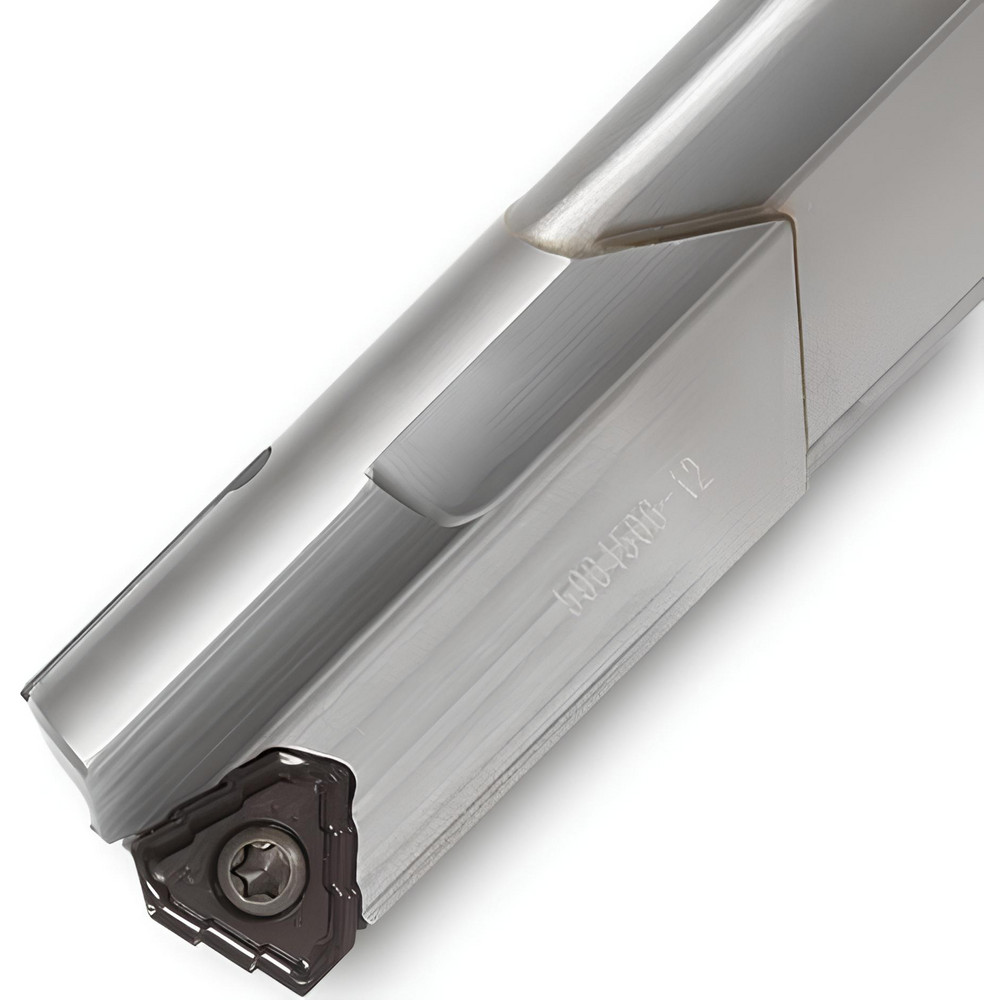

Weldon Flat & Flange Shank, Uses TPHT 100305 Inserts, Series GT
| Compatible Drill Style | GT |
|---|---|
| Maximum Drill Diameter (mm) | 21.00 |
| Maximum Drill Diameter (Decimal Inch) | 0.8270 |
| Maximum Drill Depth (Decimal Inch) | 35.5200 |
| Maximum Drill Depth (mm) | 931.93 |
| Shank Type | Flange; Weldon Flat |
| Shank Diameter (Inch) | 1-1/4 |
| Shank Diameter (Decimal Inch) | 1.2500 |
| Number of Drill Inserts | 1 |
| Cutting Direction | Right Hand |
| Maximum Drill Depth Range (Decimal Inch) | 10.0000+ |
| Tool Material | Steel |
| Compatible Insert Style | TPHT |
| Compatible Insert Size Code | 100305 |
| Drill Depth by Diameter Ratio | 43xD |
| Coolant Entry Style Code | 1-Axial Concentric Entry |
| Overall Length (Decimal Inch) | 39.5000 |
| Overall Length (Inch) | 39-1/2 |
| Series | GT |
| Flute Length (Decimal Inch) | 35.5200 |
| Flute Length (mm) | 931.93 |
| Body Length (mm) | 971.80 |
| Body Length (Decimal Inch) | 39.3700 |
| Shank Length (Decimal Inch) | 2.7600 |
| Shank Length (mm) | 70.10 |
| Tool Application | Drilling |
| Tool Performance | General Purpose |
| Insert Size (Decimal Inch) | 0.3630 |
| UNSPSC Code | 23291503 |
| Insert Compatibility | TPHT100305R-DT |
| Insert Lock Screw | SR34-506 |
| Coolant Through | Yes |
| MSC Number | MSC# 97017537 |
