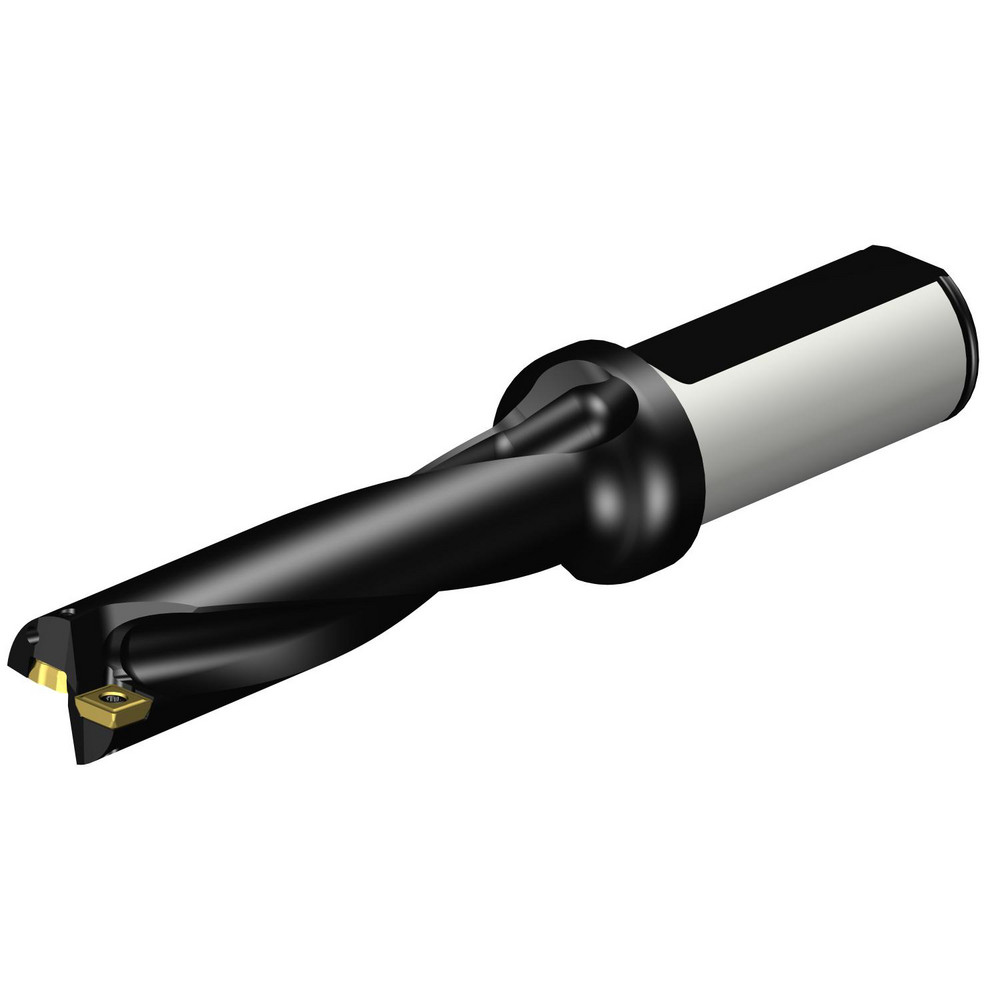

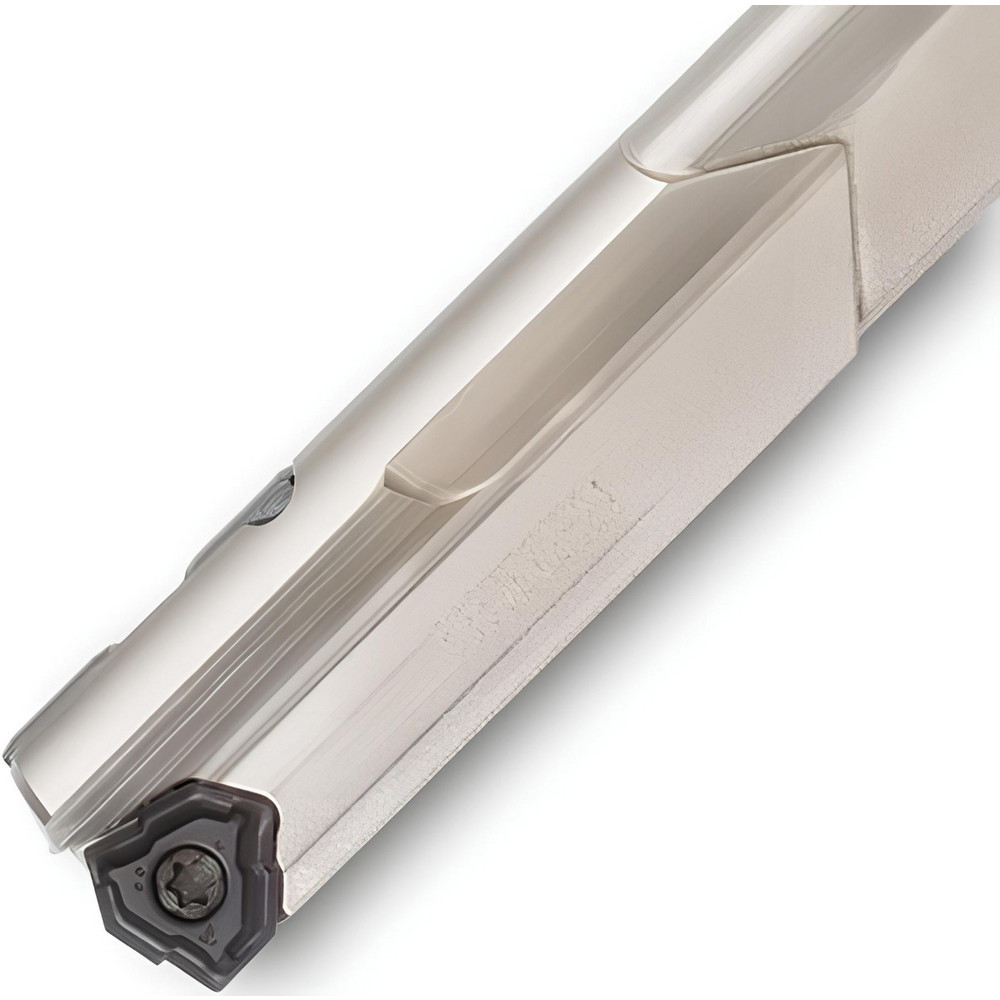

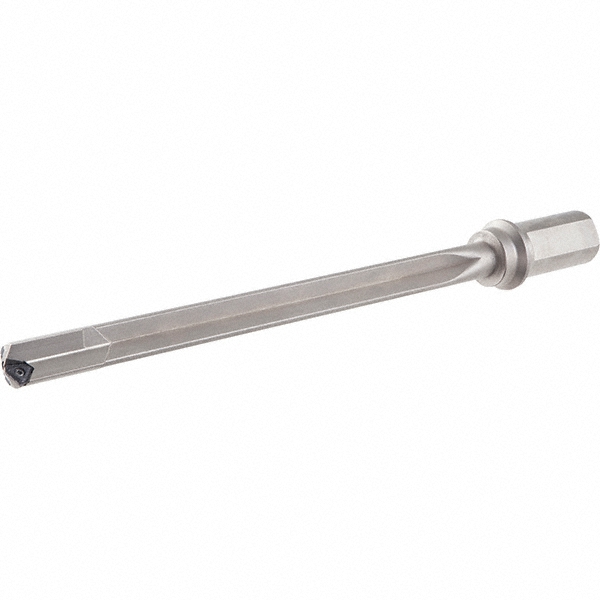

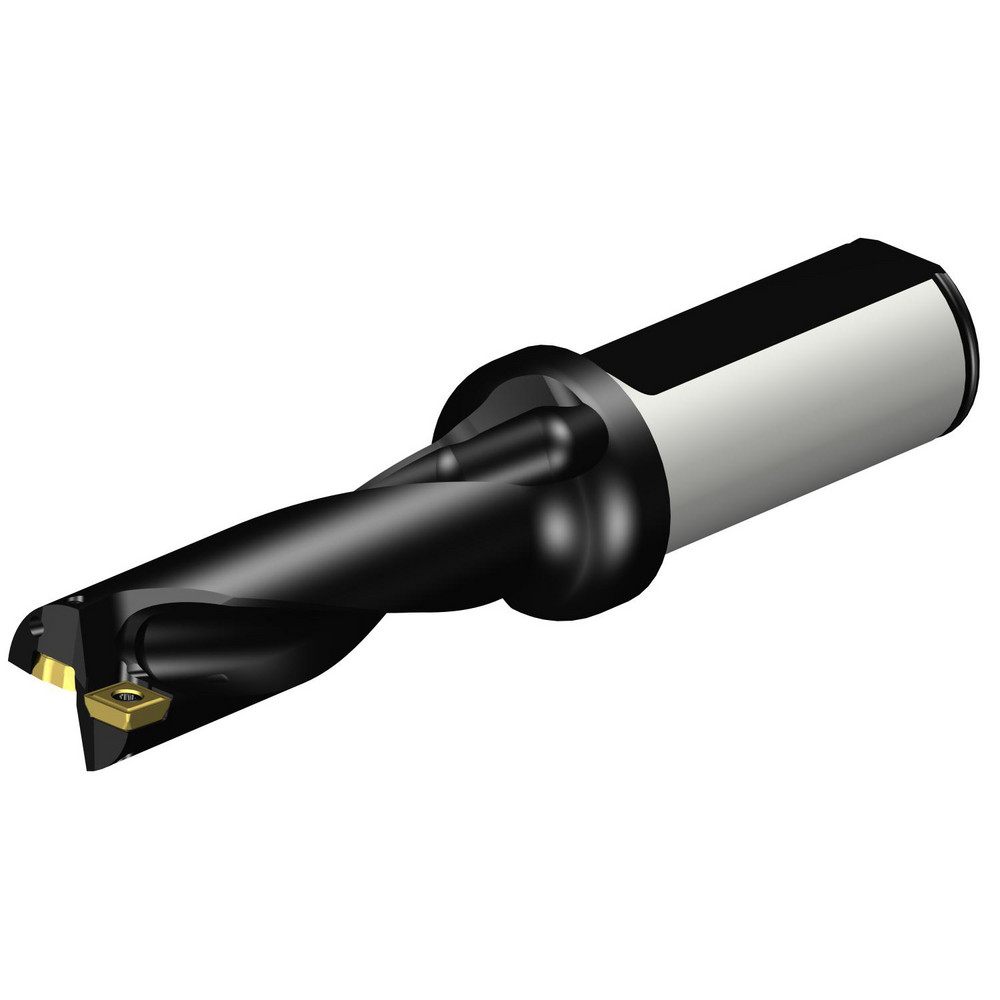

Weldon Flat & Flange Shank, Uses TPHT 110405 Inserts, Series GT
| Compatible Drill Style | GT |
|---|---|
| Maximum Drill Diameter (Inch) | 7/8 |
| Maximum Drill Diameter (Decimal Inch) | 0.8750 |
| Maximum Drill Depth (Decimal Inch) | 22.7700 |
| Maximum Drill Depth (mm) | 578.36 |
| Shank Type | Flange; Weldon Flat |
| Shank Diameter (Inch) | 1-1/4 |
| Shank Diameter (Decimal Inch) | 1.2500 |
| Number of Drill Inserts | 1 |
| Cutting Direction | Right Hand |
| Maximum Drill Depth Range (Decimal Inch) | 10.0000+ |
| Tool Material | Steel |
| Compatible Insert Style | TPHT |
| Compatible Insert Size Code | 110405 |
| Drill Depth by Diameter Ratio | 25xD |
| Coolant Entry Style Code | 1-Axial Concentric Entry |

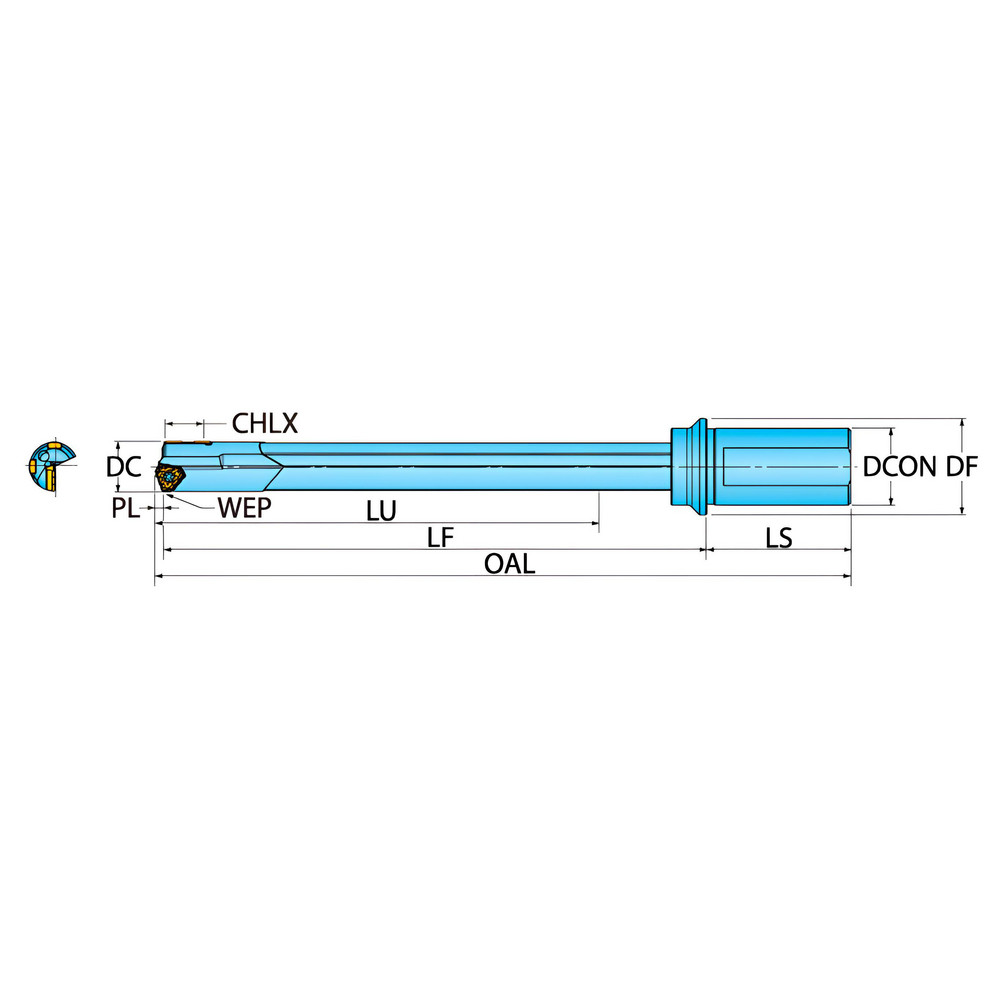

| Overall Length (Decimal Inch) | 27.0200 |
| Series | GT |
| Flute Length (Decimal Inch) | 22.7700 |
| Flute Length (mm) | 578.36 |
| Body Length (mm) | 623.06 |
| Body Length (Decimal Inch) | 24.5300 |
| Shank Length (Decimal Inch) | 2.3600 |
| Shank Length (mm) | 59.94 |
| Tool Application | Drilling |
| Tool Performance | General Purpose |
| Insert Size (Decimal Inch) | 0.4090 |
| UNSPSC Code | 23291503 |
| Insert Compatibility | TPHT110405R-DT |
| Collar Diameter (Decimal Inch) | 1.7700 |
| Collar Diameter (mm) | 44.96 |
| Insert Lock Screw | SR14-571/S |
| Coolant Through | Yes |
| undefined | undefined |
| MSC Number | MSC# 96839154 |
