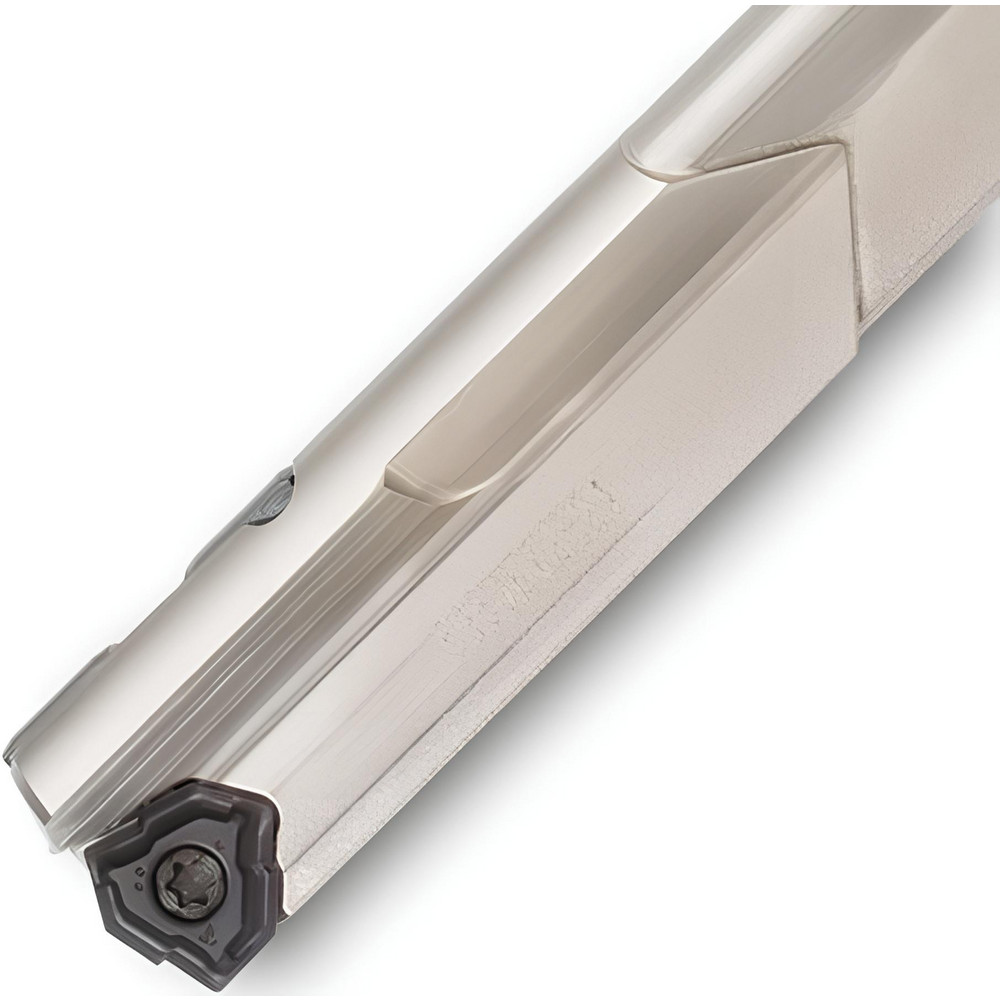

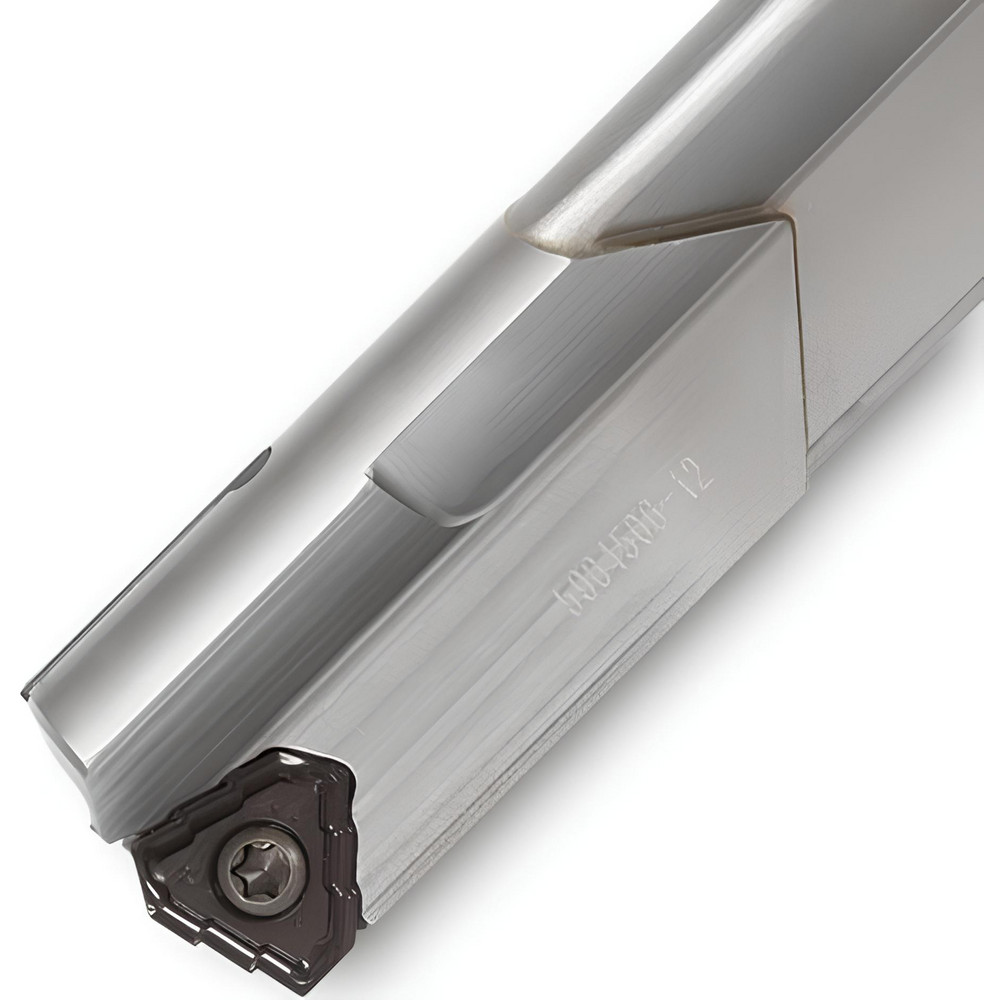

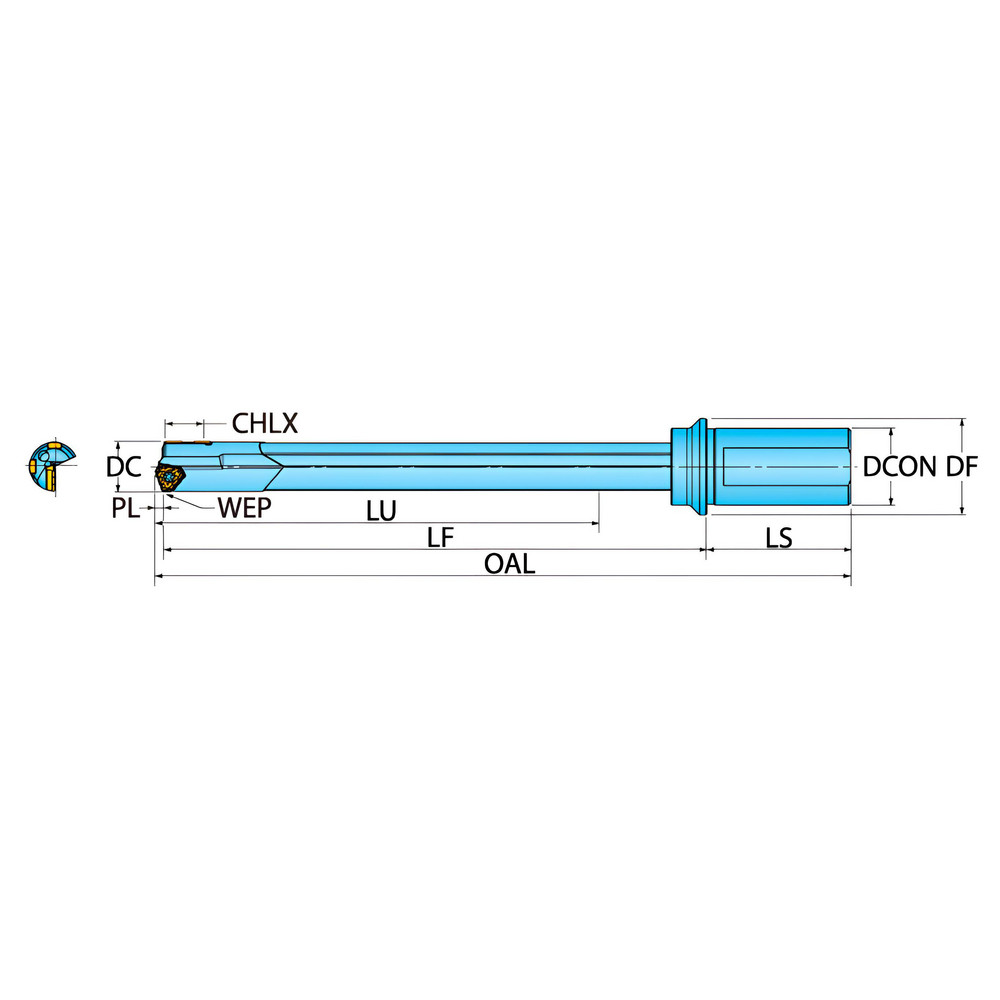

Weldon Flat & Flange Shank, Uses TPHT 120405 Inserts, Series GT
| Compatible Drill Style | GT |
|---|---|
| Maximum Drill Diameter (mm) | 28.00 |
| Maximum Drill Diameter (Decimal Inch) | 1.1024 |
| Maximum Drill Depth (Decimal Inch) | 27.7047 |
| Maximum Drill Depth (mm) | 703.70 |
| Shank Type | Flange; Weldon Flat |
| Shank Diameter (Decimal Inch) | 1.5748 |
| Shank Diameter (mm) | 40.00 |
| Number of Drill Inserts | 1 |
| Cutting Direction | Right Hand |
| Maximum Drill Depth Range (mm) | 200.00+ |
| Tool Material | Steel |
| Compatible Insert Style | TPHT |
| Compatible Insert Size Code | 120405 |
| Drill Depth by Diameter Ratio | 25xD |
| Coolant Entry Style Code | 1-Axial Concentric Entry |
| Overall Length (Decimal Inch) | 32.7047 |
| Series | GT |
| Flute Length (Decimal Inch) | 27.7047 |
| Flute Length (mm) | 703.70 |
| Body Length (mm) | 757.00 |
| Body Length (Decimal Inch) | 29.8031 |
| Shank Length (Decimal Inch) | 2.7559 |
| Shank Length (mm) | 70.00 |
| Tool Application | Drilling |
| Tool Performance | General Purpose |
| Insert Size (Decimal Inch) | 0.4560 |
| UNSPSC Code | 23291503 |
| Insert Compatibility | TPHT120405R-DT; TPHT120405R-ML |
| Collar Diameter (Decimal Inch) | 1.9685 |
| Collar Diameter (mm) | 50.00 |
| Insert Lock Screw | SR14-506 |
| Coolant Through | Yes |
| undefined | undefined |
| MSC Number | MSC# 97025480 |
