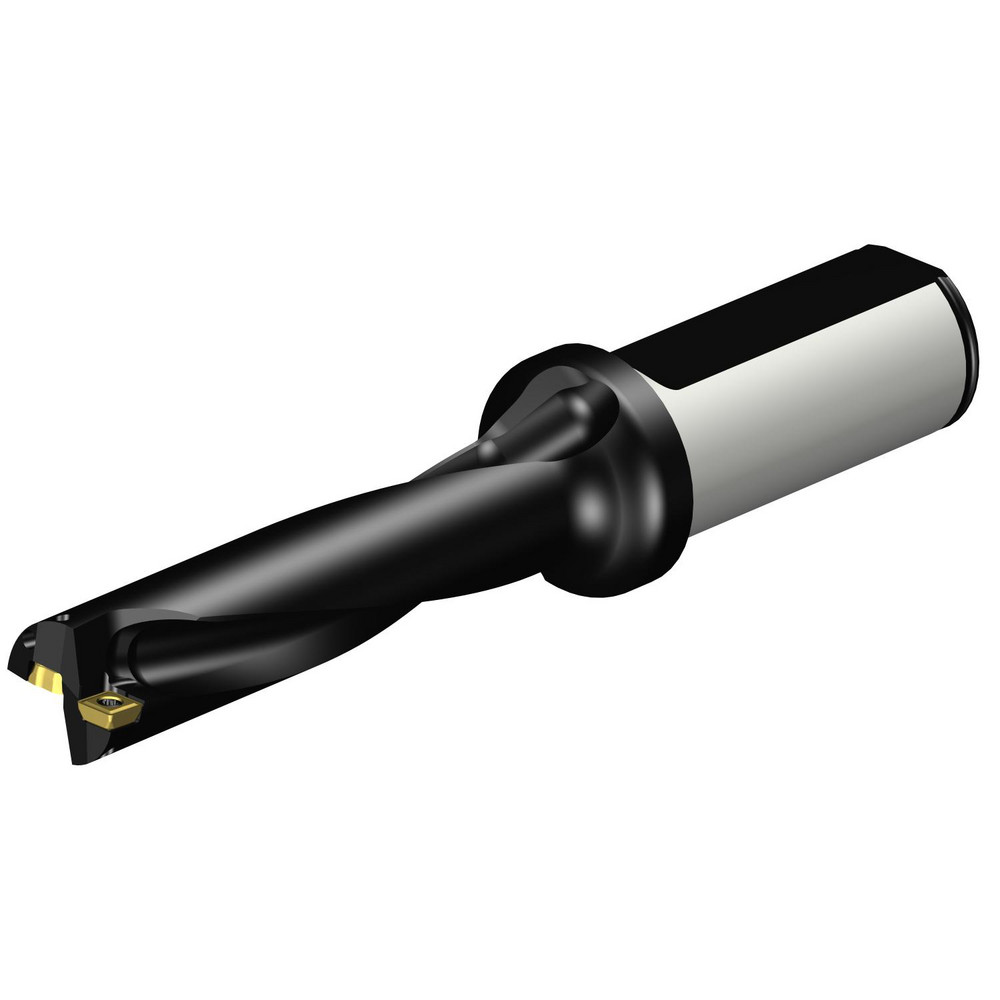

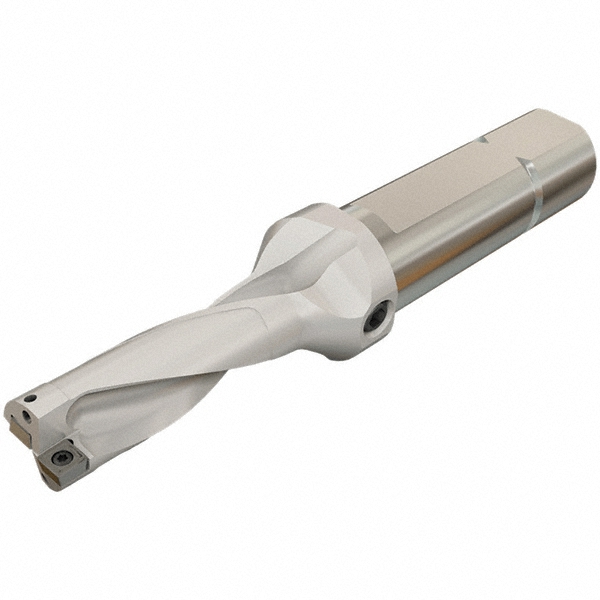

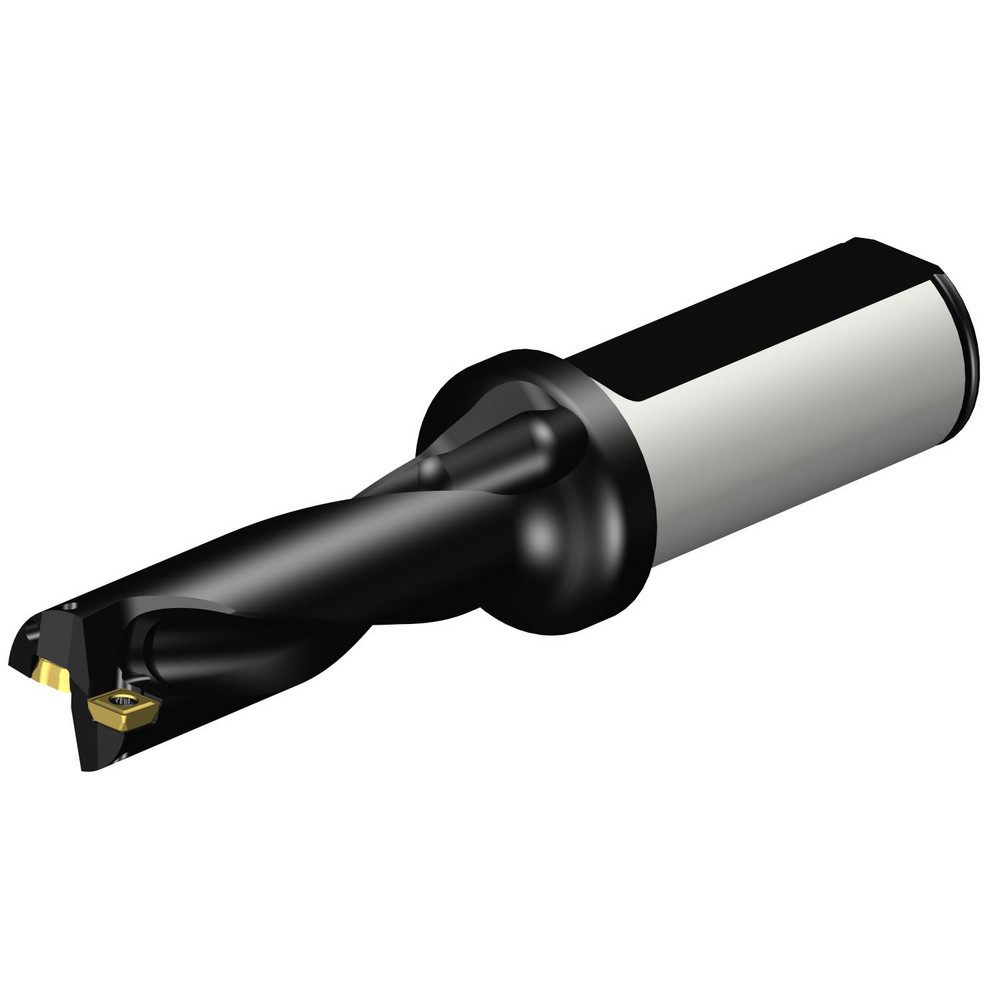

Weldon Flat & Flange Shank, Uses TPHT 070304 Inserts, Series GTADP
| Compatible Drill Style | GTADP |
|---|---|
| Maximum Drill Diameter (Inch) | 37/64 |
| Maximum Drill Diameter (Decimal Inch) | 0.5781 |
| Maximum Drill Depth (Inch) | 8-55/64 |
| Maximum Drill Depth (Decimal Inch) | 8.8600 |
| Shank Type | Flange; Weldon Flat |
| Shank Diameter (Inch) | 1 |
| Shank Diameter (Decimal Inch) | 1.0000 |
| Number of Drill Inserts | 1 |
| Cutting Direction | Right Hand |
| Maximum Drill Depth Range (Decimal Inch) | 7.0000 to 10.0000 |
| Tool Material | Steel |
| Compatible Insert Style | TPHT |
| Compatible Insert Size Code | 070304 |
| Drill Depth by Diameter Ratio | 15xD |
| Coolant Entry Style Code | 1-Axial Concentric Entry |

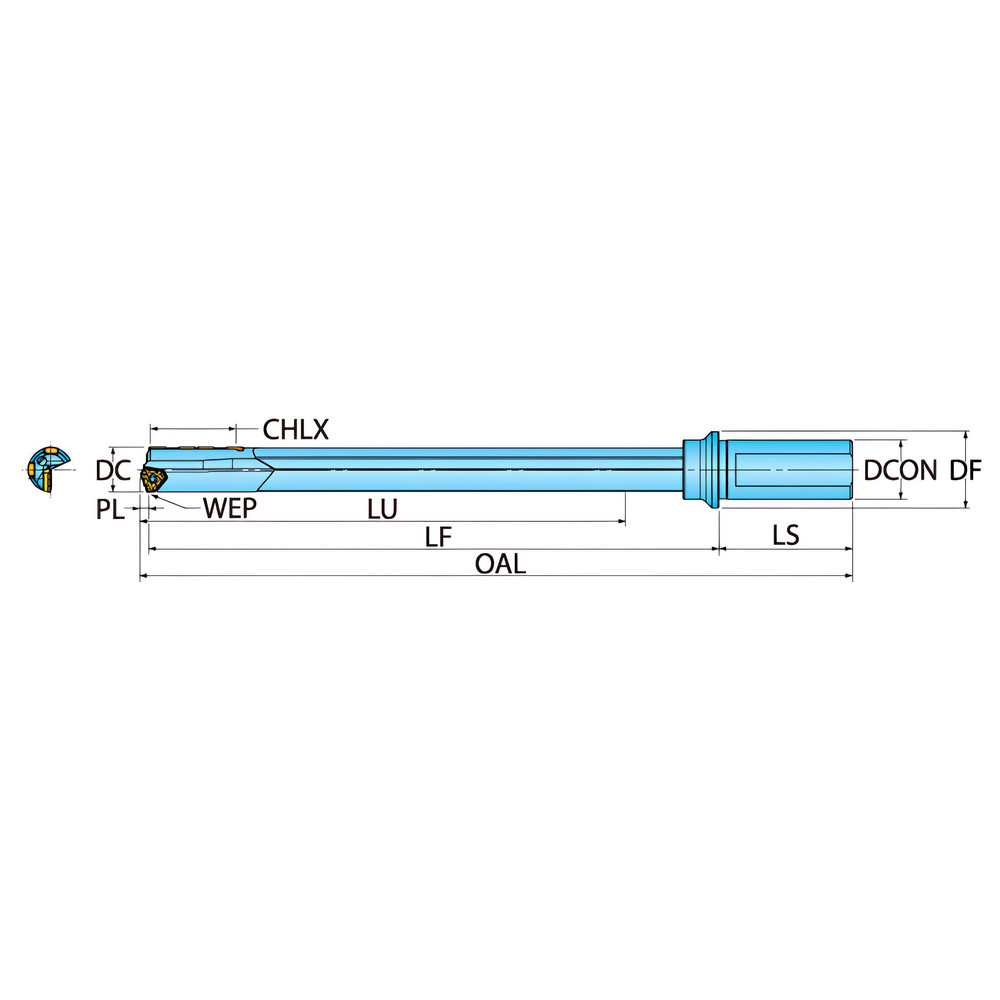

| Overall Length (Decimal Inch) | 12.6000 |
| Series | GTADP |
| Flute Length (Decimal Inch) | 8.8600 |
| Flute Length (mm) | 225.04 |
| Body Length (mm) | 262.13 |
| Body Length (Decimal Inch) | 10.3200 |
| Shank Length (Decimal Inch) | 2.2100 |
| Shank Length (mm) | 56.13 |
| Tool Application | Drilling |
| Tool Performance | General Purpose |
| Insert Size (Decimal Inch) | 0.3020 |
| UNSPSC Code | 23291503 |
| Insert Compatibility | TPHT070304R-DT; TPHT070304R-ML |
| Collar Diameter (Decimal Inch) | 1.2600 |
| Collar Diameter (mm) | 32.00 |
| Insert Lock Screw | SR14-560/S |
| Coolant Through | Yes |
| undefined | undefined |
| MSC Number | MSC# 96845128 |
