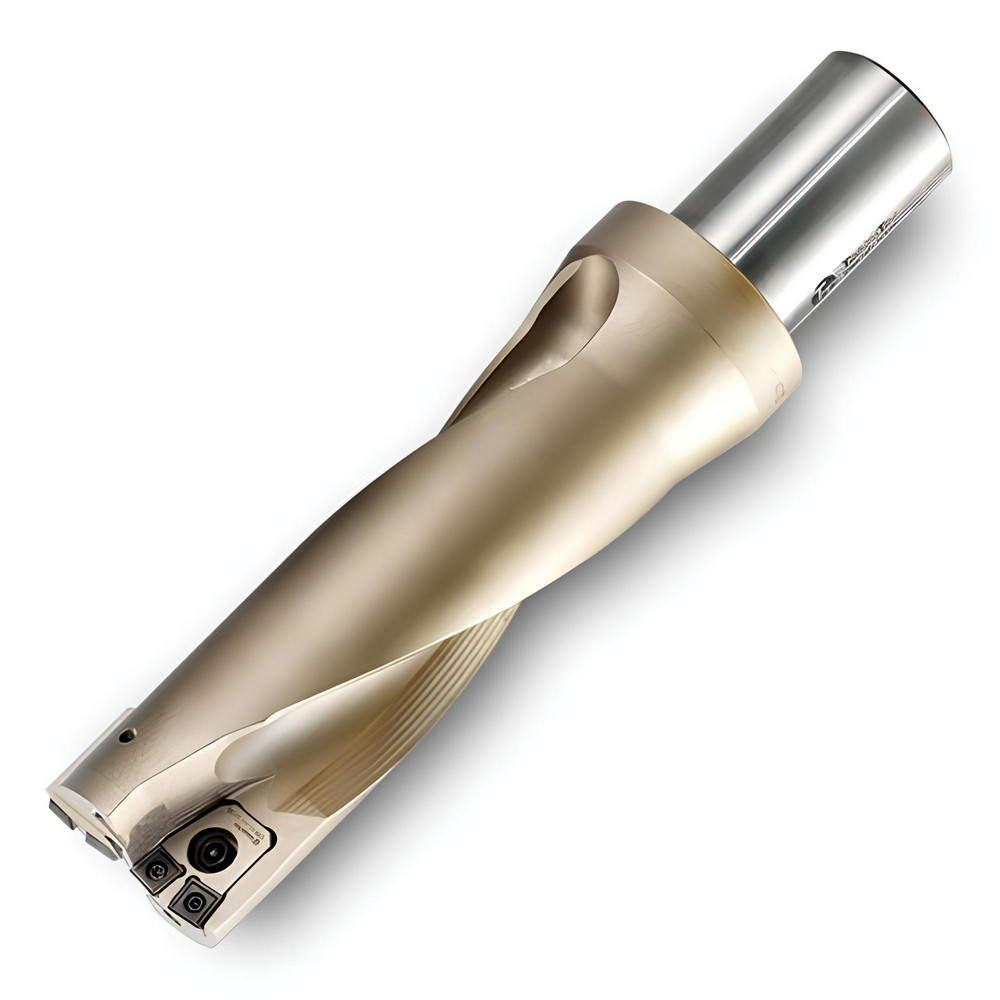

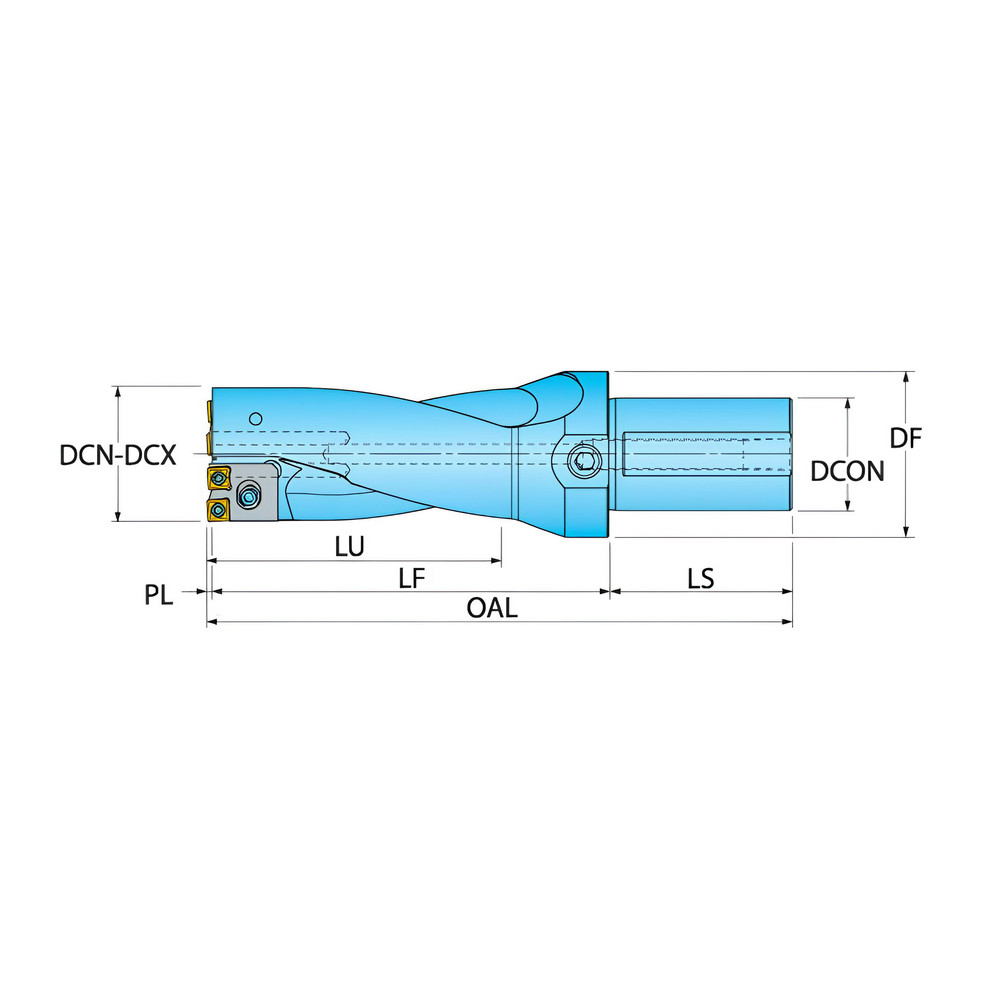

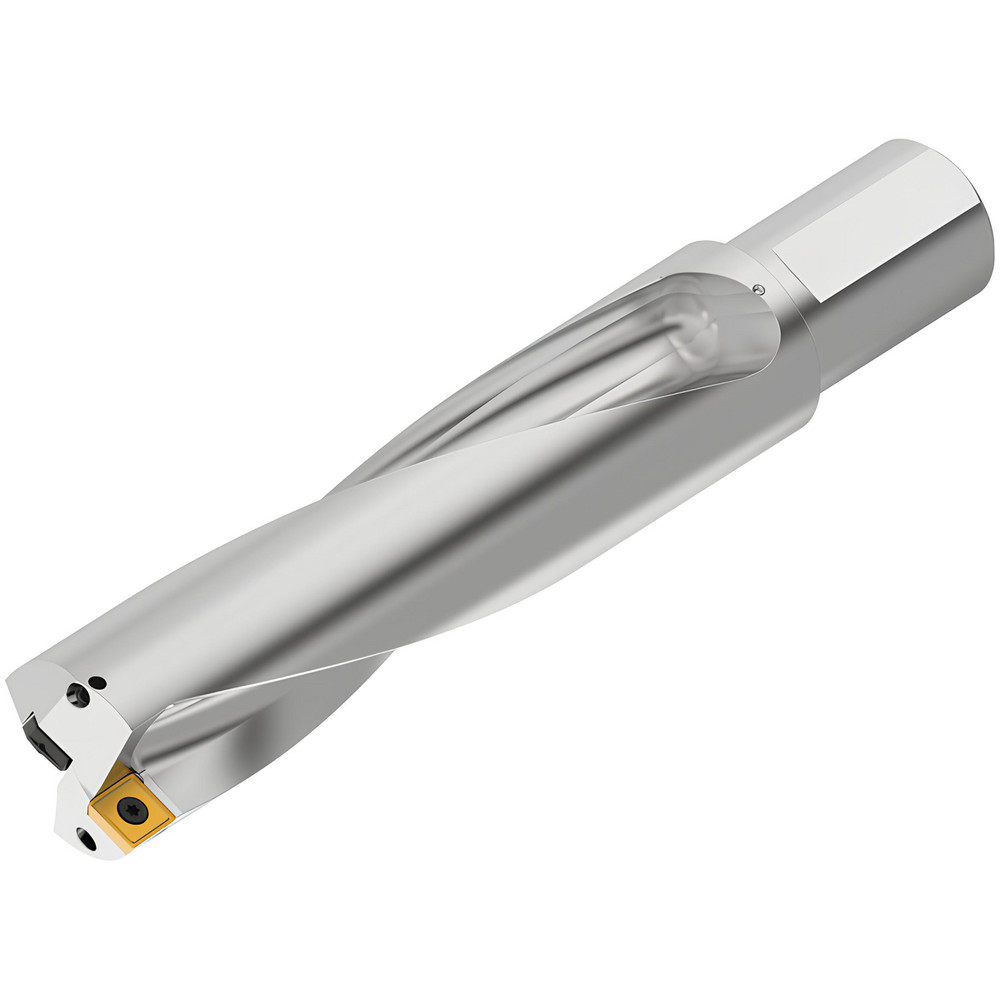

Weldon Flat & Flange Shank, Uses SHGT & SHLT 090408 Inserts, Series QA
| Compatible Drill Style | QA |
|---|---|
| Maximum Drill Diameter (Inch) | 2-9/16 |
| Maximum Drill Diameter (Decimal Inch) | 2.5625 |
| Maximum Drill Depth (Decimal Inch) | 5.1300 |
| Maximum Drill Depth (mm) | 130.30 |
| Shank Type | Flange; Weldon Flat |
| Shank Diameter (Inch) | 2 |
| Shank Diameter (Decimal Inch) | 2.0000 |
| Number of Drill Inserts | 4 |
| Cutting Direction | Right Hand |
| Maximum Drill Depth Range (Decimal Inch) | 5.0000 to 7.0000 |
| Tool Material | Steel |

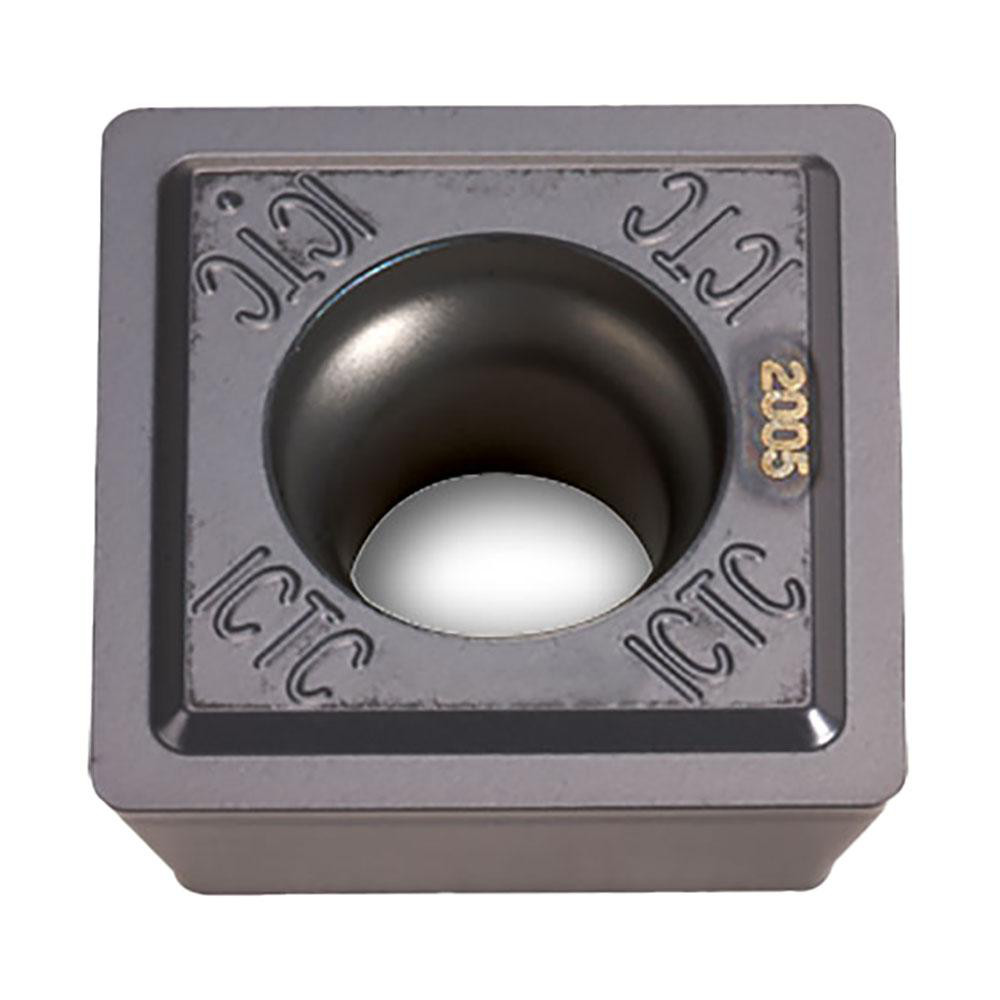

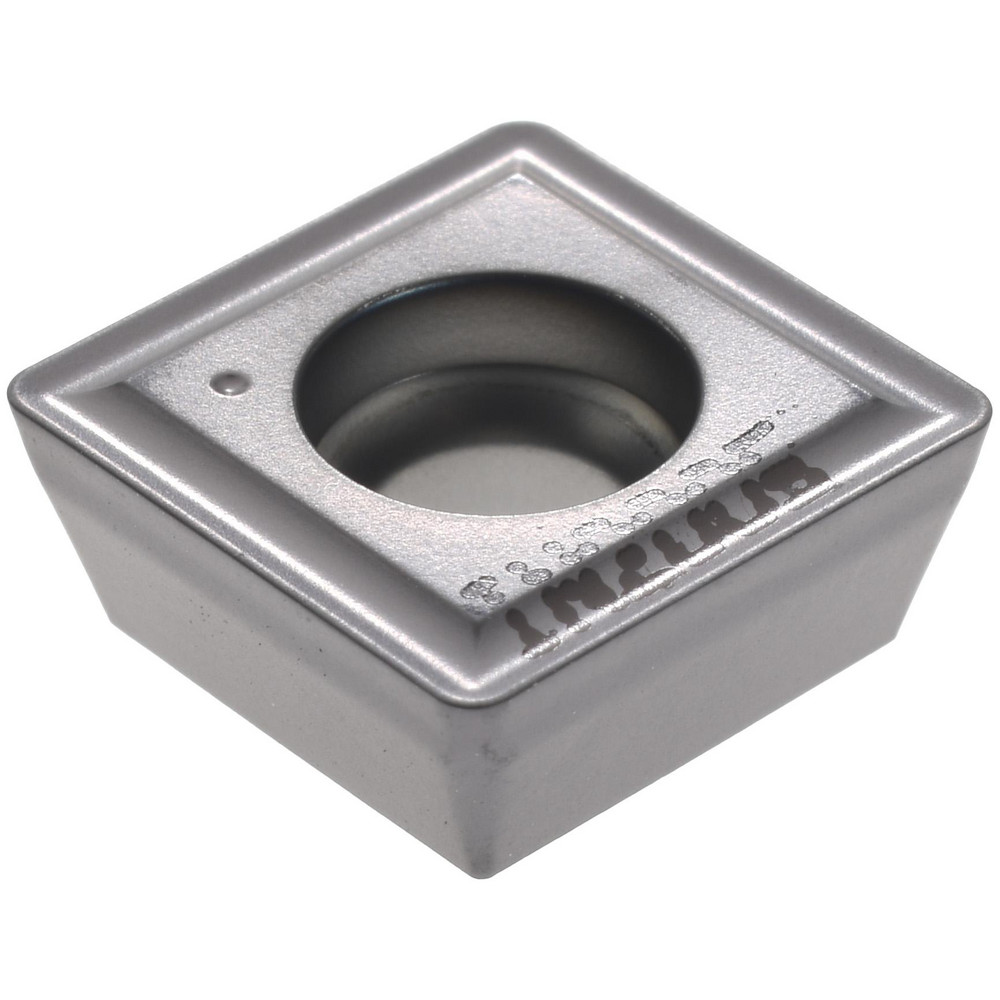

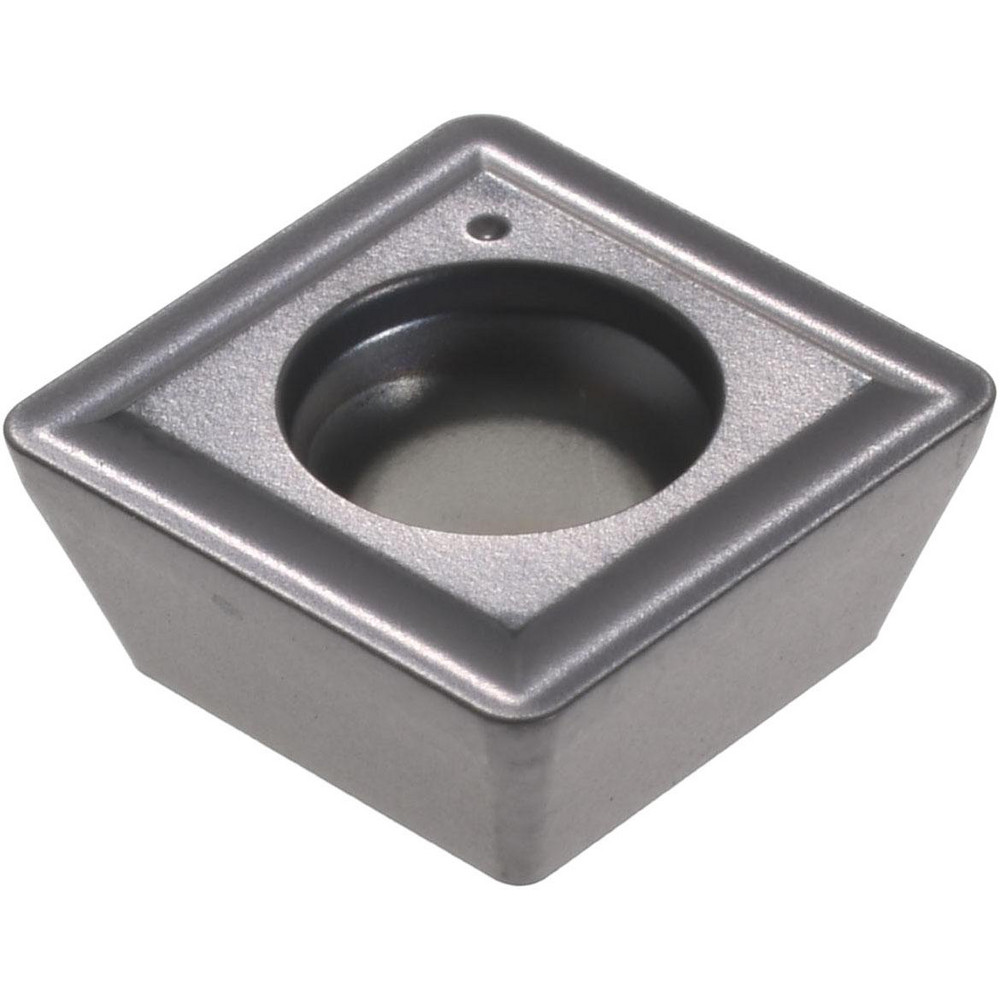

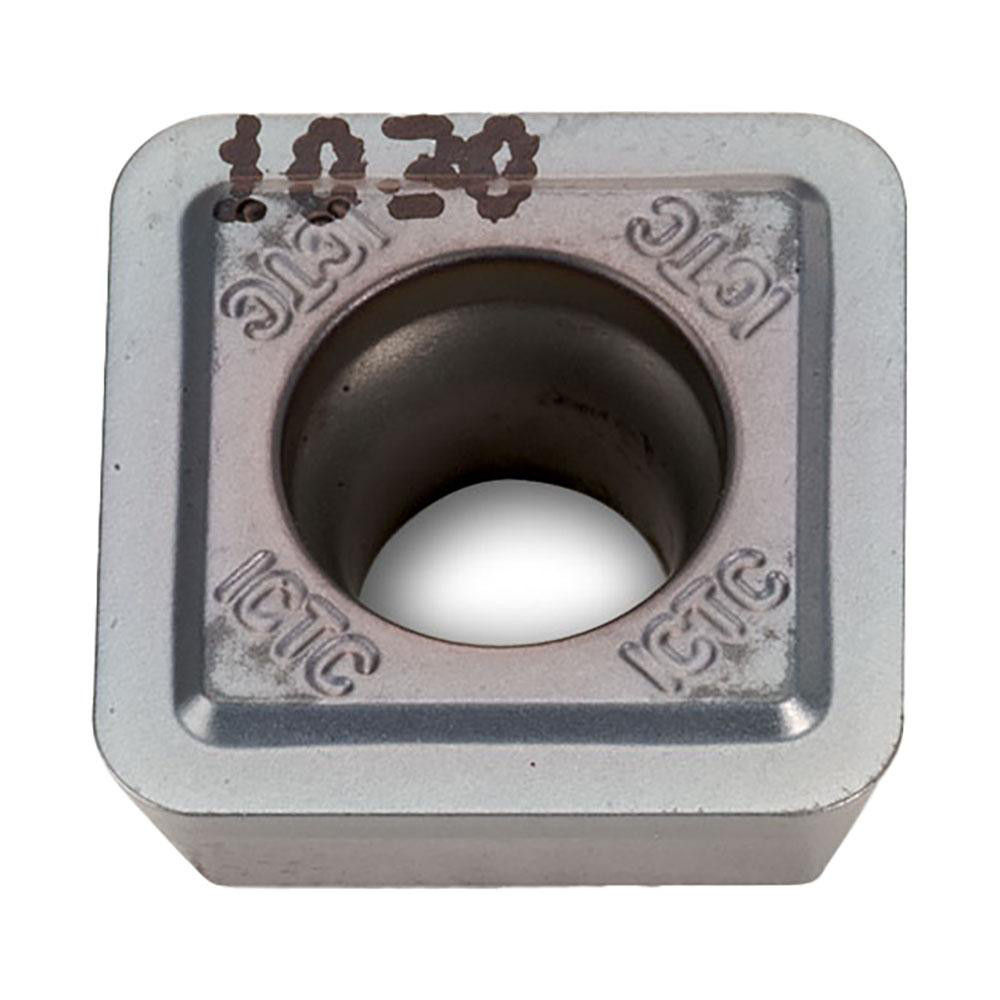

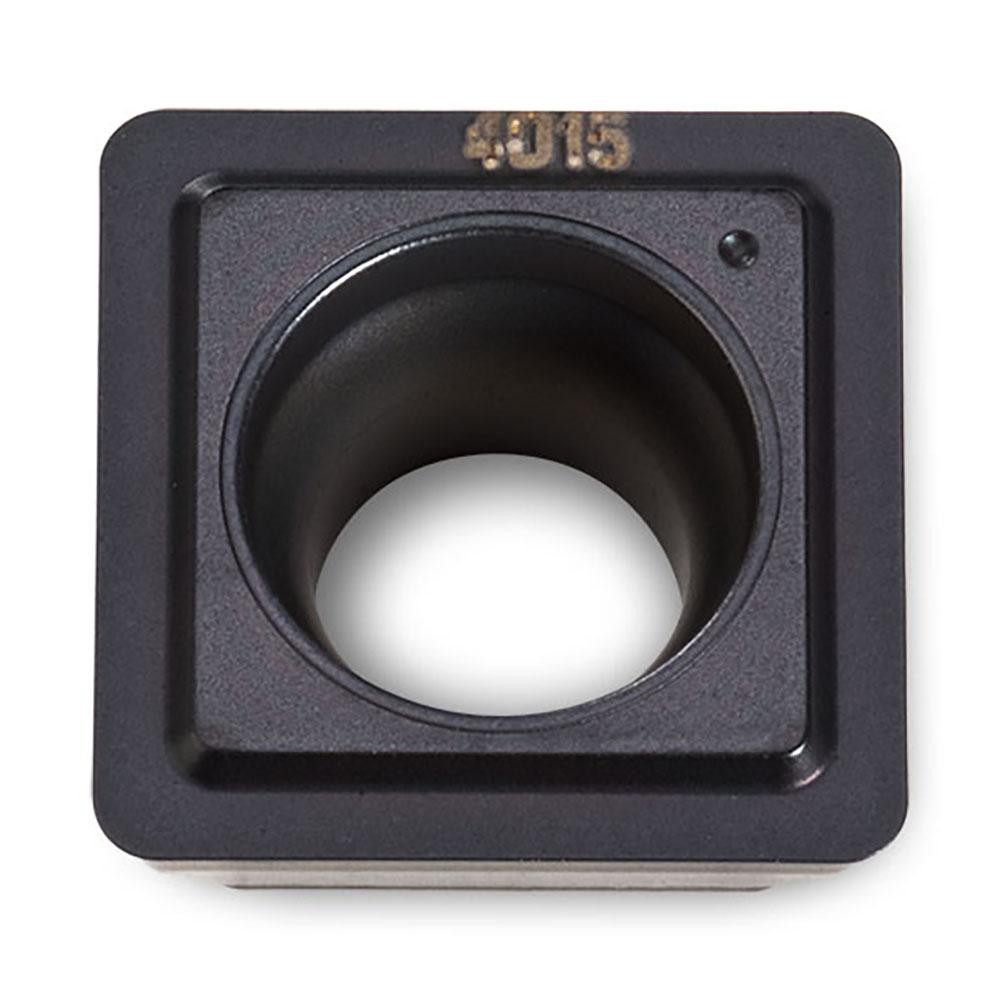

| Compatible Insert Style | SHGT; SHLT |
| Compatible Insert Size Code | 090408 |
| Drill Depth by Diameter Ratio | 2xD |
| Coolant Entry Style Code | 1-Axial Concentric Entry |
| Overall Length (Decimal Inch) | 10.4200 |
| Series | QA |
| Flute Length (Decimal Inch) | 5.1300 |
| Flute Length (mm) | 130.30 |
| Body Length (mm) | 182.12 |
| Body Length (Decimal Inch) | 7.1700 |
| Shank Length (Decimal Inch) | 3.2500 |
| Shank Length (mm) | 82.55 |
| Tool Application | Drilling |
| Tool Performance | General Purpose |
| Insert Size (Decimal Inch) | 0.3860 |
| UNSPSC Code | 23291503 |
| Insert Compatibility | SHLT090408N; SHLT090408N-PH1; SHGT090408-HP |
| Collar Diameter (Decimal Inch) | 2.3700 |
| Collar Diameter (mm) | 60.20 |
| Insert Lock Screw | SM35-088-60 |
| Coolant Through | Yes |
| undefined | undefined |
| MSC Number | MSC# 15923741 |
