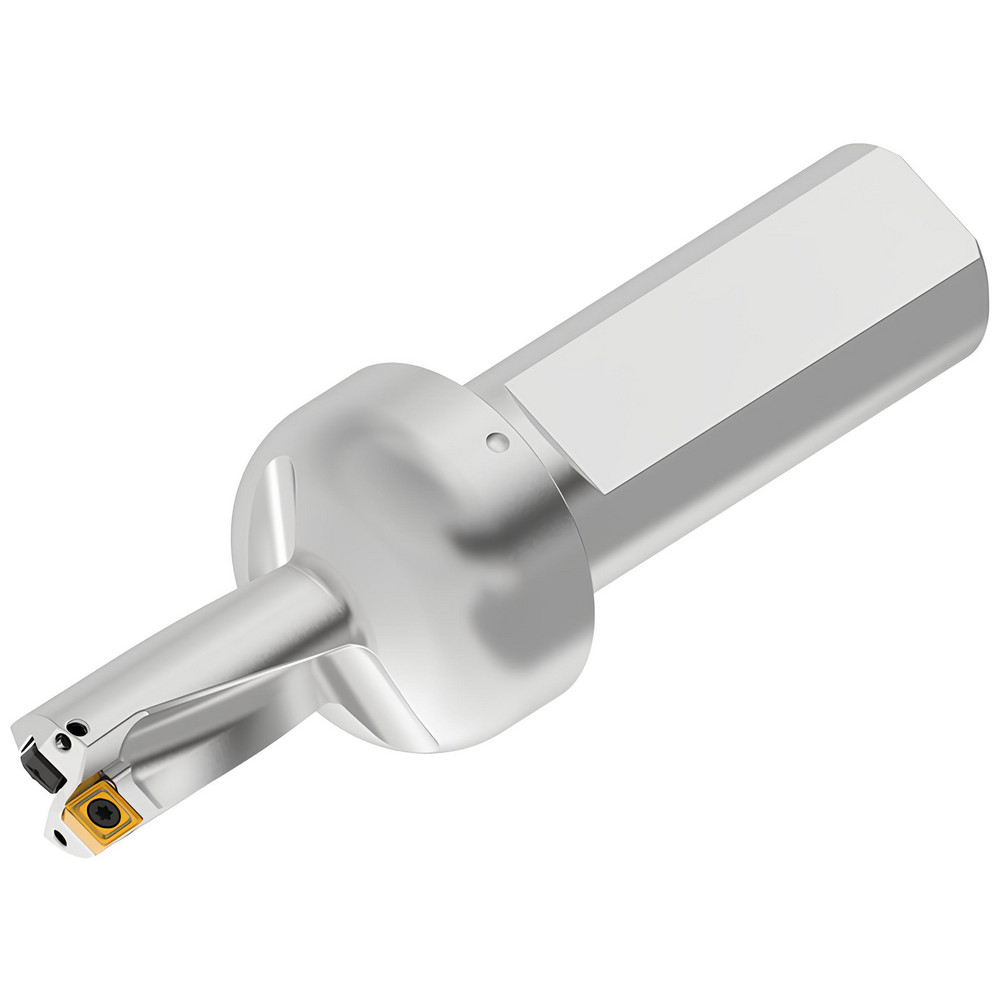

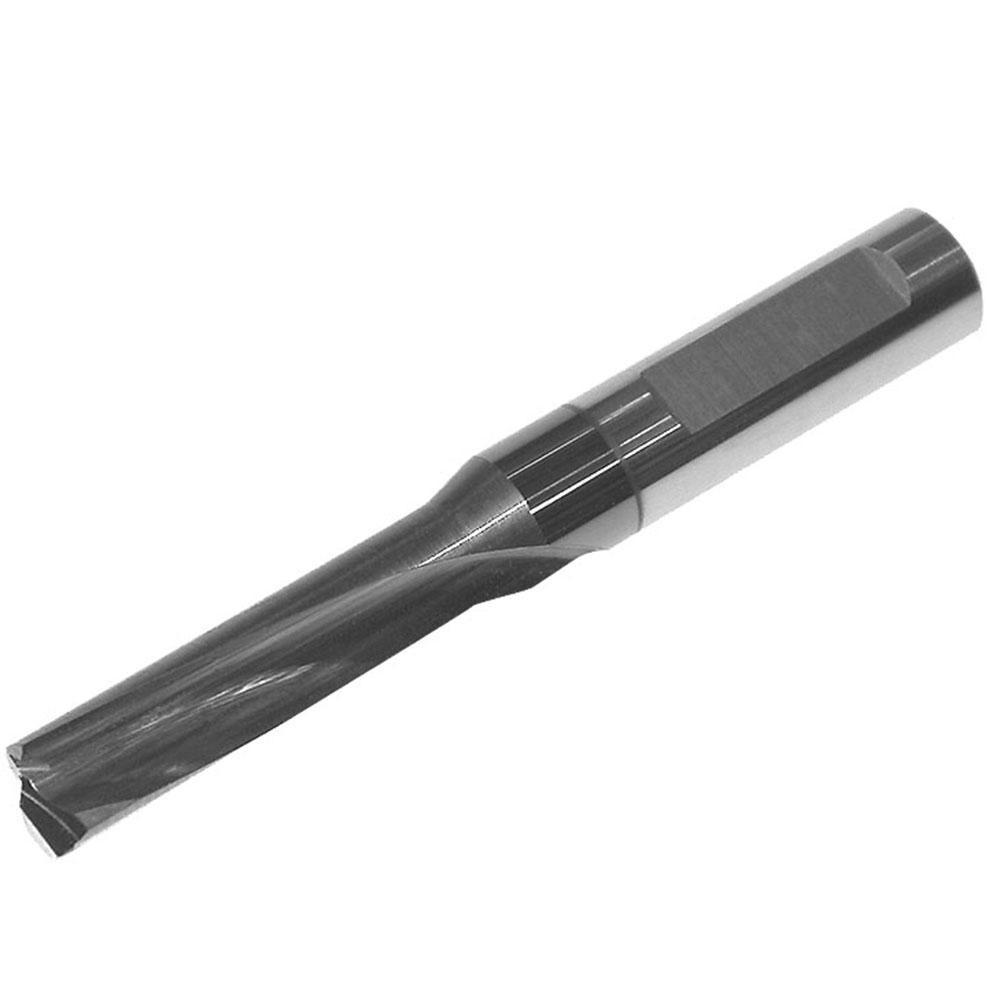

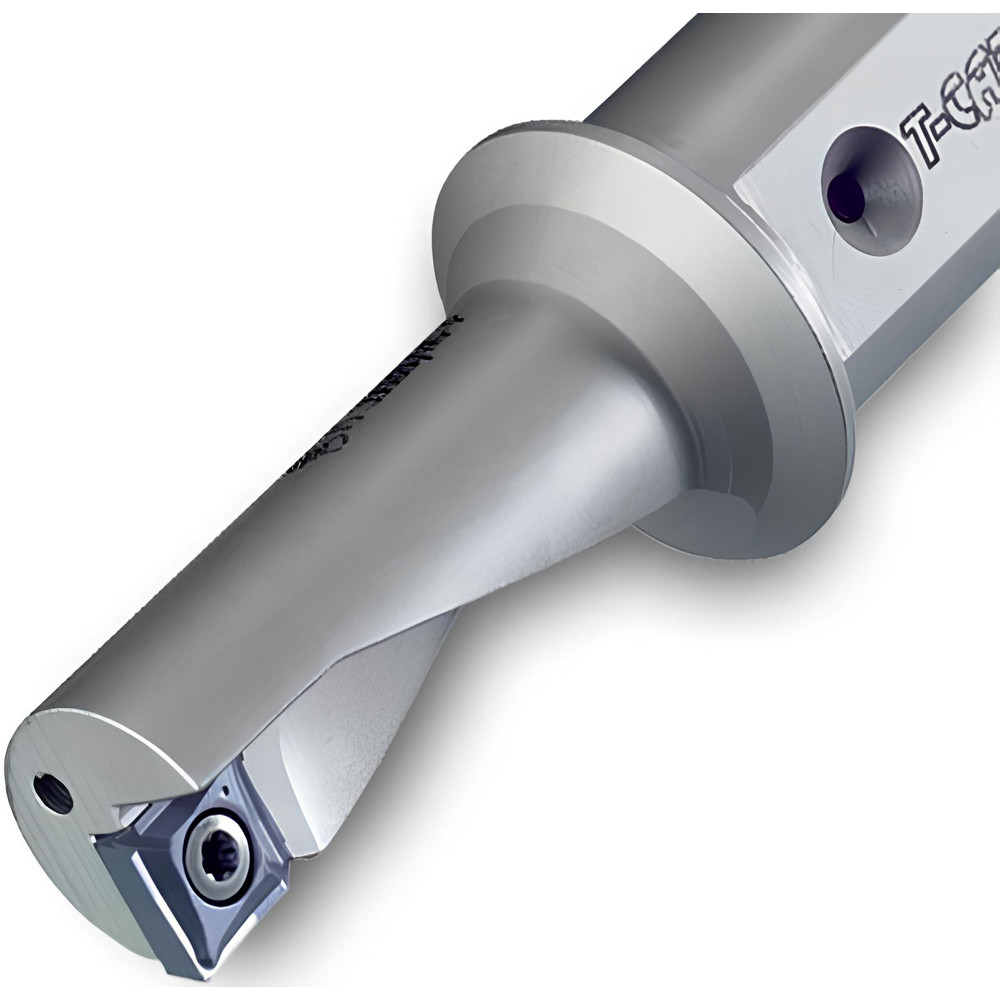

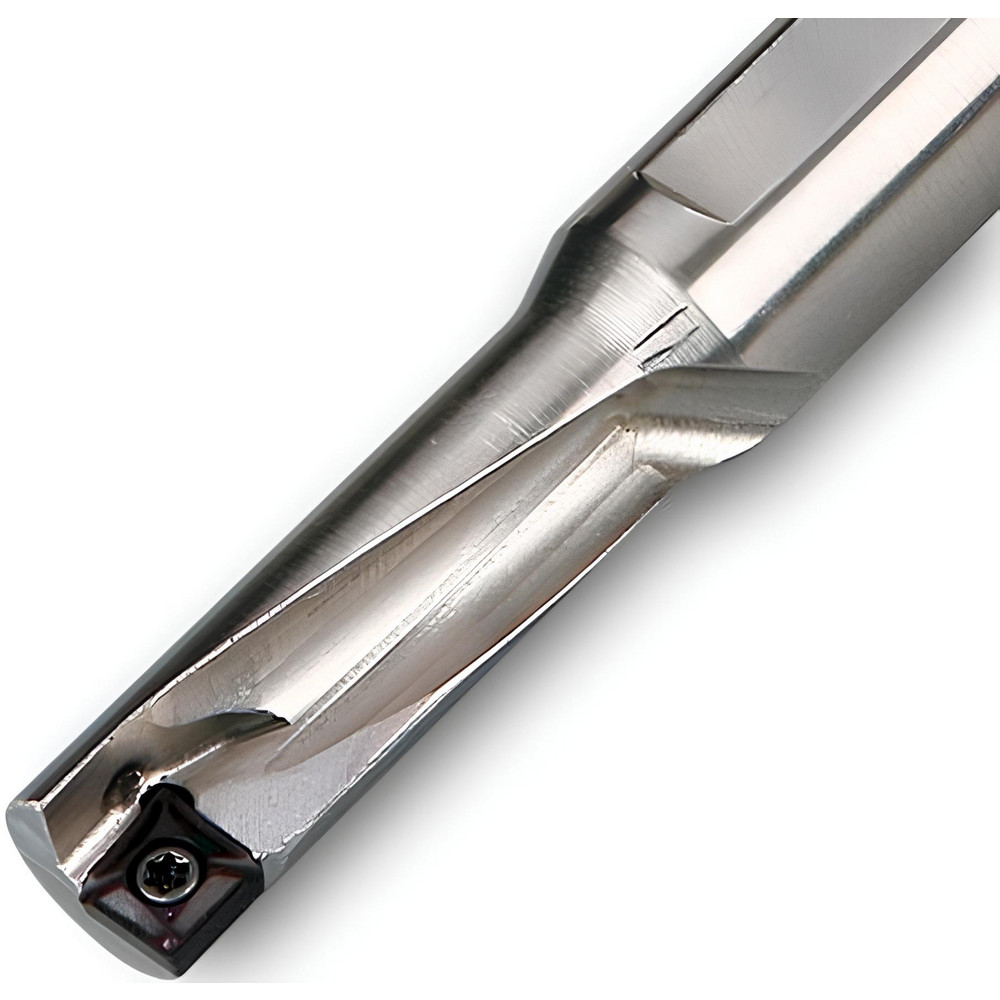

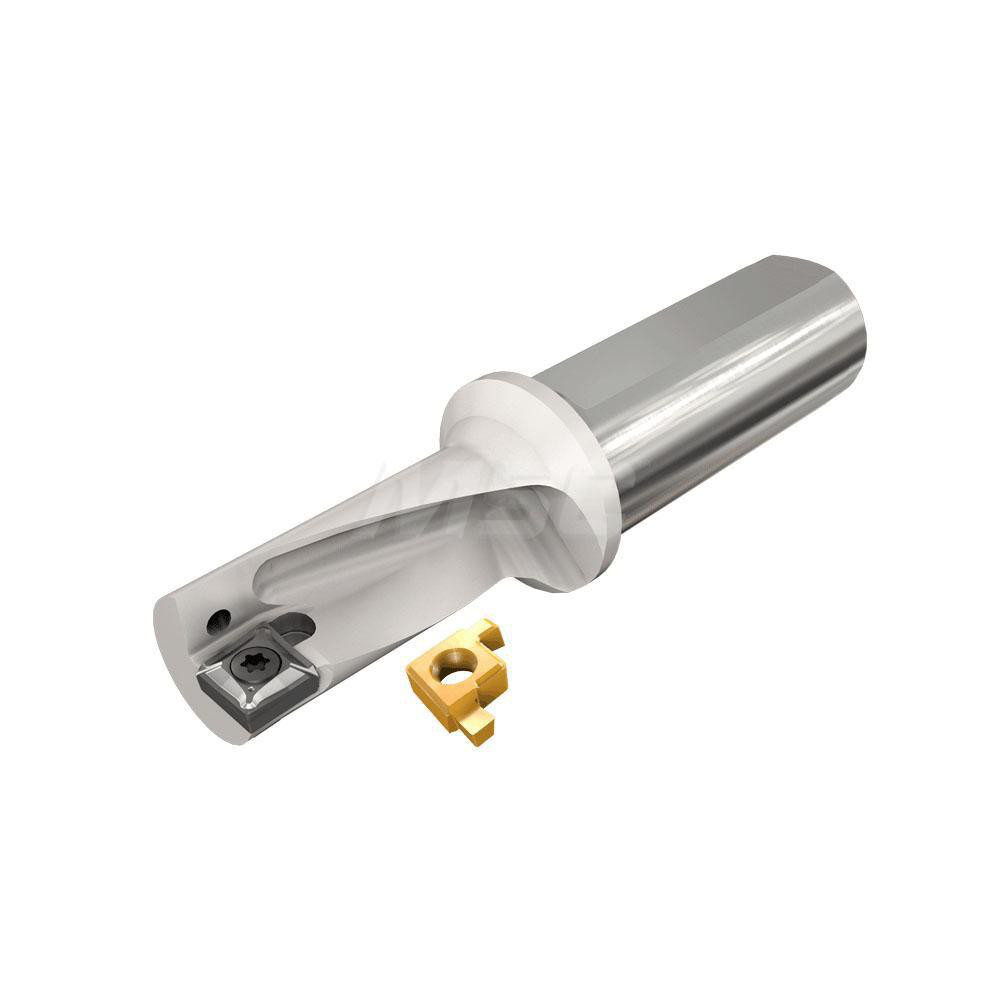

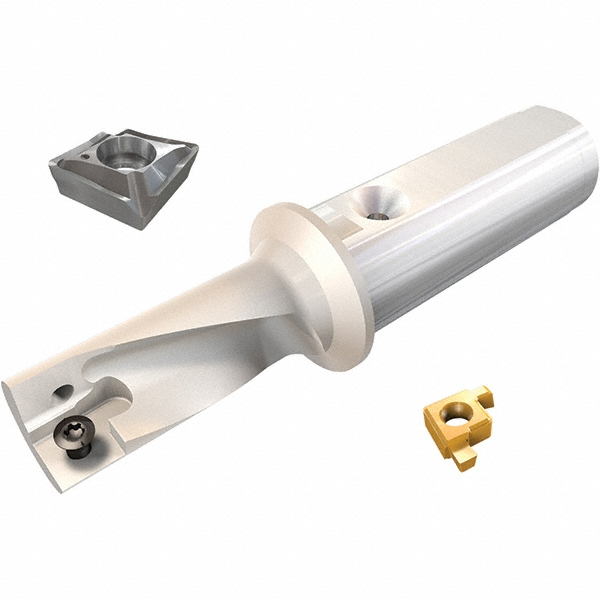

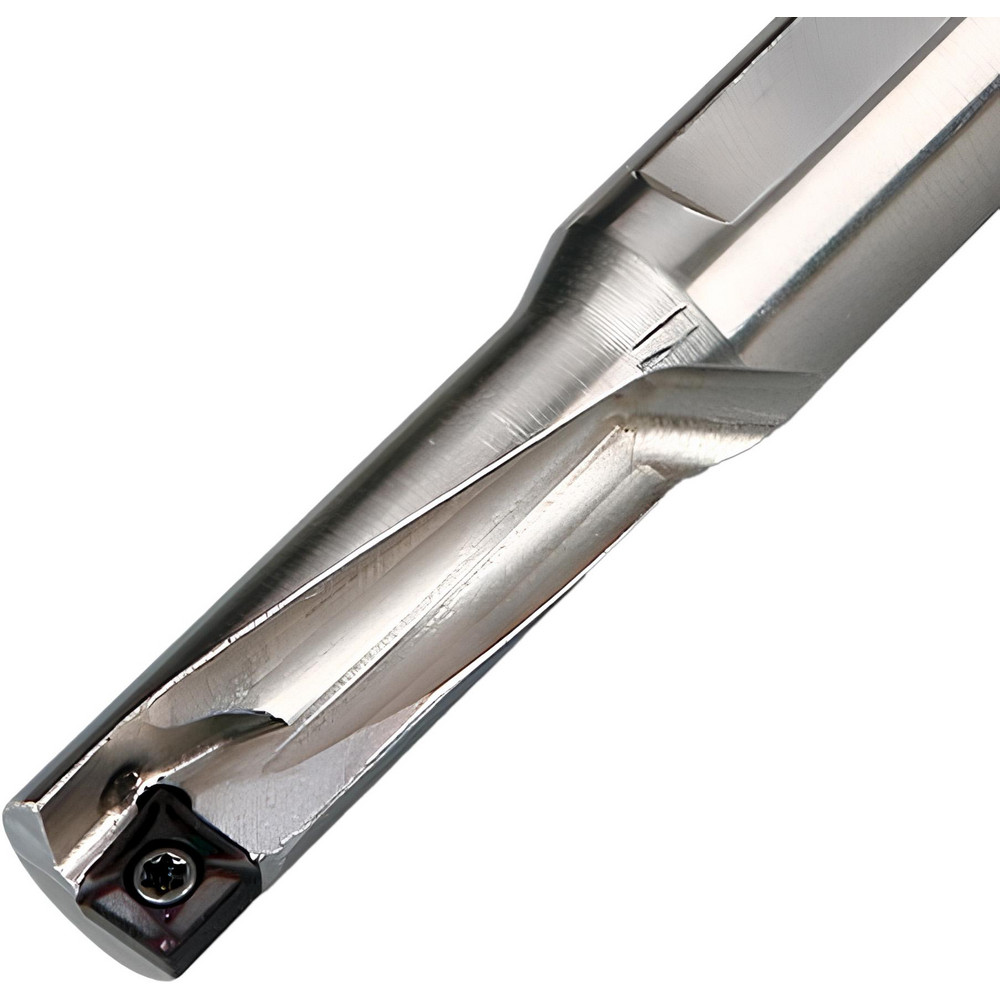

Weldon Flat & Flange Shank, Uses XCGT & XCMT 040104 Inserts, Series TCAP

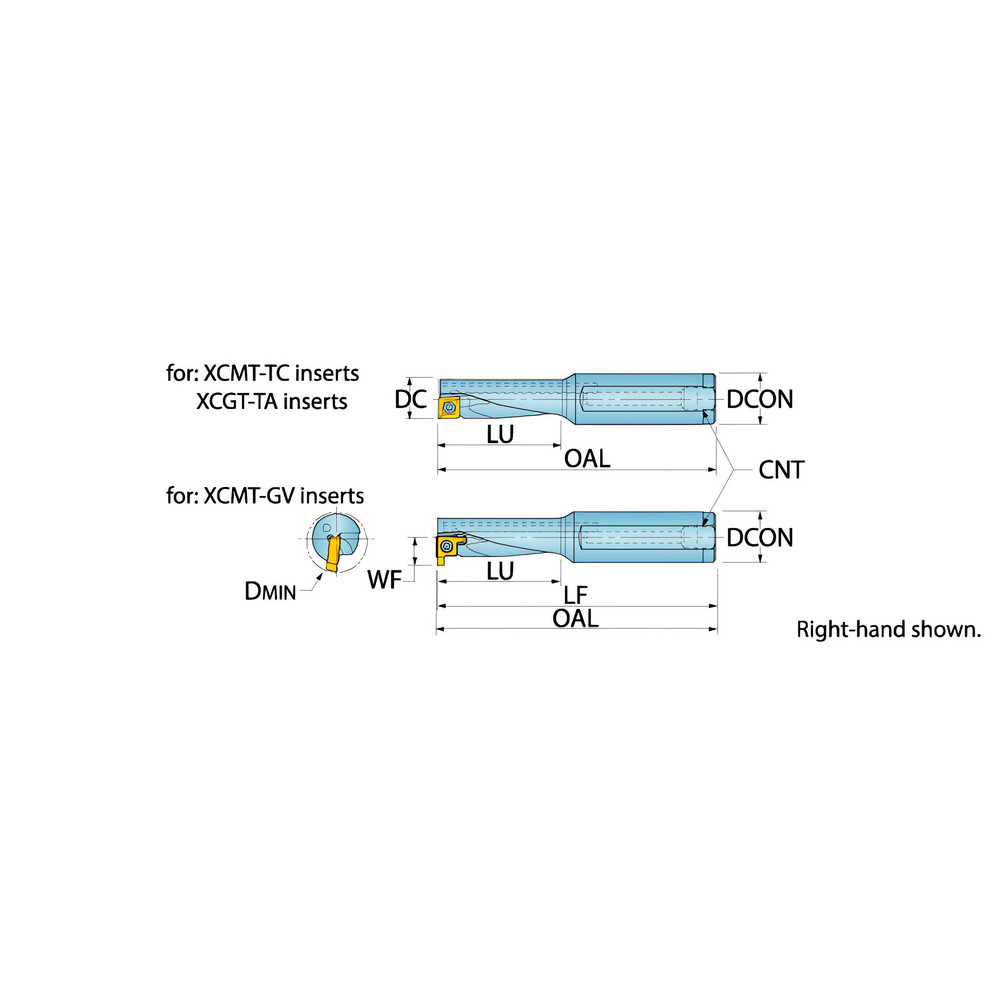

| Compatible Drill Style | TCAP |
|---|---|
| Maximum Drill Diameter (mm) | 8.00 |
| Maximum Drill Diameter (Decimal Inch) | 0.3150 |
| Maximum Drill Depth (Decimal Inch) | 0.9449 |
| Maximum Drill Depth (mm) | 24.00 |
| Shank Type | Flange; Weldon Flat |
| Shank Diameter (Decimal Inch) | 0.4724 |
| Shank Diameter (mm) | 12.00 |
| Number of Drill Inserts | 1 |
| Cutting Direction | Right Hand |
| Maximum Drill Depth Range (mm) | 0.00 to 50.00 |
| Tool Material | Densimet |

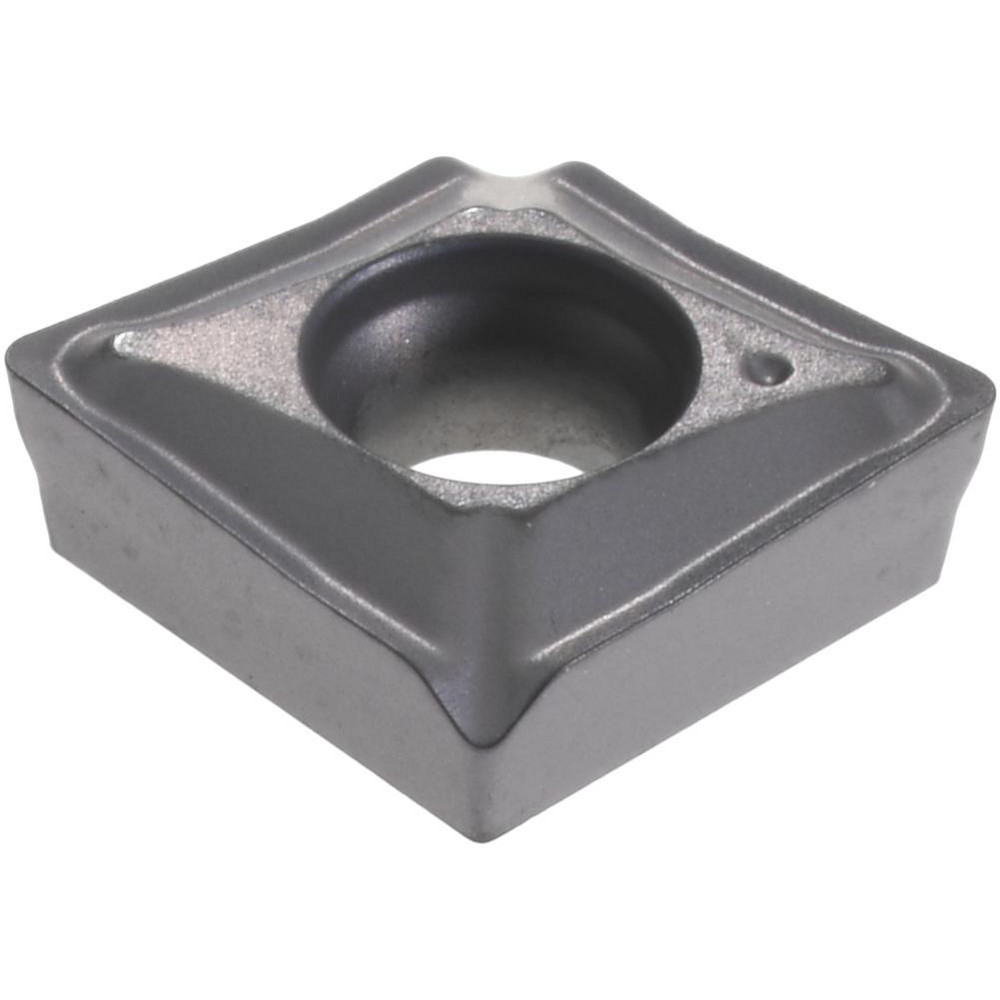

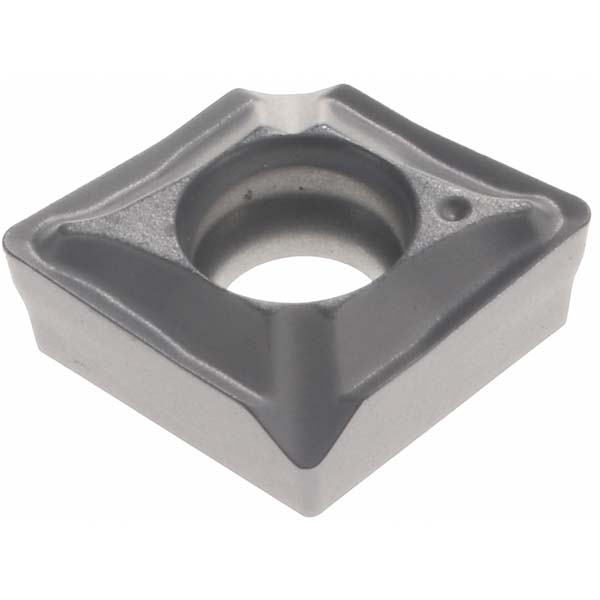

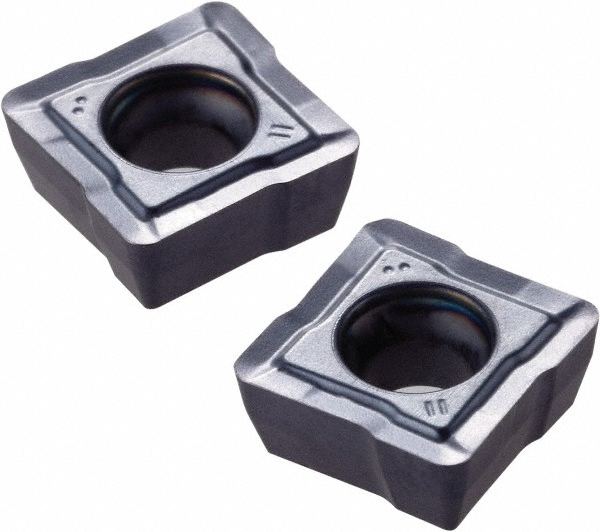

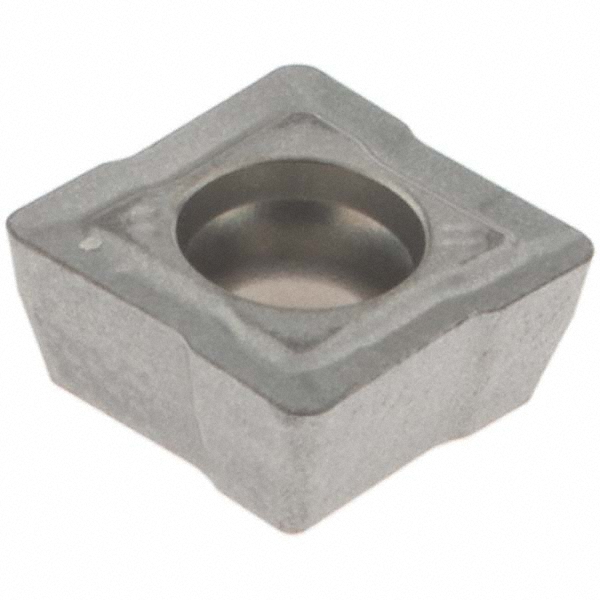

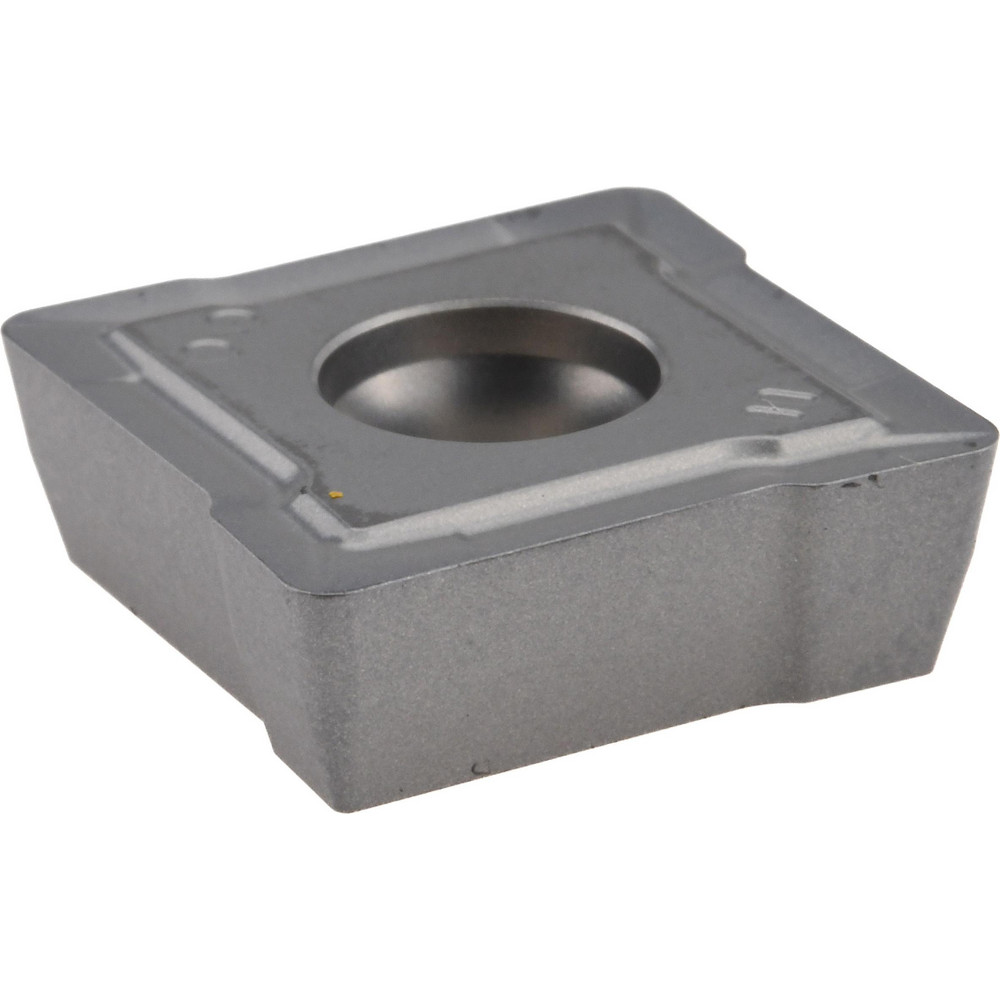

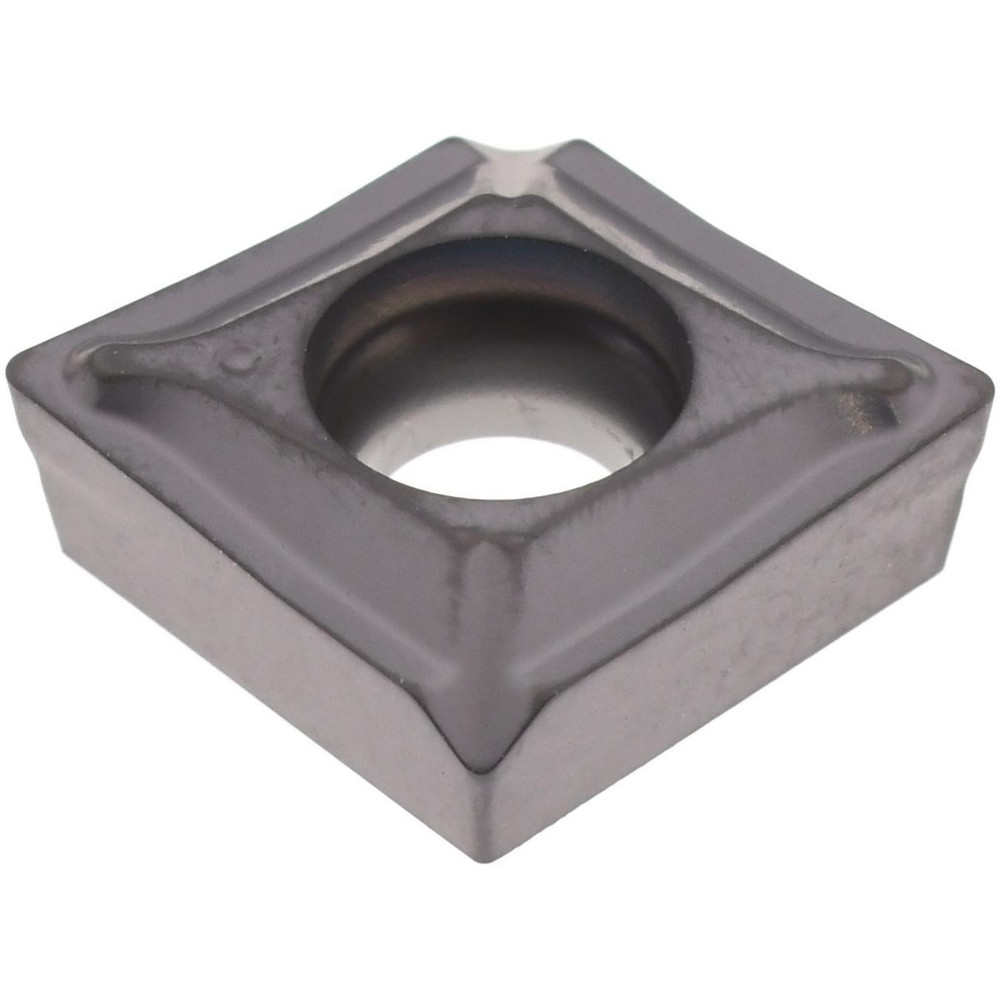

| Compatible Insert Style | XCGT; XCMT |
| Compatible Insert Size Code | 040104 |
| Drill Depth by Diameter Ratio | 3xD |
| Coolant Entry Style Code | 1-Axial Concentric Entry |
| Overall Length (Decimal Inch) | 3.1496 |
| Series | TCAP |
| Flute Length (Decimal Inch) | 0.9449 |
| Flute Length (mm) | 24.00 |
| Body Length (mm) | 24.00 |
| Body Length (Decimal Inch) | 2.2047 |
| Shank Length (Decimal Inch) | 2.2047 |
| Shank Length (mm) | 56.00 |
| Coolant Hole Thread Size | "1/16-28 BSPP" |
| Tool Application | Drilling |
| Tool Performance | General Purpose |
| Insert Size (Decimal Inch) | 0.1730 |
| UNSPSC Code | 23291503 |
| Insert Compatibility | XCMT040104RTC; XCGT040104RTA |
| Shank End Coolant Hole Thread Size (Inch) | 1/16 |
| Insert Lock Screw | TS18034I/HG-P |
| Coolant Through | Yes |
| undefined | undefined |
| MSC Number | MSC# 97030258 |
