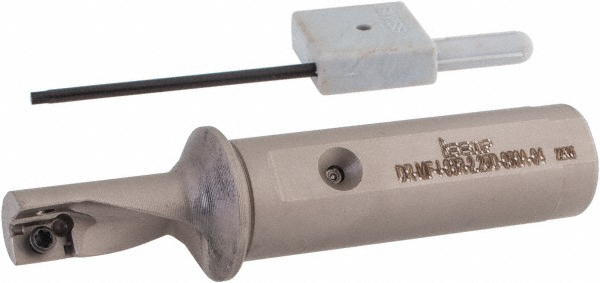

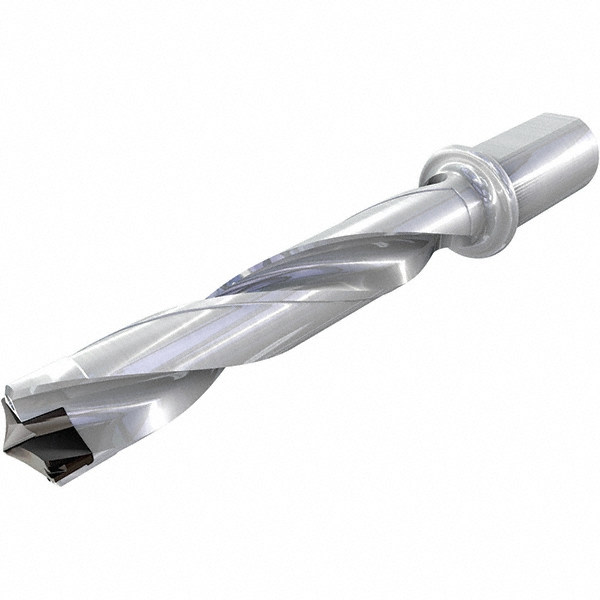

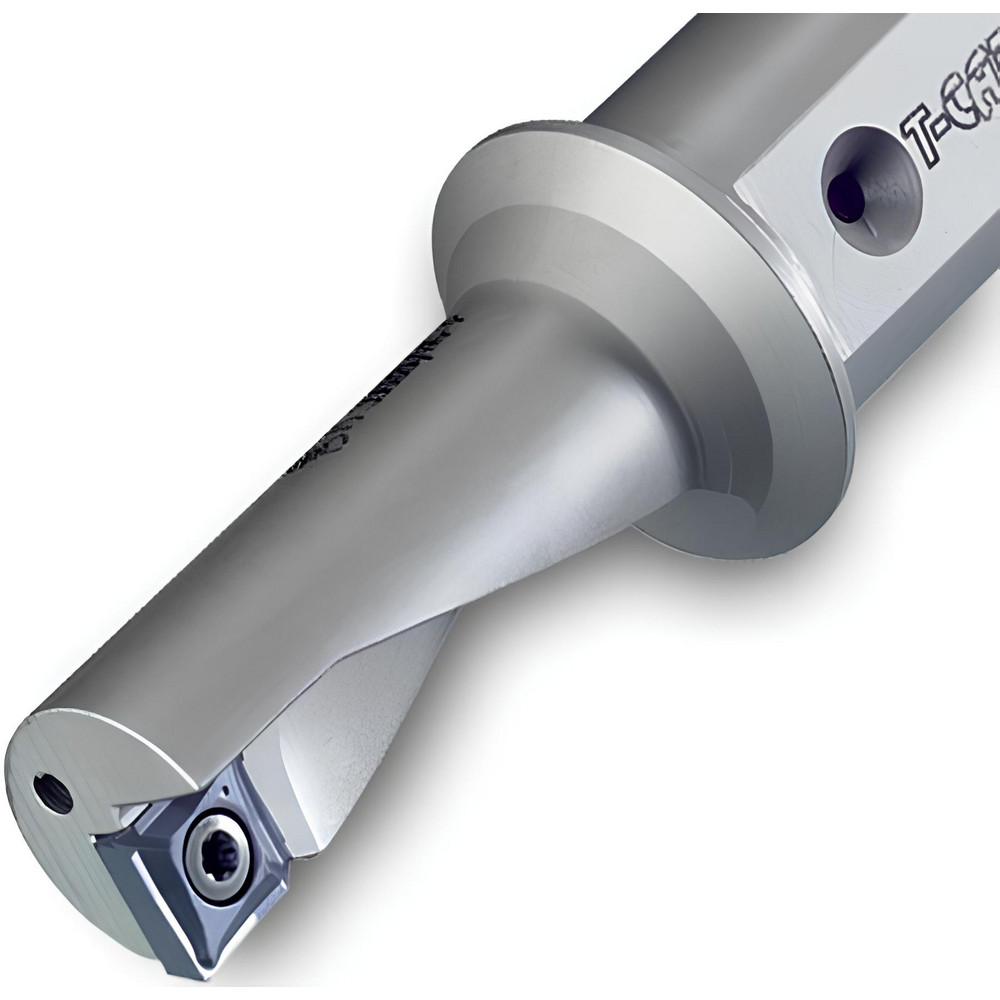

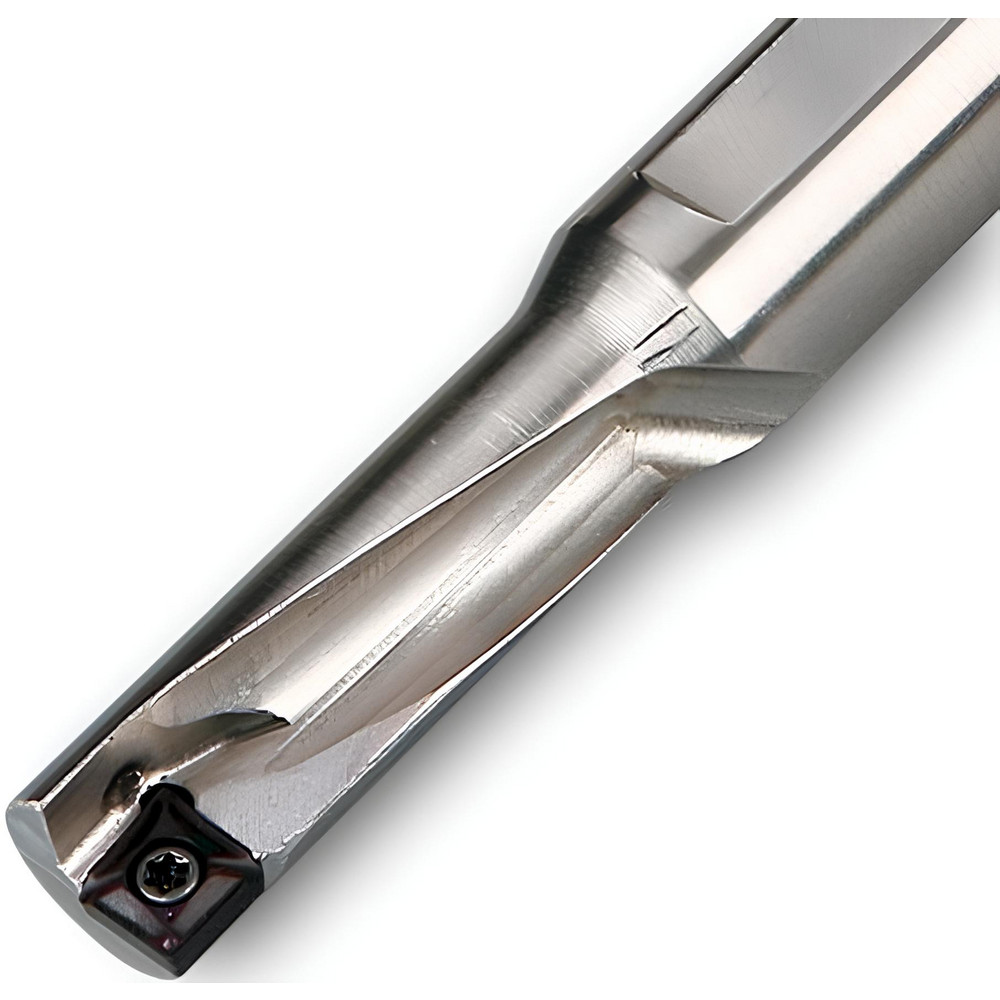

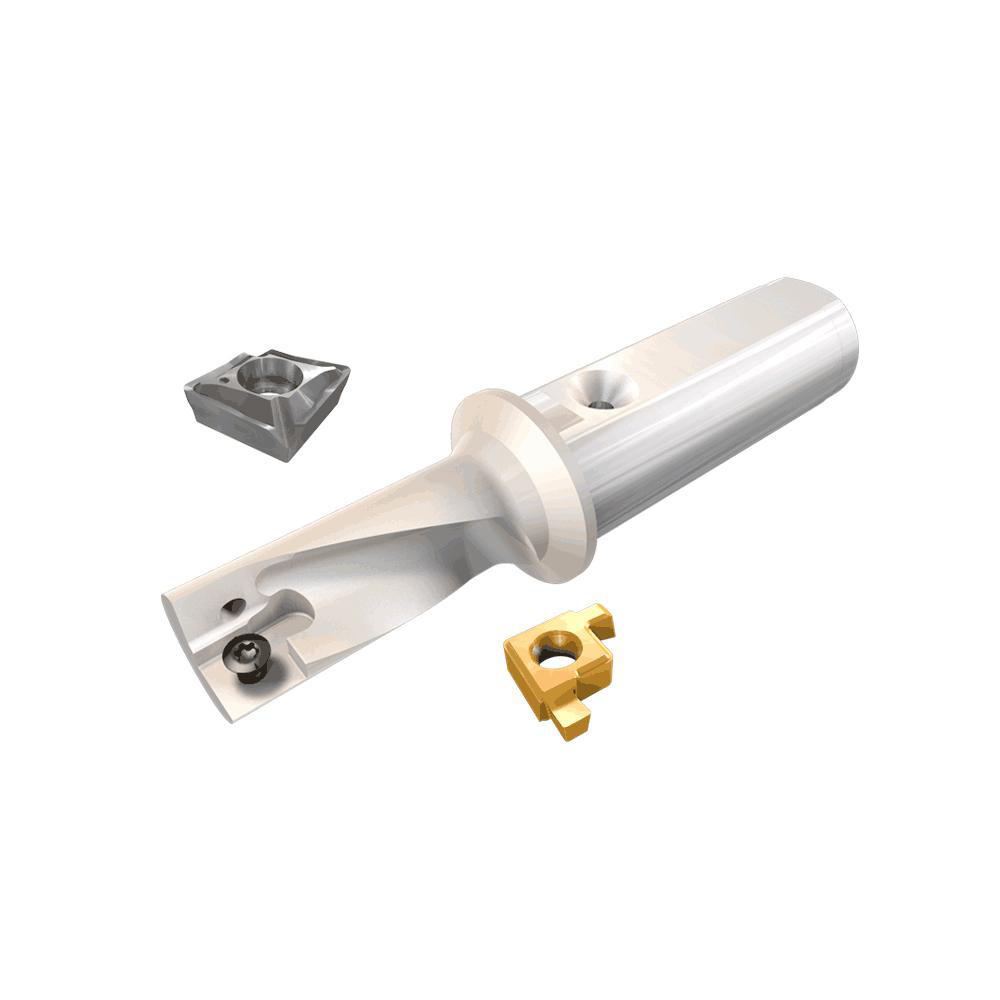

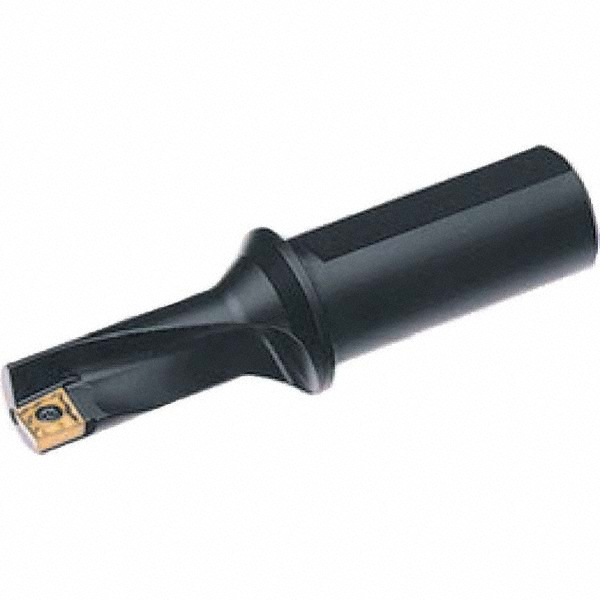

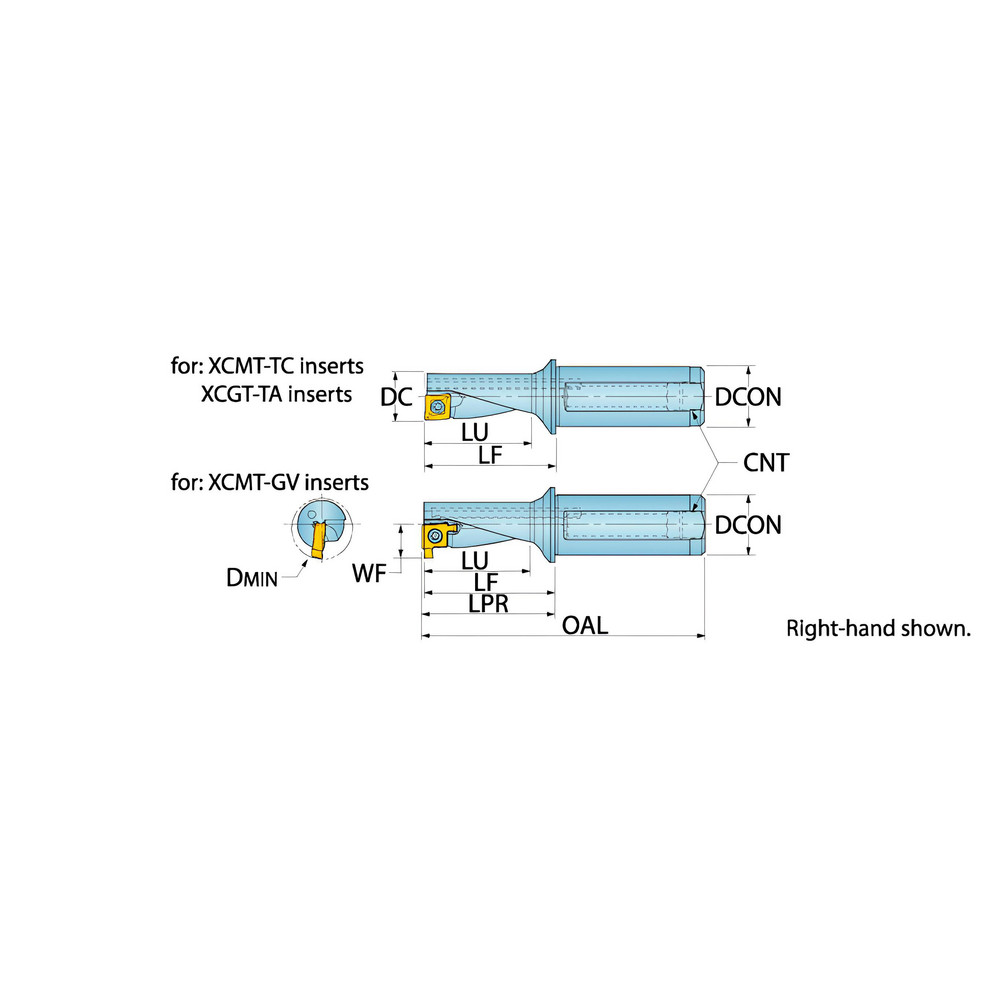

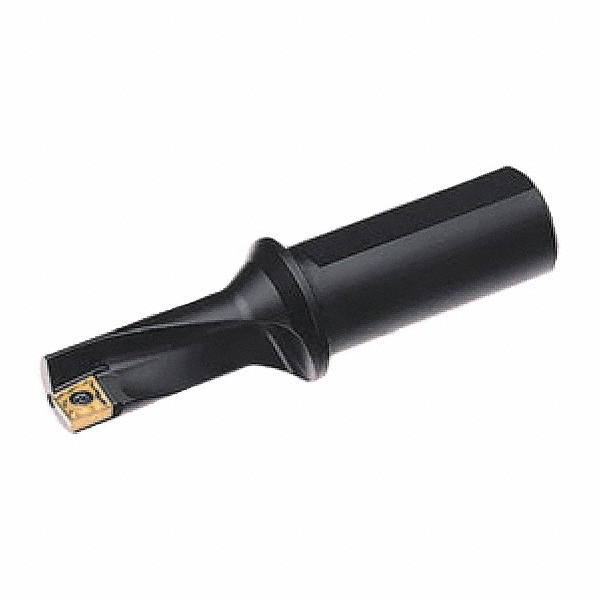

Weldon Flat & Flange Shank, Uses XCGT & XCMT 050204 Inserts, Series TCAP
| Compatible Drill Style | TCAP |
|---|---|
| Maximum Drill Diameter (mm) | 10.00 |
| Maximum Drill Diameter (Decimal Inch) | 0.3940 |
| Maximum Drill Depth (Inch) | 57/64 |
| Maximum Drill Depth (Decimal Inch) | 0.8900 |
| Shank Type | Flange; Weldon Flat |
| Shank Diameter (Inch) | 1/2 |
| Shank Diameter (Decimal Inch) | 0.5000 |
| Number of Drill Inserts | 1 |
| Cutting Direction | Left Hand |
| Maximum Drill Depth Range (Decimal Inch) | 0.0000 to 1.0000 |
| Tool Material | Steel |
| Compatible Insert Style | XCGT; XCMT |
| Compatible Insert Size Code | 050204 |
| Drill Depth by Diameter Ratio | 2.25xD |
| Coolant Entry Style Code | 1-Axial Concentric Entry |
| Overall Length (Decimal Inch) | 2.7400 |
| Series | TCAP |
| Flute Length (Decimal Inch) | 0.8900 |
| Flute Length (mm) | 22.61 |
| Body Length (mm) | 27.18 |
| Body Length (Decimal Inch) | 1.0700 |
| Shank Length (Decimal Inch) | 1.6600 |
| Shank Length (mm) | 42.16 |
| Coolant Hole Thread Size | "1/16-27 NPT" |
| Tool Application | Drilling |
| Tool Performance | General Purpose |
| Insert Size (Decimal Inch) | 0.2200 |
| UNSPSC Code | 23291503 |
| Insert Compatibility | XCGT050204TA; XCMT050204TC |
| Shank End Coolant Hole Thread Size (Inch) | 1/16 |
| Insert Lock Screw | TS20038I/HG-P |
| Coolant Through | Yes |
| undefined | undefined |
| MSC Number | MSC# 15617384 |
