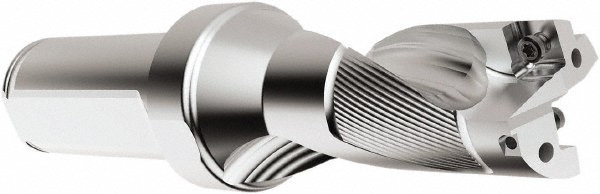

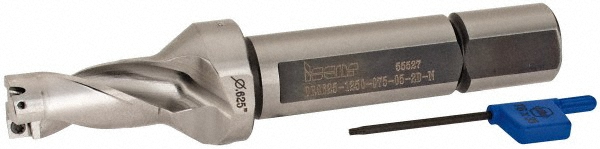

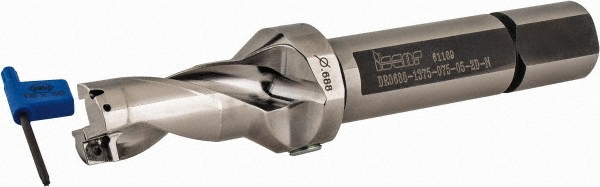

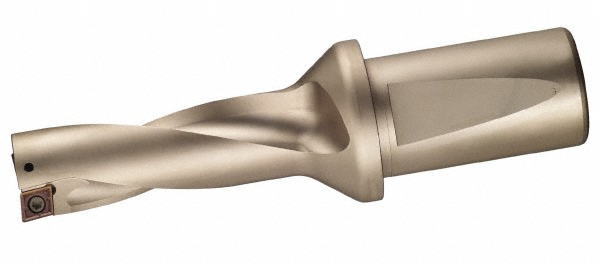

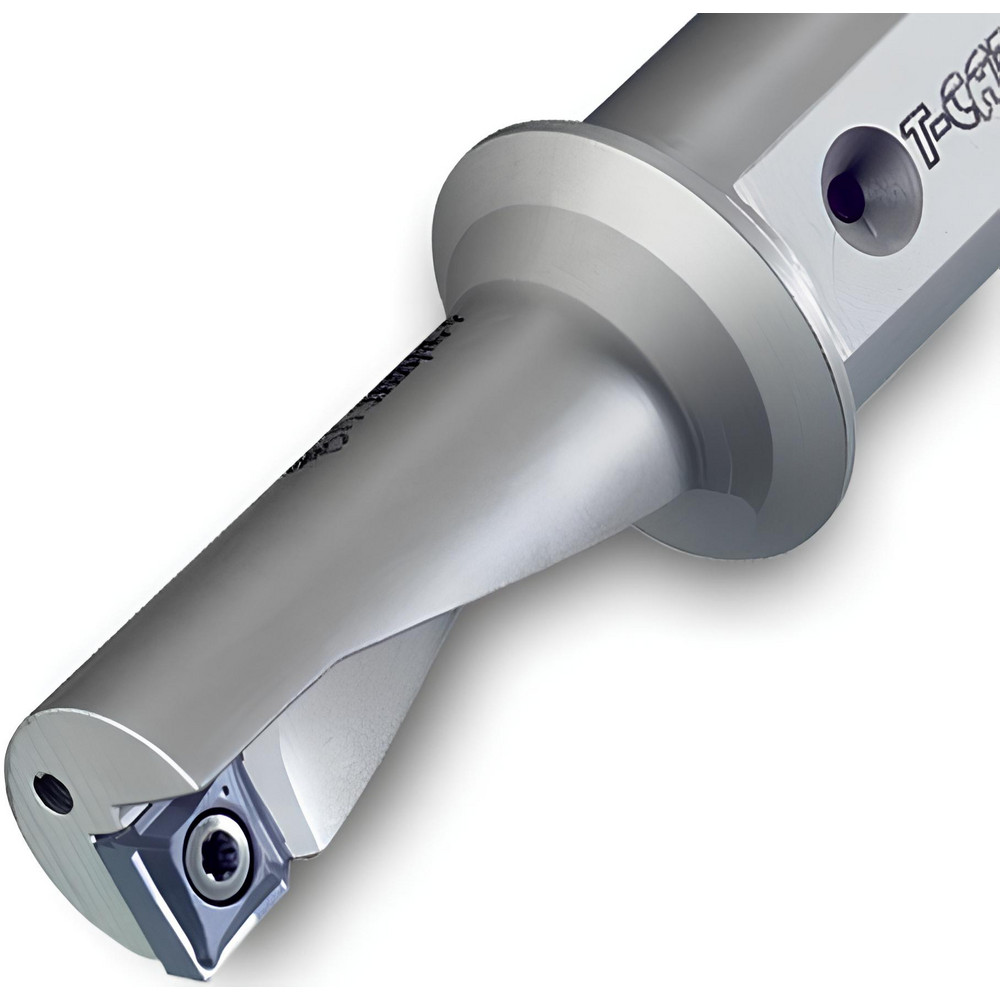

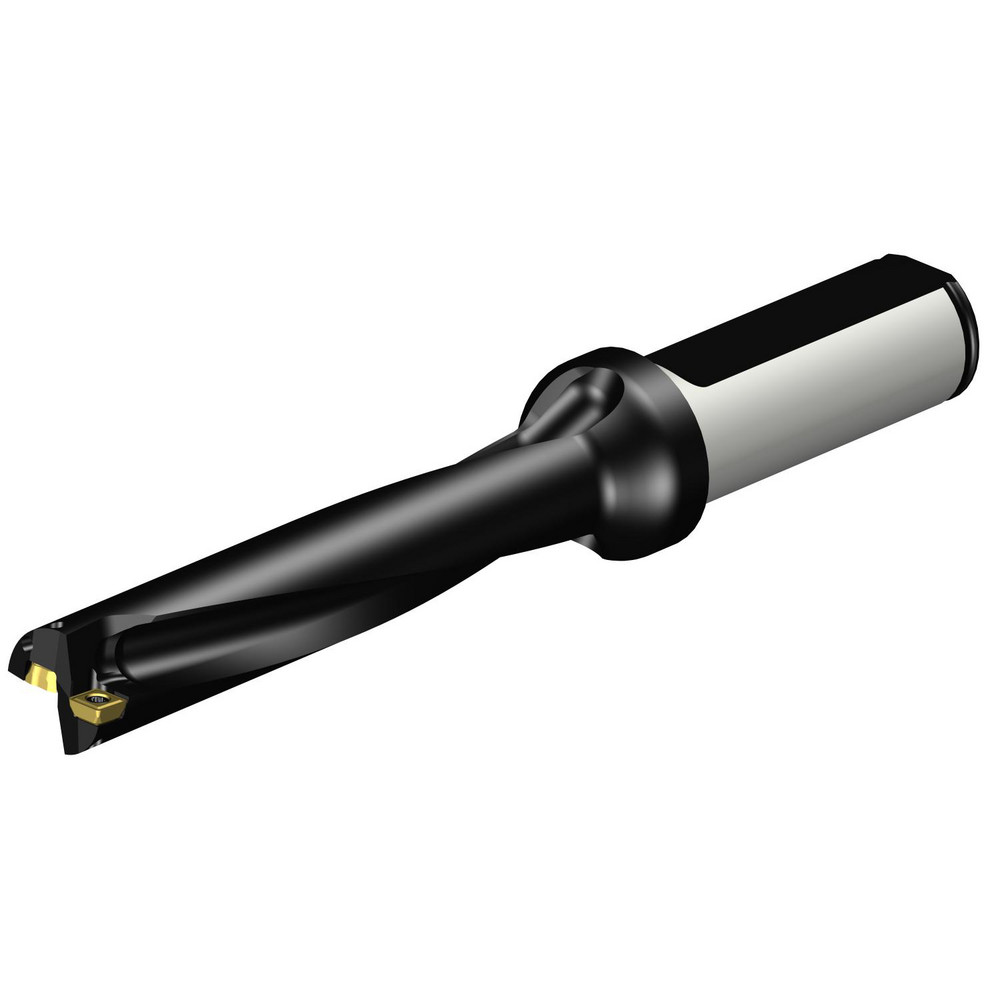

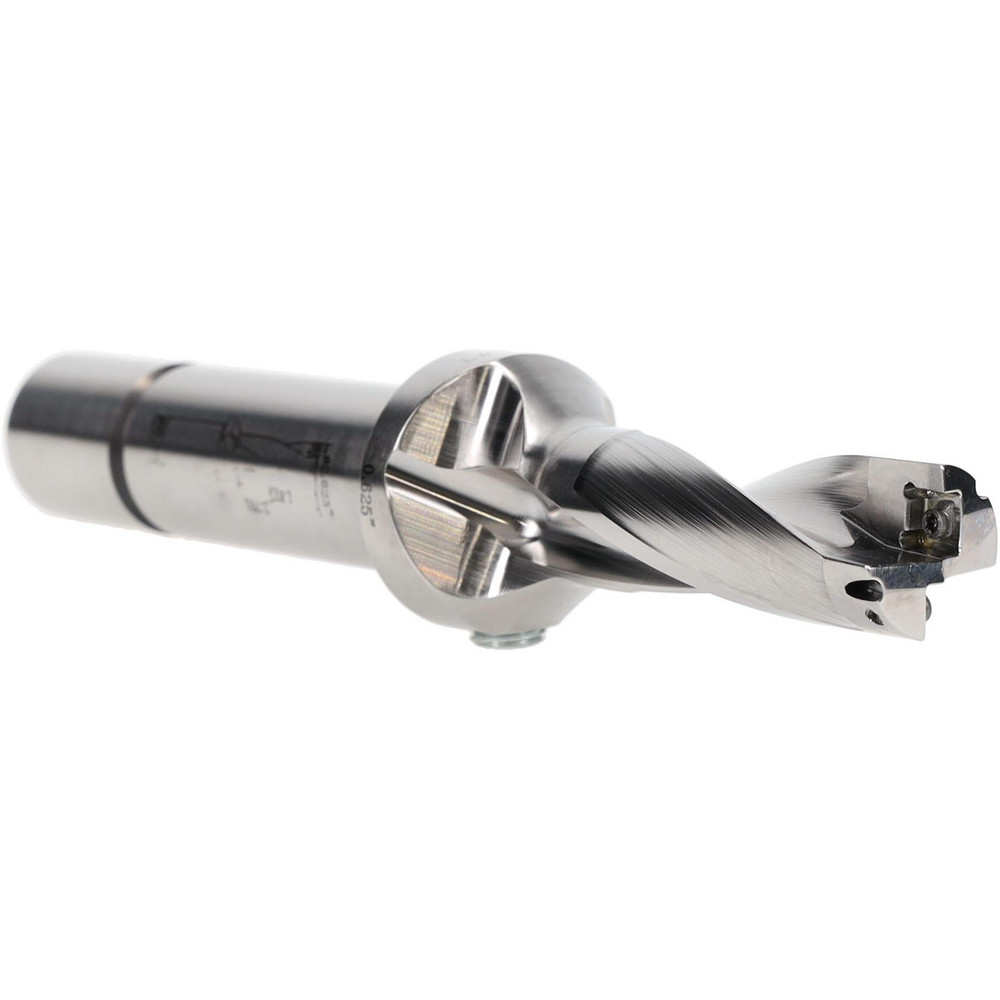

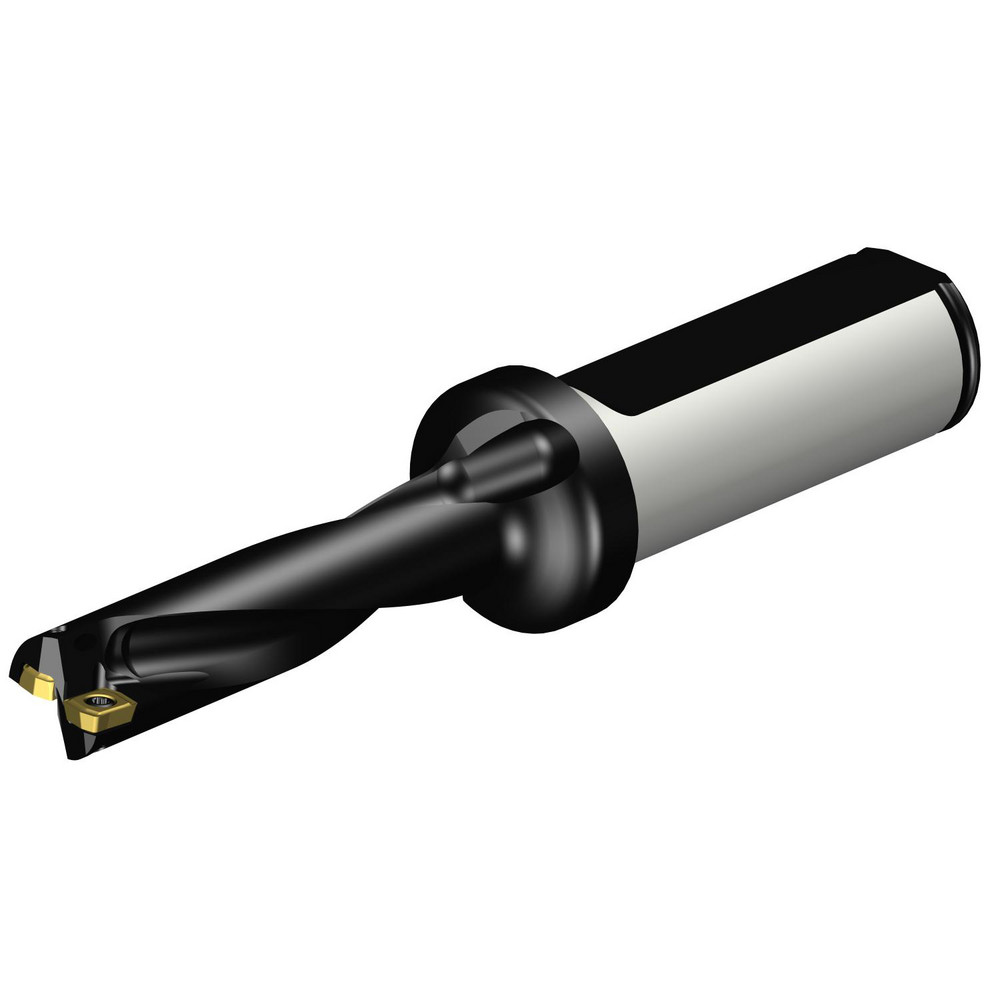

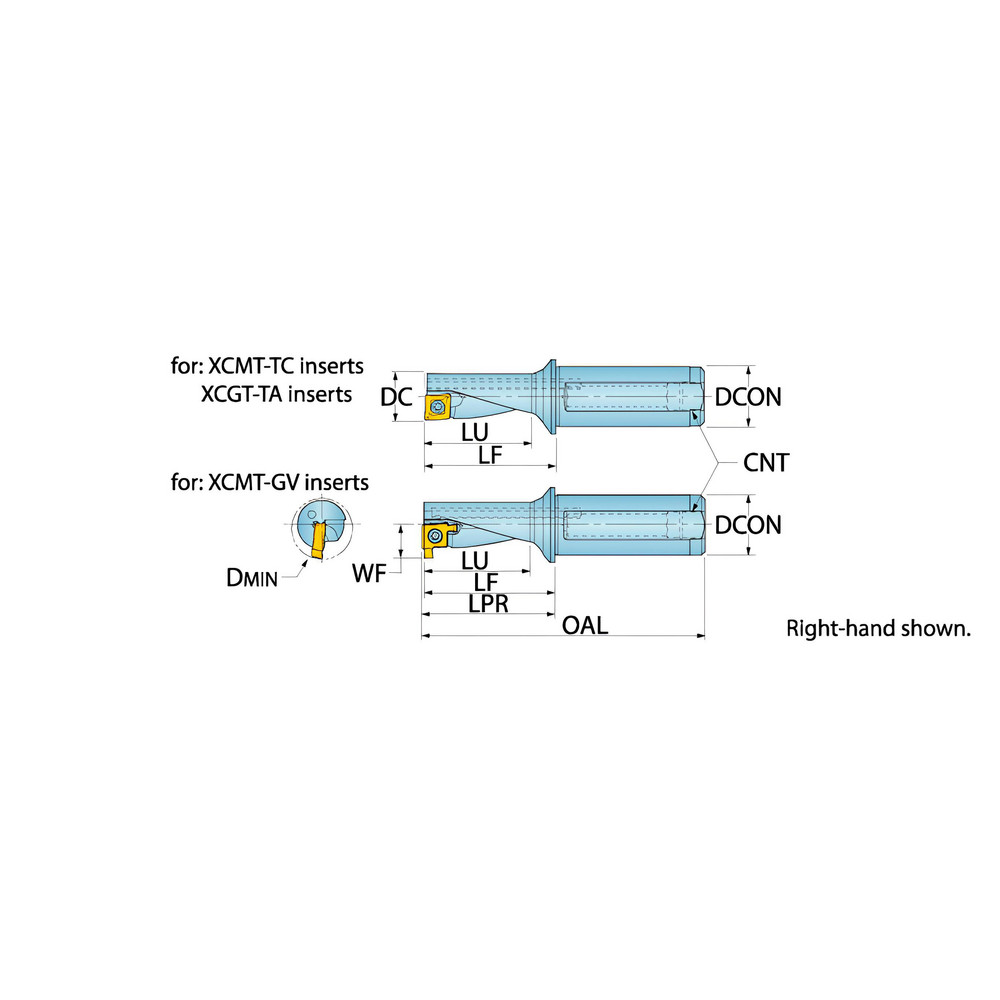

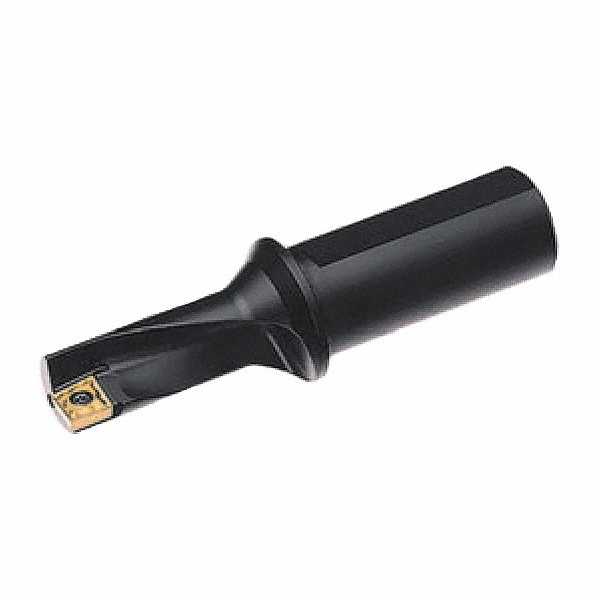

Weldon Flat & Flange Shank, Uses XCGT & XCMT 080304 & 250020 Inserts, Series TCAP
| Compatible Drill Style | TCAP |
|---|---|
| Maximum Drill Diameter (mm) | 16.00 |
| Maximum Drill Diameter (Decimal Inch) | 0.6300 |
| Maximum Drill Depth (Decimal Inch) | 1.4200 |
| Maximum Drill Depth (mm) | 36.07 |
| Shank Type | Flange; Weldon Flat |
| Shank Diameter (Inch) | 3/4 |
| Shank Diameter (Decimal Inch) | 0.7500 |
| Number of Drill Inserts | 1 |
| Cutting Direction | Right Hand |
| Maximum Drill Depth Range (Decimal Inch) | 1.0000 to 2.0000 |
| Tool Material | Steel |
| Compatible Insert Style | XCGT; XCMT |
| Compatible Insert Size Code | 250020; 080304 |
| Drill Depth by Diameter Ratio | 2.25xD |
| Coolant Entry Style Code | 1-Axial Concentric Entry |
| Overall Length (Decimal Inch) | 3.7000 |
| Series | TCAP |
| Flute Length (Decimal Inch) | 1.4200 |
| Flute Length (mm) | 36.07 |
| Body Length (mm) | 43.43 |
| Body Length (Decimal Inch) | 1.7100 |
| Shank Length (Decimal Inch) | 1.9700 |
| Shank Length (mm) | 50.04 |
| Coolant Hole Thread Size | "1/8-27 NPT" |
| Tool Application | Drilling |
| Tool Performance | General Purpose |
| Insert Size (Decimal Inch) | 0.3310 |
| UNSPSC Code | 23291503 |

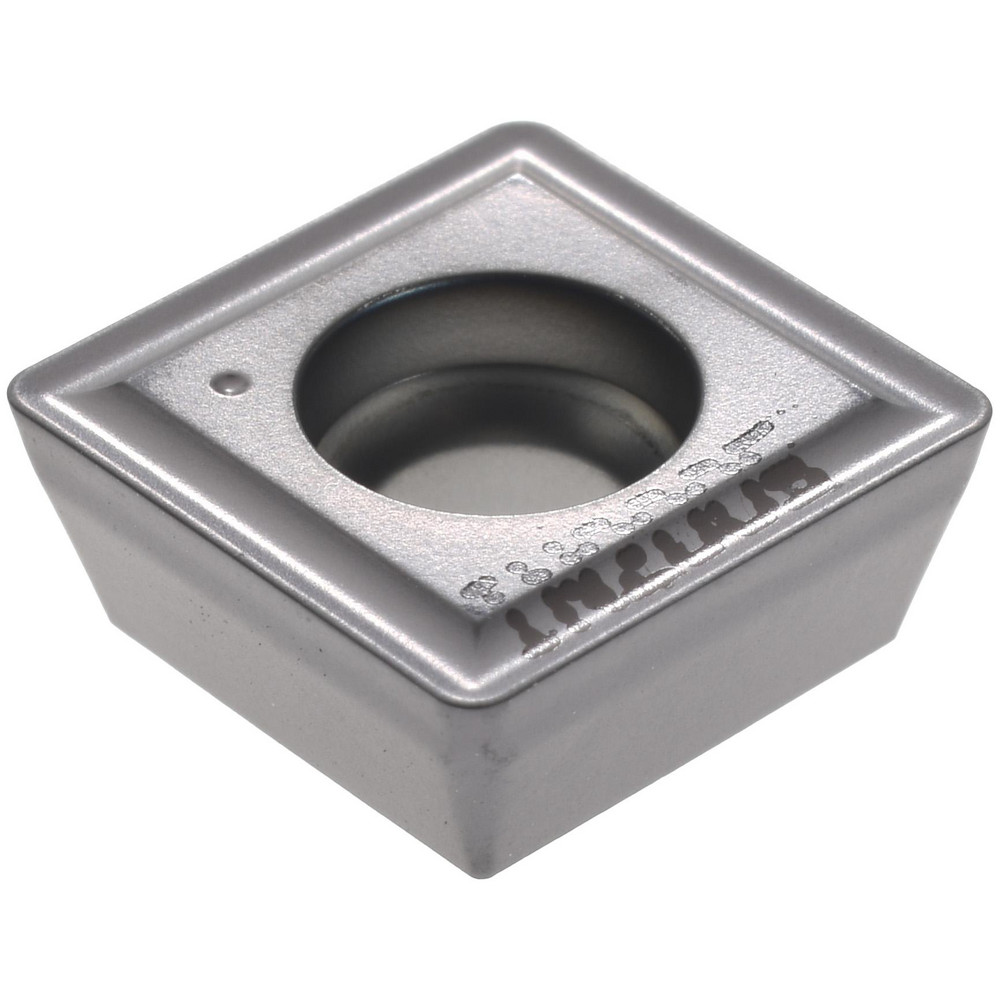

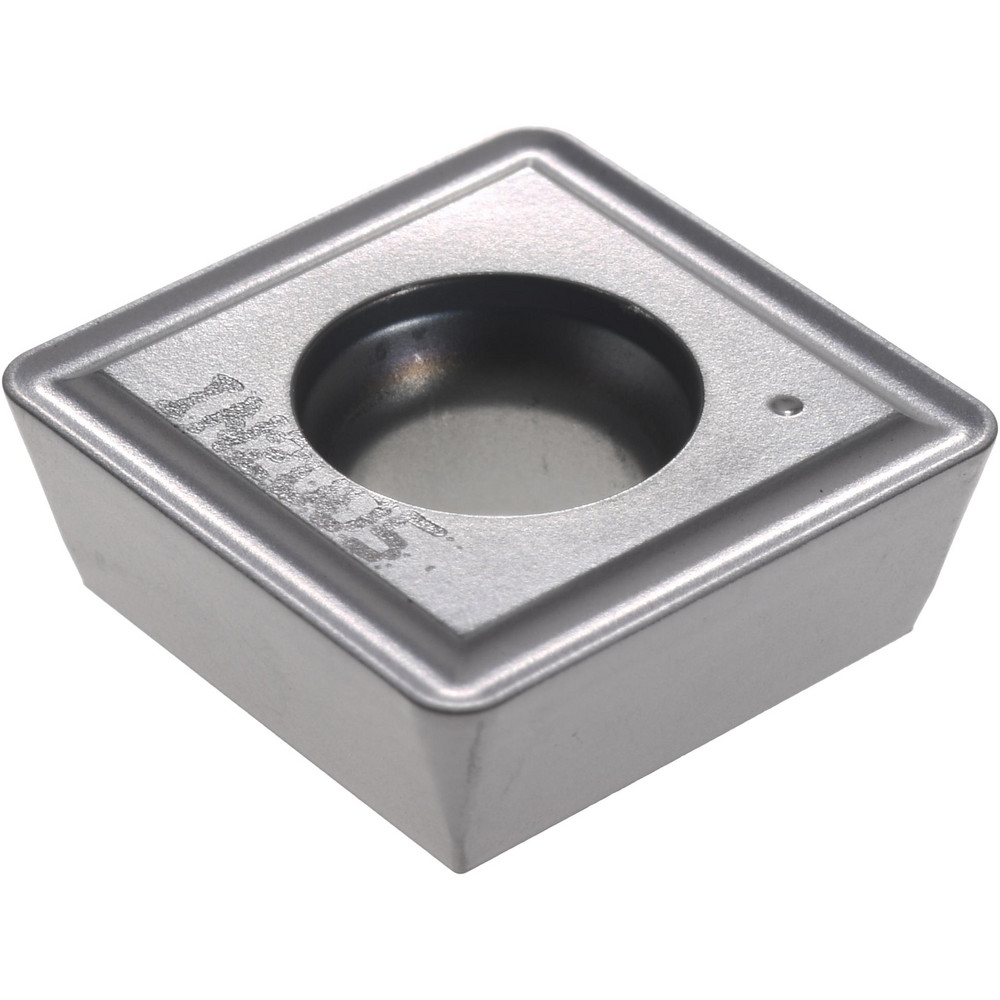

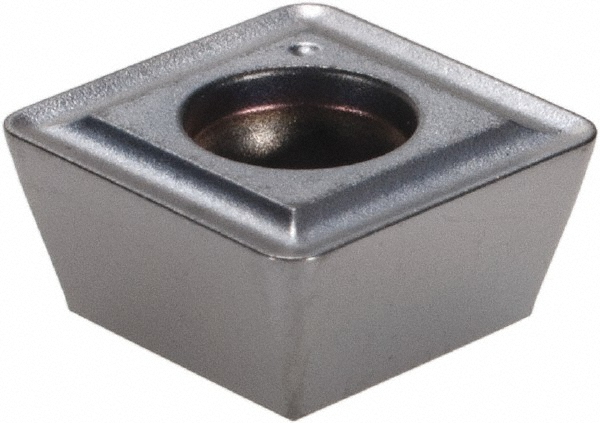

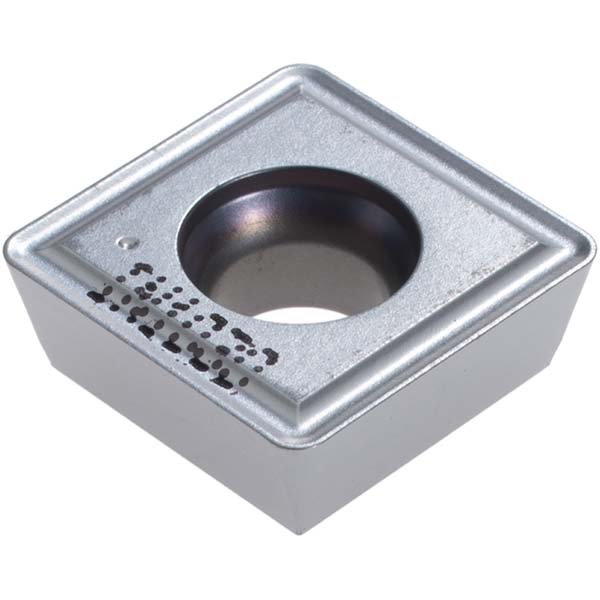

| Insert Compatibility | XCGT080304TA; XCMT08R-250020GV; XCMT080304TC |
| Shank End Coolant Hole Thread Size (Inch) | 1/8 |
| Insert Lock Screw | TS30100I/HG-P |
| Coolant Through | Yes |
| undefined | undefined |
| MSC Number | MSC# 98074461 |
