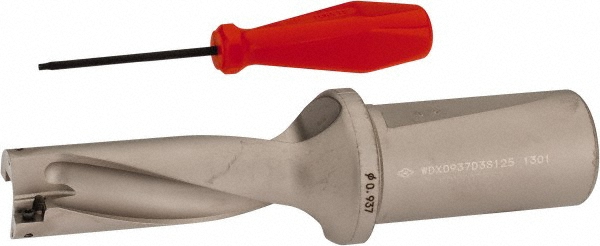

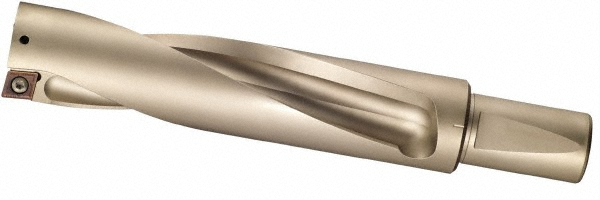

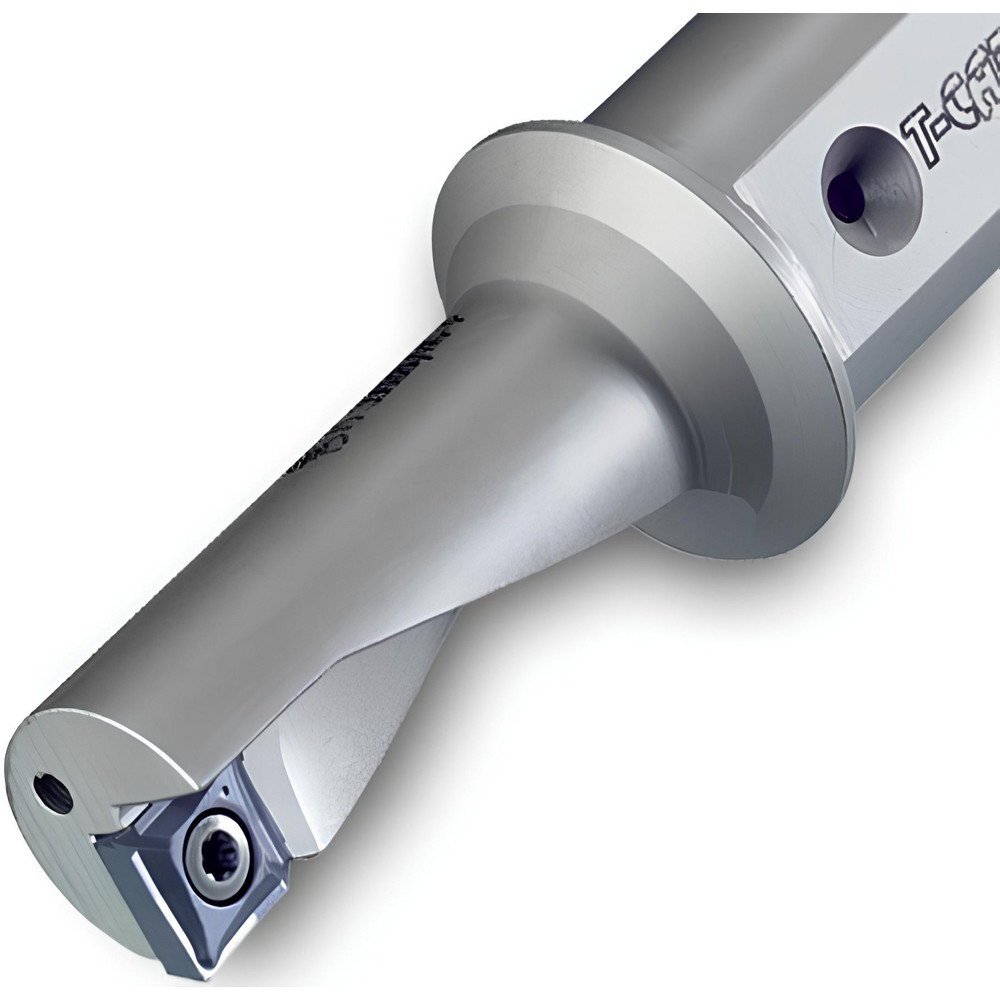

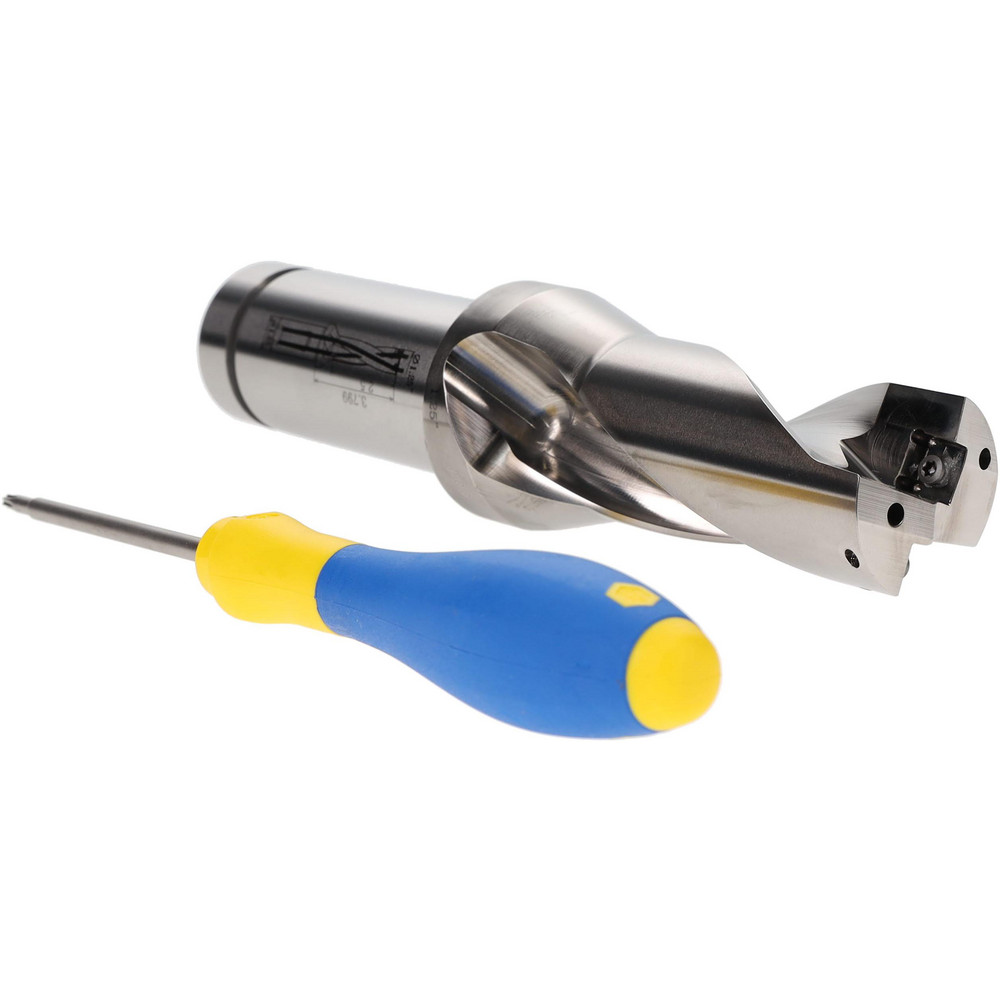

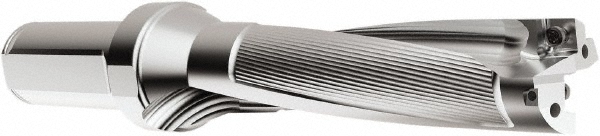

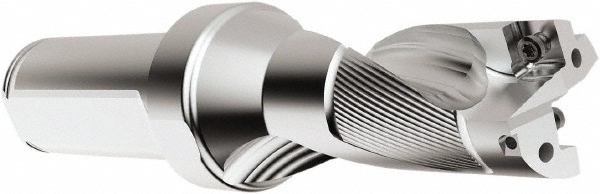

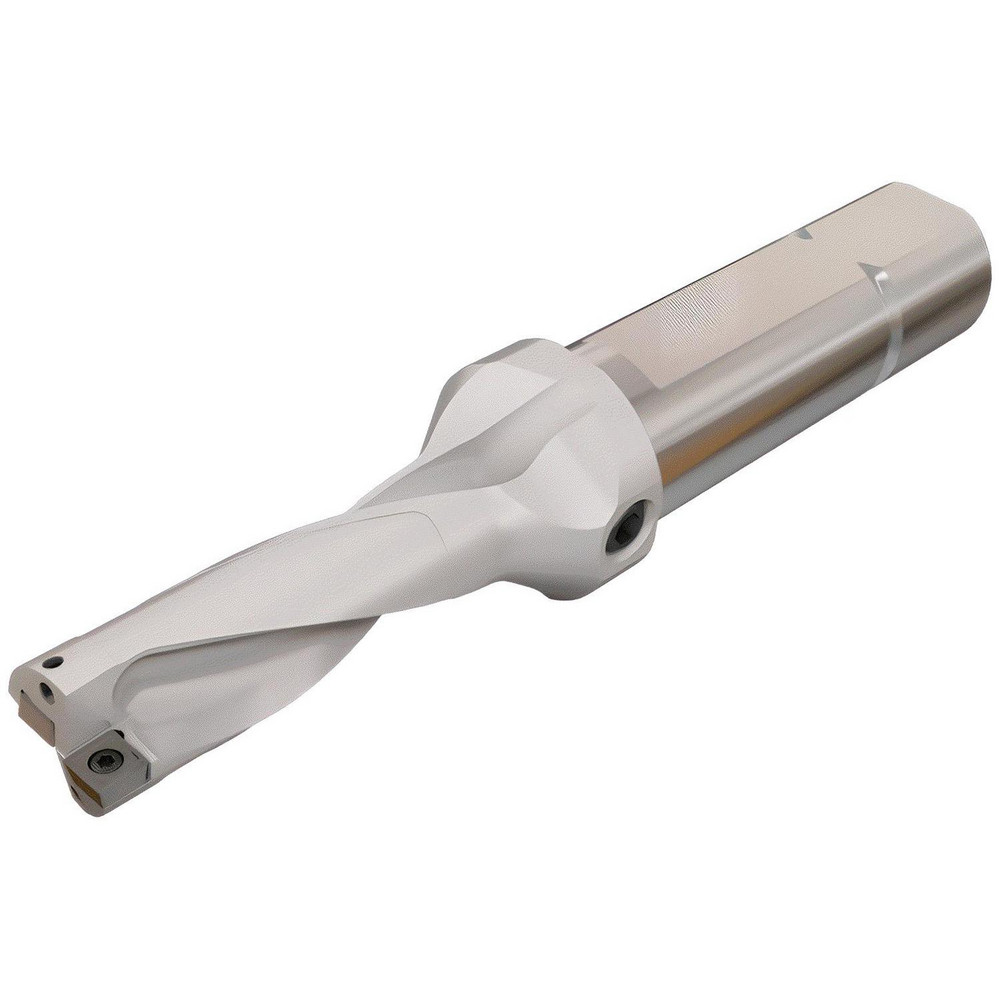

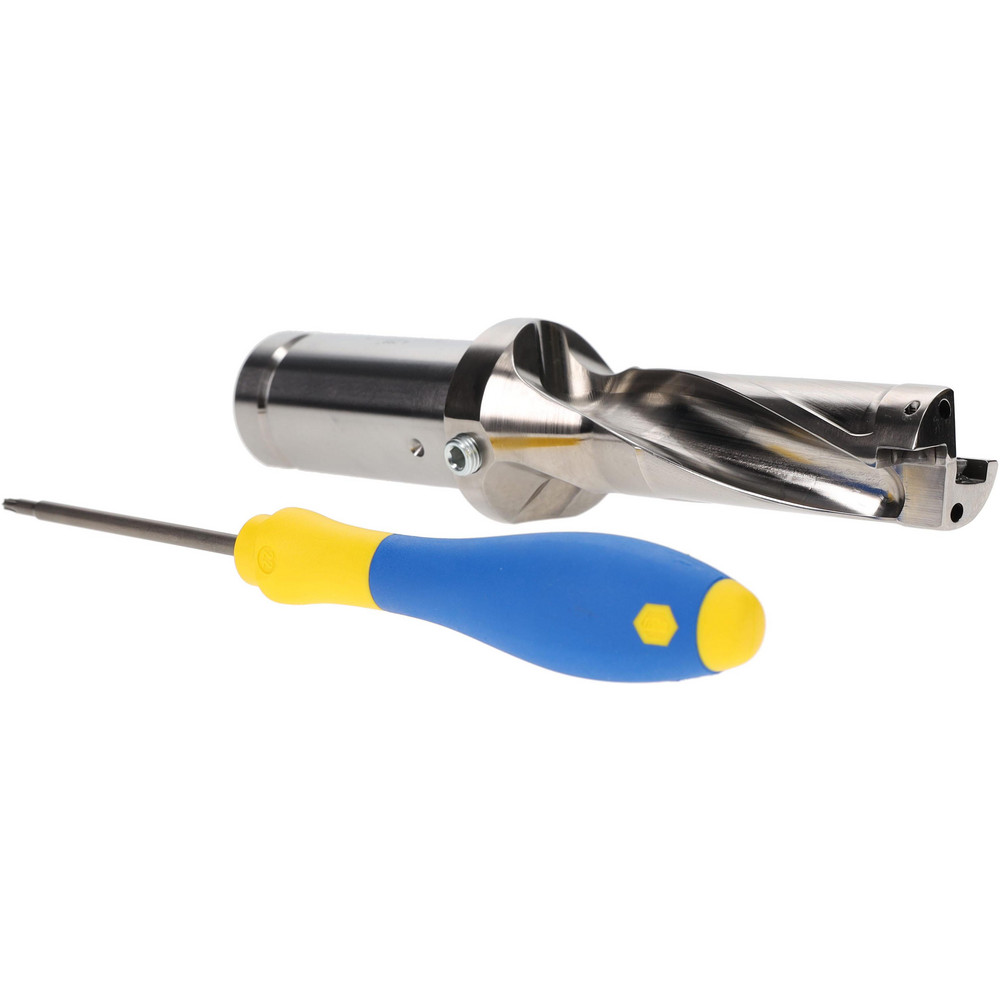

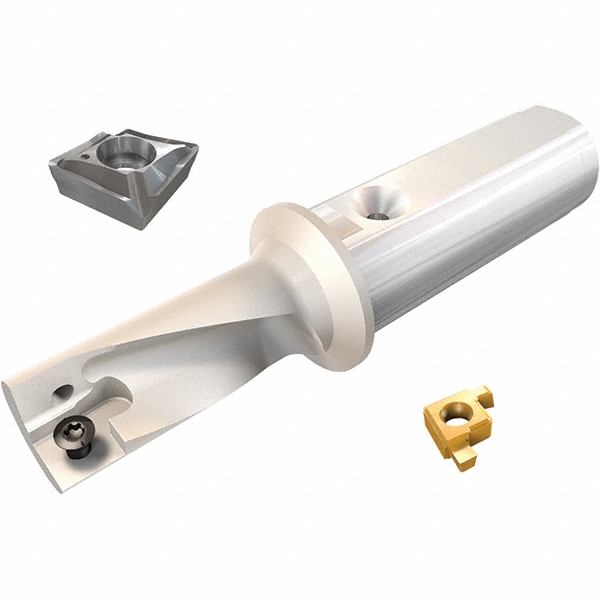

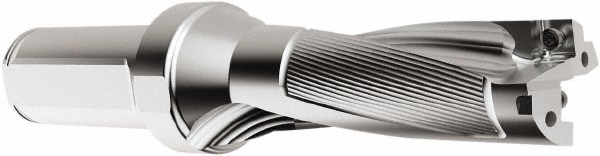

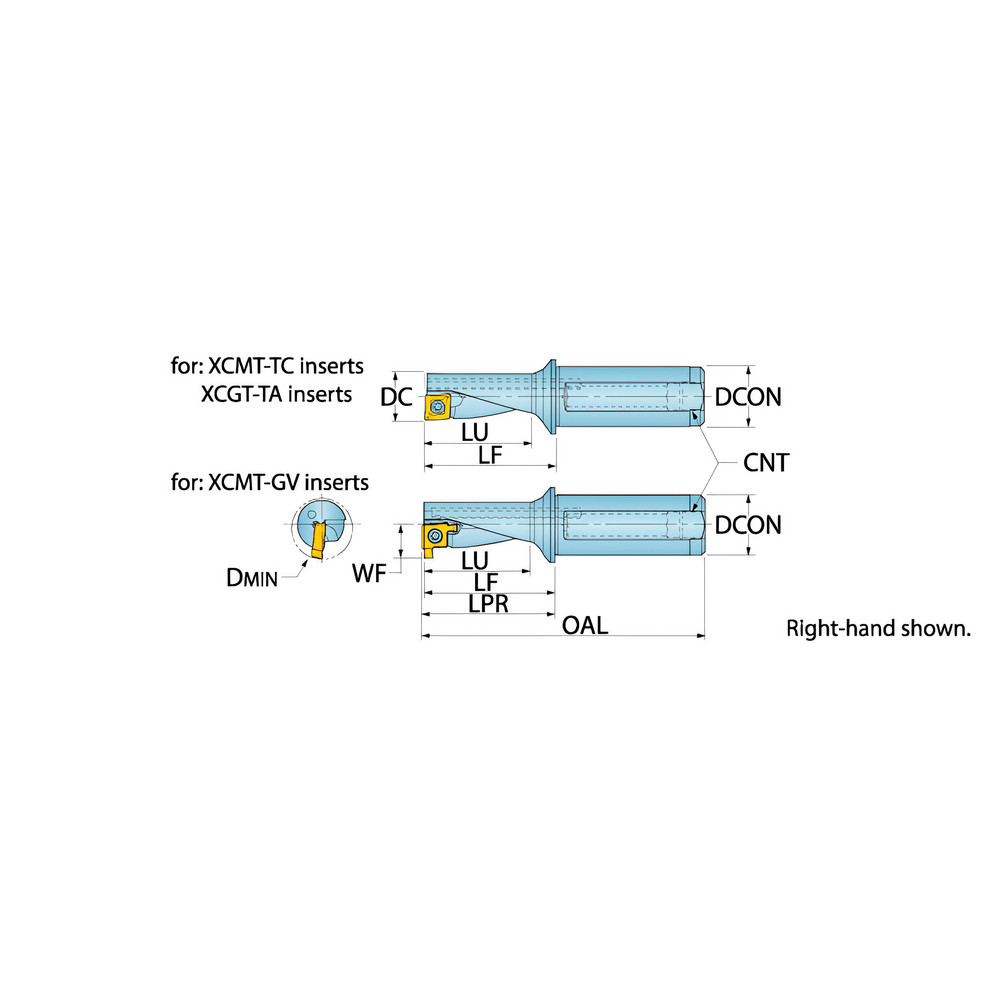

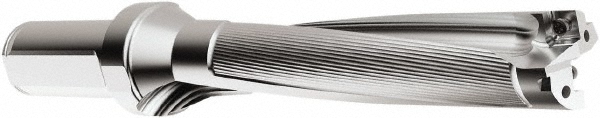

Weldon Flat & Flange Shank, Uses XCGT & XCMT 130404, 130408 & 350030 Inserts, Series TCAP
| Compatible Drill Style | TCAP |
|---|---|
| Maximum Drill Diameter (mm) | 25.00 |
| Maximum Drill Diameter (Inch) | 63/64 |
| Maximum Drill Diameter (Decimal Inch) | 0.9840 |
| Maximum Drill Depth (Decimal Inch) | 2.2200 |
| Maximum Drill Depth (mm) | 56.39 |
| Shank Type | Flange; Weldon Flat |
| Shank Diameter (Inch) | 1-1/4 |
| Shank Diameter (Decimal Inch) | 1.2500 |
| Number of Drill Inserts | 1 |
| Cutting Direction | Right Hand |
| Maximum Drill Depth Range (Decimal Inch) | 2.0000 to 3.0000 |
| Tool Material | Steel |
| Compatible Insert Style | XCGT; XCMT |
| Compatible Insert Size Code | 350030; 130404; 130408 |
| Drill Depth by Diameter Ratio | 2.25xD |
| Coolant Entry Style Code | 1-Axial Concentric Entry |
| Overall Length (Decimal Inch) | 5.1200 |
| Series | TCAP |
| Flute Length (Decimal Inch) | 2.2200 |
| Flute Length (mm) | 56.39 |
| Body Length (mm) | 68.33 |
| Body Length (Decimal Inch) | 2.6900 |
| Shank Length (Decimal Inch) | 2.4000 |
| Shank Length (mm) | 60.96 |
| Coolant Hole Thread Size | "1/8-27 NPT" |
| Tool Application | Drilling |
| Tool Performance | General Purpose |
| Insert Size (Decimal Inch) | 0.5280 |
| UNSPSC Code | 23291503 |

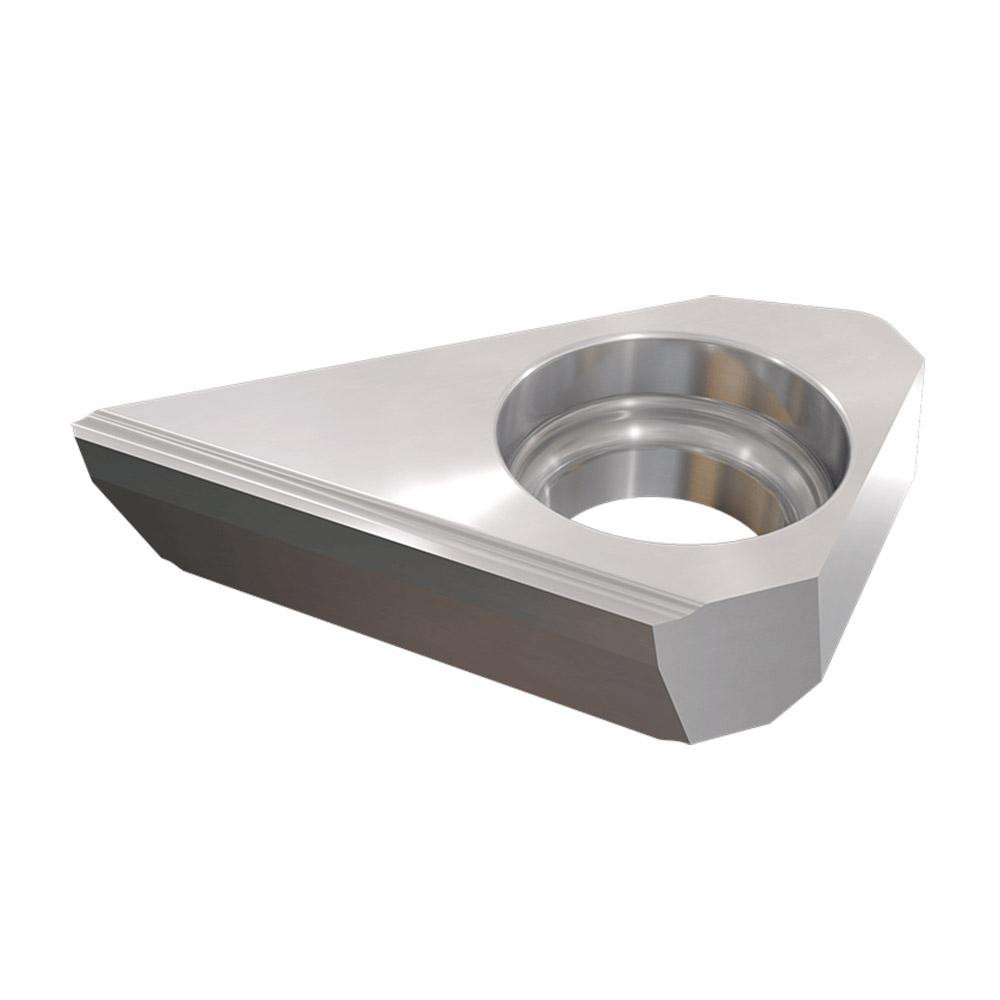

| Insert Compatibility | XCMT130404TC; XCMT13R-350030GV; XCMT130408TC; XCGT130404TA |
| Shank End Coolant Hole Thread Size (Inch) | 1/8 |
| Insert Lock Screw | TS45A100I/HG |
| Coolant Through | Yes |
| MSC Number | MSC# 10175214 |
