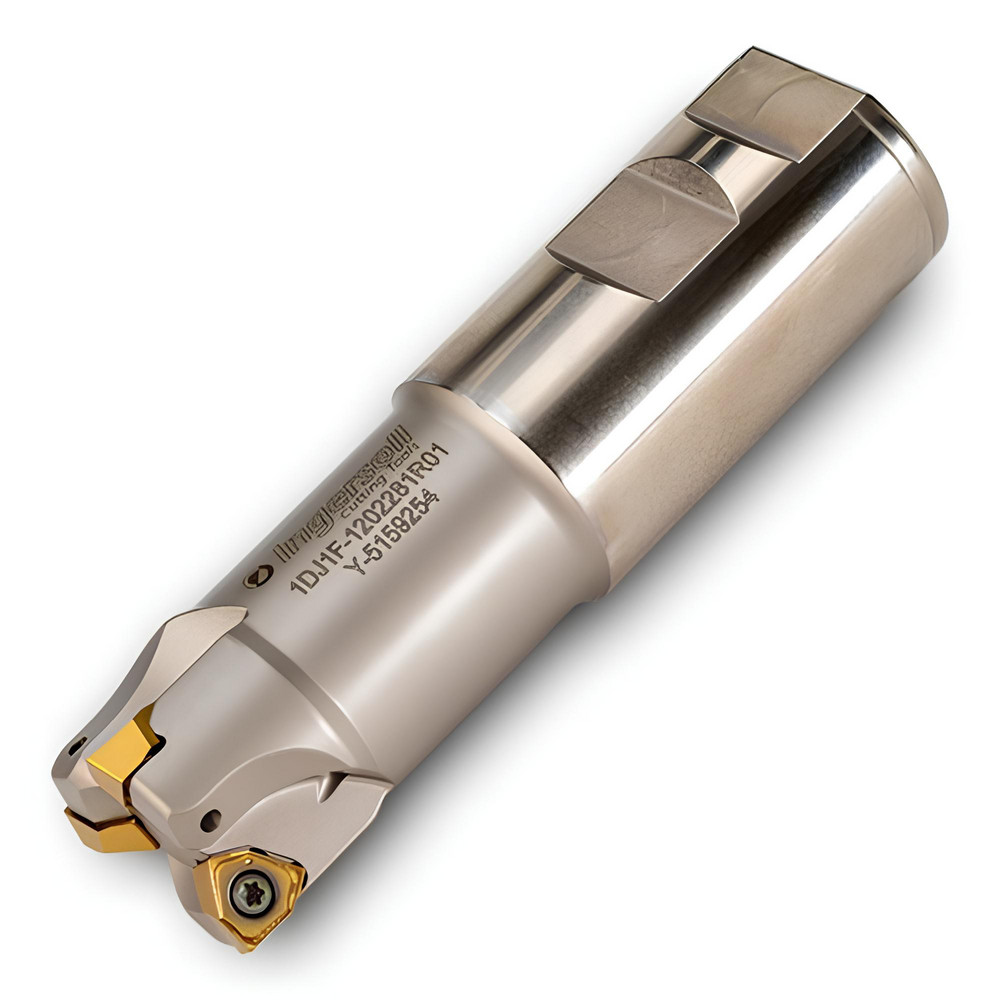

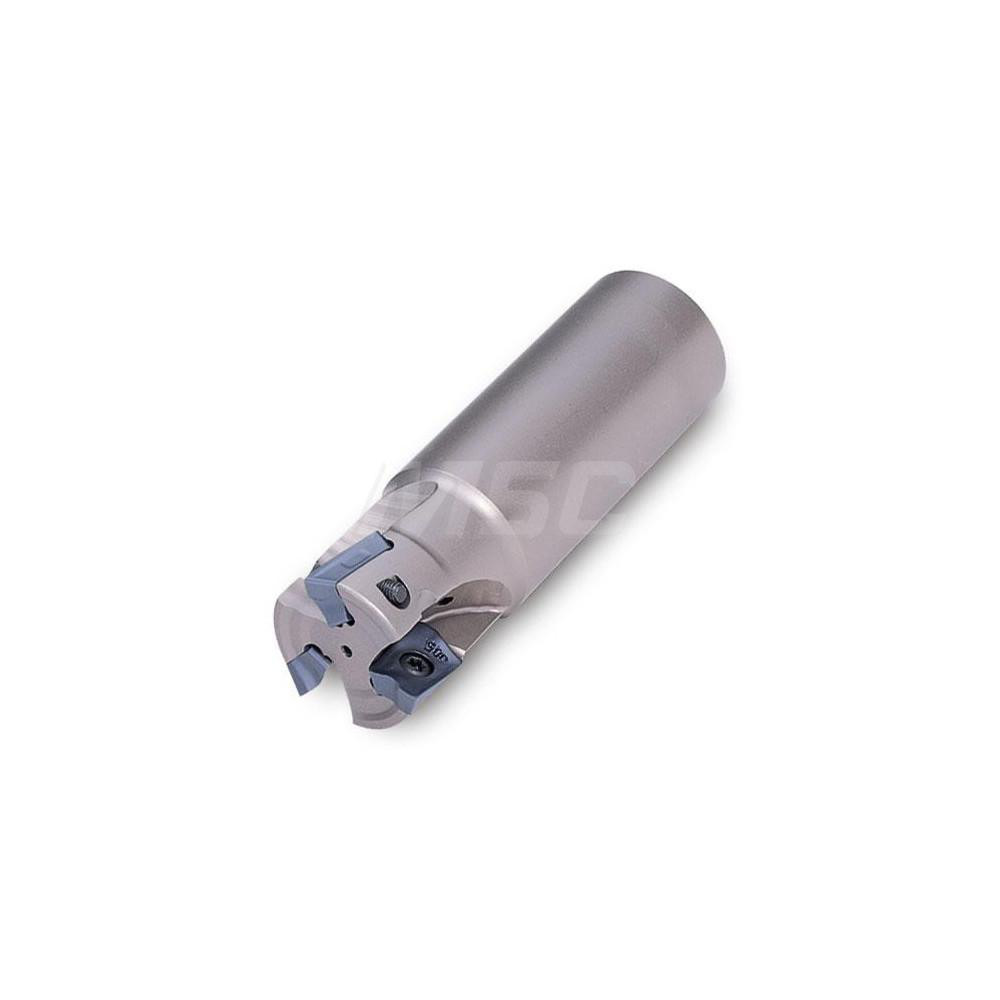

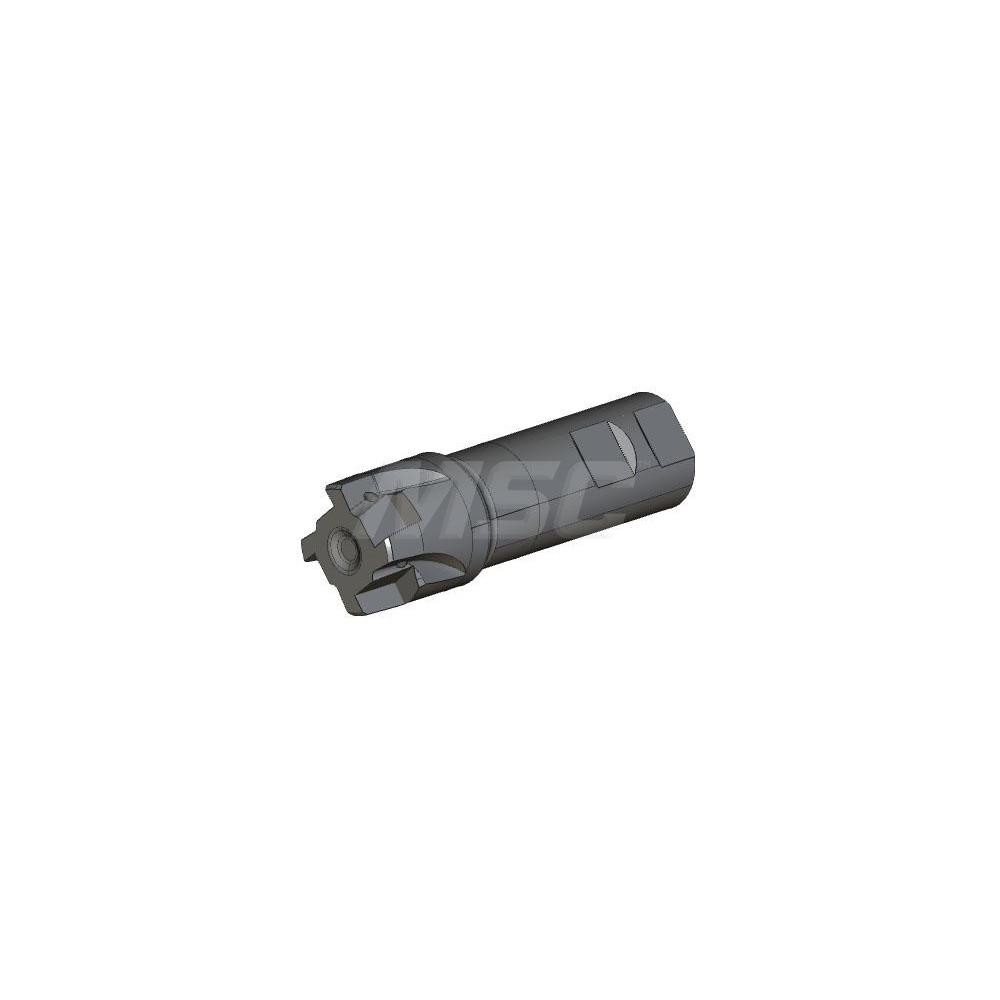

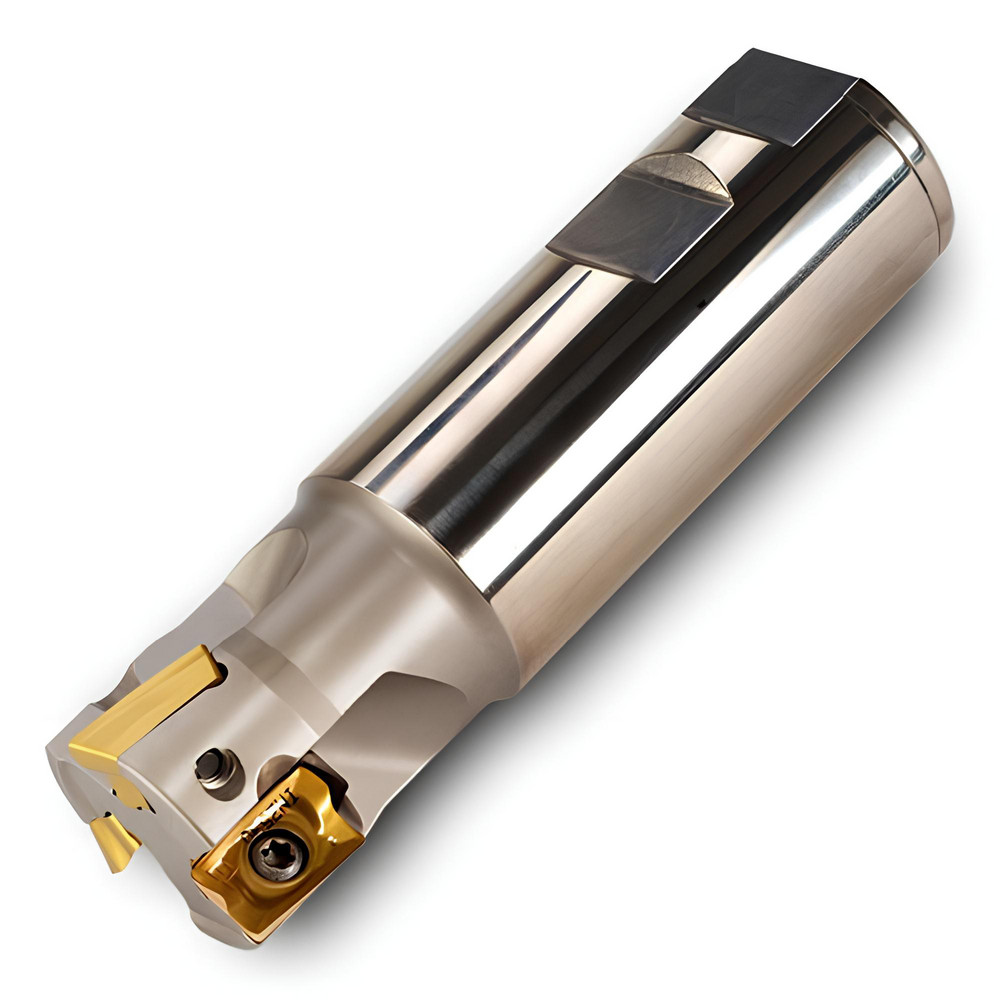

Uses (3) WNGU0904.. Inserts, Through Coolant, 4-1/2" OAL
| Overall Length (Decimal Inch) | 4.5000 |
|---|---|
| Overall Length (mm) | 114.30 |
| Overall Length (Inch) | 4-1/2 |
| Maximum Depth of Cut (mm) | 6.20 |
| Maximum Depth of Cut (Decimal Inch) | 0.2440 |
| Cutter Style | 1DJ1F |
| Shank Type | Weldon Flat |
| Shank Diameter (Decimal Inch) | 1.2500 |
| Shank Diameter (Inch) | 1-1/4 |
| Insert Holding Method | Screw |
| Maximum Ramping Angle | 0 |
| Tool Material | Steel |
| Series | 1DJ1F |
| Flute Type | Helical |
| Lead Angle | 90 |
| Shank Length (Decimal Inch) | 2.3000 |
| Shank Length (mm) | 58.42 |
| Head Length (Decimal Inch) | 2.2 |
| Head Length (mm) | 55.88 |
| Tool Application | Facing; Shouldering |
| Tool Performance | General Purpose |
| Primary Workpiece Material | Universal |
| Rake | Negative |
| Complete Insert Compatibility | WNGU0904.. |
| Insert Compatibility | WNGU0904.. |
| Hand of Holder | Right Hand |
| Multi-Use Tool | Yes |
| UNSPSC Code | 27112803 |
| Manufacturers Catalog Number | 1DJ1F-1202281R01 |
| Usable Length (mm) | 55.88 |
| Number Of Flutes | 3 |
| Usable Length (Decimal Inch) | 2.2000 |
| Number Of Cutter Inserts | 3 |
| Coolant Through | Yes |
| MSC Number | MSC# 51058121 |
