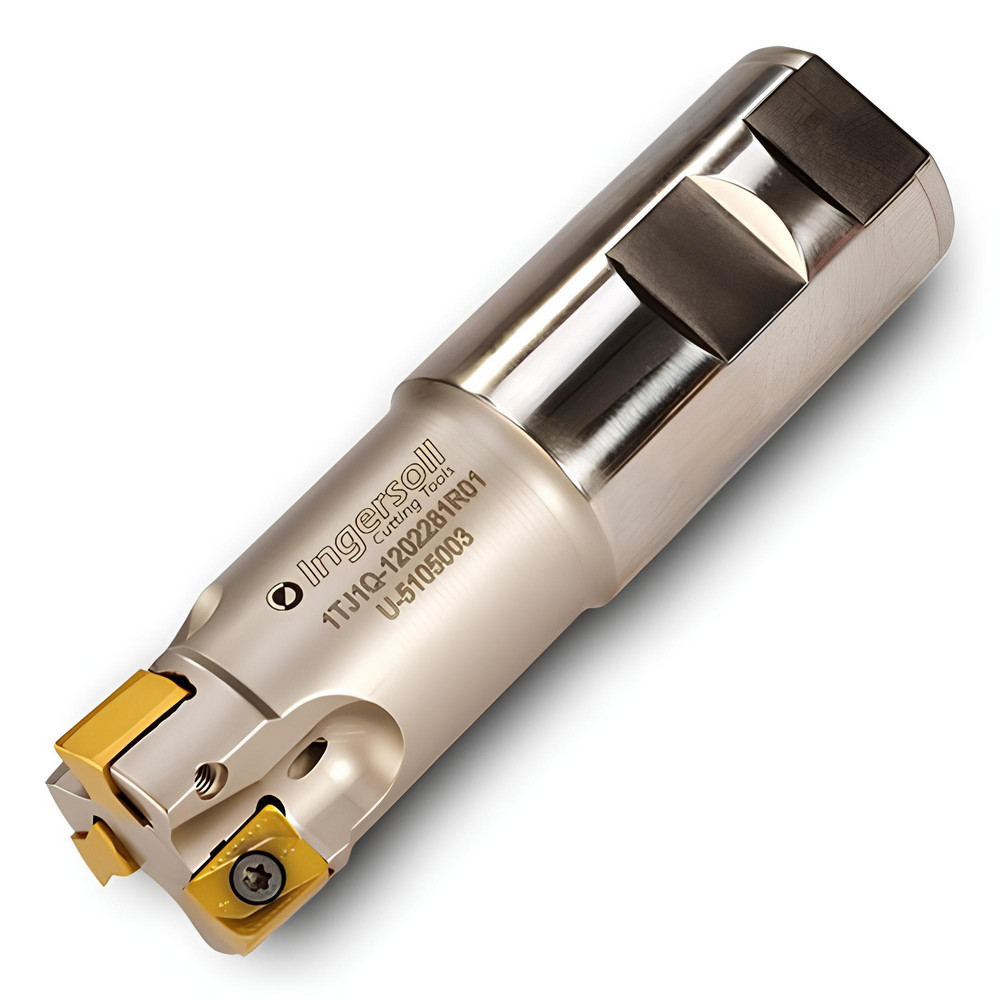

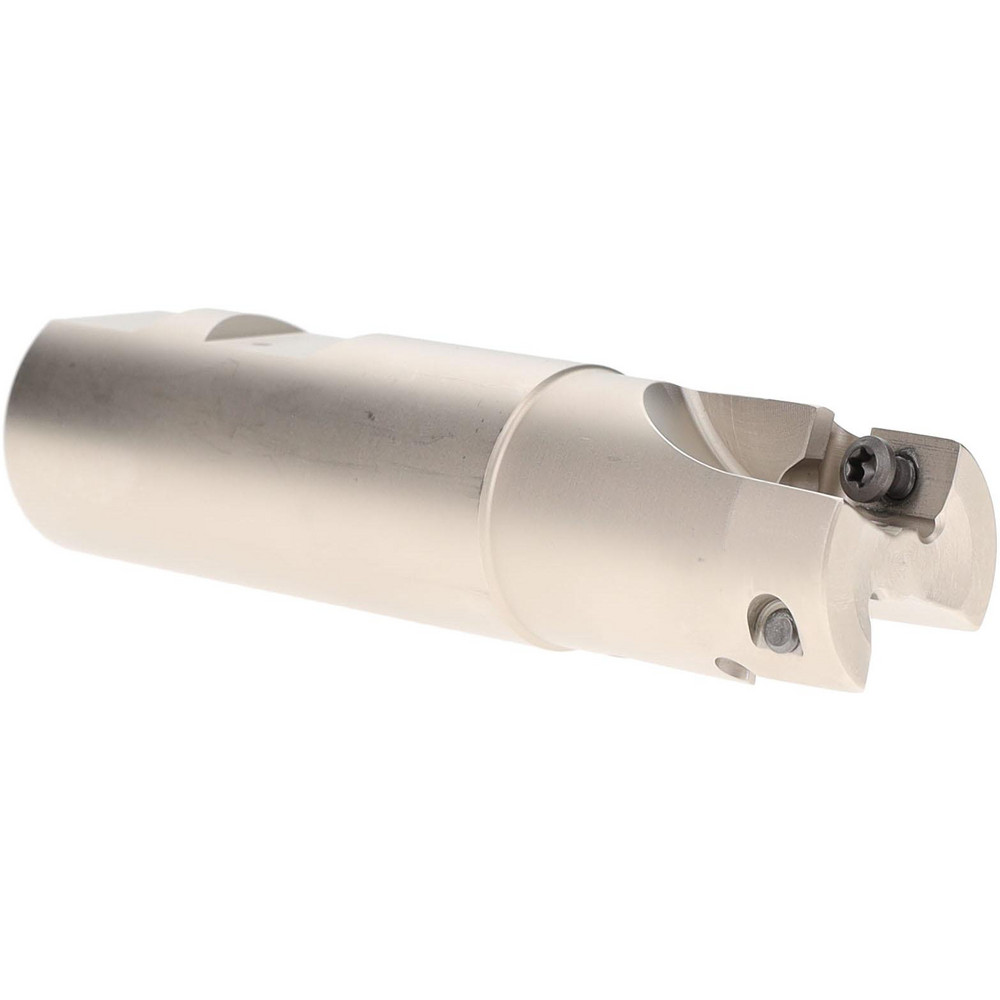

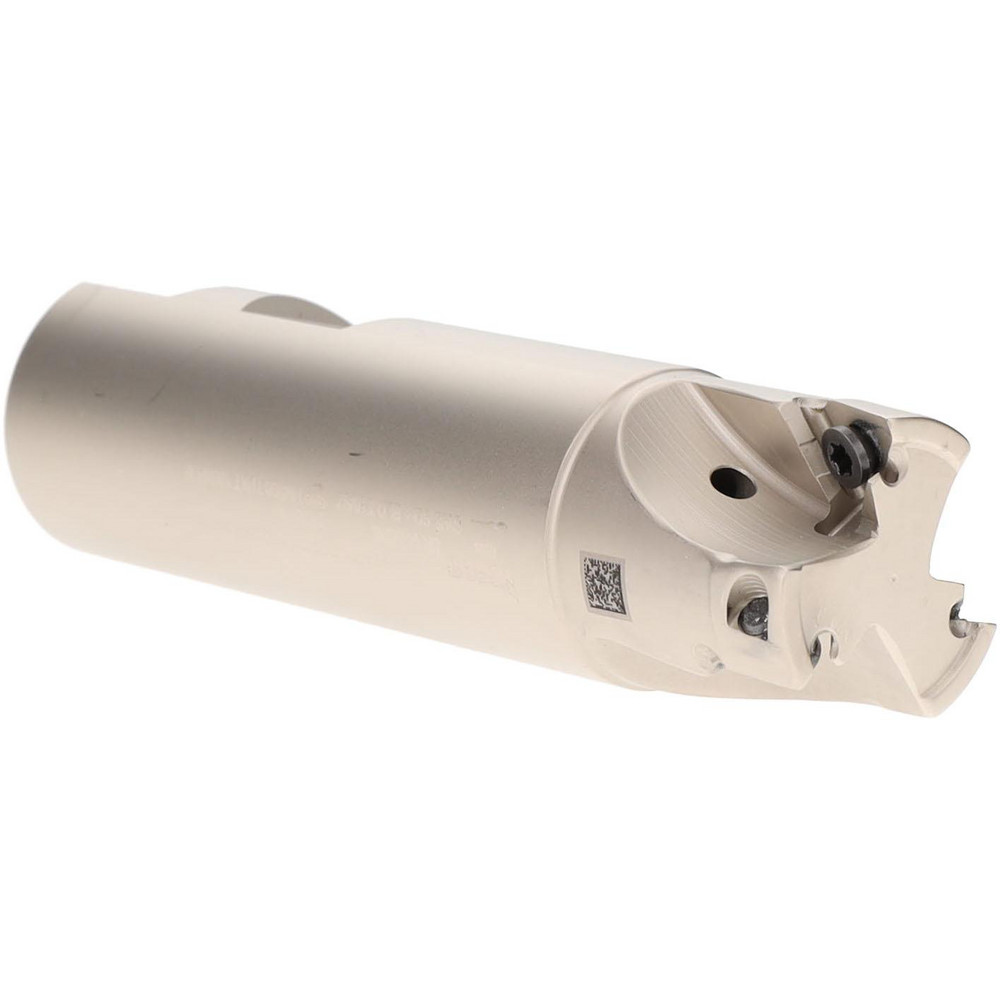

Uses (2) ANxU1206.. Inserts, Through Coolant, 6" OAL
| Overall Length (Decimal Inch) | 6.0000 |
|---|---|
| Overall Length (mm) | 152.40 |
| Overall Length (Inch) | 6 |
| Maximum Depth of Cut (mm) | 10.92 |
| Maximum Depth of Cut (Decimal Inch) | 0.4300 |
| Cutter Style | 1TJ1Q |
| Shank Type | Weldon Flat |
| Shank Diameter (Decimal Inch) | 1.0000 |
| Shank Diameter (Inch) | 1 |
| Insert Holding Method | Screw |
| Maximum Ramping Angle | 1.4 |
| Tool Material | Steel |
| Series | 1TJ1Q |
| Flute Type | Helical |
| Lead Angle | 90 |
| Shank Length (Decimal Inch) | 2.4500 |
| Shank Length (mm) | 62.23 |
| Head Length (Decimal Inch) | 3.55 |
| Head Length (mm) | 90.17 |
| Tool Application | Facing; Shouldering; Ramping |
| Tool Performance | General Purpose |
| Primary Workpiece Material | Universal |
| Rake | Negative |
| Complete Insert Compatibility | ANxU1206.. |
| Insert Compatibility | ANxU1206.. |
| Hand of Holder | Right Hand |
| Multi-Use Tool | Yes |
| UNSPSC Code | 27112803 |
| Manufacturers Catalog Number | 1TJ1Q-1003780R01 |
| Usable Length (mm) | 90.17 |
| Number Of Flutes | 2 |
| Usable Length (Decimal Inch) | 3.5500 |
| Number Of Cutter Inserts | 2 |
| Coolant Through | Yes |
| MSC Number | MSC# 68185677 |
