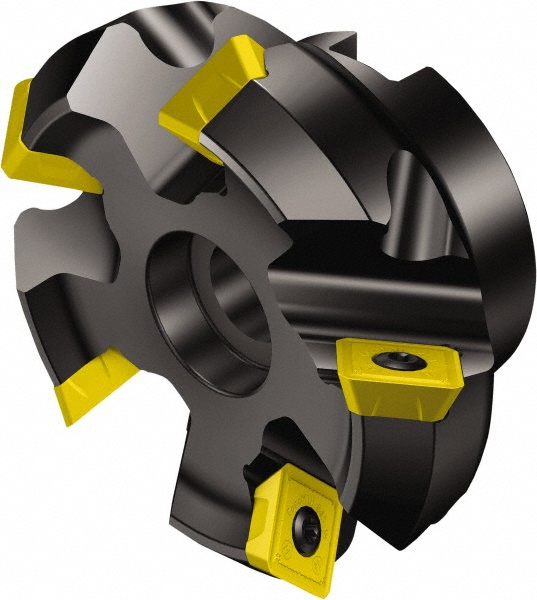

Uses 7 434 Inserts, Through Coolant, Series SHU
| Minimum Cutting Diameter (Decimal Inch) | 4.0000 |
|---|---|
| Minimum Cutting Diameter (Inch) | 4 |
| Minimum Cutting Diameter (mm) | 101.60 |
| Maximum Cutting Diameter (Inch) | 4 |
| Maximum Cutting Diameter (Decimal Inch) | 4.0000 |
| Maximum Depth of Cut (Decimal Inch) | 0.5900 |
| Arbor Hole Diameter (Decimal Inch) | 1.5000 |
| Compatible Insert Size Code | 434 |
| Cutter Style | SHU |
| Cutting Direction | Right Hand |
| Insert Holding Method | Screw |
| Lead Angle | 90 |
| Rake | Negative |
| Series | SHU |
| Overall Height (Inch) | 2-1/4 |
| Overall Height (Decimal Inch) | 2.2500 |
| Keyway Width (Inch) | 5/8 |
| Keyway Width (Decimal Inch) | 0.6250 |
| Pitch Type | Coarse |
| Tool Application | Plunging |
| Tool Performance | General Purpose |
| Primary Workpiece Material | Universal |
| Primary Workpiece Material Code | O |
| Cutting Edge Length (Decimal Inch) | 0.5900 |
| Complete Insert Compatibility | DPM434… |
| UNSPSC Code | 27112803 |
| Toolholder Material | Steel |
| Manufacturers Catalog Number | SHU-40022D5R01 |
| Coolant Through | Yes |
| Number Of Cutter Inserts | 7 |
| Number Of Flutes | 5 |
| undefined | undefined |
| MSC Number | MSC# 93861904 |
