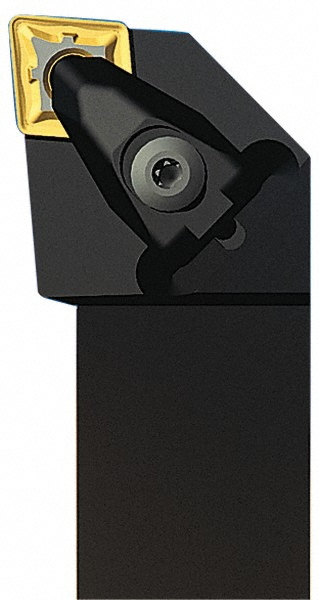

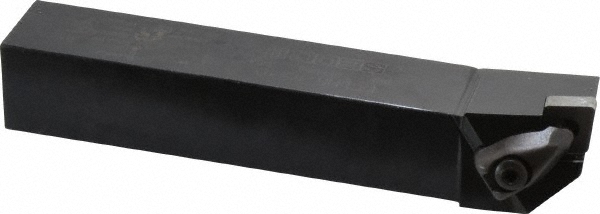

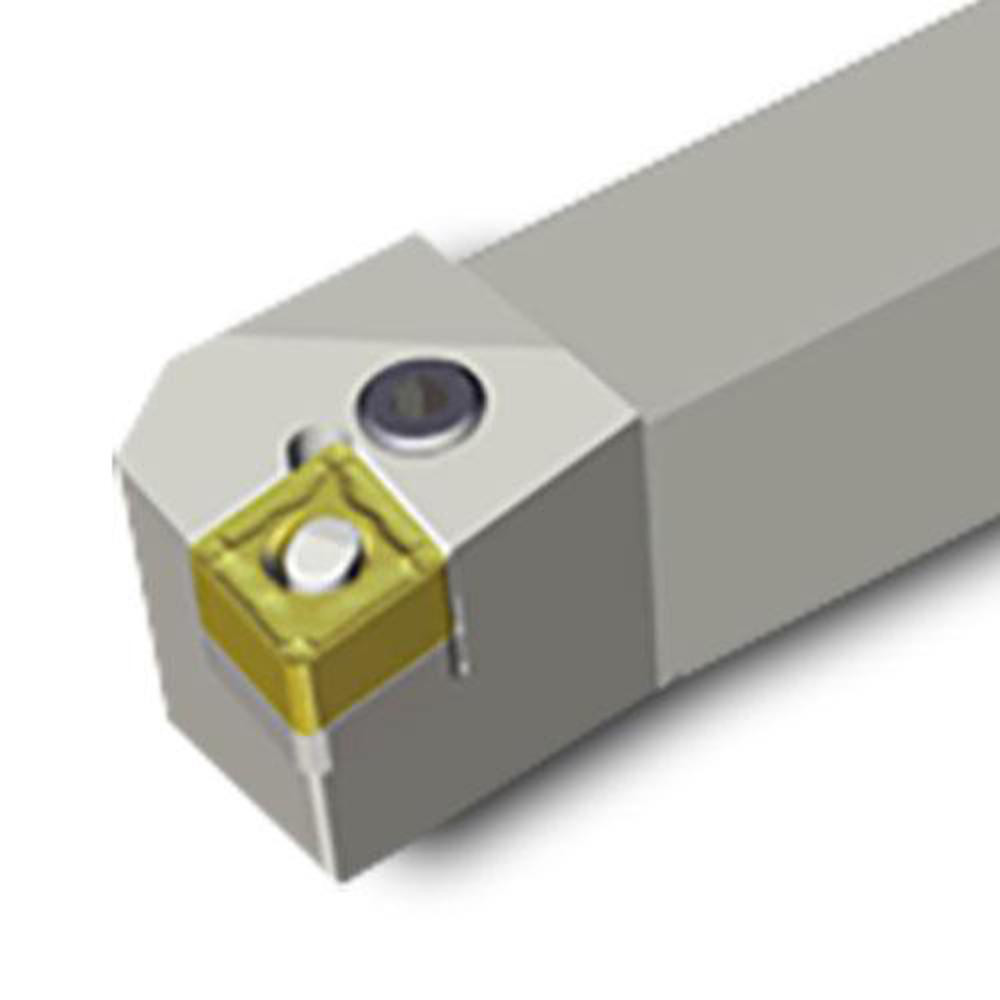

1-1/4 x 1-1/4" Shank, 6" OAL

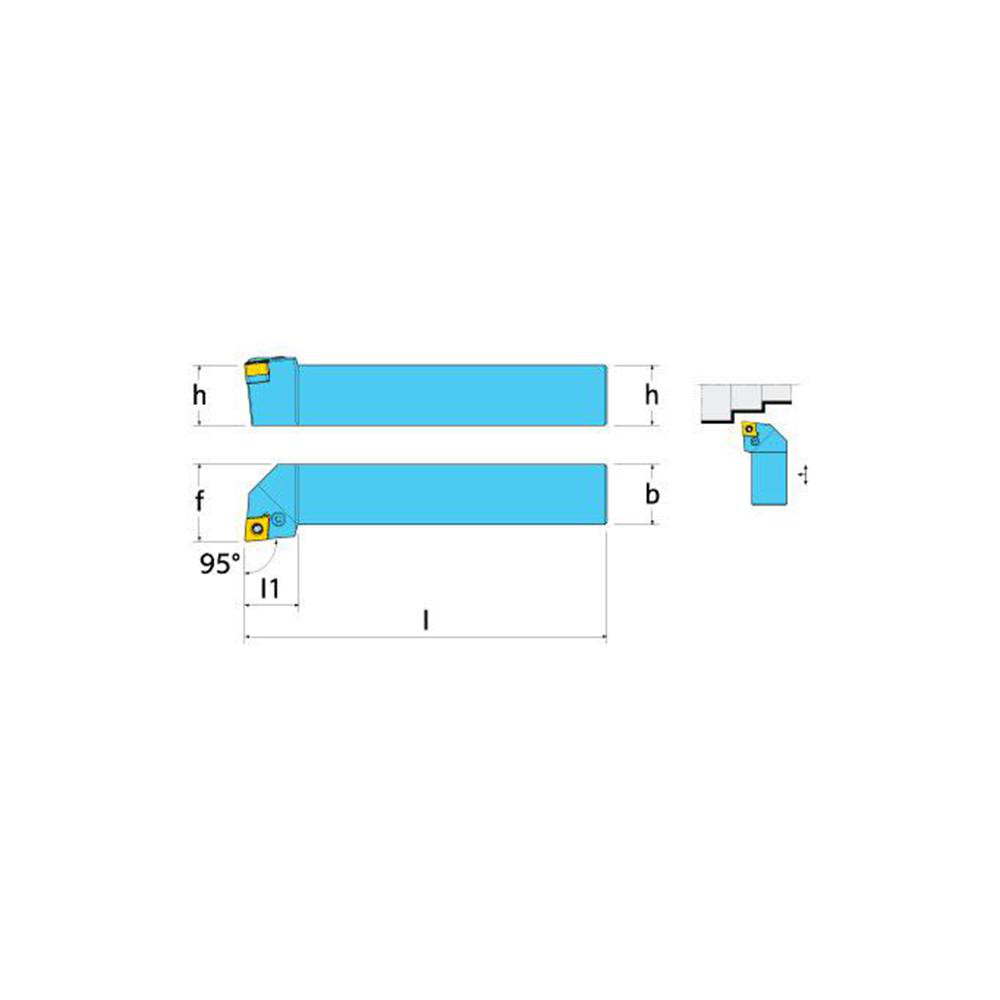

| Toolholder Style | HCLNL |
|---|---|
| Lead Angle | 95.0 |
| Insert Holding Method | Lever |
| Shank Width (Inch) | 1-1/4 |
| Shank Height (Inch) | 1-1/4 |
| Overall Length (Decimal Inch) | 6.0000 |
| Rake | Negative |
| Cutting Direction | Left Hand |
| Compatible Insert Size Code | CN..33. |
| Multi-use Tool | No |
| Shank Width (Decimal Inch) | 1.2500 |
| Shank Height (Decimal Inch) | 1.2500 |
| Series | HCLNR; L (Gold Rhino) |
| Overall Length (Inch) | 6 |
| Cutting Tool Application | Turning |
| Head Length (Decimal Inch) | 0.8700 |
| Toolholder Material | Steel |
| UNSPSC Code | 23153308 |
| MSC Number | MSC# 11971314 |
