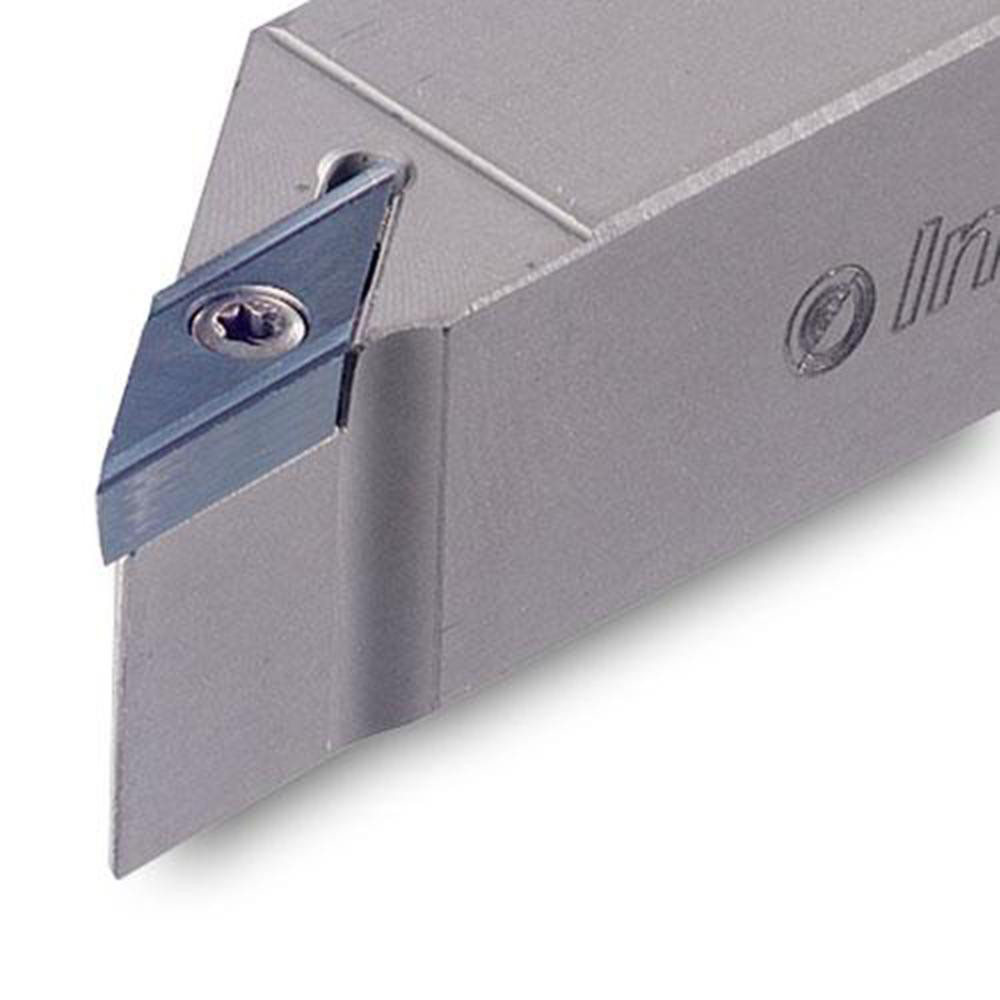

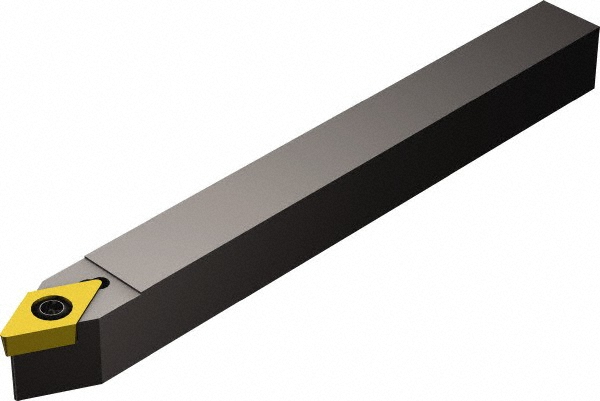

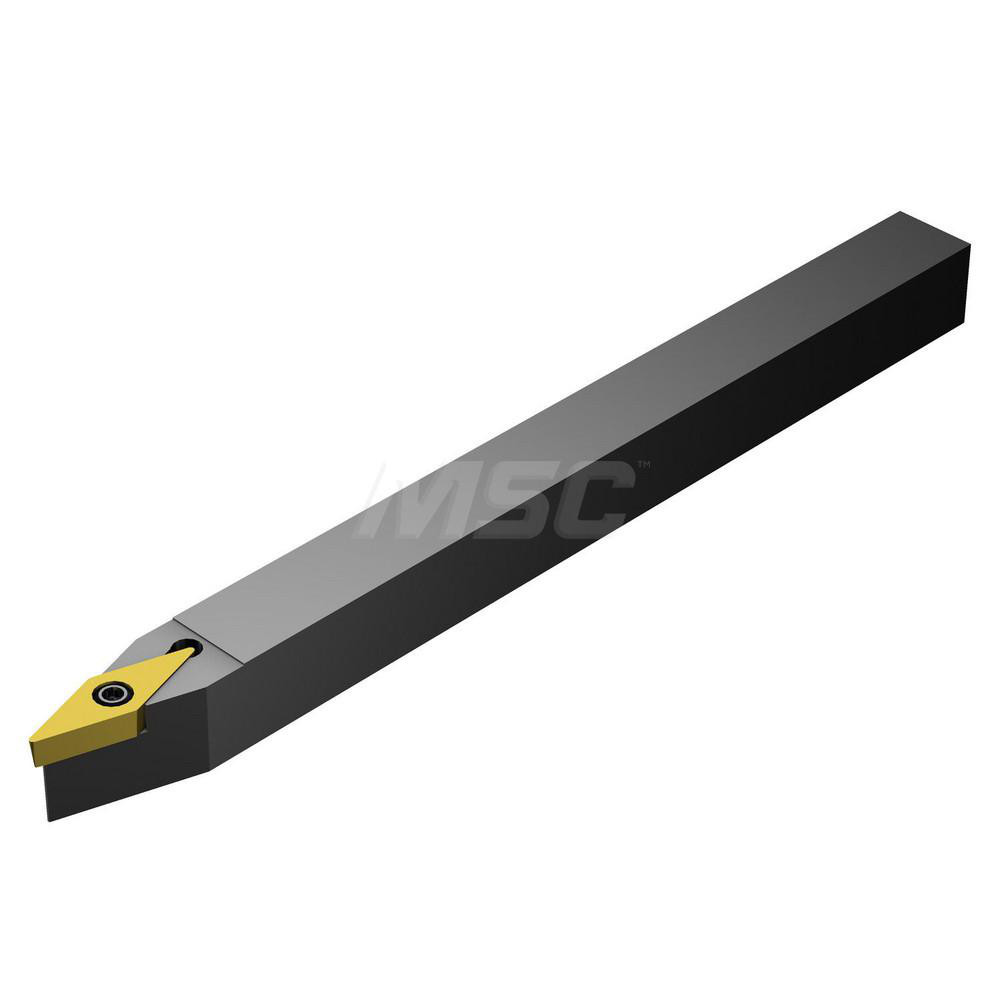

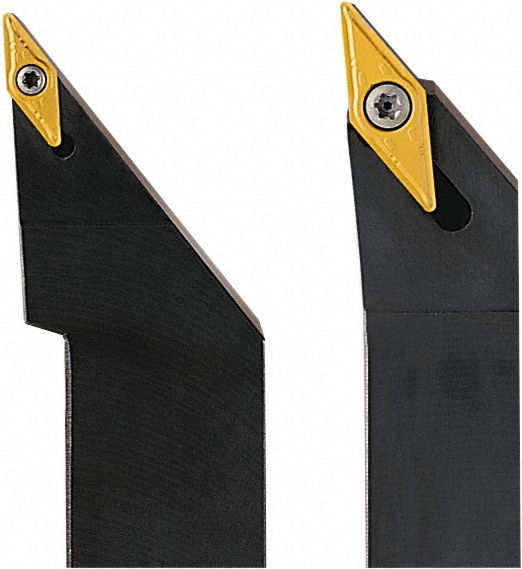

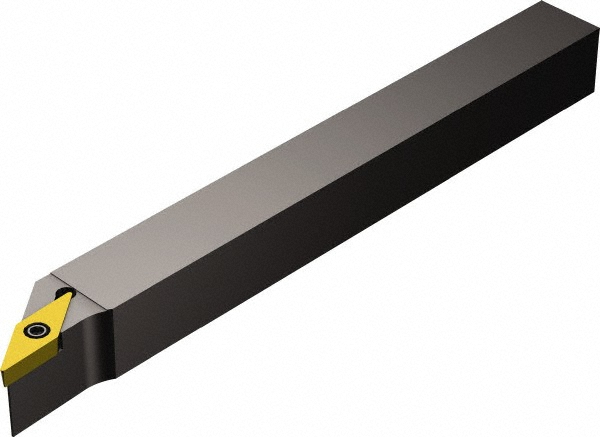

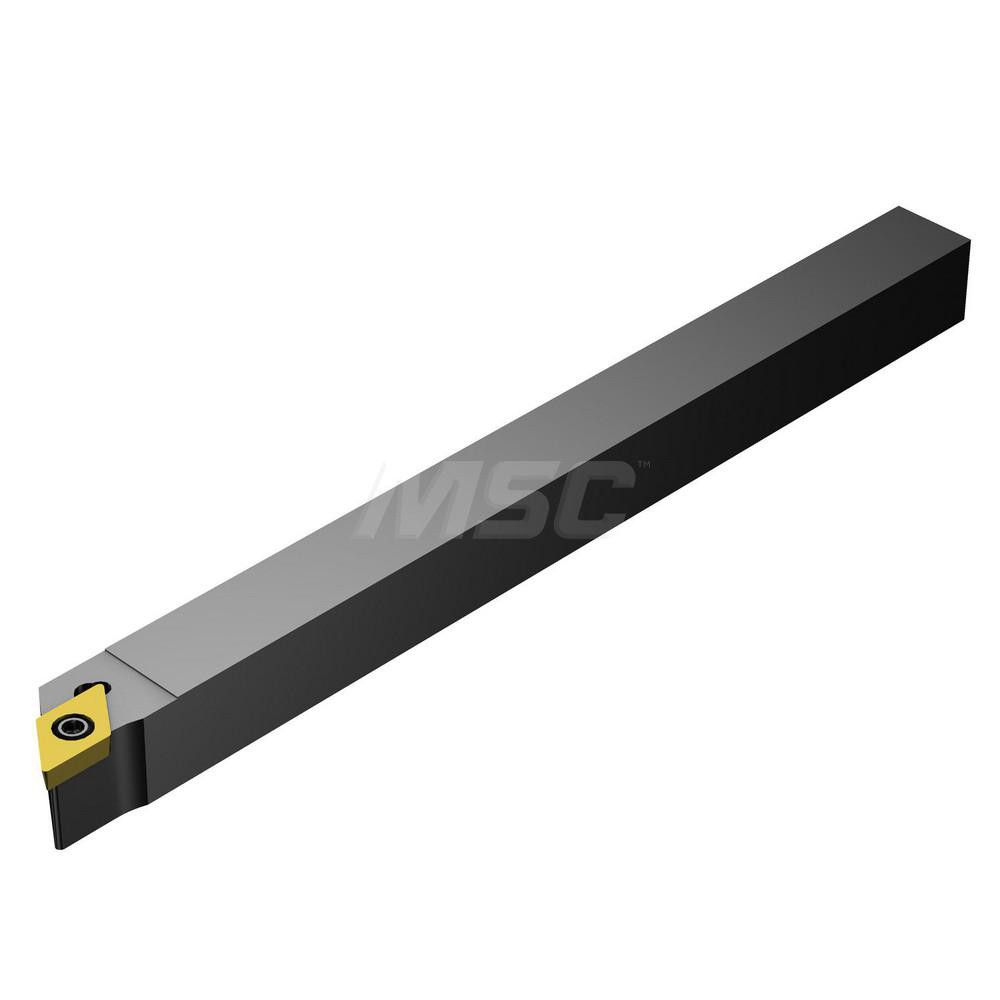

1/2 x 1/2" Shank, 5" OAL

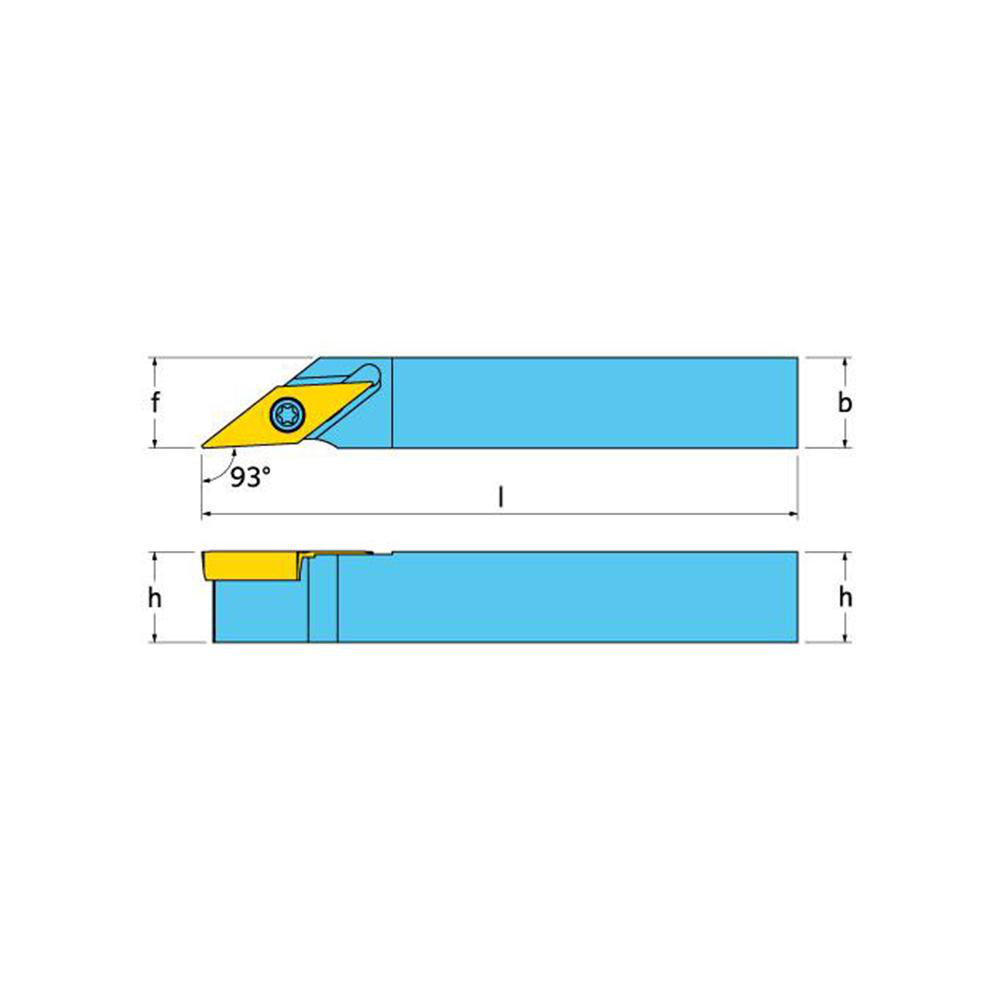

| Toolholder Style | SVJCR |
|---|---|
| Lead Angle | 93.0 |

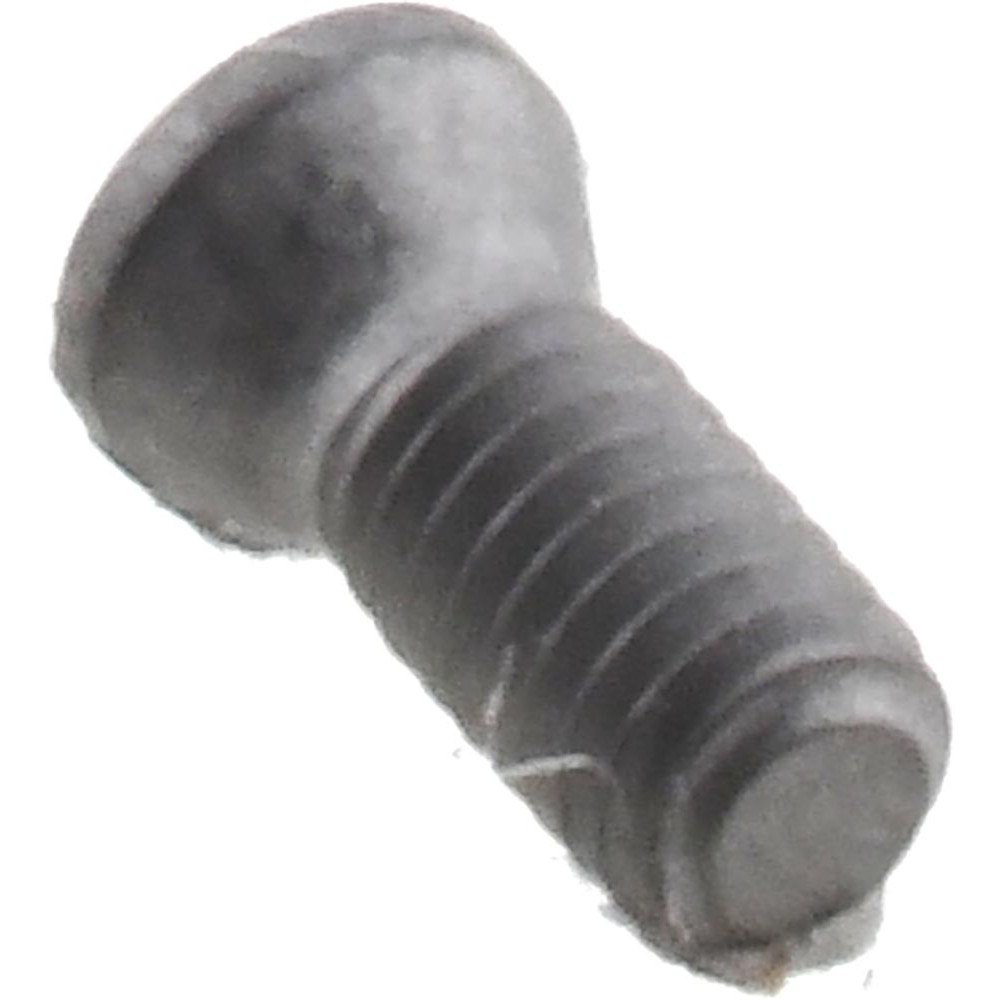

| Insert Holding Method | Screw |
| Shank Width (Inch) | 1/2 |
| Shank Height (Inch) | 1/2 |
| Overall Length (Decimal Inch) | 5.0000 |
| Rake | Positive |
| Cutting Direction | Right Hand |

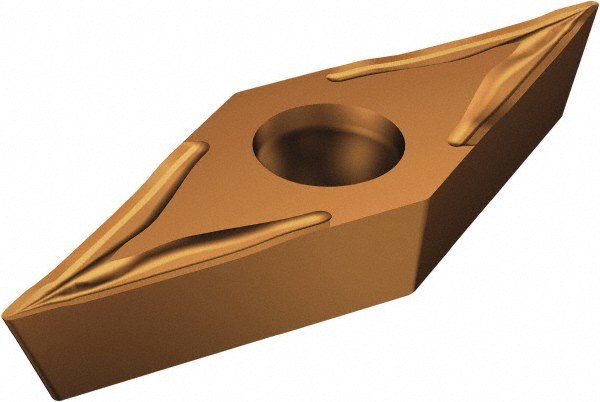

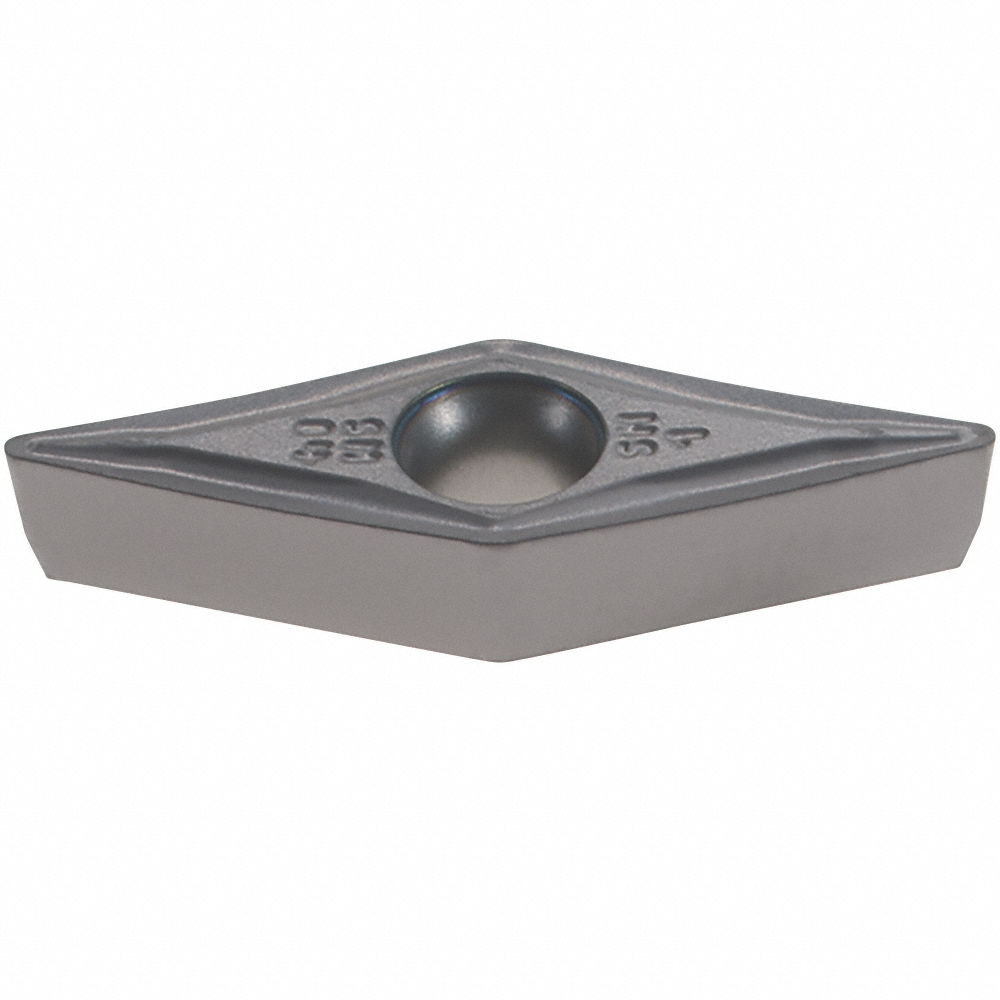

| Compatible Insert Size Code | VC..22. |
| Rake Angle | 7 |
| Multi-use Tool | No |
| Shank Width (Decimal Inch) | 0.5000 |
| Shank Height (Decimal Inch) | 0.5000 |
| Series | L-SH; SVJCR |
| Overall Length (Inch) | 5 |
| Cutting Tool Application | Turning |
| Toolholder Material | Steel |
| UNSPSC Code | 23153308 |
| MSC Number | MSC# 13392592 |
