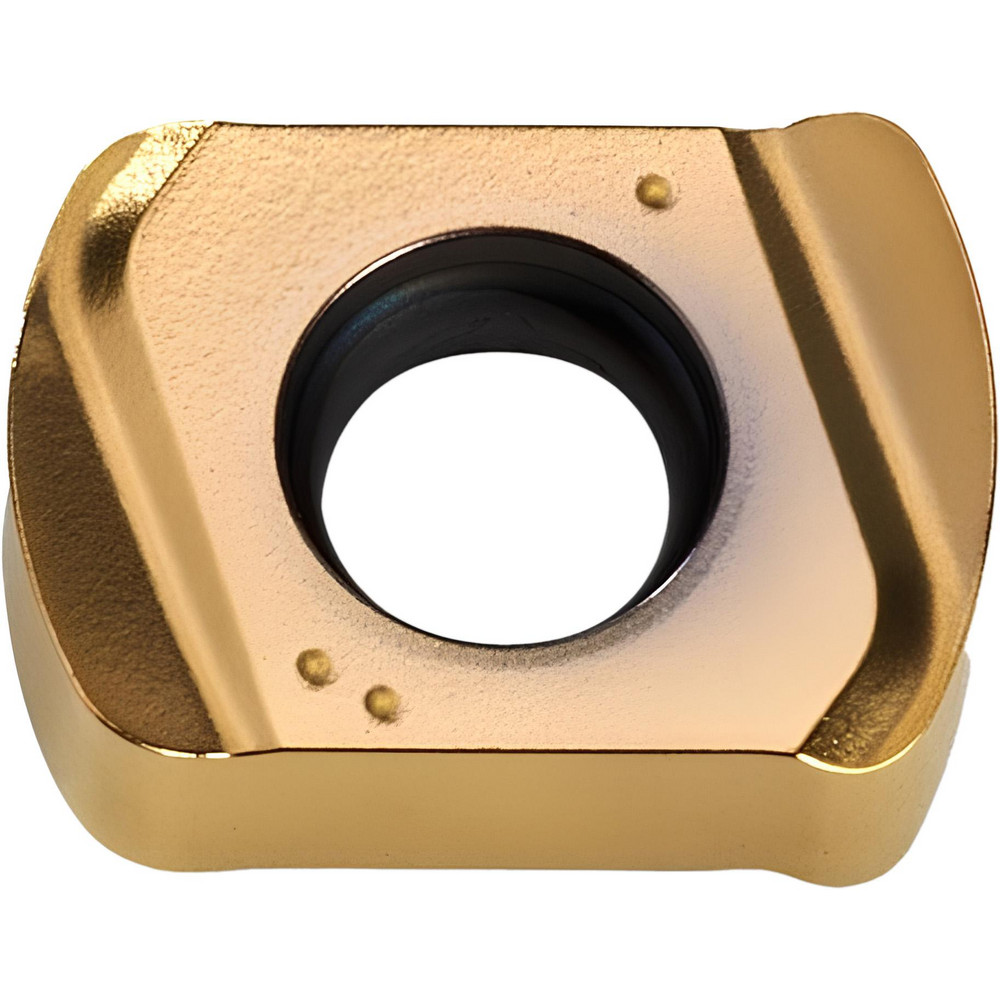

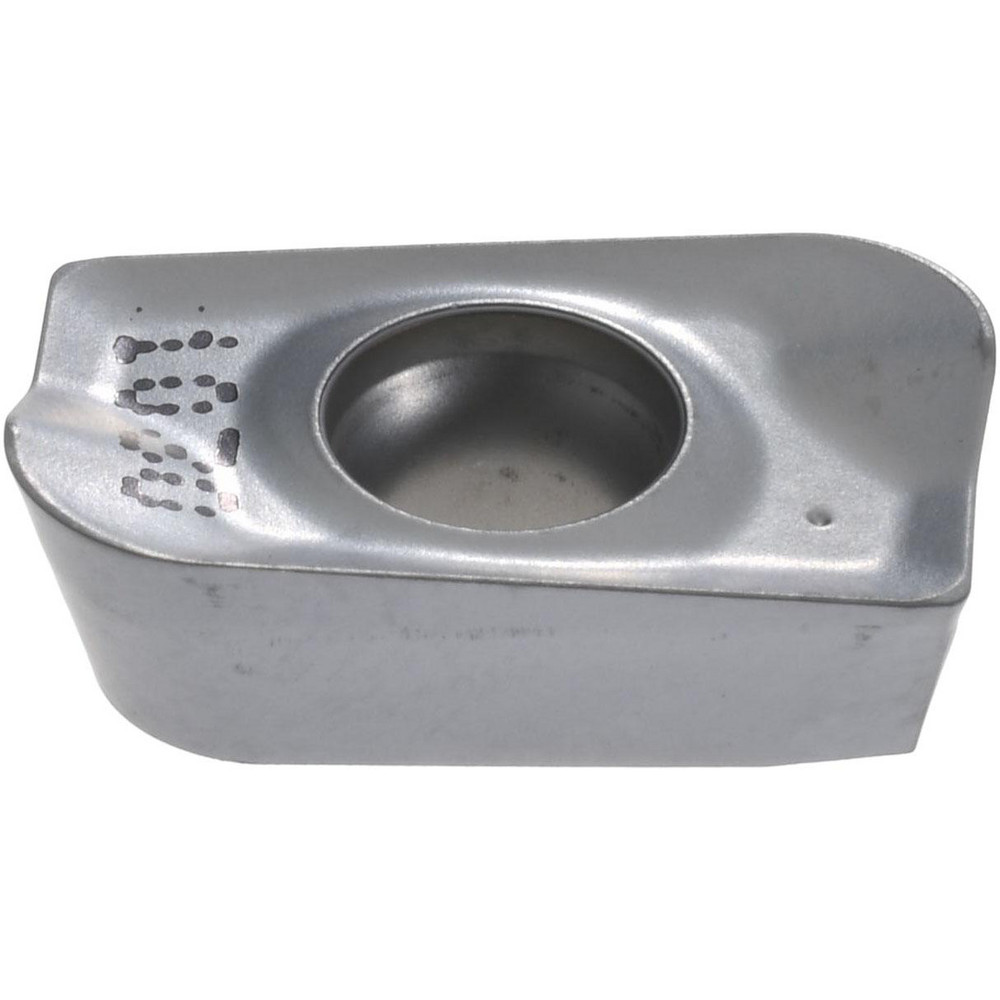

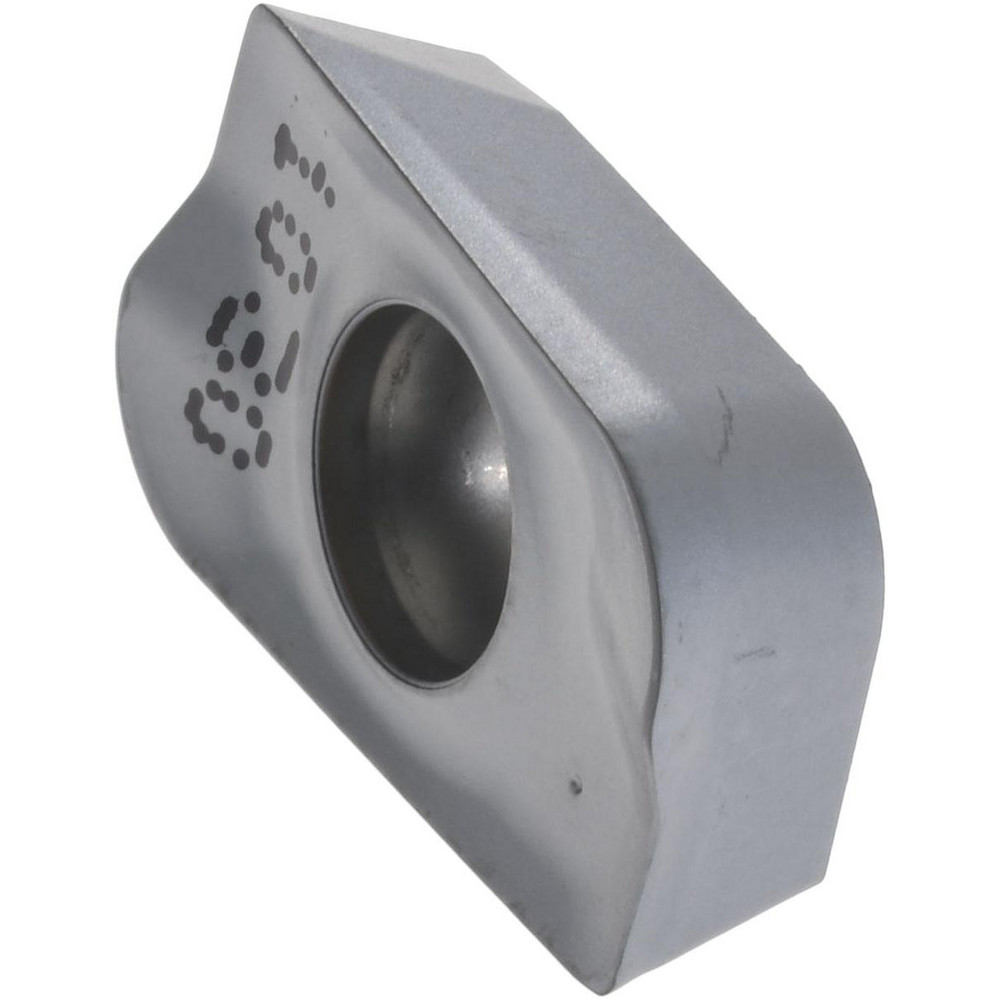

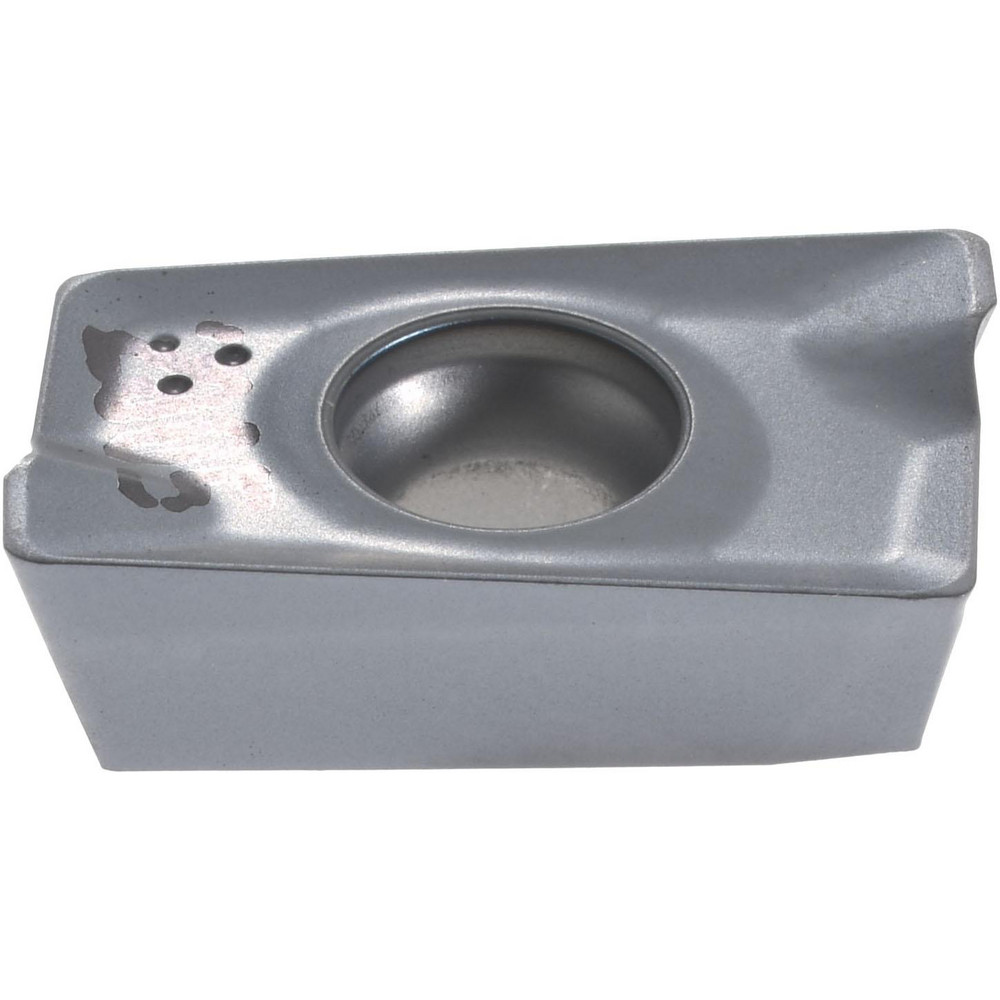

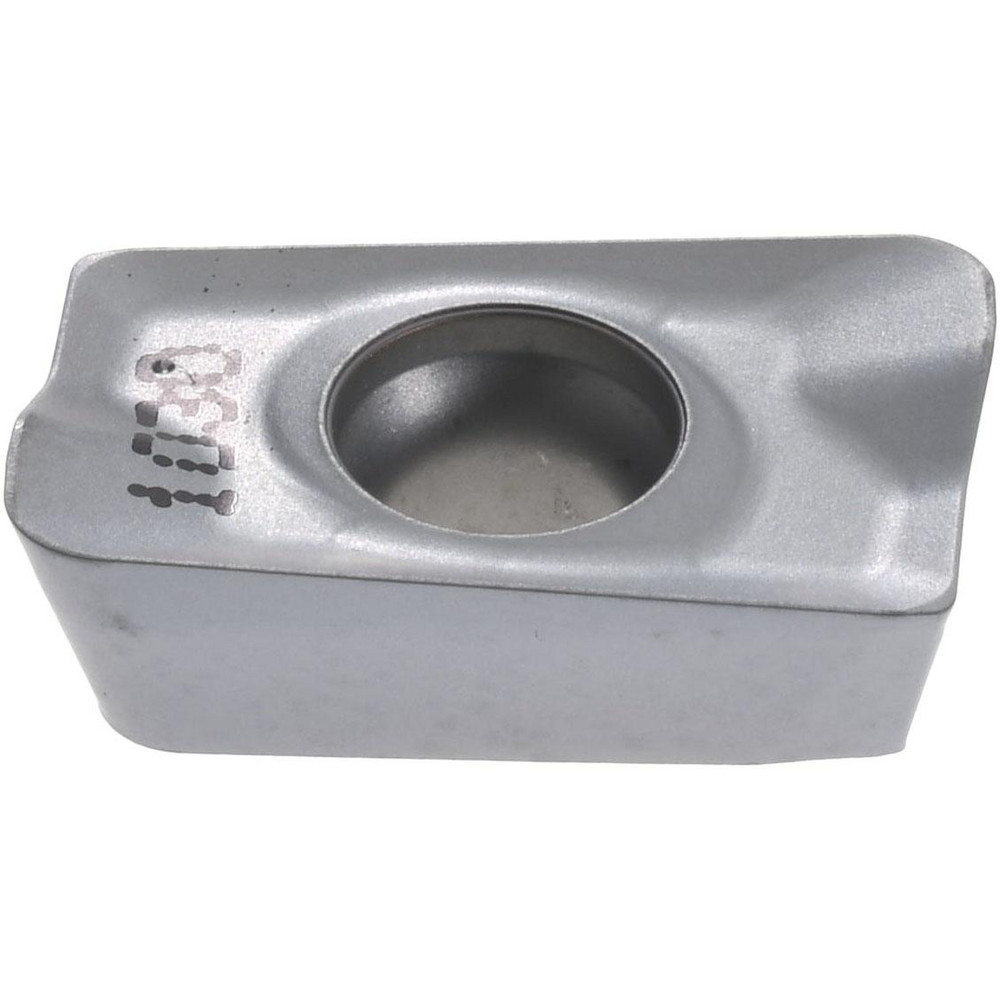

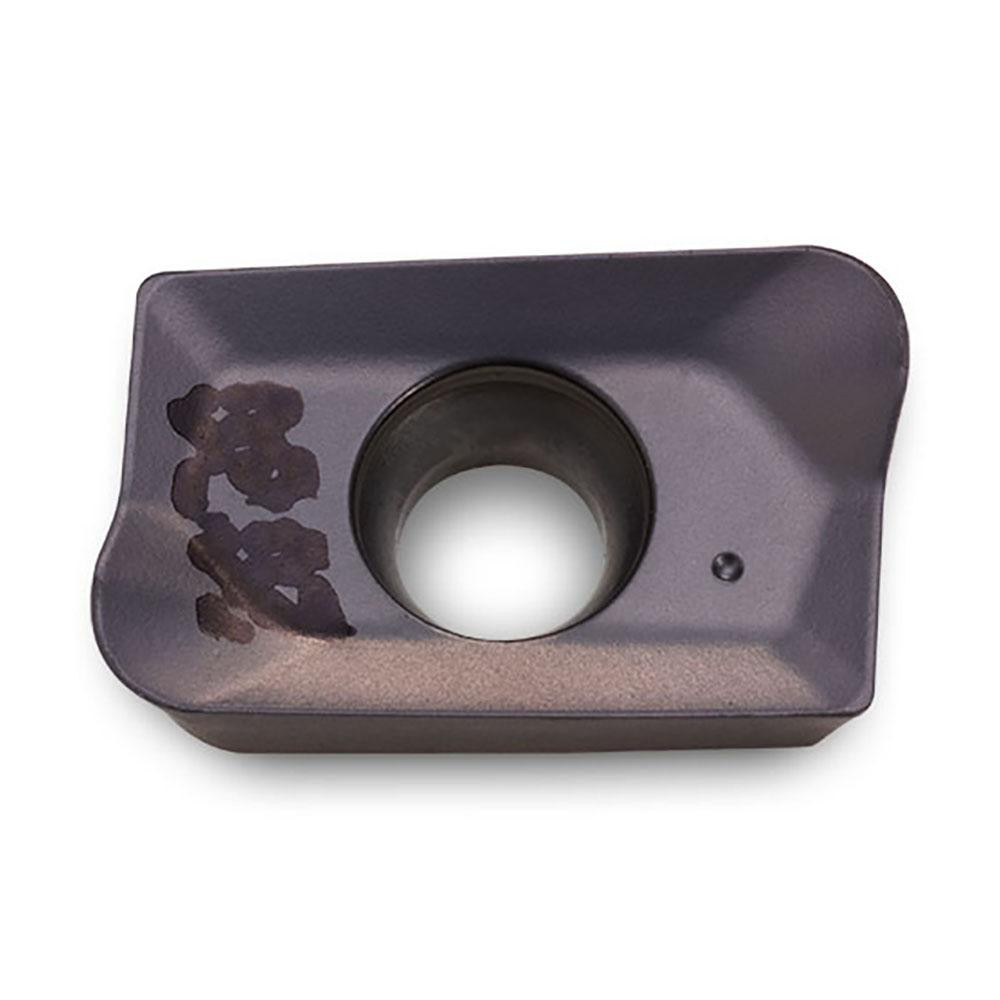

TiCN Finish, 0.2000" Thick, 0.3750" Wide
| Insert Style | APEB |
|---|---|
| Insert Size | 53 |
| Insert Material | Solid Carbide |
| Insert Shape | Parallelogram |
| Manufacturer Grade | IN1030 |
| Corner Radius (Decimal Inch) | 0.1250 |
| Number Of Cutting Edges | 2 |
| Thickness (Decimal Inch - 4 Decimals) | 0.2000 |
| Coating/Finish | TiCN |
| Relief Angle | 11.00 |
| Insert Size Code | 53 |
| Material Grade | Coarse Grain |
| Width (Inch) | 3/8 |
| Inscribed Circle (Inch) | 3/8 |
| Inscribed Circle (Decimal Inch) | 0.3750 |
| Thickness Range (Decimal Inch) | 0.2000 to 0.2200 |
| Corner Radius (Inch) | 1/8 |
| Inscribed Circle Range (Decimal Inch) | 0.3500 to 0.4000 |
| Length Range (Decimal Inch) | 0.6000 to 0.6500 |
| Insert Hand | Right Hand |
| Series | APEB |
| Coating Process | PVD |
| Cutting Edge Effective Length (Decimal Inch) | 0.6000 |
| Rake | Positive |
| Primary Workpiece Material | Stainless Steel; Superalloys & Titanium; Steel |
| Primary Workpiece Material Code | P; S; M |
| Ansi Code | APEB53R04 IN1030 |
| Iso Code | APKT160432R |
| Standards | ISO; ANSI |
| Cutting Edge Style | Sharp |
| Manufacturers Catalog Number | 5801706 |
| Cutter Series Compatibility | 12J1B; 22J3B; 23J6G; 2J1B; 22J5B |
| Chip Breaker | Common |
| UNSPSC Code | 23291601 |
| Material Application | Stainless Steel; Superalloys & Titanium; Steel |
| Insert Holding Method | Screw |
| Coating Classification | PVD |
| Single or Double Sided Insert | Single |
| Included Angle Degree | 85 |
| Width (Decimal Inch - 4 Decimals) | 0.3750 |
| Multi-Use Tool | Yes |
| Length (Decimal Inch - 4 Decimals) | 0.6360 |
| MSC Number | MSC# 36852770 |
